Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

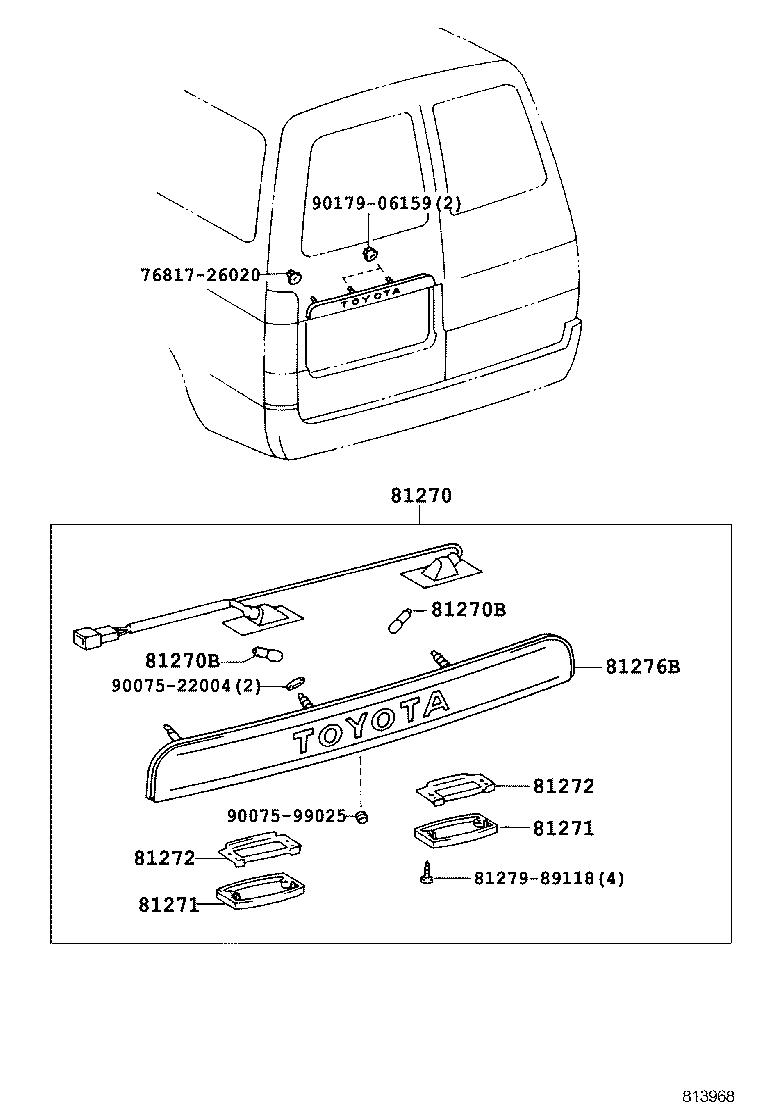

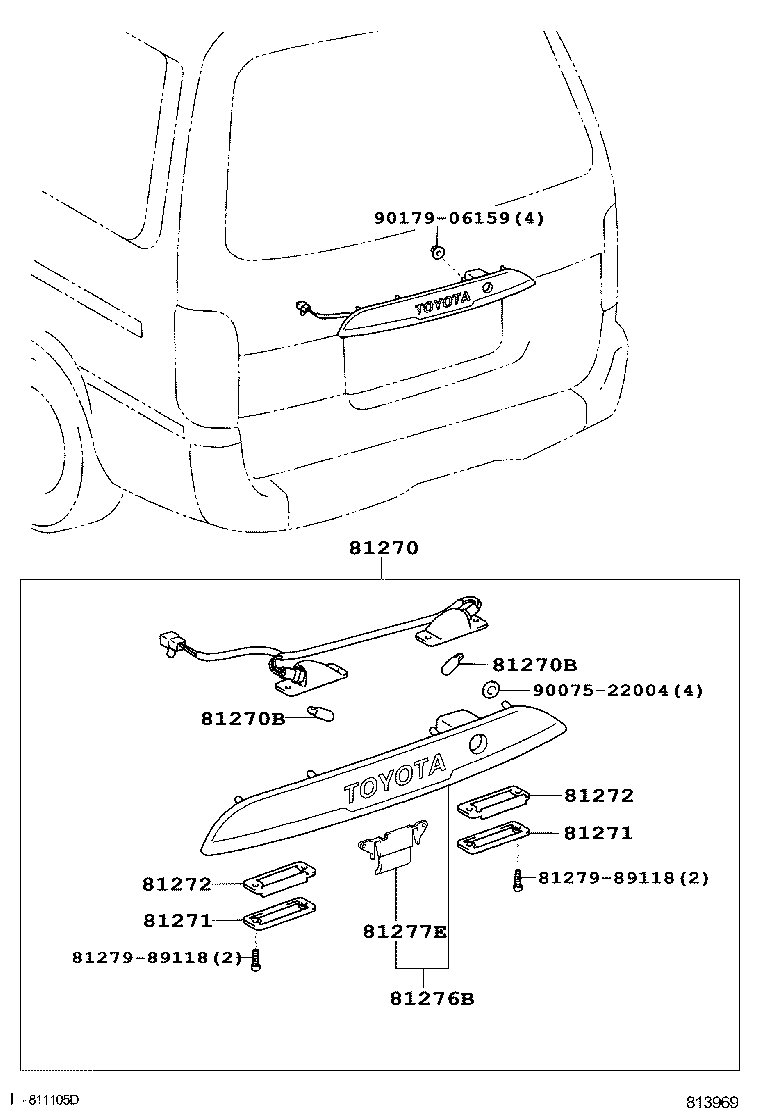

Rear License Plate Lamp
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81276B | Cover, License Plate Lamp |
| 81277E | Handle, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
