Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

8 part groups · 9 illustrations

Illustrations

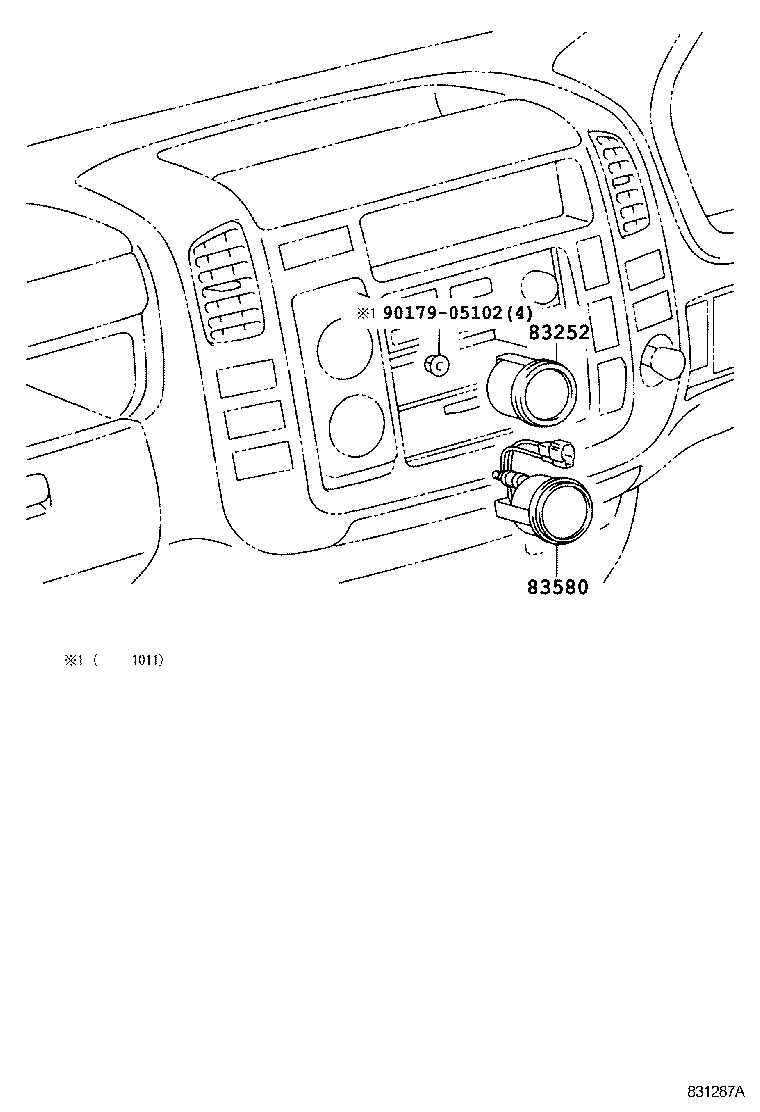

Figure 831288 831288 2006-10 → — Figure 831286B 831286B 2006-10 → — Figure 831287A 831287A 2006-10 → — Figure 831281B 831281B 2006-10 → — Figure 831282 831282 2006-10 → — Figure 831283A 831283A 2006-10 → — Figure 831284 831284 2006-10 → — Figure 831337 831337 2007-05 → — Figure 831285A 831285A 2006-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83205 Bracket, Sub-assy, Tachograph
83210 Tachograph Assy
83252 Meter, Hour
83580 Gage Assy, Oil Temperature Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
