Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

169 part groups · 18 illustrations

Illustrations

Part groups

PNC	Description

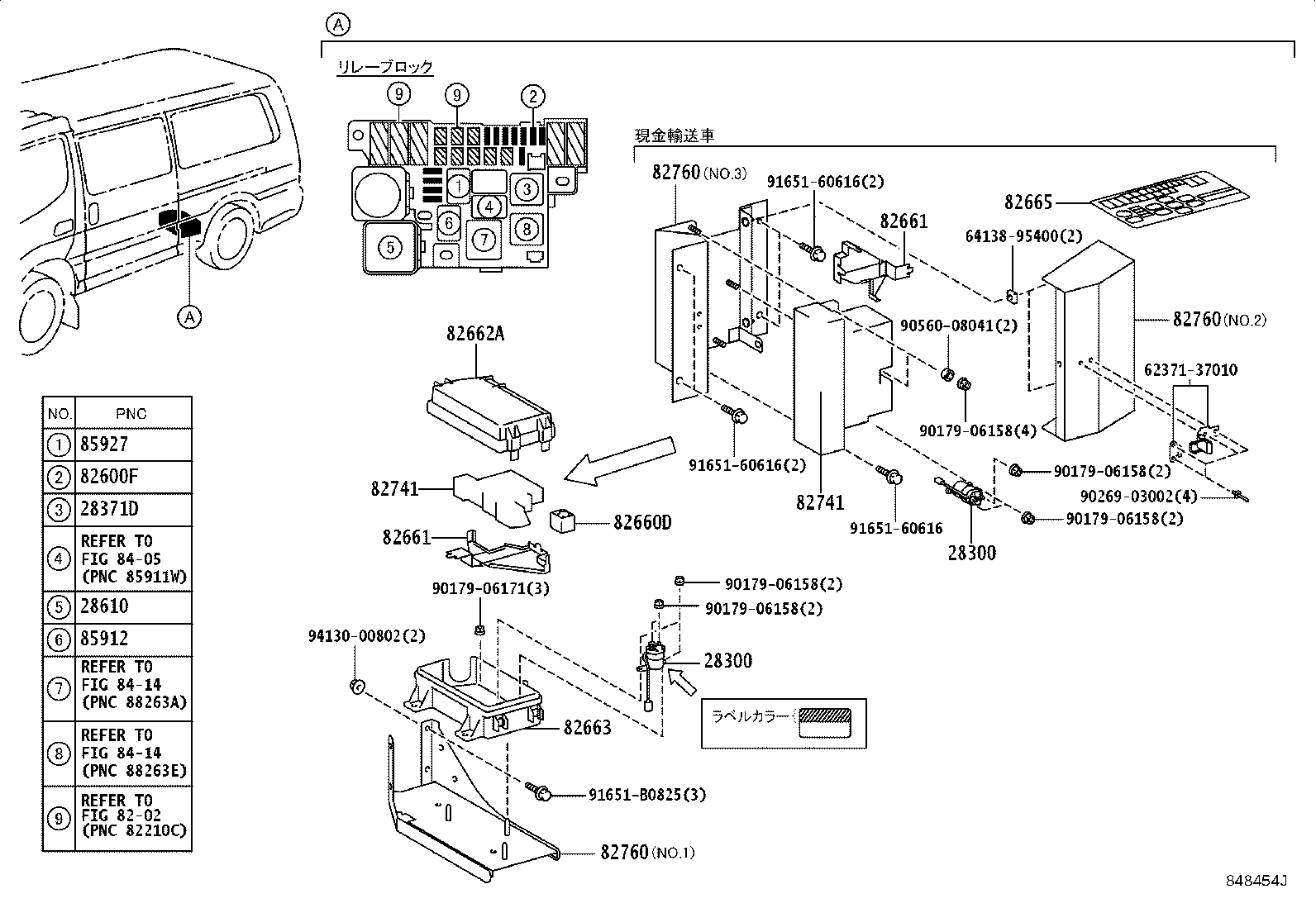

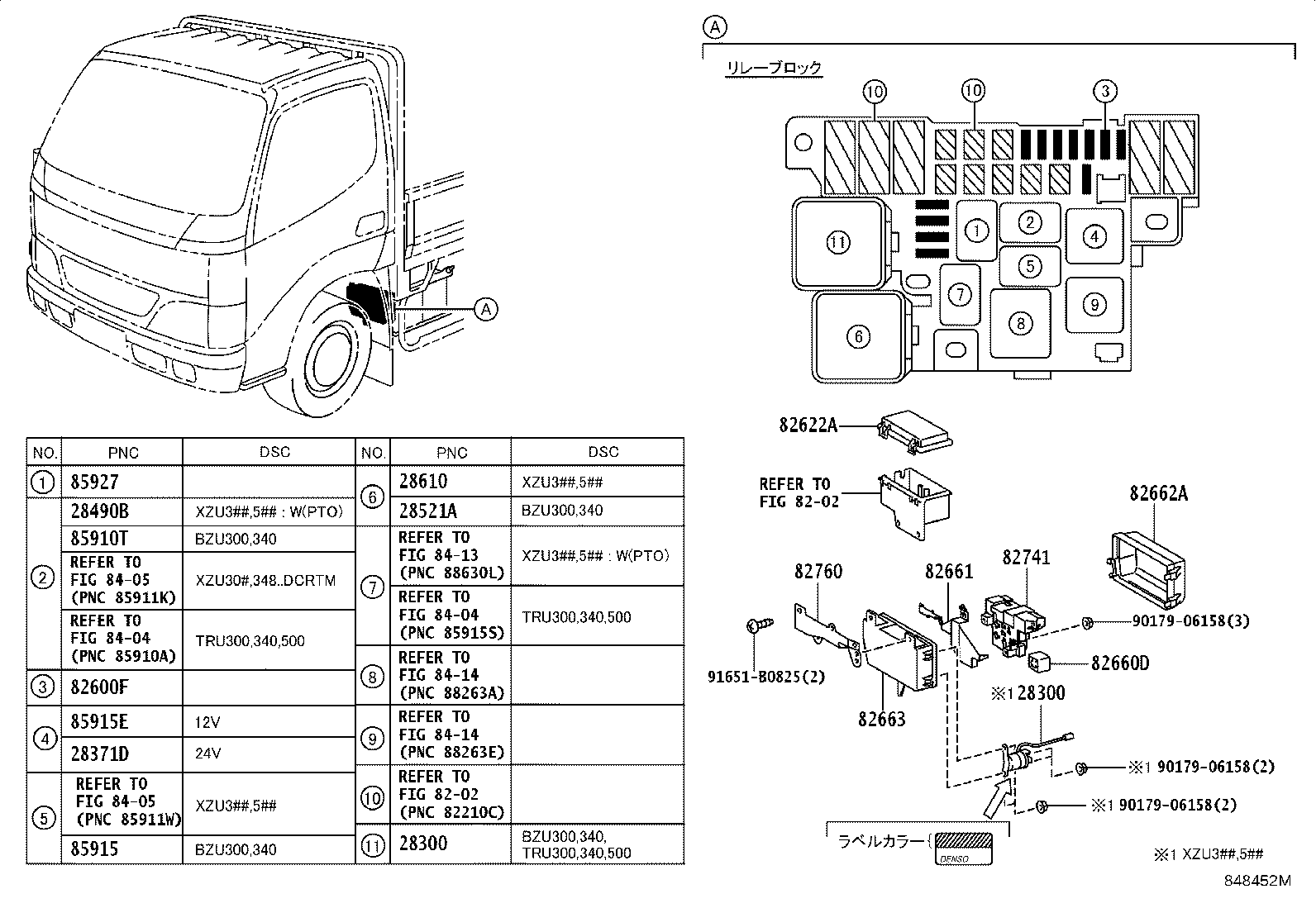

28300	Relay Assy, Starter
28371C	Relay, Ignition, NO.2
28371D	Relay, Ignition, NO.3
28371F	Relay, Ignition, NO.5
28490A	Relay Assy, Exhaust Retarder
28490B	Relay, Power Take-off Signal Reverse
28521A	Relay, Lpg Preheater Cut
28610	Relay Assy, Intake Heater OR Glow Plug
55173A	Bracket
81935B	Cord Assy, Oil Pan Heater
81980	Flasher Assy, Turn Signal
82412B	Wire, Fuel Gage
82600F	Fuse, Fuse Block
82600G	Plate, Caution(FOR FUSE)
82622A	Cover, Fusible Link, Upper, NO.2

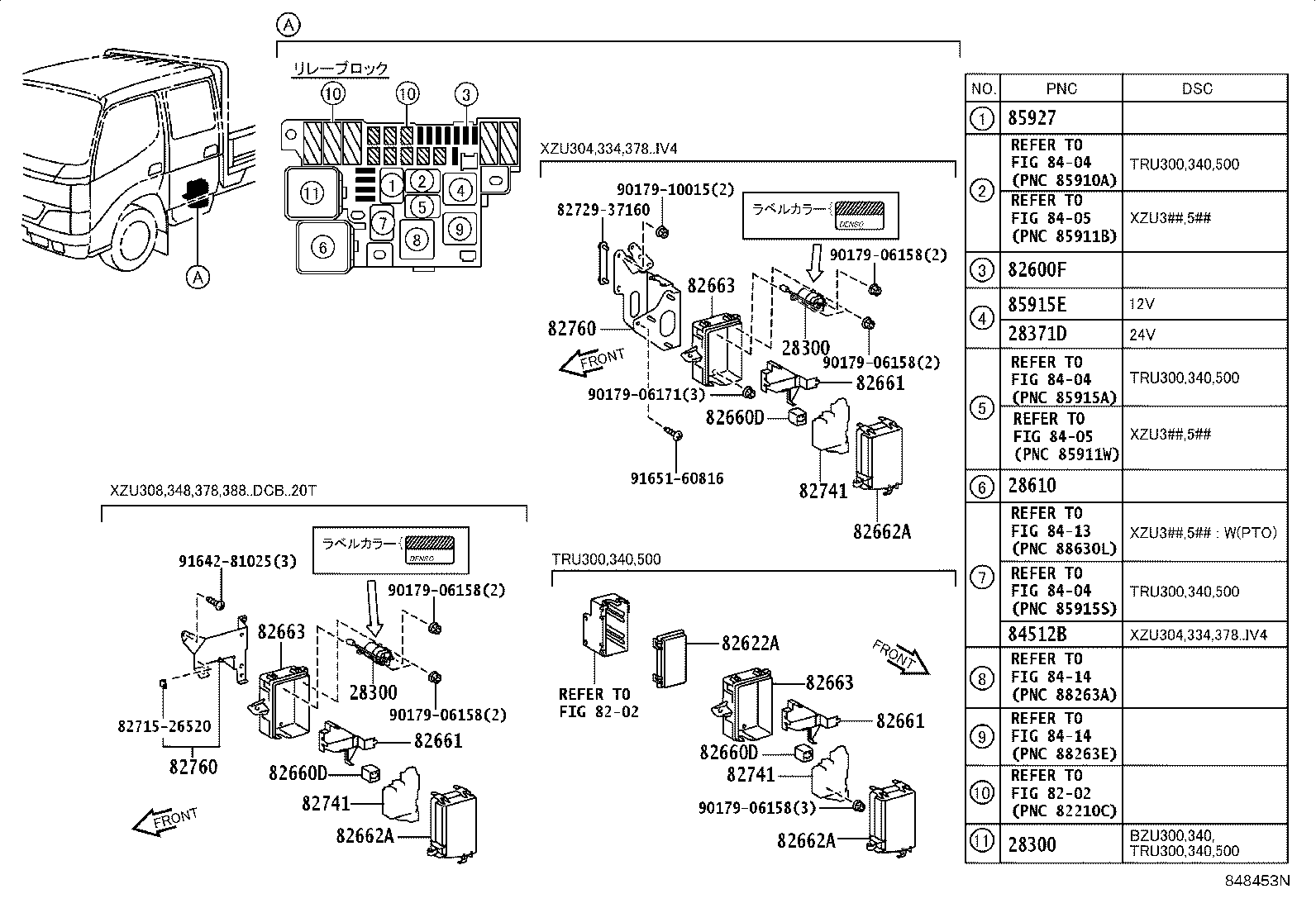

82660A	Block Assy, Relay, Cowl Side
82660D	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82665	Label, Relay Block
82741	Block, Engine Room Relay
82760	Bracket Assy, Relay Block

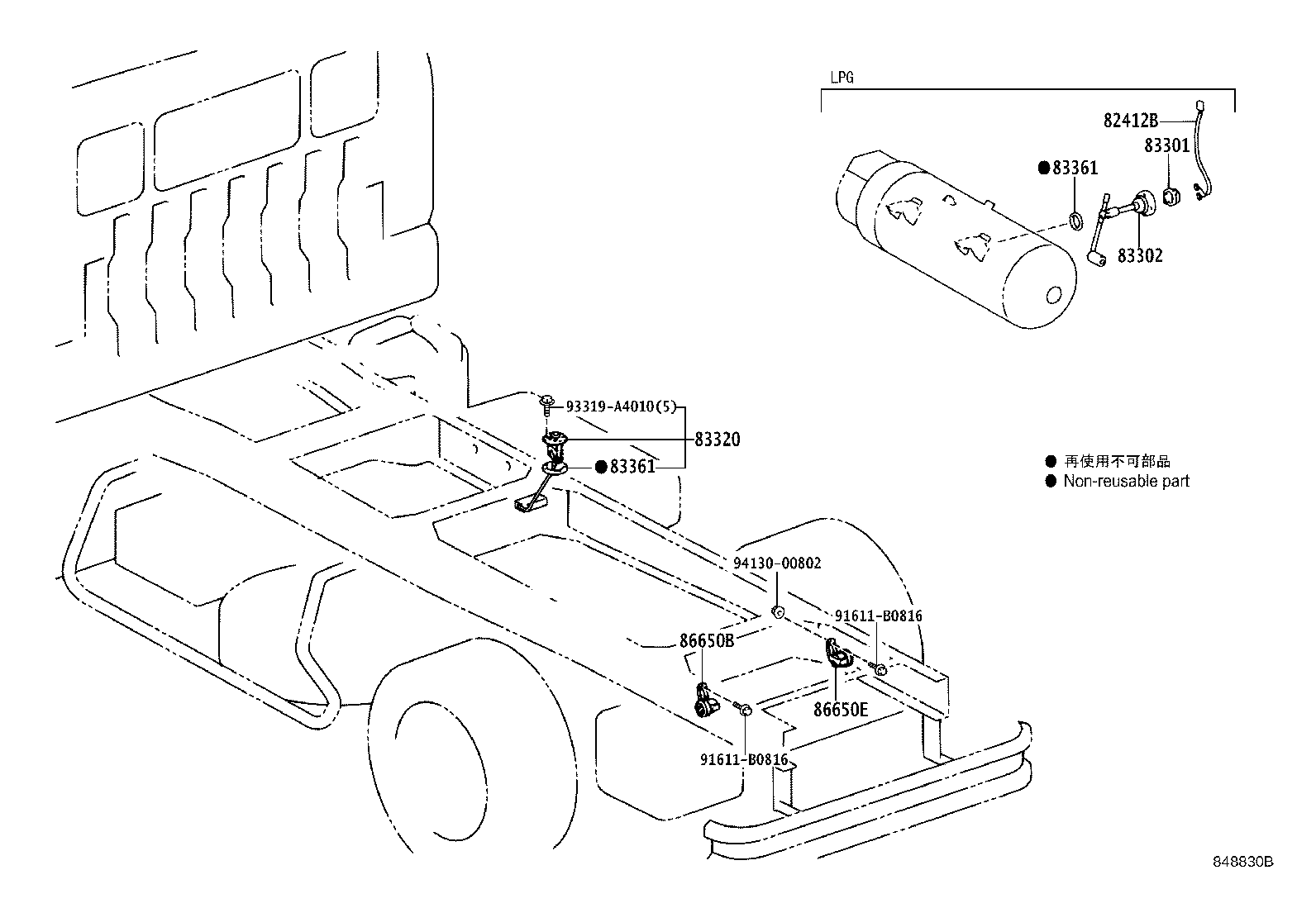

83301	Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302	Body Sub-assy, Fuel Sender Gage
83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83380	Switch Assy, Presure
83380A	Switch Assy, Pressure
83380B	Switch Assy, Pressure, NO.1
83380C	Switch Assy, Pressure, NO.2
83380D	Switch Assy, Pressure, NO.3
83380E	Switch Assy, Pressure, NO.6
83380F	Switch Assy, Pressure, NO.7
83380G	Switch Assy, Pressure, NO.8
83390	Switch Assy, Vacuum Warning
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
83970B	Buzzer Assy, Reverse Warning

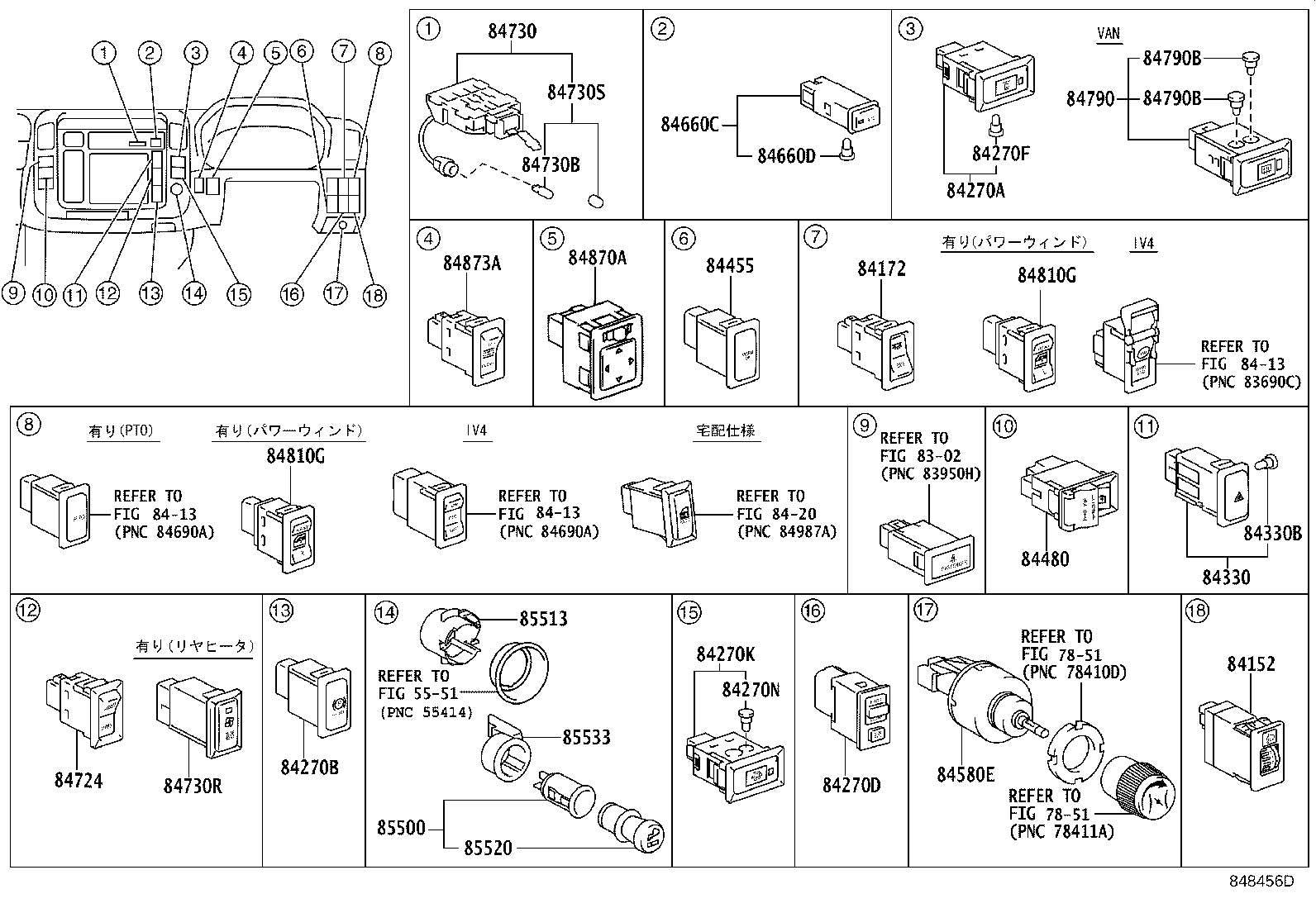

84110	Switch Assy, Light Control, NO.1
84113A	Bracket, Switch, NO.1
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84172	Switch, Room Lamp
84210	Switch Assy, Back-up Lamp
84222	Switch, Transfer Indicator, NO.1
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235	Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84238A	Striker, Courtesy Lamp Switch
84261B	Junction, Slide Door Control,Male
84262B	Junction, Slide Door Control, Female
84270A	Switch Assy, Mirror Heater
84270B	Switch Assy, Brake Lock
84270D	Switch Assy, ES Start Timing
84270F	Bulb, Mirror Heater Switch Assy
84270K	Switch Assy, Dpr
84270N	Bulb, Dpr Swich Assy
84290	Switch Assy, Limit
84290E	Switch Assy, Limit
84306	Cable Sub-assy, Spiral

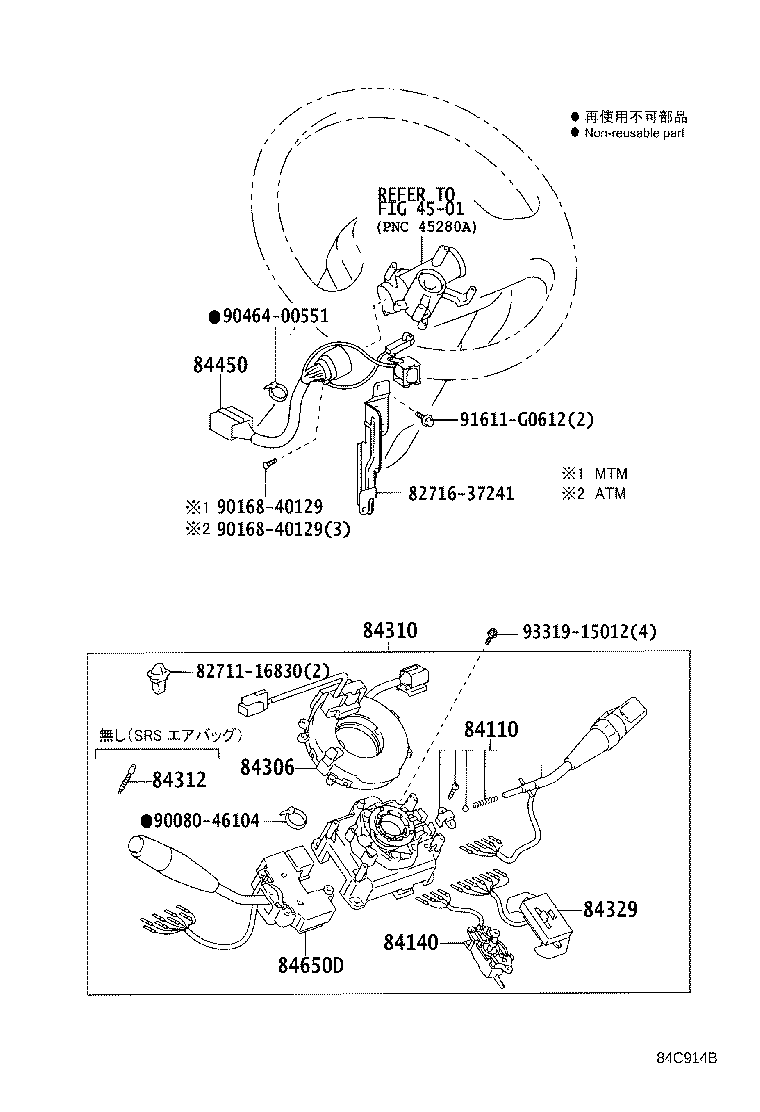

84310	Switch Assy, Turn Signal
84312	Plate, Horn Contact
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84455	Switch, Warm UP
84480	Switch Assy, Main

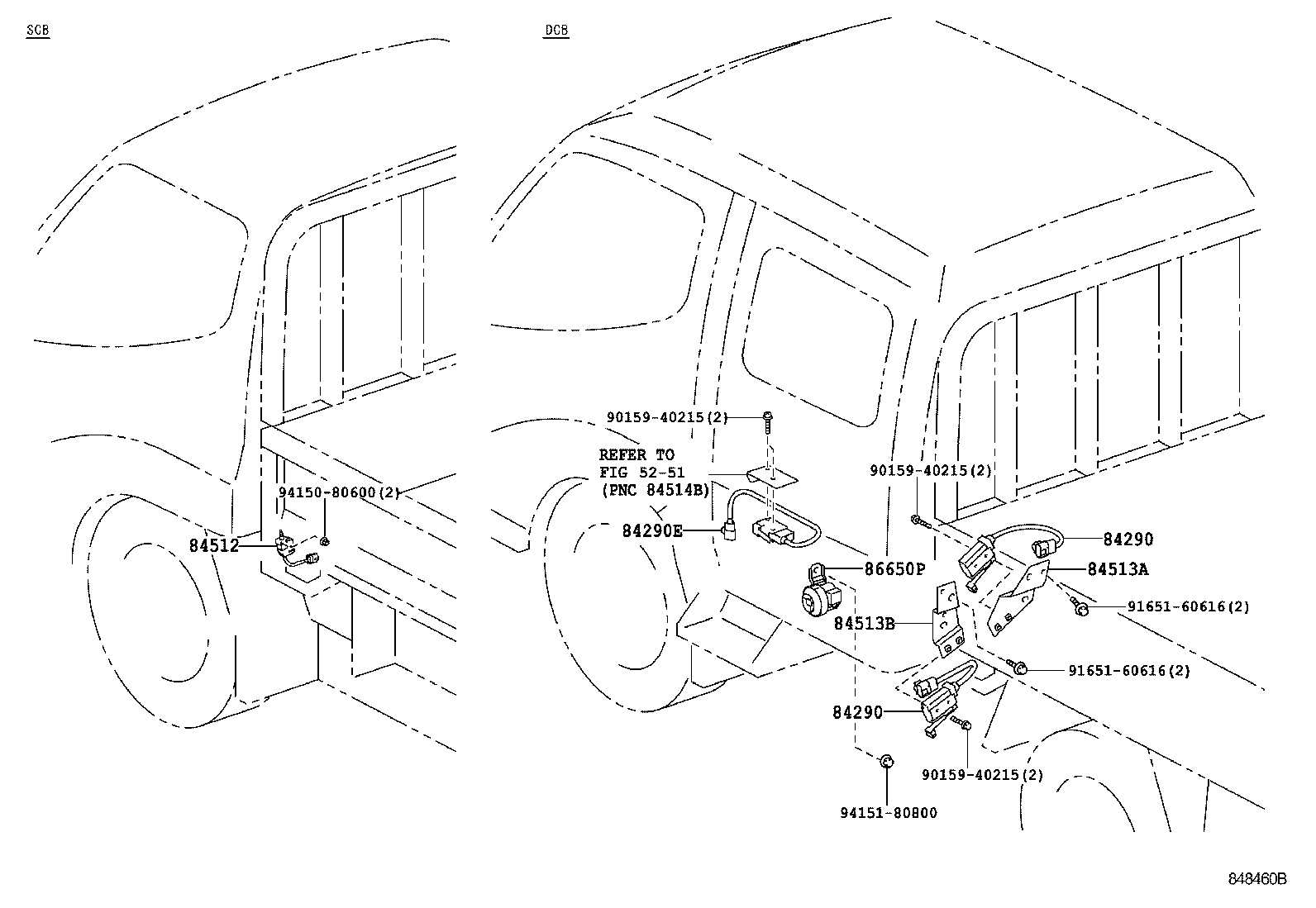

84512	Switch, Tilt Cab Control
84512B	Relay, Tilt Cab Control
84513A	Bracket, Tilt Cab Starter Switch
84513B	Bracket, Tilt Cab Starter Switch
84520A	Relay, Clutch Start IG
84520B	Relay, Clutch Start
84520C	Relay, Neutral Signal Reverse

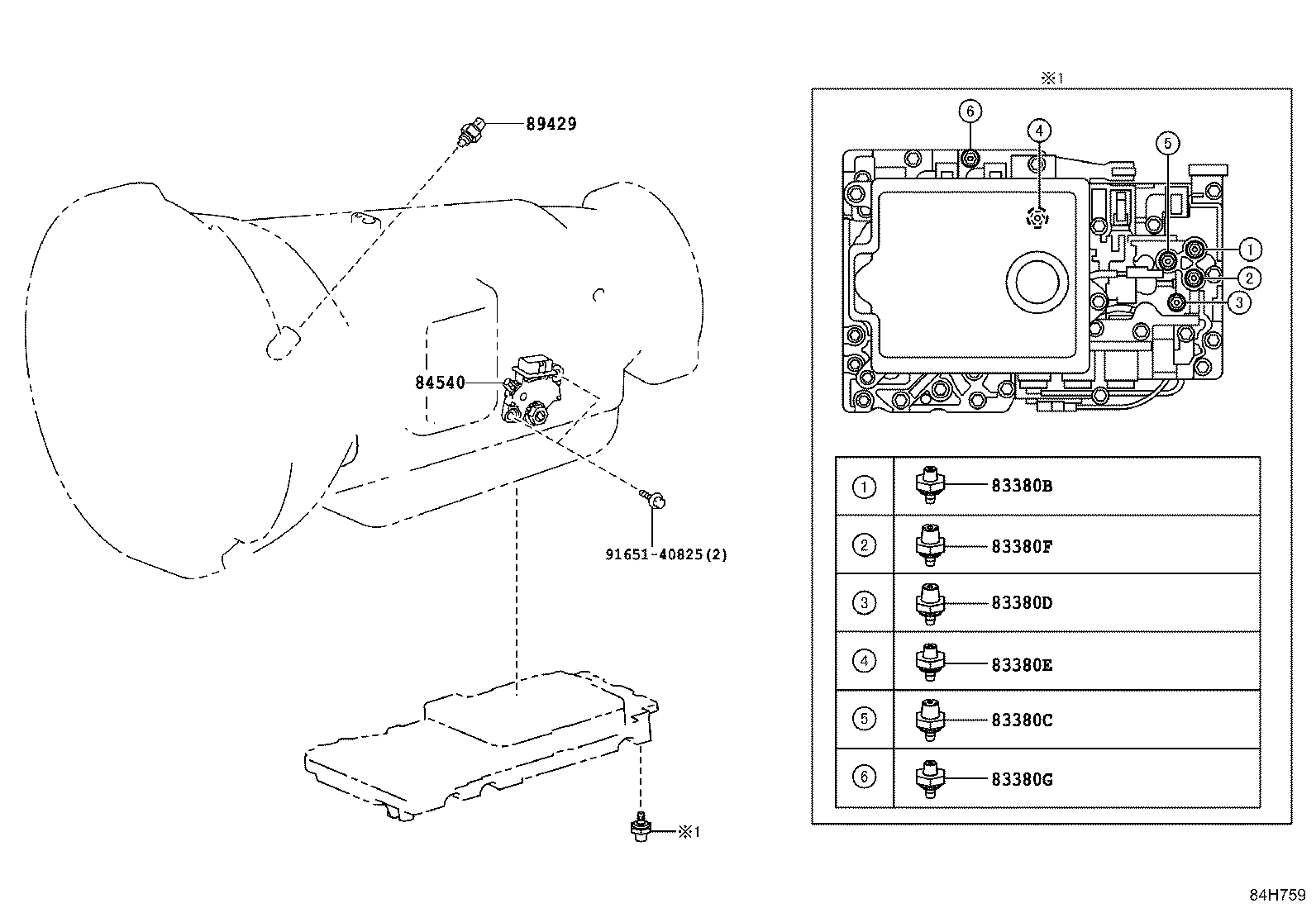

84540	Switch Assy, Neutral Start
84540C	Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550	Switch Assy, Parking Brake
84580E	Switch Assy, Throttle Position
84640C	Switch Assy, Exhaust Retarder
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A	Bezel, Switch
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84724	Switch, 4 Wheel Drive Control
84730	Switch Assy, Heater Blower
84730B	Bulb, Heater Blower Switch
84730R	Switch Assy, Heater Blower
84730S	Bulb, Heater Blower Switch
84731R	Knob, Rear Heater Blower Switch
84732A	Switch, Rear Heater Blower
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)

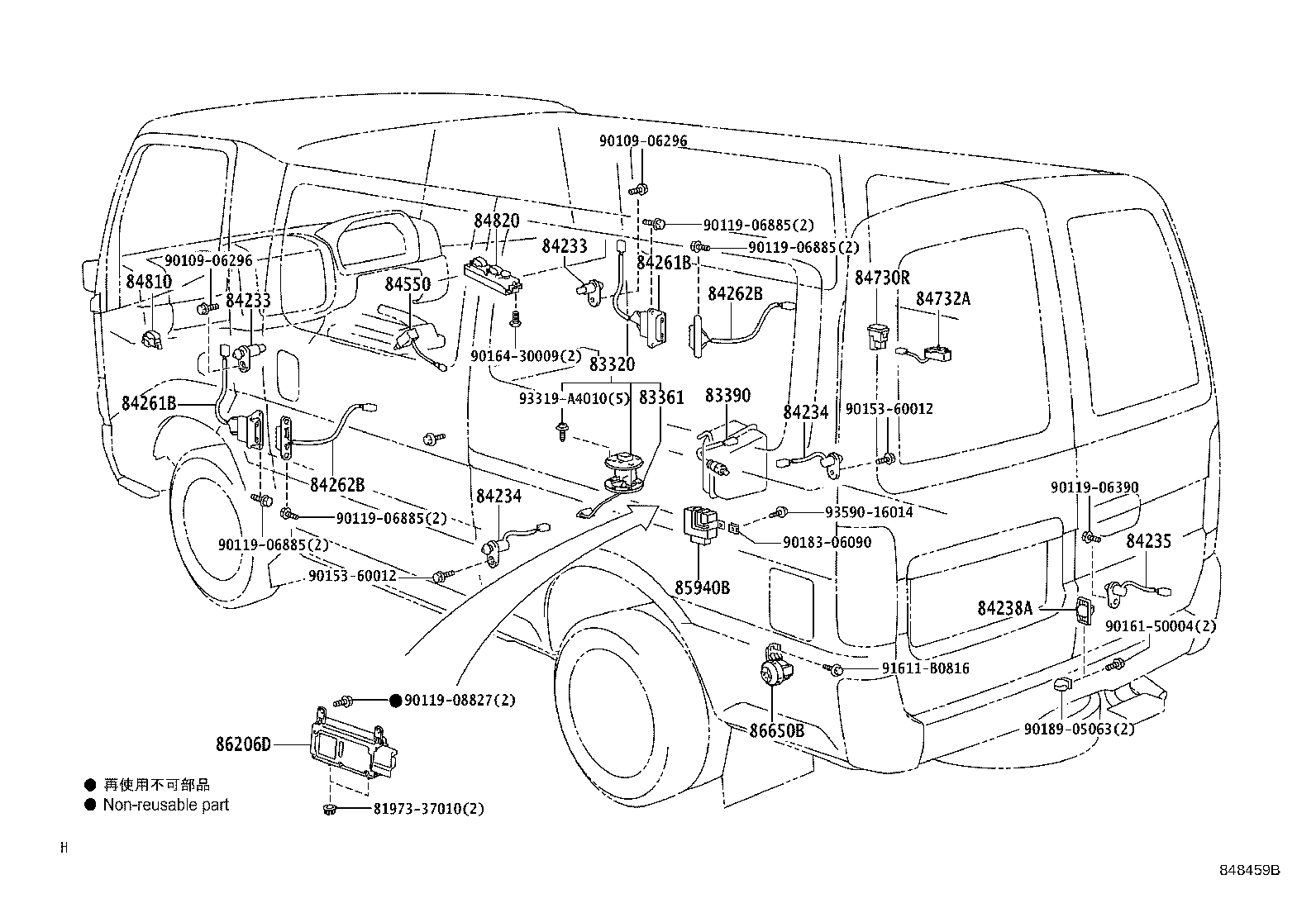

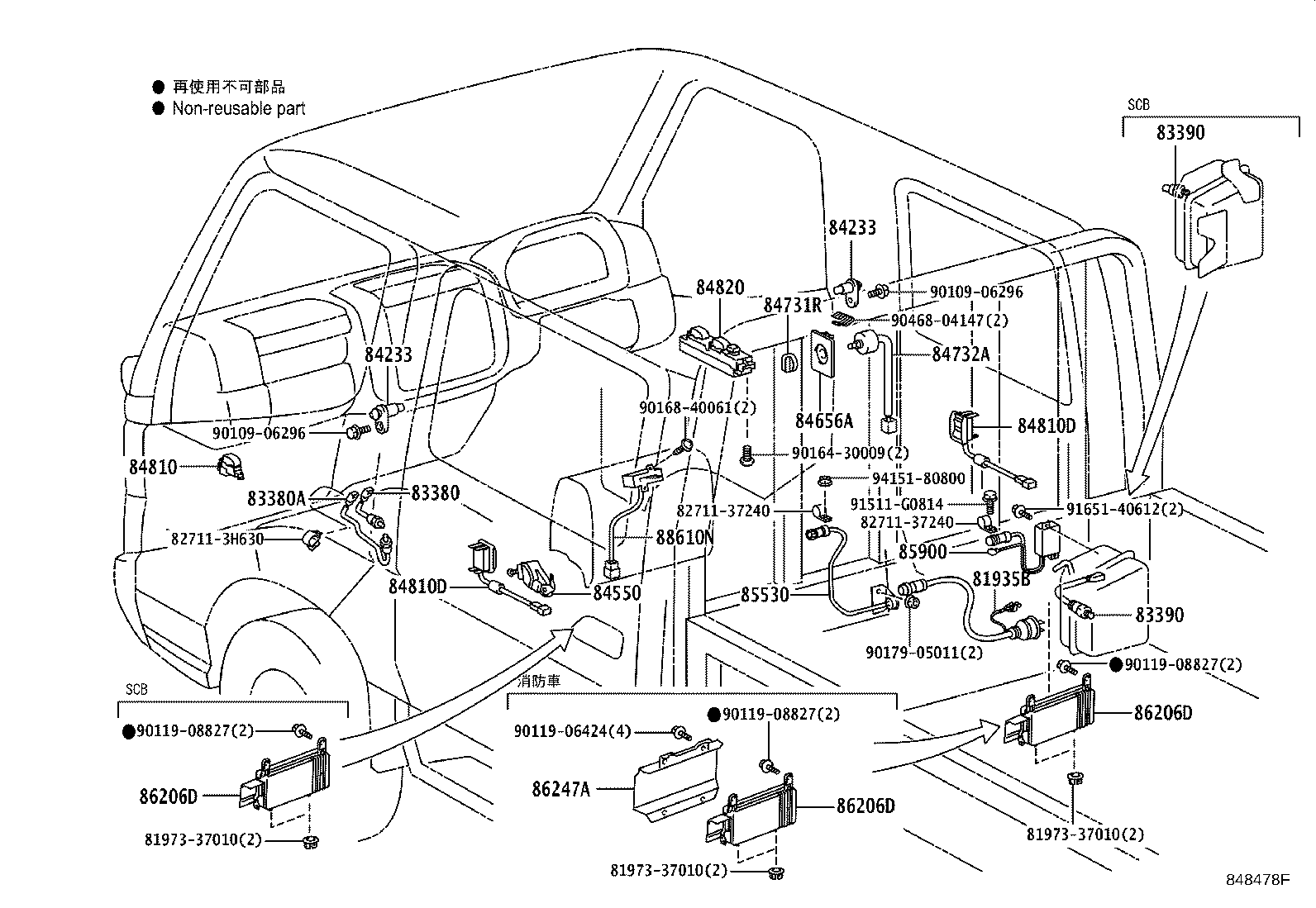

84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84810G	Switch Assy, Power Window Regulator, Rear NO.2
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84873A	Switch, Retractable Outer Mirror
85500	Lighter Assy, Cigarette
85513	Cover, Cigarette Lighter
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85533	Lens, Cigarette Lighter Indicator

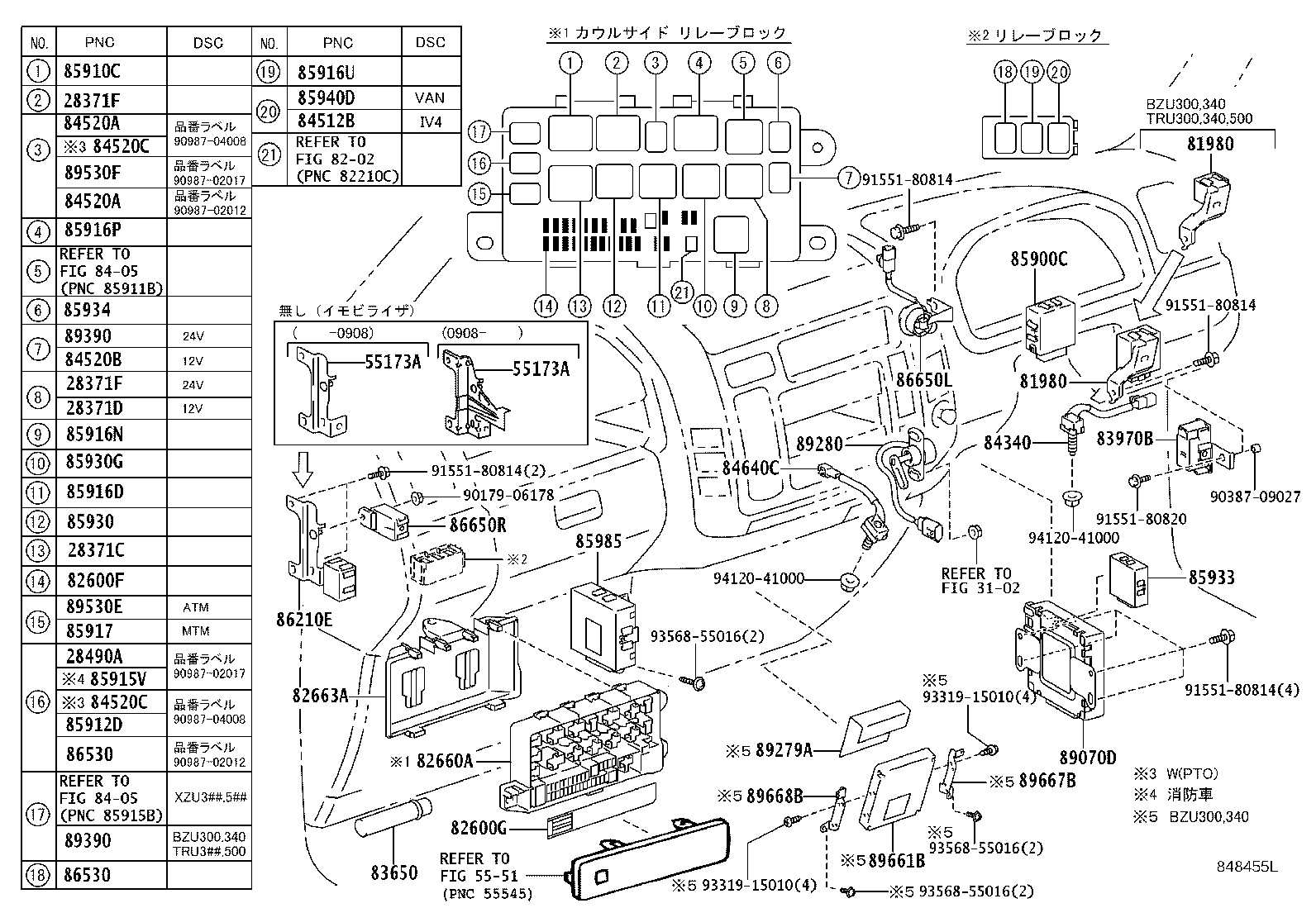

85900	Relay Assy, Control Unit
85900C	Relay Assy, Control Unit (FOR BRAKE LOCK)
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85910T	Relay, Lpg
85912	Relay, Defogger
85912D	Relay
85915	Relay, Main
85915E	Relay
85915V	Relay, Fire, NO.2
85916D	Relay, Fog Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85916U	Relay, Headlamp, NO.2
85917	Relay, Front Drive
85927	Relay, Cooling Fan
85930	Relay Assy, Power Window
85930G	Relay, Acc
85933	Computer, Shift Lock Control
85934	Relay, Magnet-clutch
85940B	Relay Assy, Rear Wiper
85940D	Relay Assy, Windshield Wiper, NO.2
85985	Relay, Key Reminder
86206D	Converter Sub-assy, Voltage
86210E	Converter Assy, Voltage
86247A	Bracket, Voltage Inverter
86530	Relay Assy, Horn
86650B	Buzzer Assy, Reverse Warning
86650E	Buzzer Assy
86650L	Buzzer Assy, Vacuum Warning
86650P	Buzzer Assy, Tilt Warning
86650R	Buzzer Assy, ES Start
87190F	Switch Assy, Temperature Control
88610N	Switch Assy, Cooler Control
89070D	Computer Assy, Transmission Control
89279A	Cover, Computer
89280	Sensor Assy, Clutch Pedal Stroke
89390	Relay, Brake Warning
89421B	Sensor, Vacuum

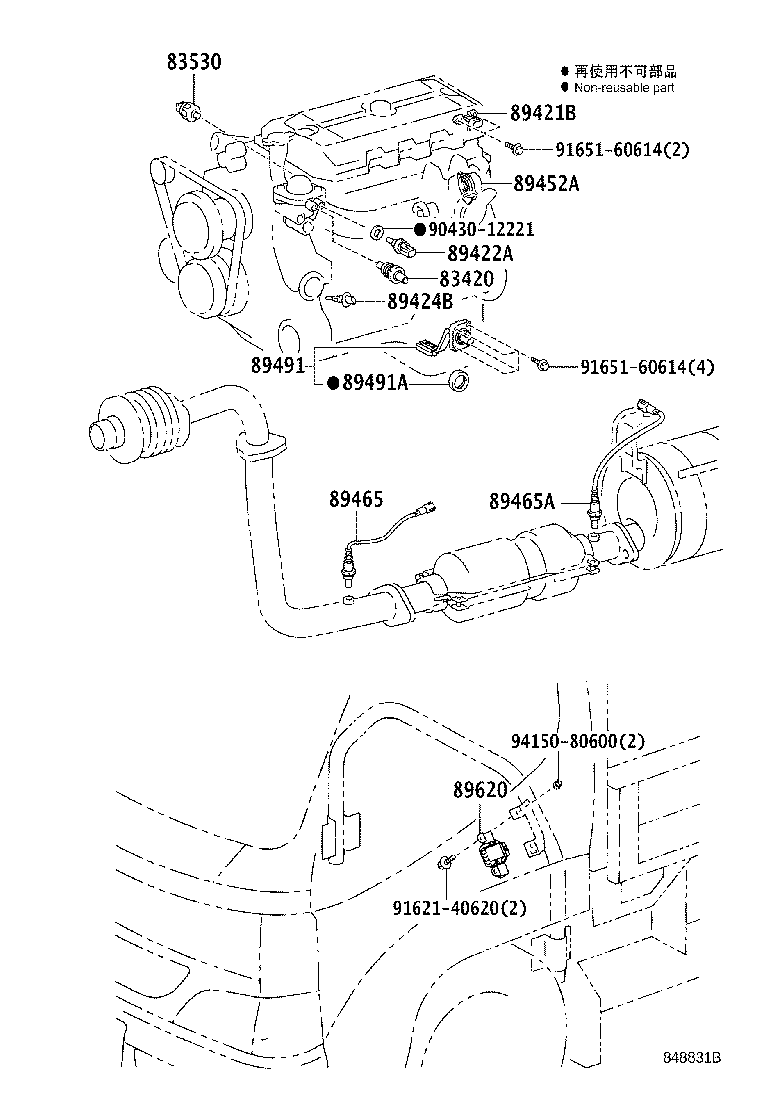

89422A	Sensor, Water Temperature
89424B	Switch, Inlet Air Temperature
89425	Sensor, Exhaust Gas Temperature
89429	Sensor, Oil Temperature
89438	Switch, Power Steering Oil Pressure
89439	Bracket, Sensor
89452A	Sensor, Throttle Position
89458D	Sensor, Fuel Pressure
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467A	Sensor, Wide Range Air Fuel Ratio
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89480A	Sensor Assy, Differential Pressure
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89530E	Relay, Atm Back Lamp
89530F	Relay, Atm P Range
89615	Sensor, Knock Control
89620	Igniter Assy
89661B	Computer, Engine Control
89667B	Bracket, Engine Control Computer, NO.1
89668B	Bracket, Engine Control Computer, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
