Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

8 part groups · 2 illustrations

Illustrations

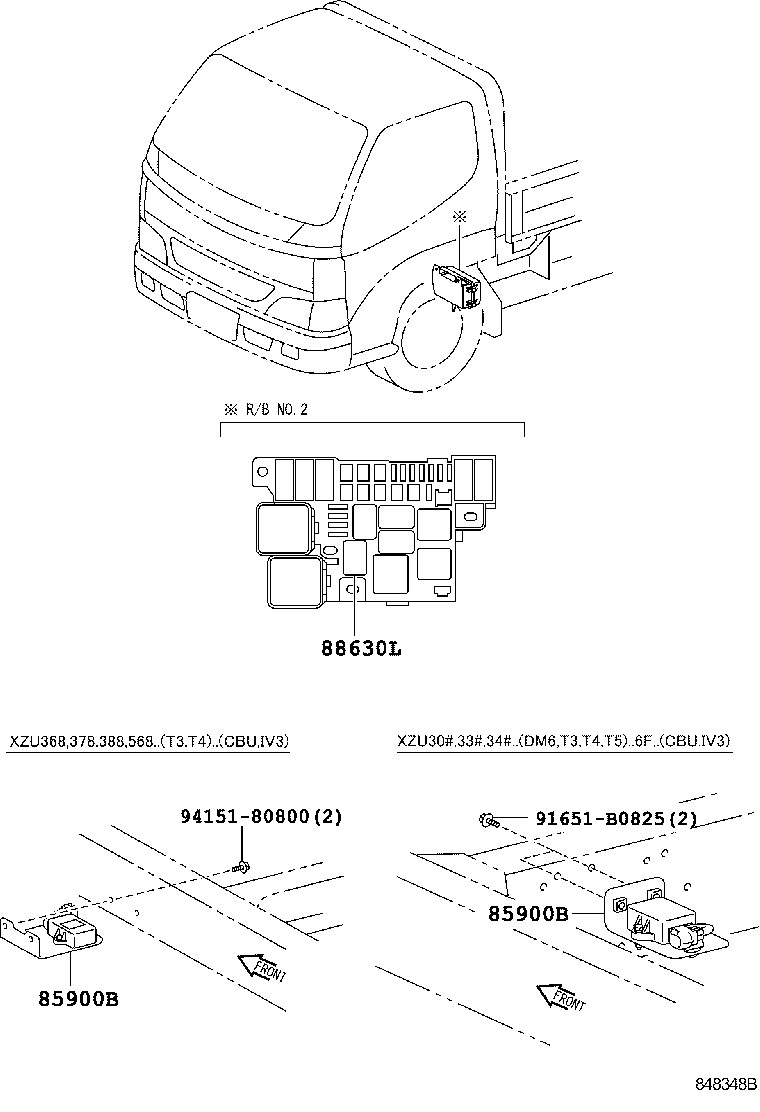

Figure 848326C 848326C 2006-10 → — Figure 848348B 848348B 2006-10 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
84690A Switch Assy, Power Take-off Indicator
84690C Switch Assy, Power Take-off Indicator, NO.2
84690D Bulb, Power Take Off Indicator, NO.2
85900B Relay Assy, Control Unit
86650Q Buzzer Assy, Power Take-off Warning
88630L Relay, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
