Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

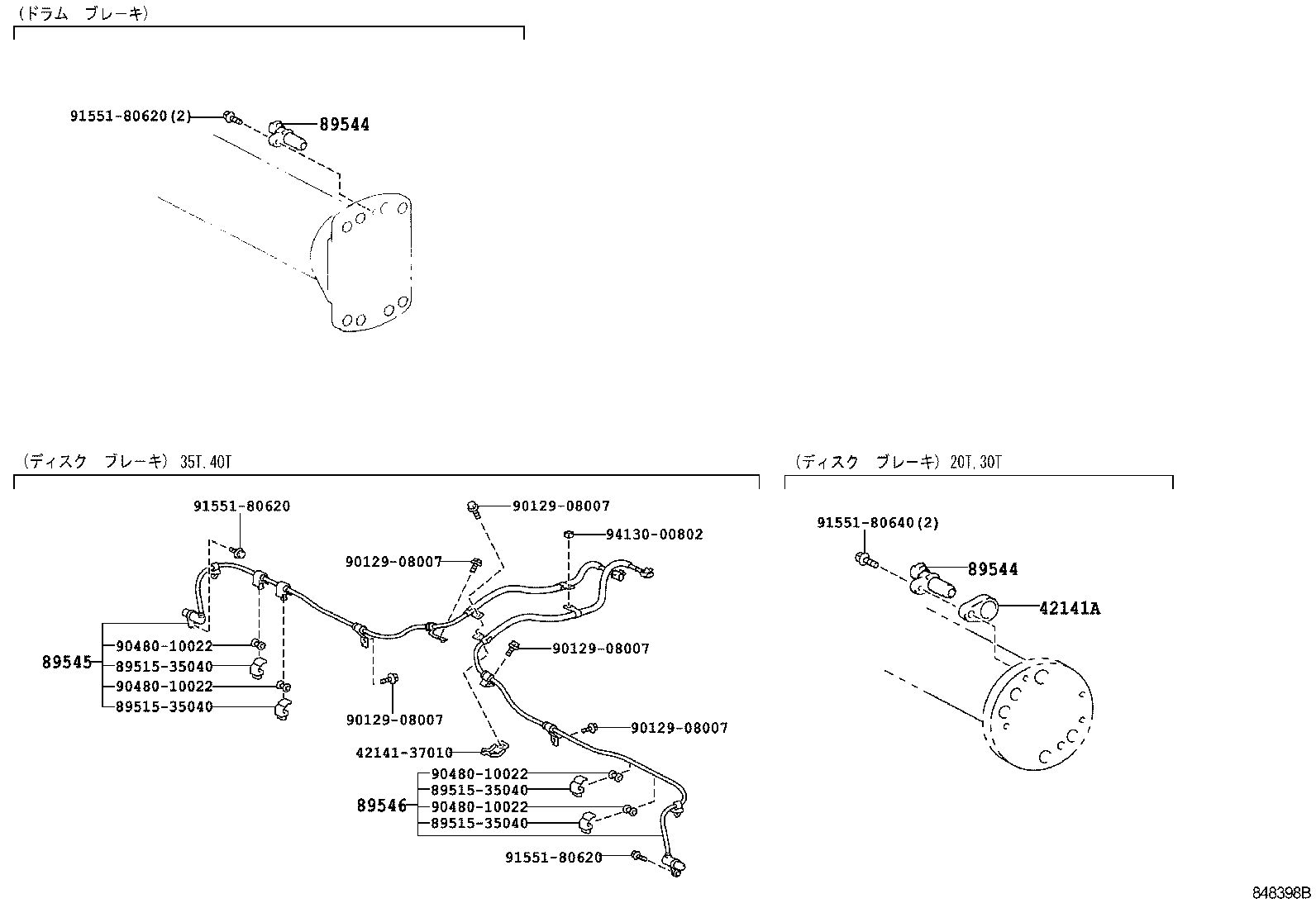

Abs & Vsc
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42141A | Attachment, Skid Control Wire, NO.1 |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89421F | Sensor, Vacuum (FOR SKID CONTROL) |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549 | Bracket, Skid Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
