Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

32 part groups · 14 illustrations

Illustrations

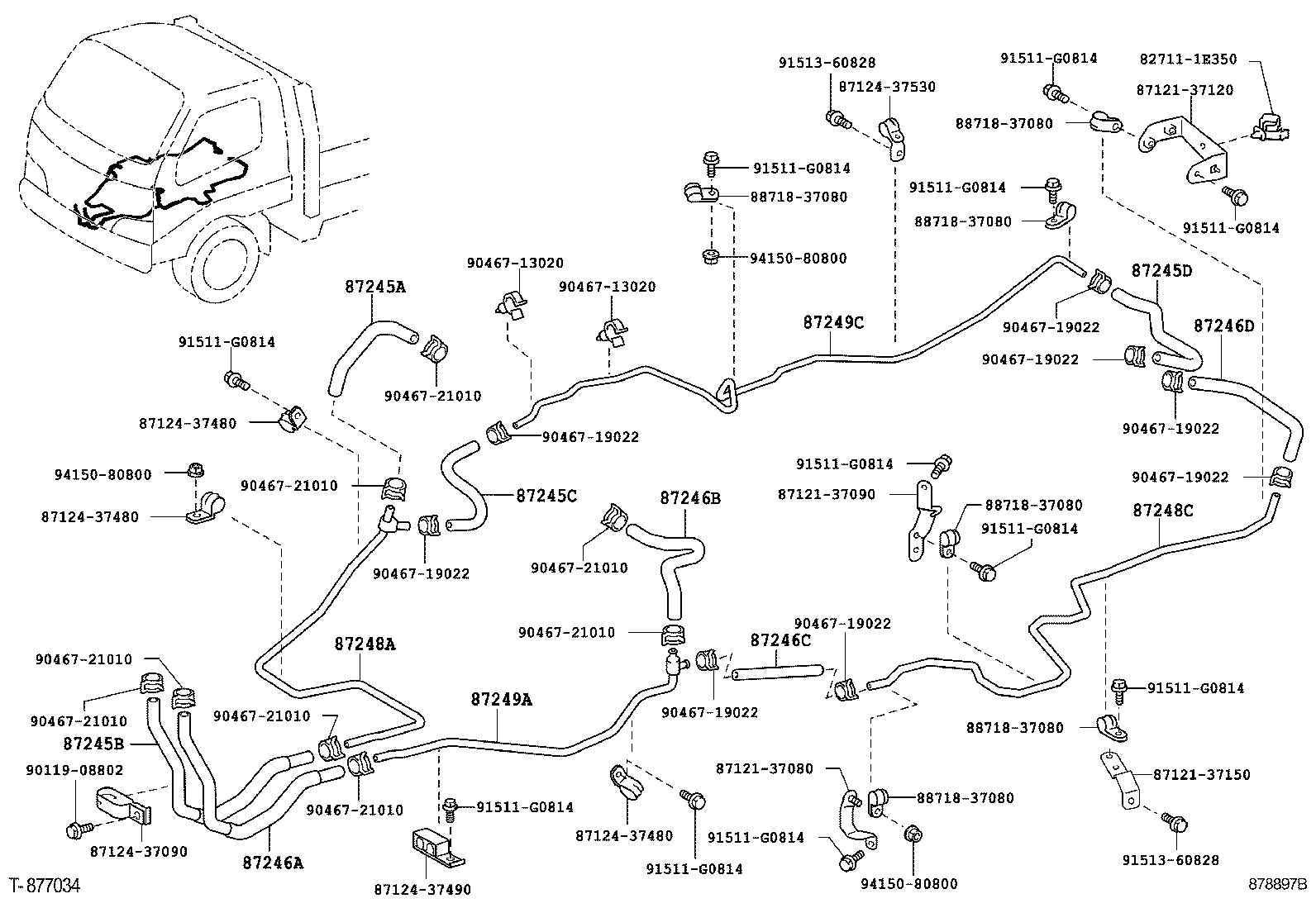

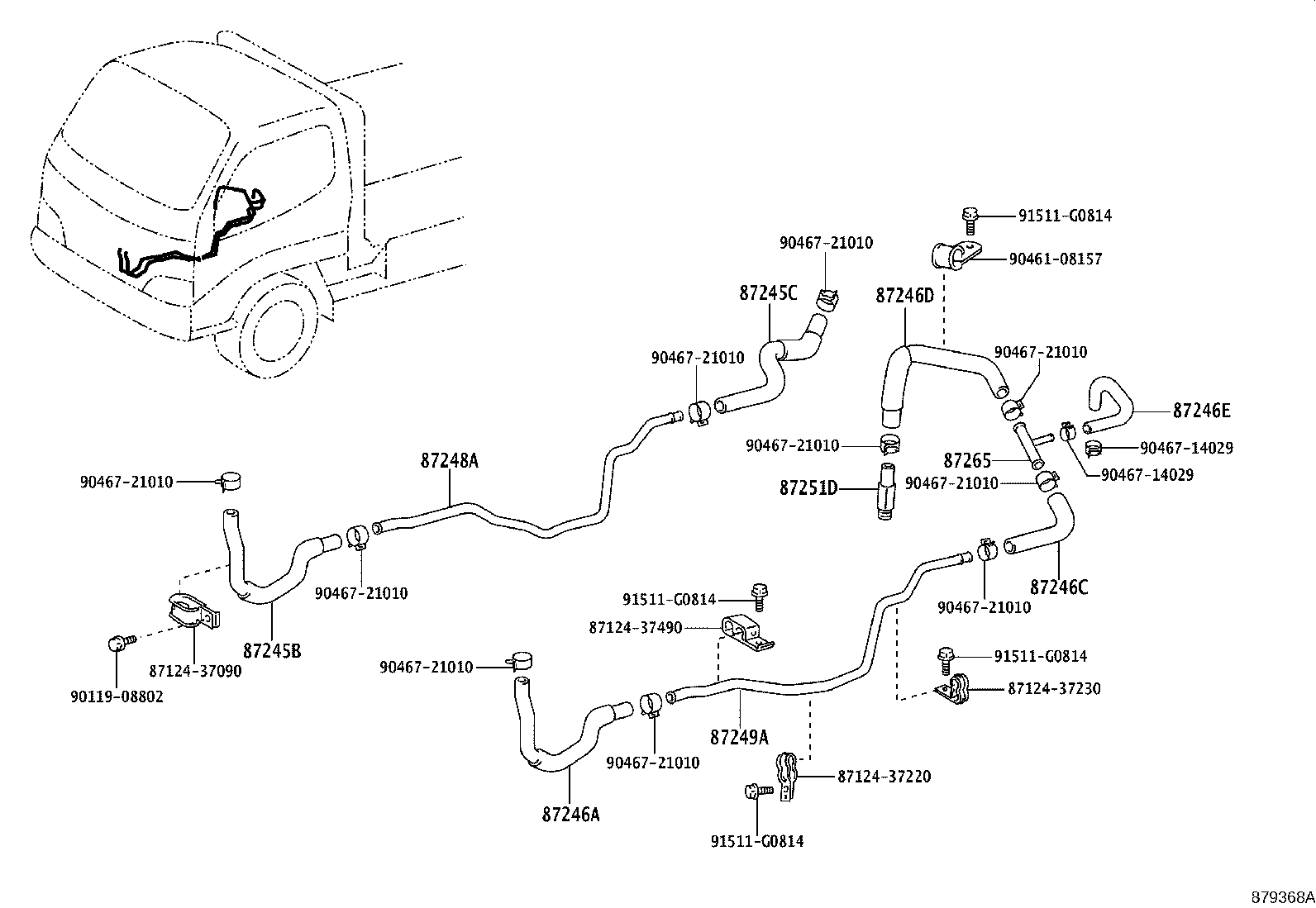

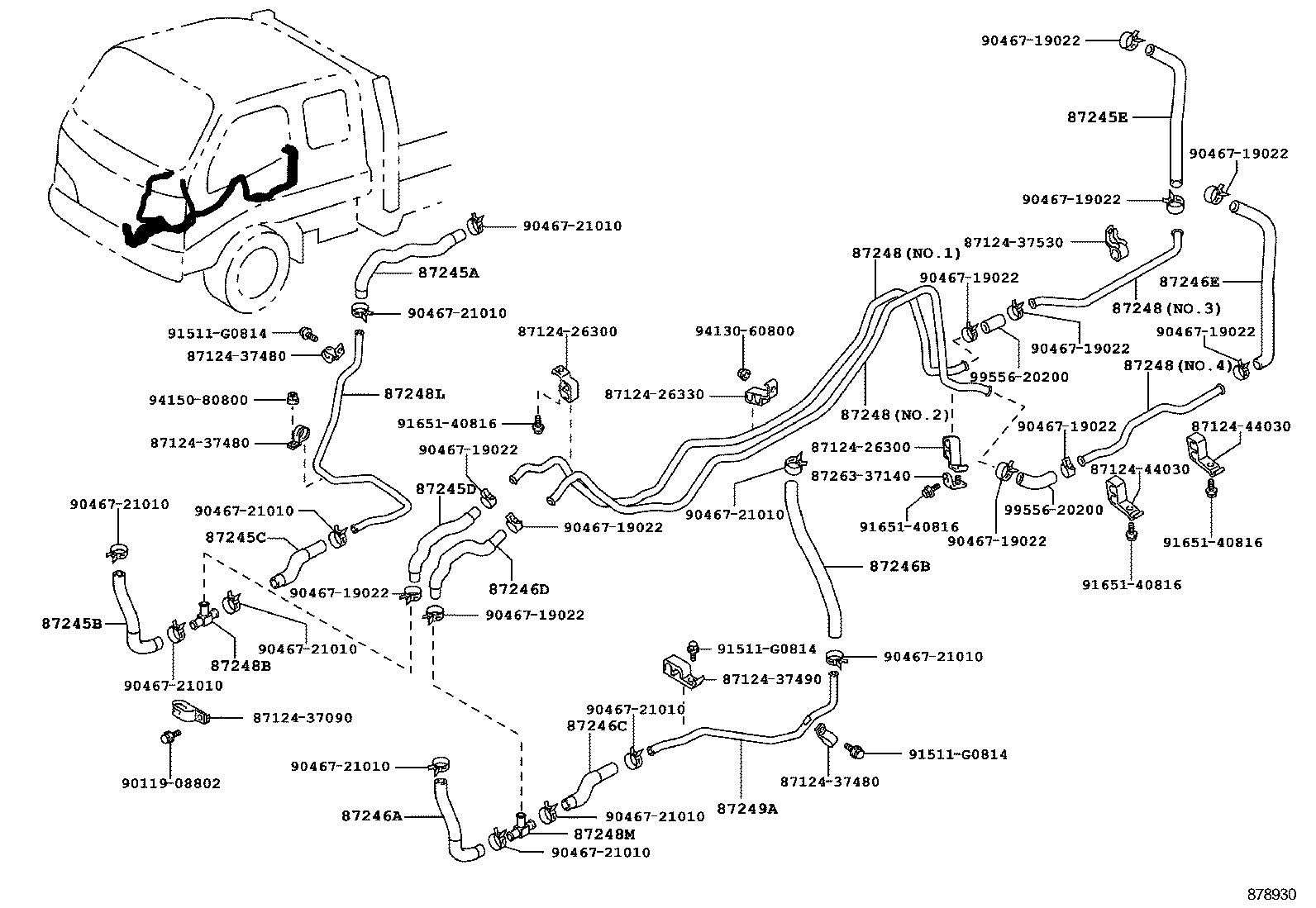

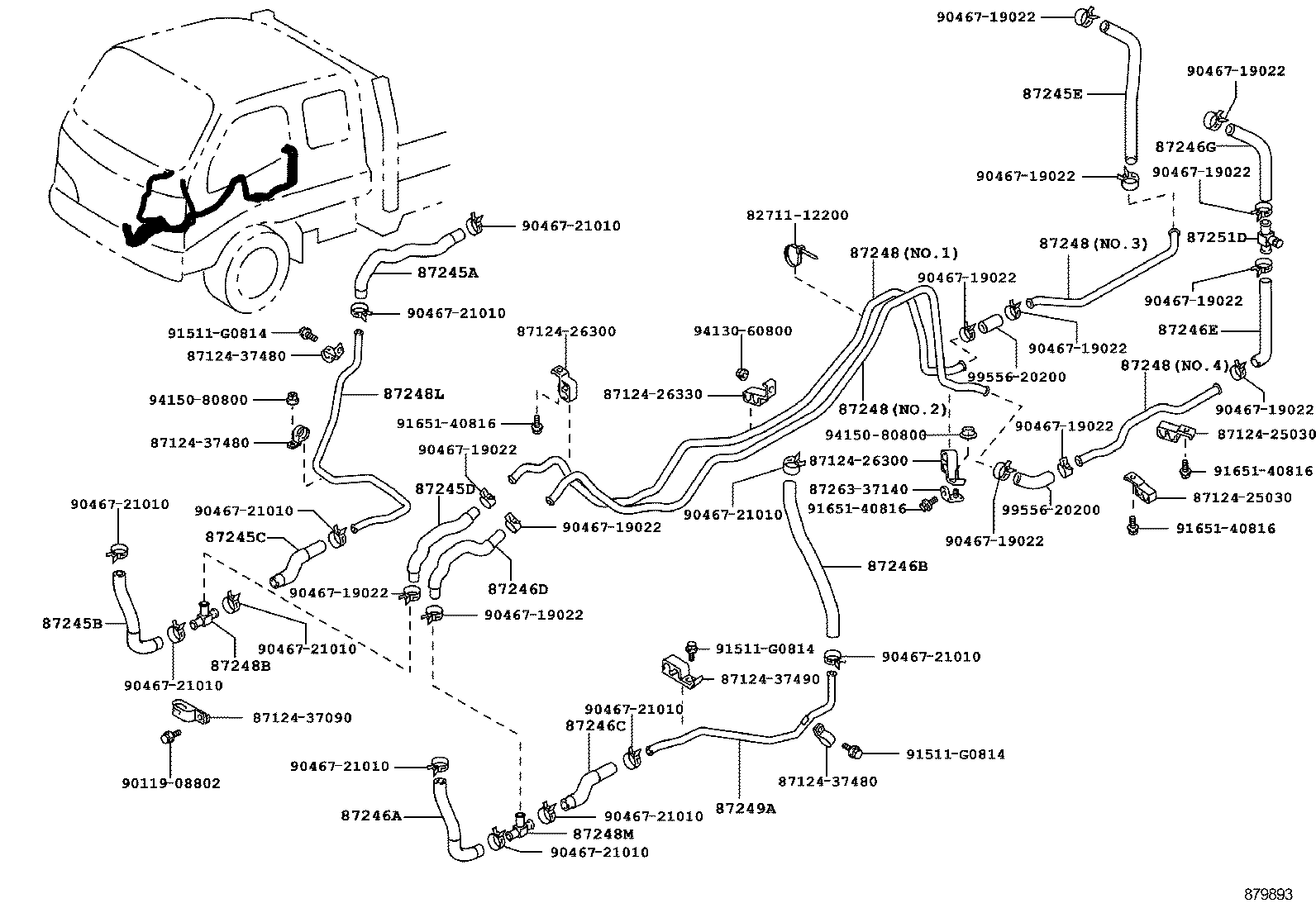

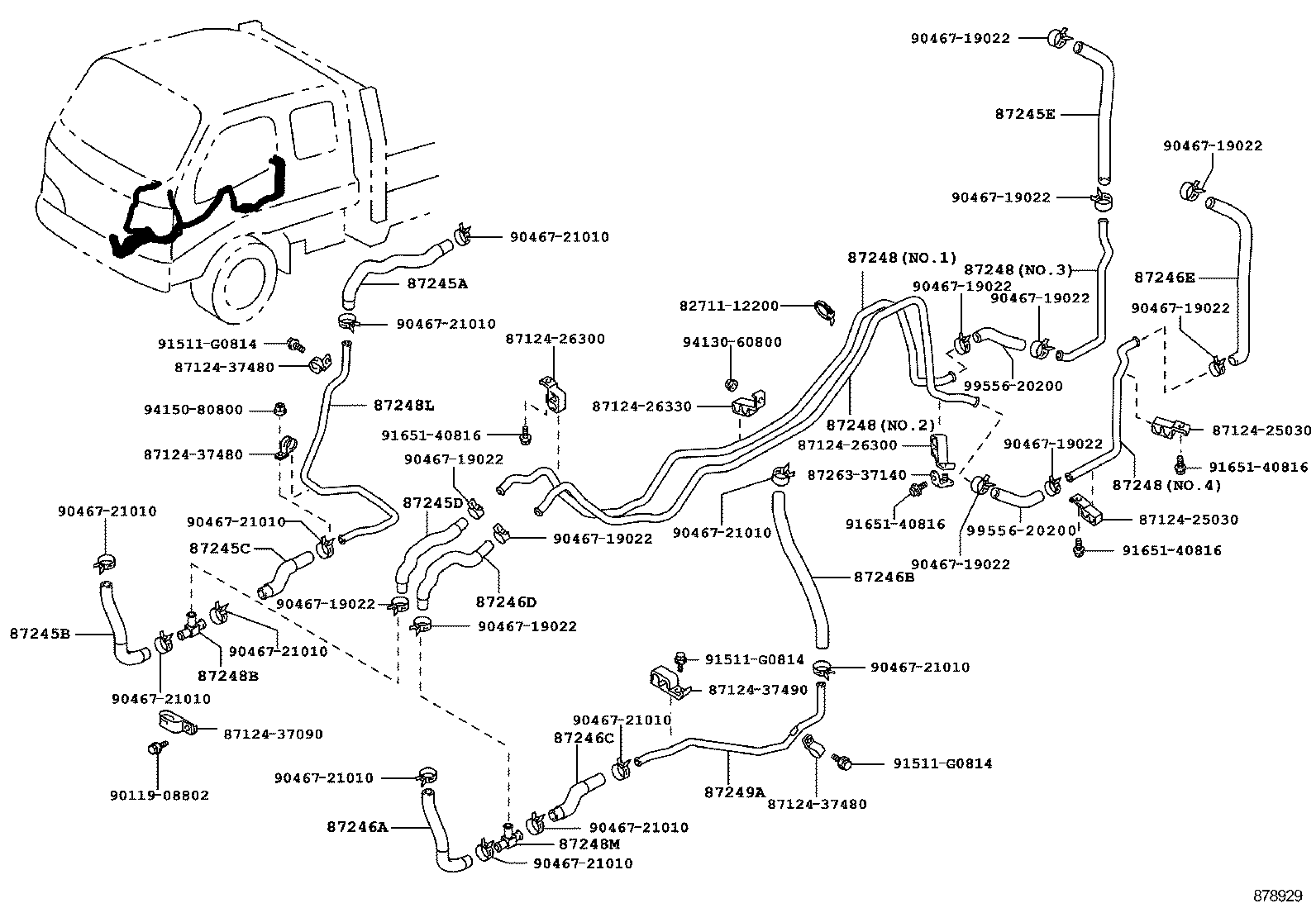

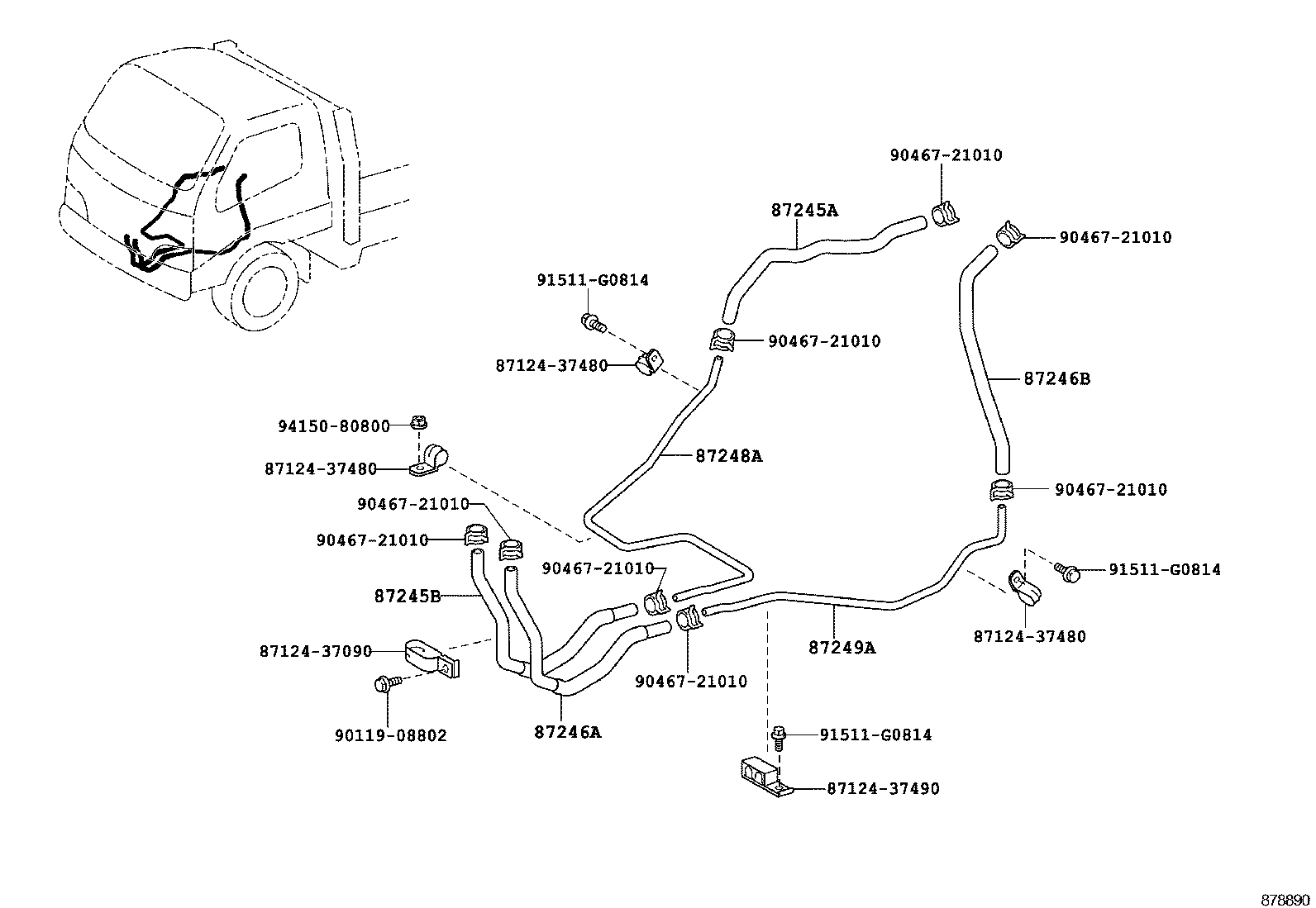

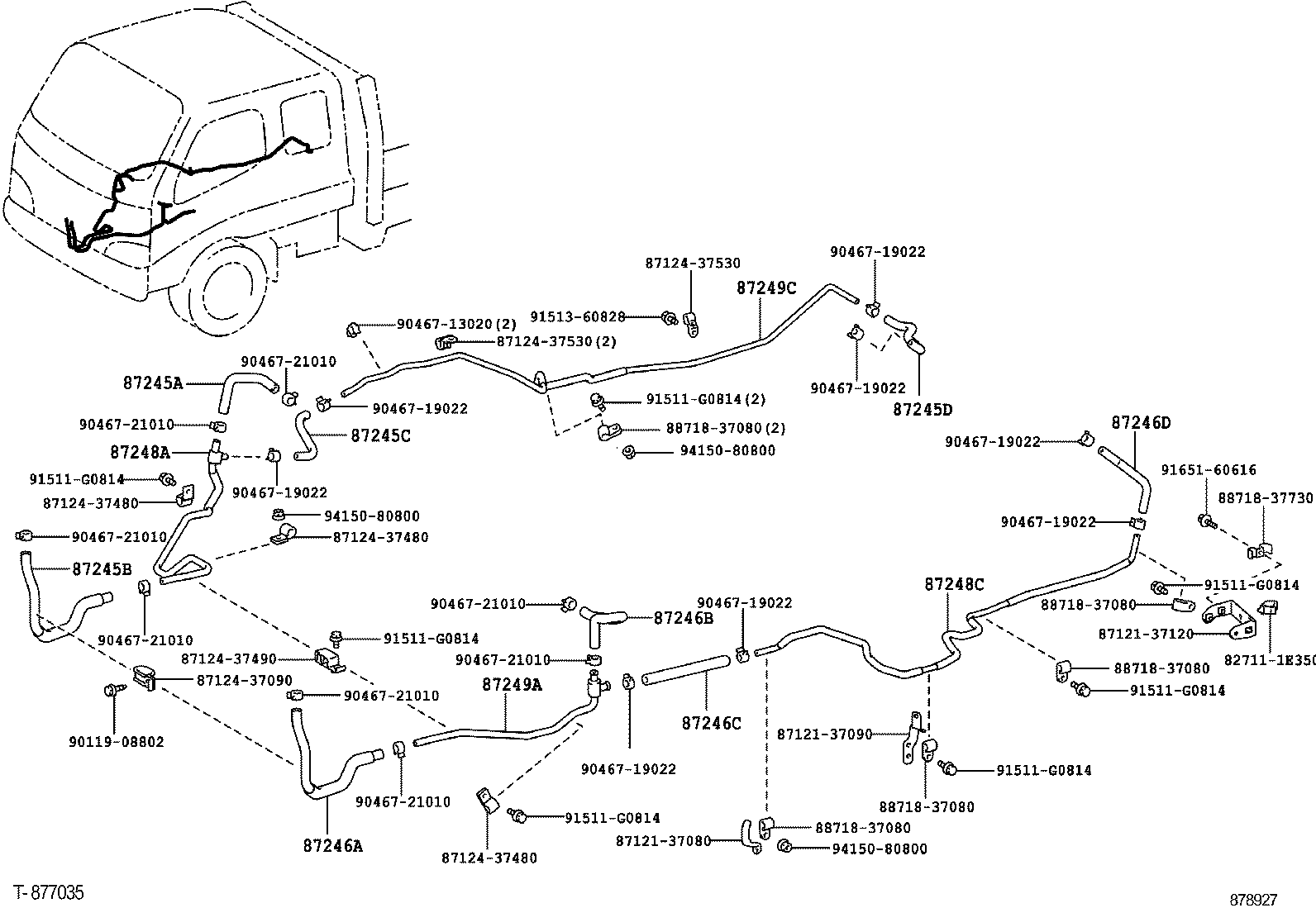

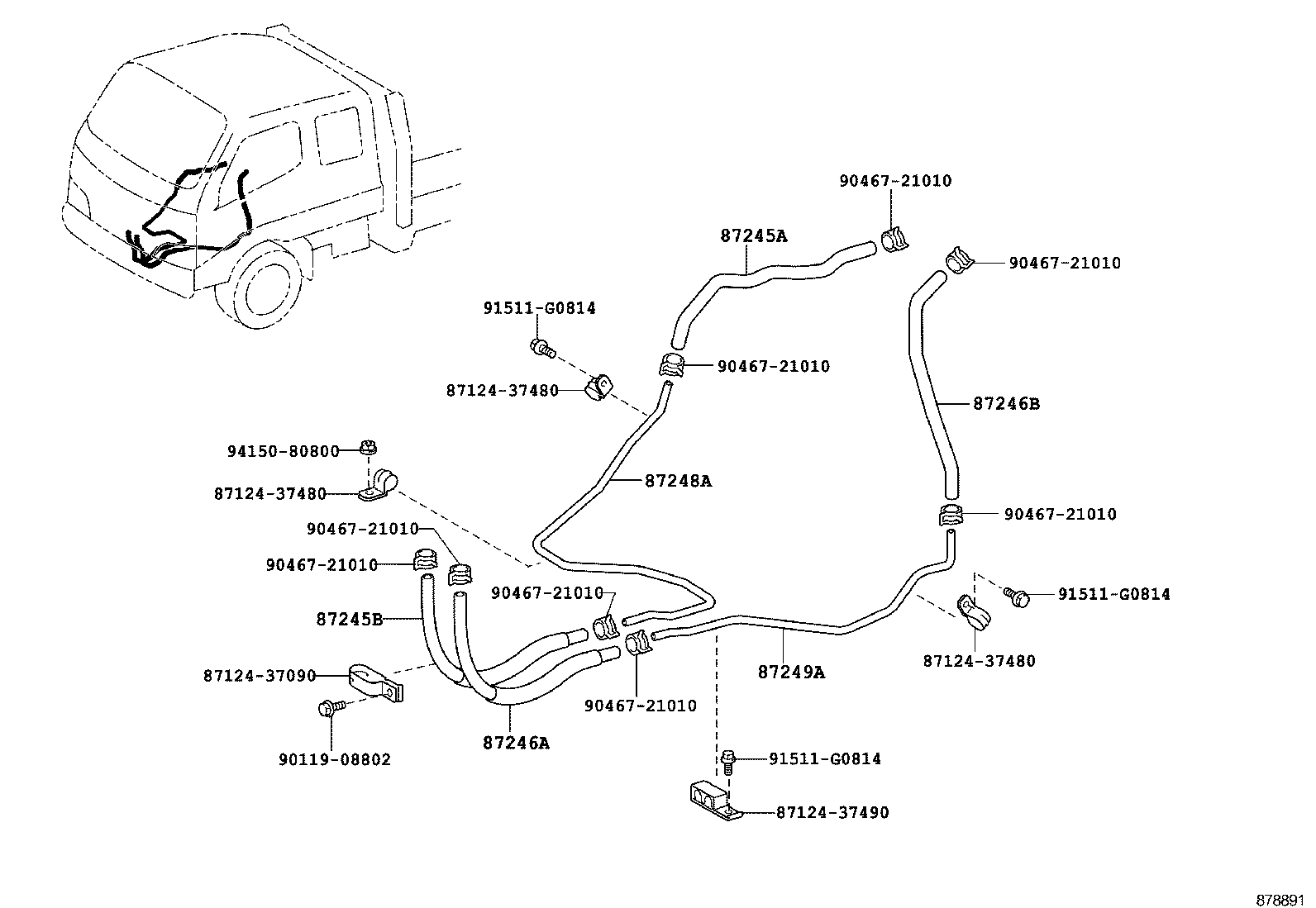

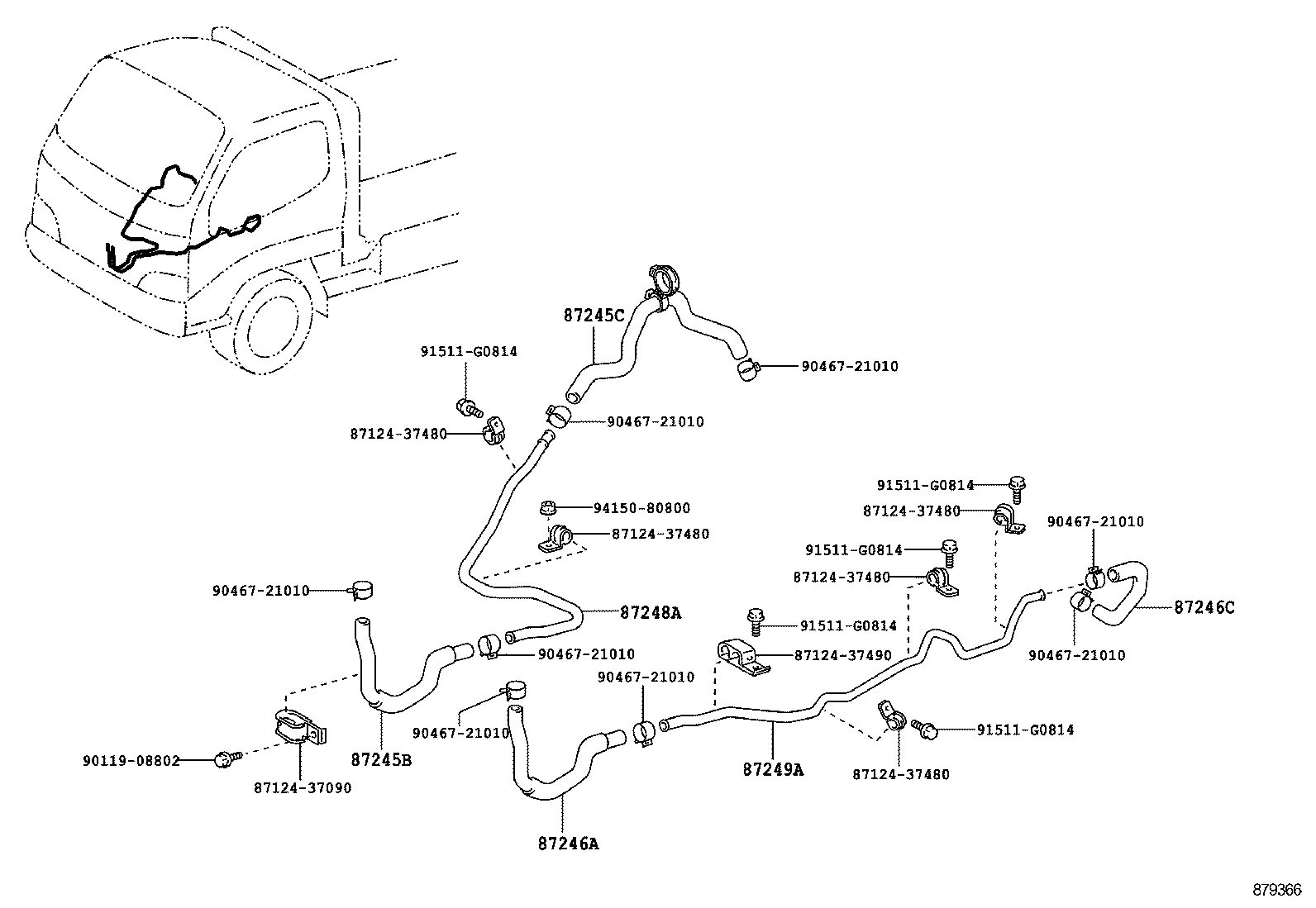

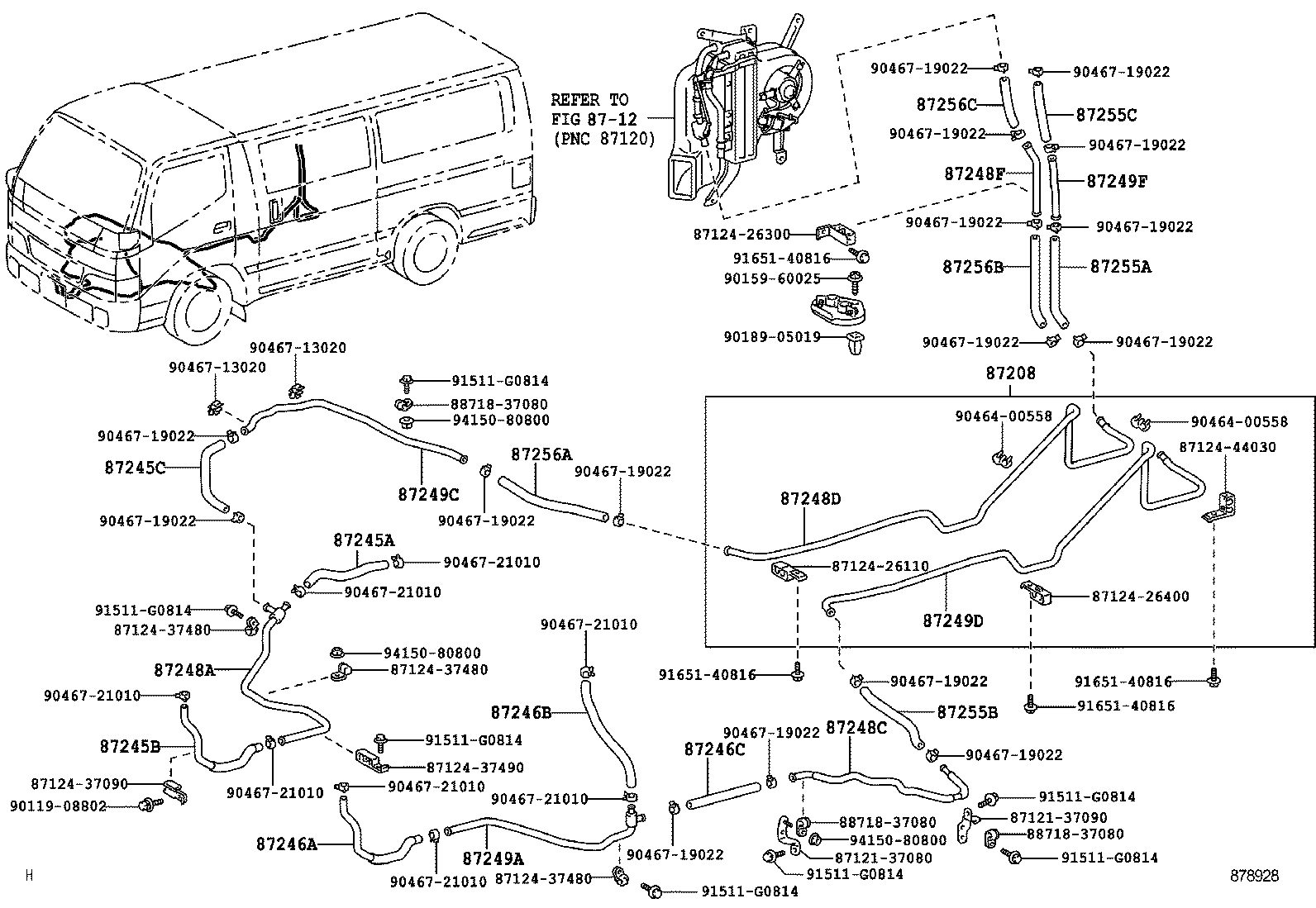

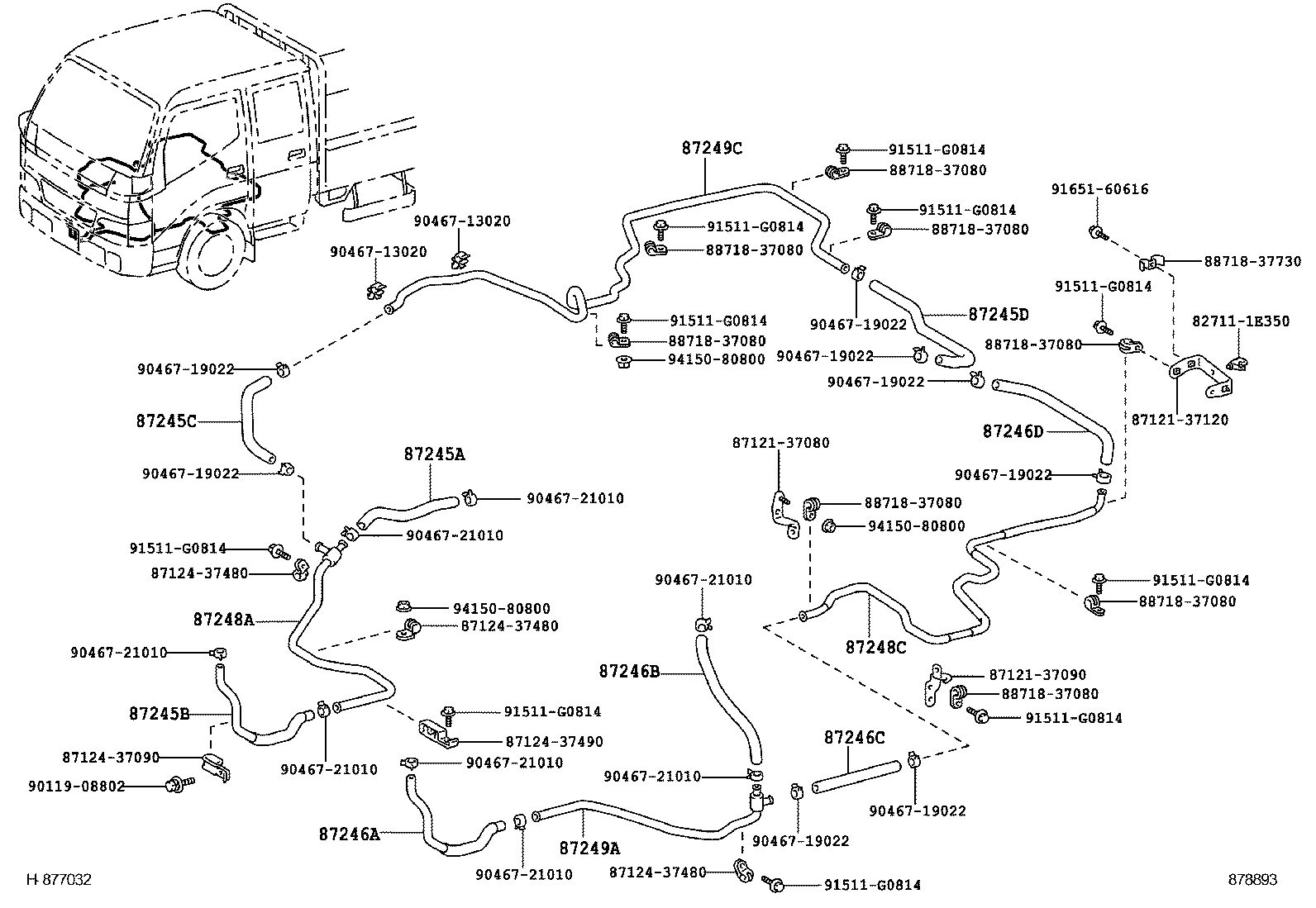

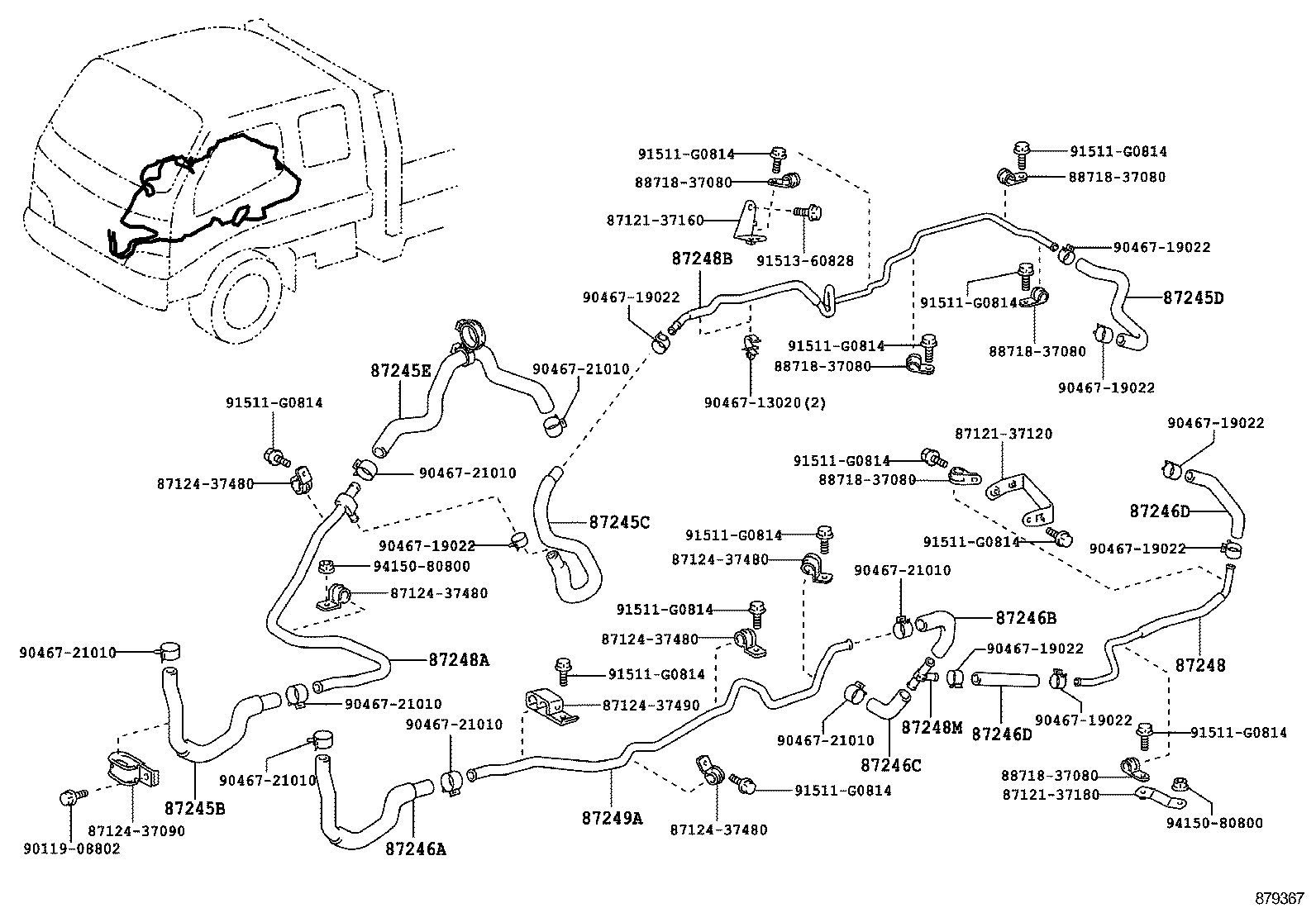

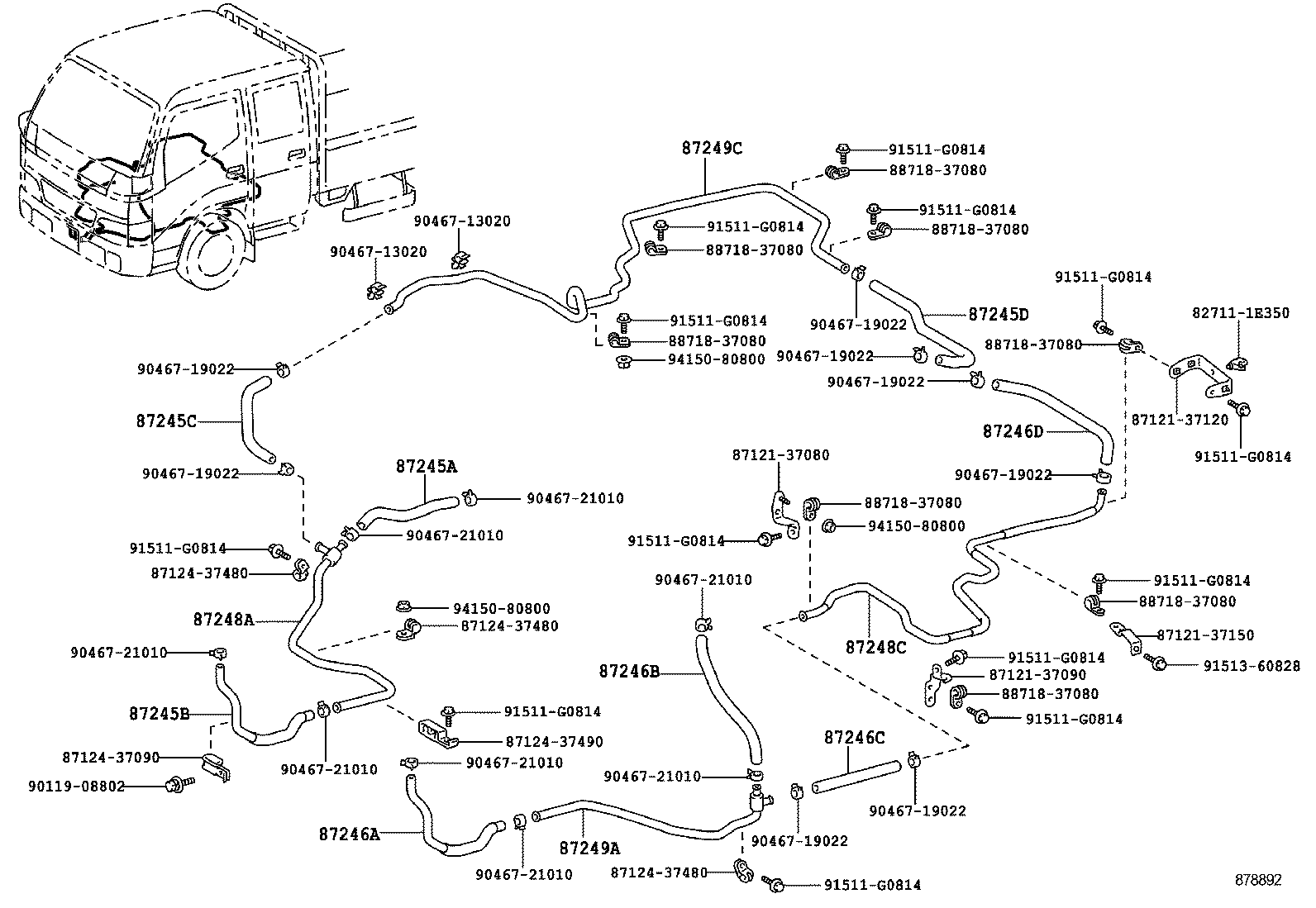

Figure 878889B 878889B 2006-10 → — Figure 878890 878890 2006-10 → — Figure 878891 878891 2006-10 → — Figure 878892 878892 2006-10 → — Figure 878893 878893 2006-10 → — Figure 878897B 878897B 2006-10 → — Figure 878927 878927 2006-10 → — Figure 878928 878928 2006-10 → — Figure 878929 878929 2006-10 → — Figure 878930 878930 2006-10 → — Figure 879366 879366 2007-05 → — Figure 879367 879367 2007-05 → — Figure 879368A 879368A 2007-05 → — Figure 879893 879893 2007-07 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248L Pipe, Heater Water, L
87248M Pipe, Heater Water, M
87249A Pipe, Heater Water Outlet, A
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87251D Joint, Water, NO.1
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
