Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 5 illustrations

Illustrations

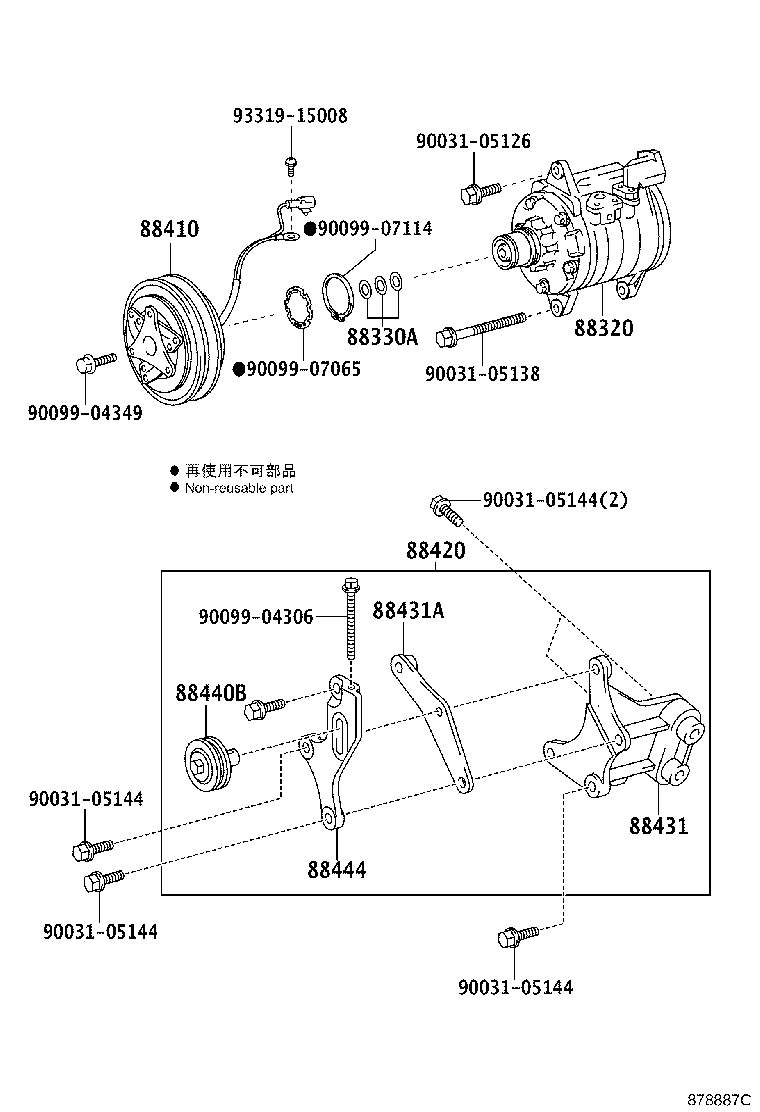

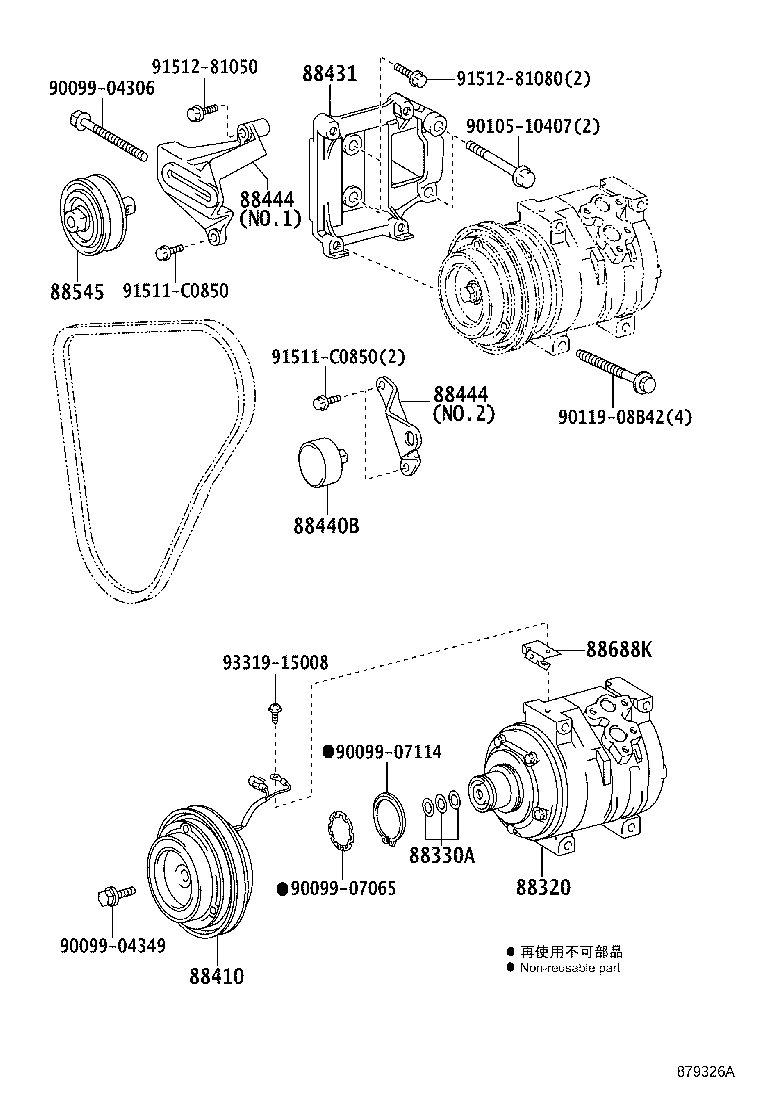

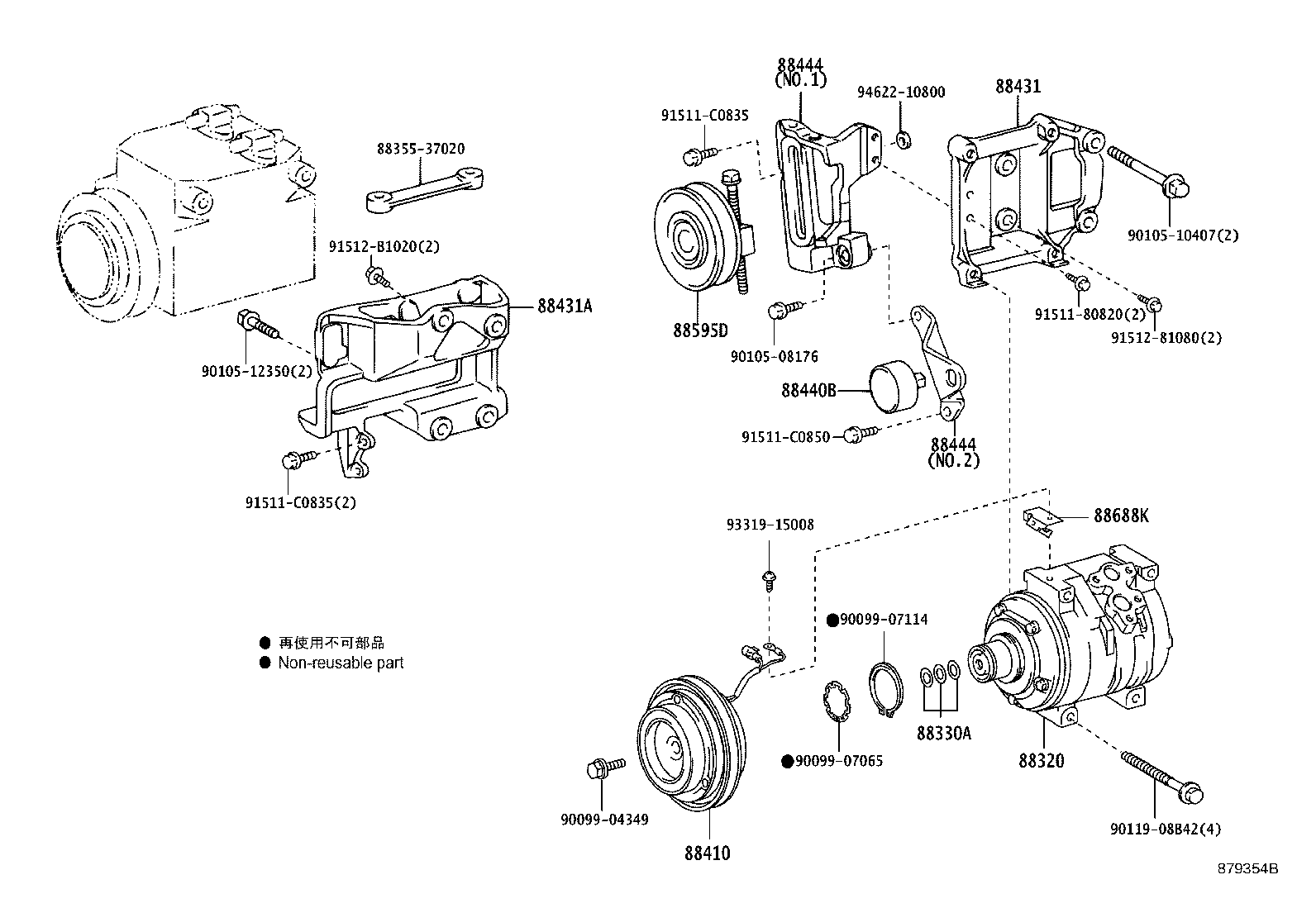

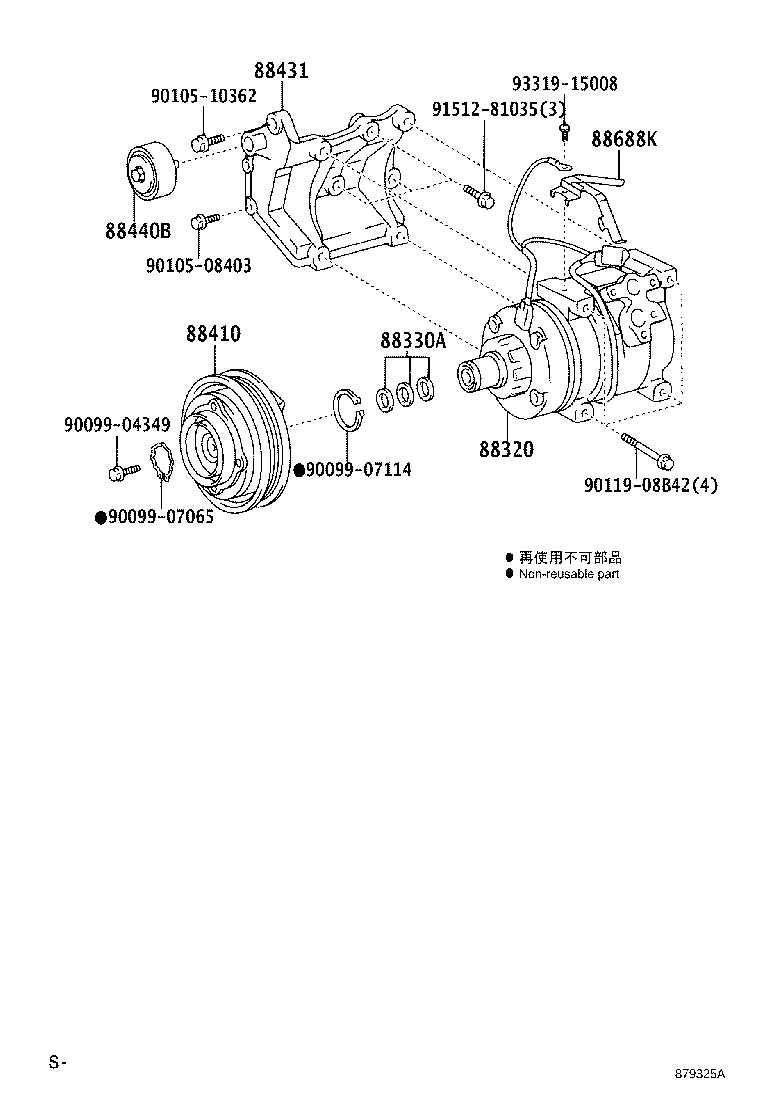

Figure 878886E 878886E 2006-10 → — Figure 878887C 878887C 2006-10 → — Figure 879325A 879325A 2007-05 → — Figure 879326A 879326A 2007-05 → — Figure 879354B 879354B 2007-04 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88545 Pulley Assy, Idle
88595D Pulley Assy, Idle
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
