Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 177263C 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 53097 — INLET SUB-ASSY (2 parts) 9165340830 — not listed in this catalogue 9165340830 — not listed in this catalogue 17781A — CLAMP, HOSE (2 parts) 17751 — INLET, AIR CLEANER, NO.1 (2 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (8 parts) 53982B — INLET, AIR CLEANER PIPE, NO.2 (2 parts) 9155180825 — not listed in this catalogue 9165340820 — not listed in this catalogue 17805F — RESONATOR SUB-ASSY, INTAKE AIR (2 parts) 53983 — INLET, AIR CLEANER PIPE, NO.3 (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17700 — CLEANER ASSY, AIR (13 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (8 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (7 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (2 parts) 17138 — STAY, INTAKE PIPE OR HOSE (8 parts) 17138 — STAY, INTAKE PIPE OR HOSE (8 parts) 9046099007 — not listed in this catalogue 17360D — PIPE ASSY, AIR (1 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (7 parts) 1777878010 — not listed in this catalogue 9009900289 — not listed in this catalogue 9003460048 — not listed in this catalogue 91651B0820 — not listed in this catalogue 91651B0820 — not listed in this catalogue 2211 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue

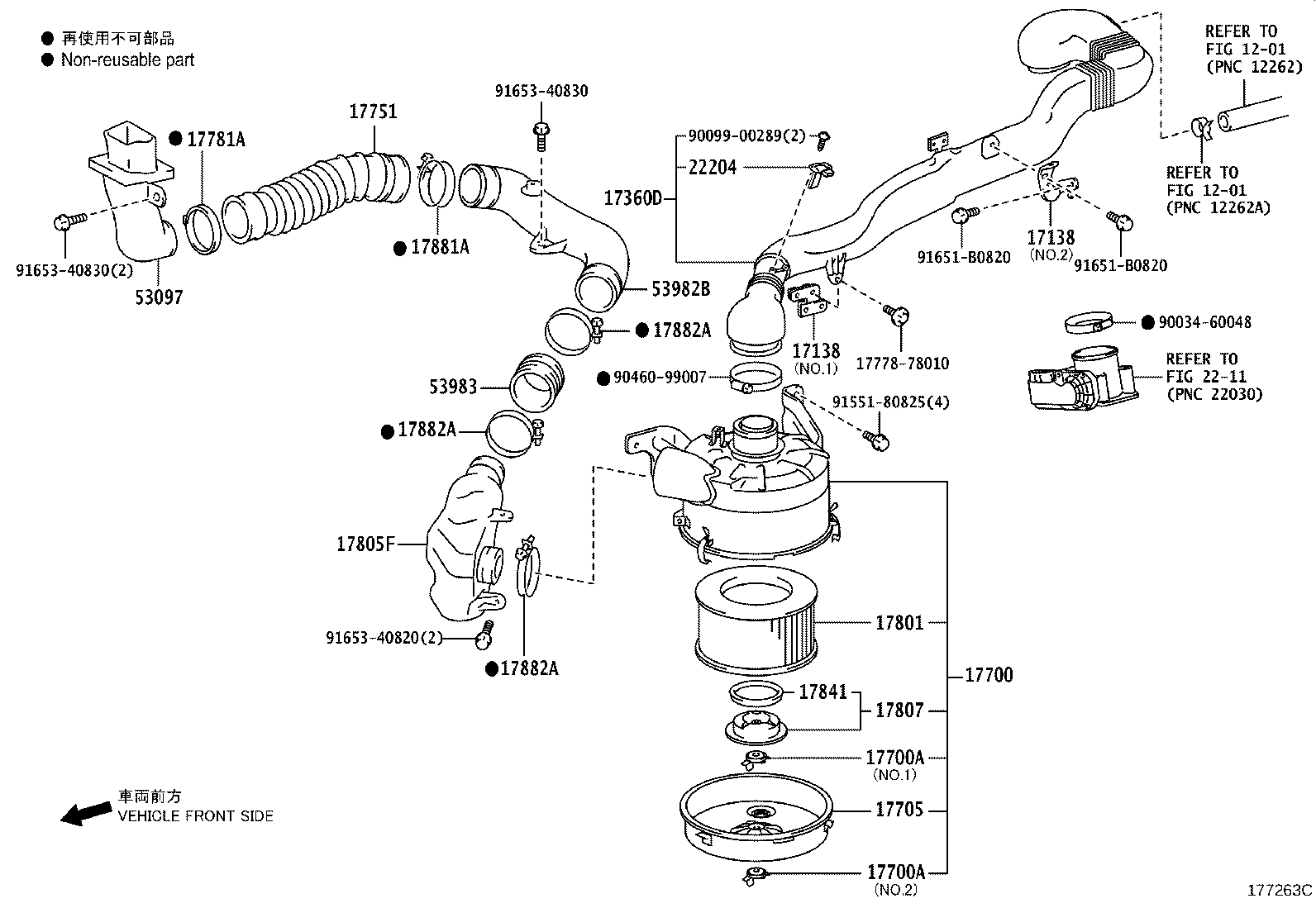

177263C · 21 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
17138 — Stay, Intake Pipe OR Hose
17138-58030 Stay, Intake Pipe OR Hose
2011-07 → —
1BZFPE BZU600 ¥980
17138-78010 note Stay, Intake Pipe OR Hose
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥600
17138-78170 Stay, Intake Pipe OR Hose
2011-07 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥530
17138-78170 Stay, Intake Pipe OR Hose
2011-07 → 2017-05 ended
N04C IV3;N04C N04C ,XZU60#,610,620,630,645,655,675,685,695 +26 ¥530
17138-78170 Stay, Intake Pipe OR Hose
2011-07 → 2016-05 ended
N04C XZC605 06S ¥530
17138-78210 note Stay, Intake Pipe OR Hose
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥1,180
17138-78170 Stay, Intake Pipe OR Hose
2017-05 → —
N04C TJ,DCRTK,DCRVT XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 DCRTH,DCR ¥530
17138-78501 Stay, Intake Pipe OR Hose
2019-05 → —
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥1,780
17360D — Pipe Assy, Air
17360-78070 Pipe Assy, Air
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥25,400
17700 — Cleaner Assy, Air
17700-78171 Cleaner Assy, Air
2011-07 → —
1BZFPE BZU600 ¥16,800
17700-78351 Cleaner Assy, Air
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥16,800
17700-78540 Cleaner Assy, Air
2011-07 → 2012-12 ended
N04C 675 XZU685,695 SCB;N04C +1 ¥17,500
17700-78541 Cleaner Assy, Air
2013-01 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥17,500
17700-78541 Cleaner Assy, Air
2013-01 → 2016-05 ended
N04C XZC605 06S ¥17,500
17700-78541 Cleaner Assy, Air
2013-01 → 2017-05 ended
N04C N04C U;N04C #,610,620,630,645,655,675 +29 ¥17,500
17700-78550 Cleaner Assy, Air
2011-07 → 2012-12 ended
N04C XZU685,695 DCB ¥17,500
17700-78551 Cleaner Assy, Air
2013-01 → 2017-05 ended
N04C XZU685,695 DCB ¥17,500
17700-78541 Cleaner Assy, Air
2017-05 → —
N04C U60#,610,620,630,640,645,65#,675 XZU642,685,695 DCRTH,DCRTJ,DCRTK +3 ¥17,500
17700-78551 Cleaner Assy, Air
2017-05 → —
N04C XZU685,695 DCB (DCRTJ,DCRTK) ¥17,500
17700-78720 Cleaner Assy, Air
2017-05 → —
N04C XZU600,640,650 DCRVT ¥17,500
17700-78490 Cleaner Assy, Air
2019-05 → —
N04C ,IV5,IV6,IV7 XZU685,695 SCB;N04C +2 ¥17,500
17700-78700 Cleaner Assy, Air
2019-05 → —
N04C XZU600,640,685,695 DCB ¥17,500
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 note Nut, Wing(FOR AIR CLEANER)
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2011-07 → —
1BZFPE BZU600 —
17705 — Cap Sub-assy, Air Cleaner
17705-78030 Cap Sub-assy, Air Cleaner
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥3,430
17705-78030 Cap Sub-assy, Air Cleaner
2011-07 → —
1BZFPE BZU600 ¥3,430
17705-78060 Cap Sub-assy, Air Cleaner
2011-07 → 2012-12 ended
N04C XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ¥6,600
17705-78061 Cap Sub-assy, Air Cleaner
2013-01 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥6,600
17705-78061 Cap Sub-assy, Air Cleaner
2013-01 → 2016-05 ended
N04C XZC605 06S ¥6,600
17705-78061 Cap Sub-assy, Air Cleaner
2013-01 → 2017-05 ended
N04C IV3;N04C N04C ,XZU60#,610,620,630,645,655,675,685,695 +26 ¥6,600
17705-78061 Cap Sub-assy, Air Cleaner
2017-05 → —
N04C TJ,DCRTK,DCRVT XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 DCRTH,DCR ¥6,600
17705-78100 Cap Sub-assy, Air Cleaner
2019-05 → —
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥6,600
17751 — Inlet, Air Cleaner, NO.1
53981-37080 Inlet, Air Cleaner, NO.1
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥3,290
53981-37080 Inlet, Air Cleaner, NO.1
2011-07 → —
1BZFPE BZU600 ¥3,290
17781A — Clamp, Hose
17781-78050 Clamp, Hose
2011-07 → —
1BZFPE BZU600 ¥410
17781-78050 Clamp, Hose
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥410
17801 — Element Sub-assy, Air Cleaner Filter
17801-56050 Element Sub-assy, Air Cleaner Filter
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥4,100
17801-56050 Element Sub-assy, Air Cleaner Filter
2011-07 → —
1BZFPE BZU600 ¥4,100
17801-78080 Element Sub-assy, Air Cleaner Filter
2011-07 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥8,800
17801-78080 Element Sub-assy, Air Cleaner Filter
2011-07 → 2016-05 ended
N04C XZC605 06S ¥8,800
17801-78080 Element Sub-assy, Air Cleaner Filter
2011-07 → 2017-05 ended
N04C IV3;N04C N04C ,XZU60#,610,620,630,645,655,675,685,695 +26 ¥8,800
17801-78080 Element Sub-assy, Air Cleaner Filter
2017-05 → —
N04C TJ,DCRTK,DCRVT XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 DCRTH,DCR ¥8,800
17801-78130 Element Sub-assy, Air Cleaner Filter
2019-05 → —
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥9,200
17805F — Resonator Sub-assy, Intake Air
17805-78021 Resonator Sub-assy, Intake Air
2011-07 → —
1BZFPE BZU600 ¥10,400
17805-78021 Resonator Sub-assy, Intake Air
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥10,400
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 —
17807-56020 Plate Sub-assy, Air Cleaner Filter Set
2011-07 → —
1BZFPE BZU600 —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 —
17841-44030 Gasket, Filter Element
2011-07 → —
1BZFPE BZU600 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-88001 Clamp(FOR AIR CLEANER HOSE, NO.1)
2011-07 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥530
90460-88001 Clamp(FOR AIR CLEANER HOSE, NO.1)
2011-07 → 2016-05 ended
N04C XZC605 06S ¥530
90460-88001 Clamp(FOR AIR CLEANER HOSE, NO.1)
2011-07 → 2017-05 ended
N04C IV3;N04C N04C ,XZU60#,610,620,630,645,655,675,685,695 +26 ¥530
96111-10880 Clamp(FOR AIR CLEANER HOSE, NO.1)
2011-07 → —
1BZFPE BZU600 ¥520
96111-10880 Clamp(FOR AIR CLEANER HOSE, NO.1)
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥520
90460-88001 Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-05 → 2019-04 ended
N04C XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ¥530
17781-78160 Clamp(FOR AIR CLEANER HOSE, NO.1)
2020-05 → —
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥420
90460-92002 Clamp(FOR AIR CLEANER HOSE, NO.1)
2019-05 → 2020-04 ended
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥610
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10980 Clamp(FOR AIR CLEANER HOSE, NO.2)
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥360
96111-10980 Clamp(FOR AIR CLEANER HOSE, NO.2)
2011-07 → —
1BZFPE BZU600 ¥360
22204 — Meter Sub-assy, Intake Air Flow
22204-75030 Meter Sub-assy, Intake Air Flow
2011-07 → 2016-05 ended
2TRFE TRC600,TRU600 ¥12,400
22204-E0010 Meter Sub-assy, Intake Air Flow
2011-07 → 2017-05 ended
N04C IV3;N04C N04C ,XZU60#,610,620,630,645,655,675,685,695 +26 ¥10,500
22204-E0010 Meter Sub-assy, Intake Air Flow
2011-07 → 2016-05 ended
N04C XZC605 06S ¥10,500
22204-E0010 Meter Sub-assy, Intake Air Flow
2011-07 → 2015-05 ended
N04C U650 CBU;N04C XZU650 +26 ¥10,500
22204-E0010 Meter Sub-assy, Intake Air Flow
2017-05 → —
N04C 645,65#,675,685,695 XZU642 DCRTH,DCRTJ,DCRTK +2 ¥10,500
22204-E0020 Meter Sub-assy, Intake Air Flow
2017-05 → —
N04C XZU600,640,650 DCRVT ¥4,350
22204-E0020 Meter Sub-assy, Intake Air Flow
2019-05 → —
N04C XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ¥4,350
53097 — Inlet Sub-assy
53097-37300 Inlet Sub-assy
2011-07 → 2016-05 ended
TRC600,TRU600 ¥3,200
53097-37300 Inlet Sub-assy
2011-07 → —
BZU600 ¥3,200
53982B — Inlet, Air Cleaner Pipe, NO.2
53982-37070 Inlet, Air Cleaner Pipe, NO.2
2011-07 → 2016-05 ended
TRC600,TRU600 ¥3,970
53982-37070 Inlet, Air Cleaner Pipe, NO.2
2011-07 → —
BZU600 ¥3,970
53983 — Inlet, Air Cleaner Pipe, NO.3
53983-37020 Inlet, Air Cleaner Pipe, NO.3
2011-07 → 2016-05 ended
TRC600,TRU600 ¥1,250
53983-37020 Inlet, Air Cleaner Pipe, NO.3
2011-07 → —
BZU600 ¥1,250
