Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

18 part groups · 5 illustrations

Illustrations

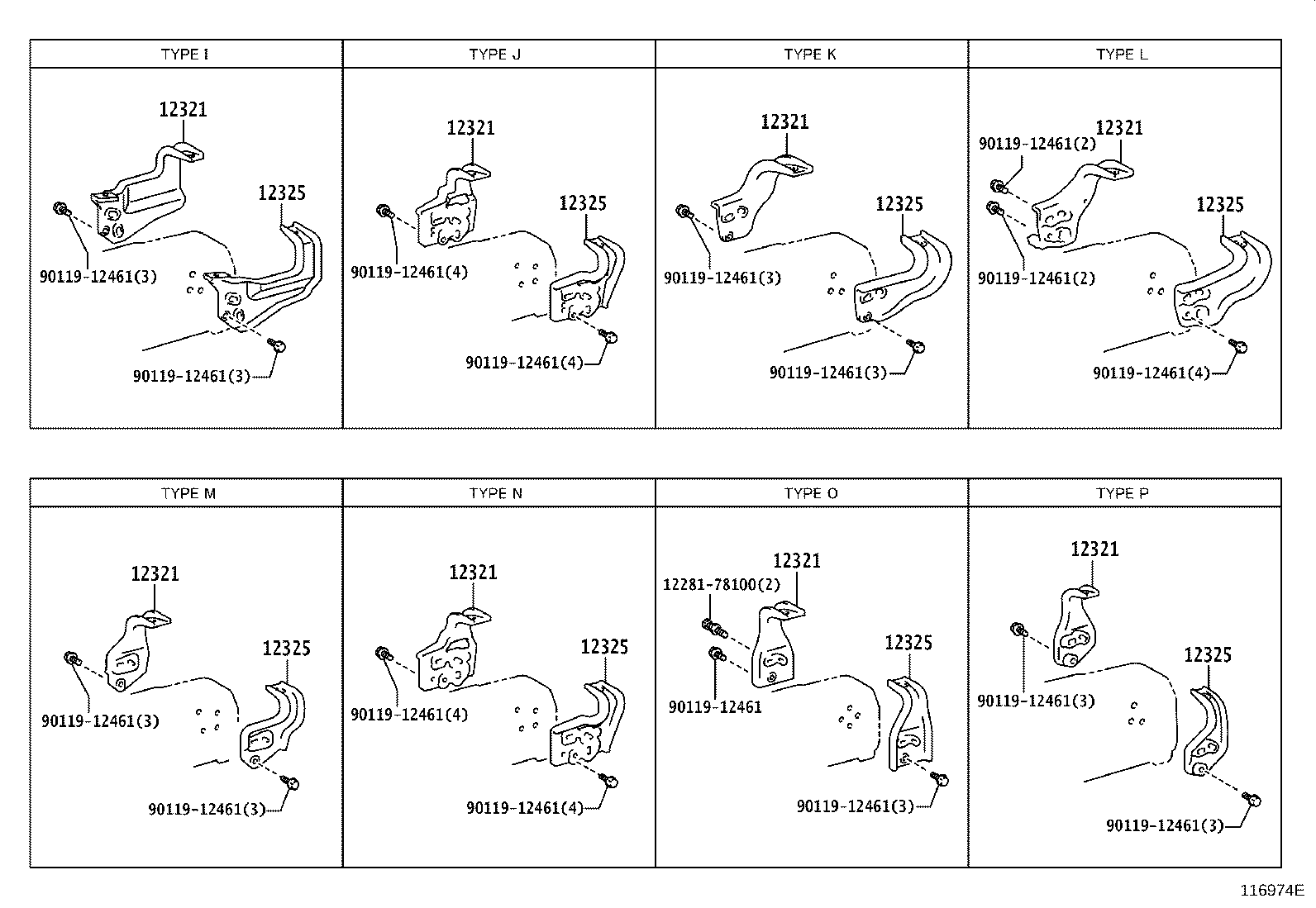

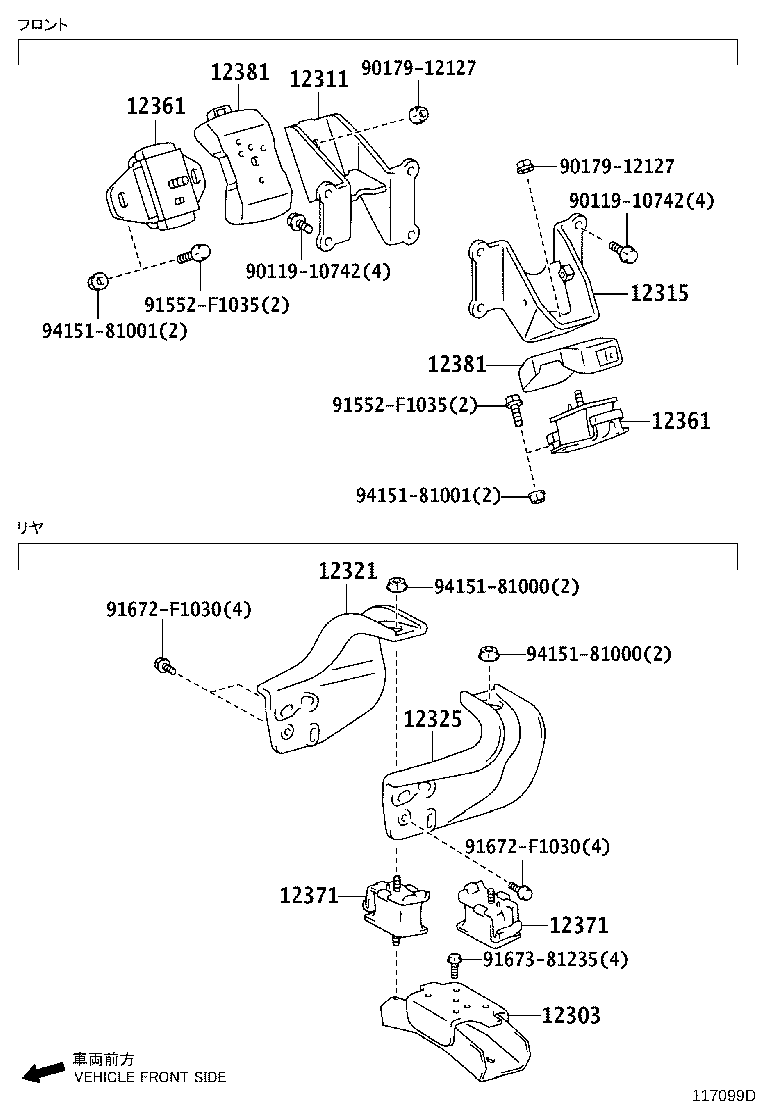

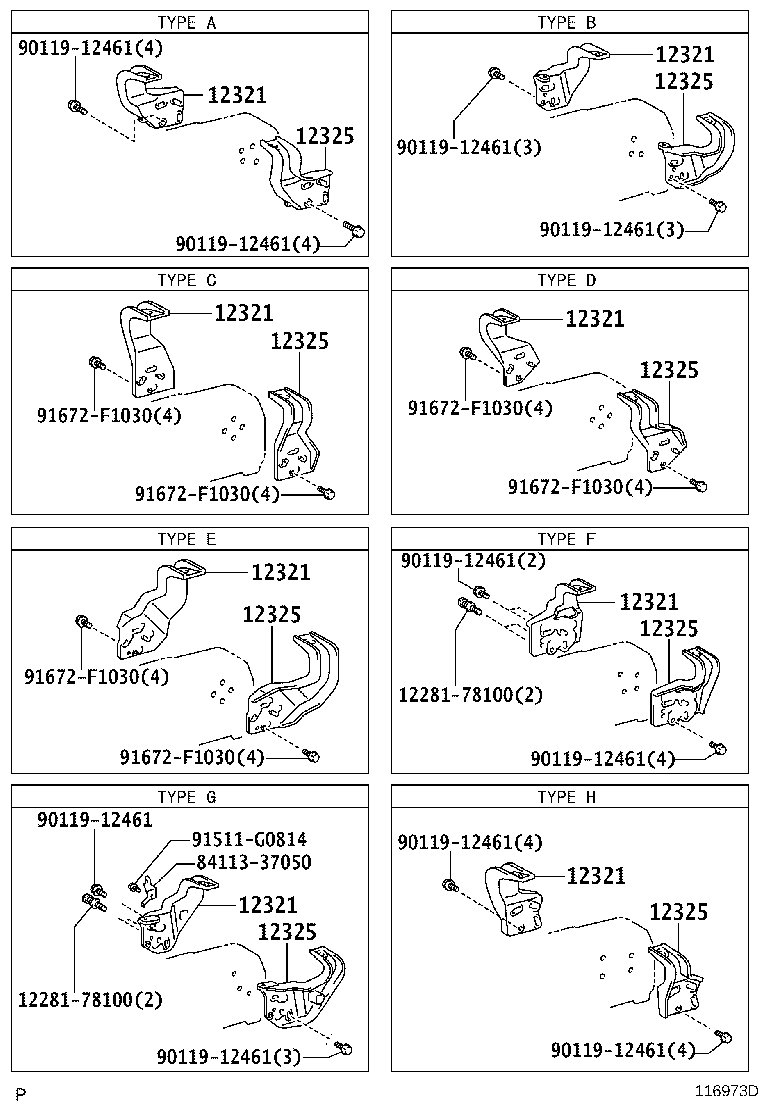

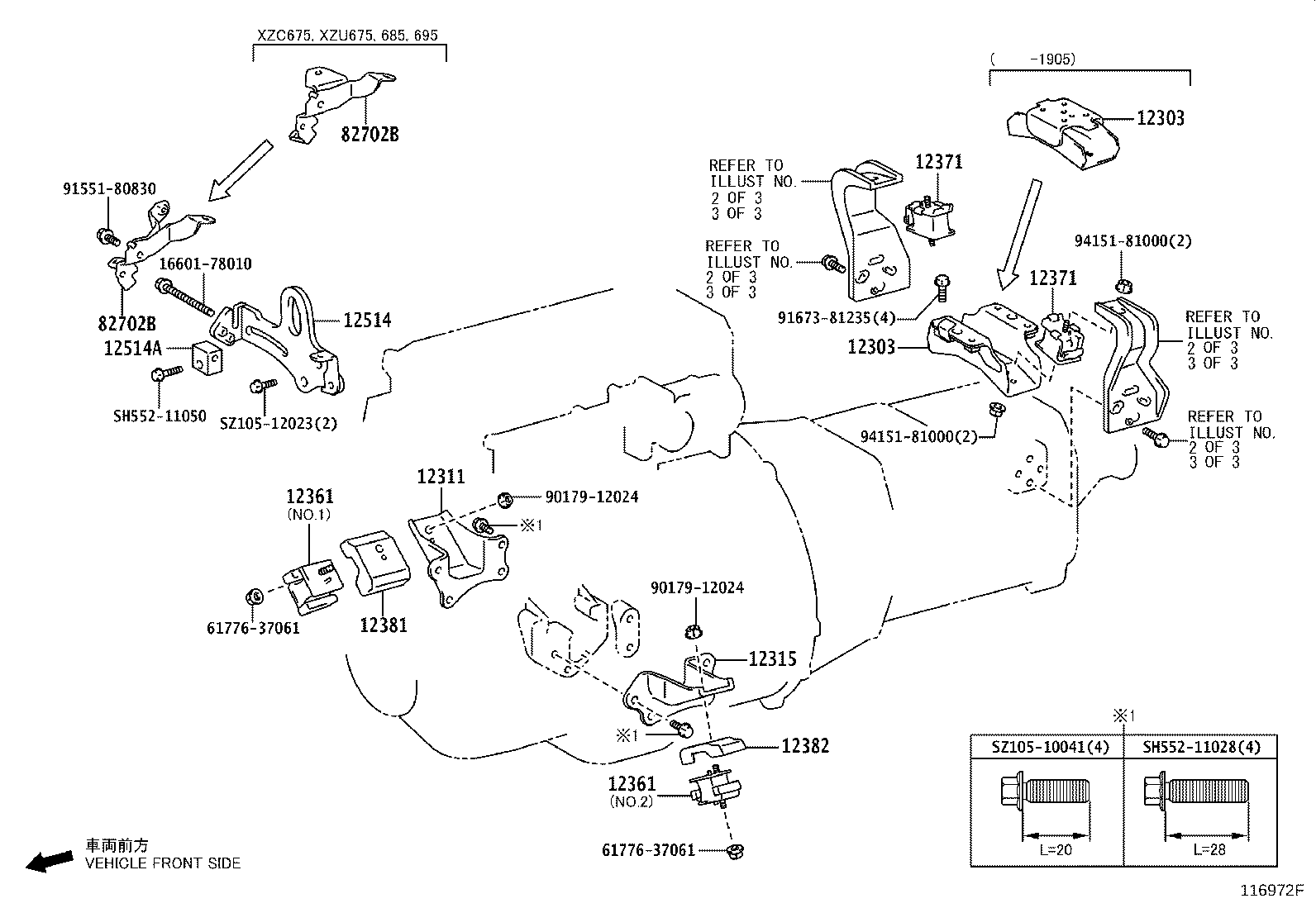

Figure 116868D 116868D 2011-07 → — Figure 117099D 117099D 2011-07 → — Figure 116972F 116972F 2011-07 → — Figure 116973D 116973D 2011-07 → — Figure 116974E 116974E 2011-07 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12512A Bracket, Alternator, NO.2
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
16603C Pulley Sub-assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
82702B Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
