Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

18 part groups · 4 illustrations

Illustrations

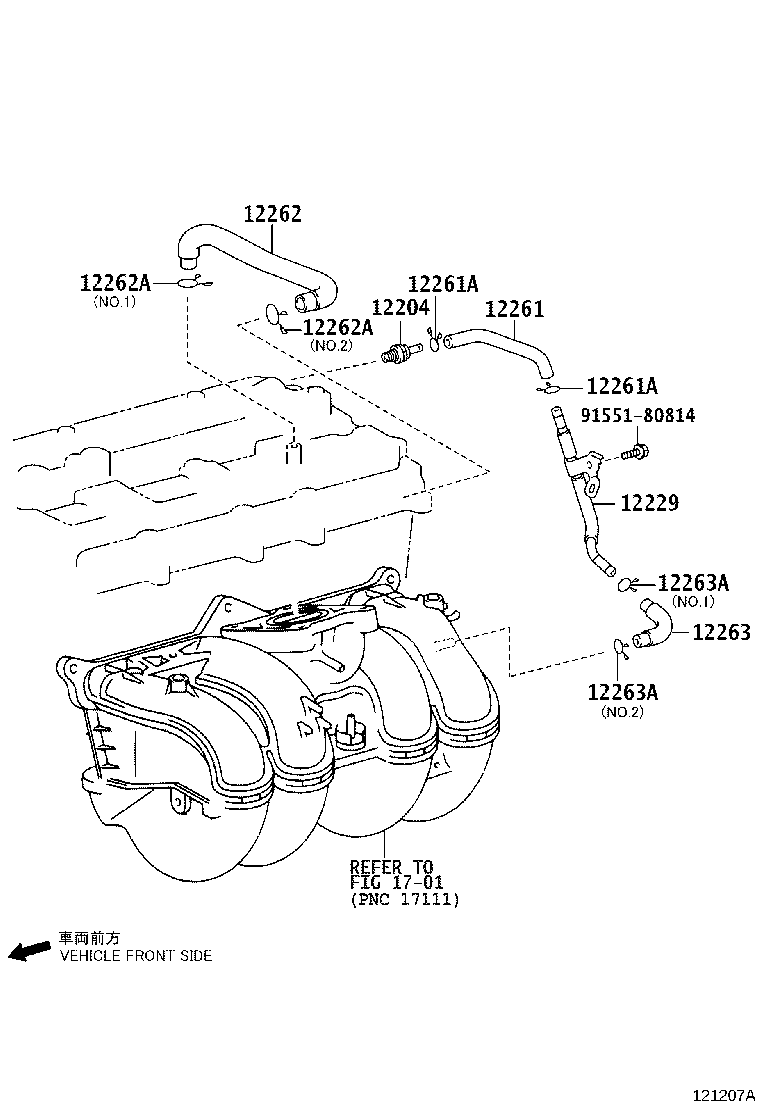

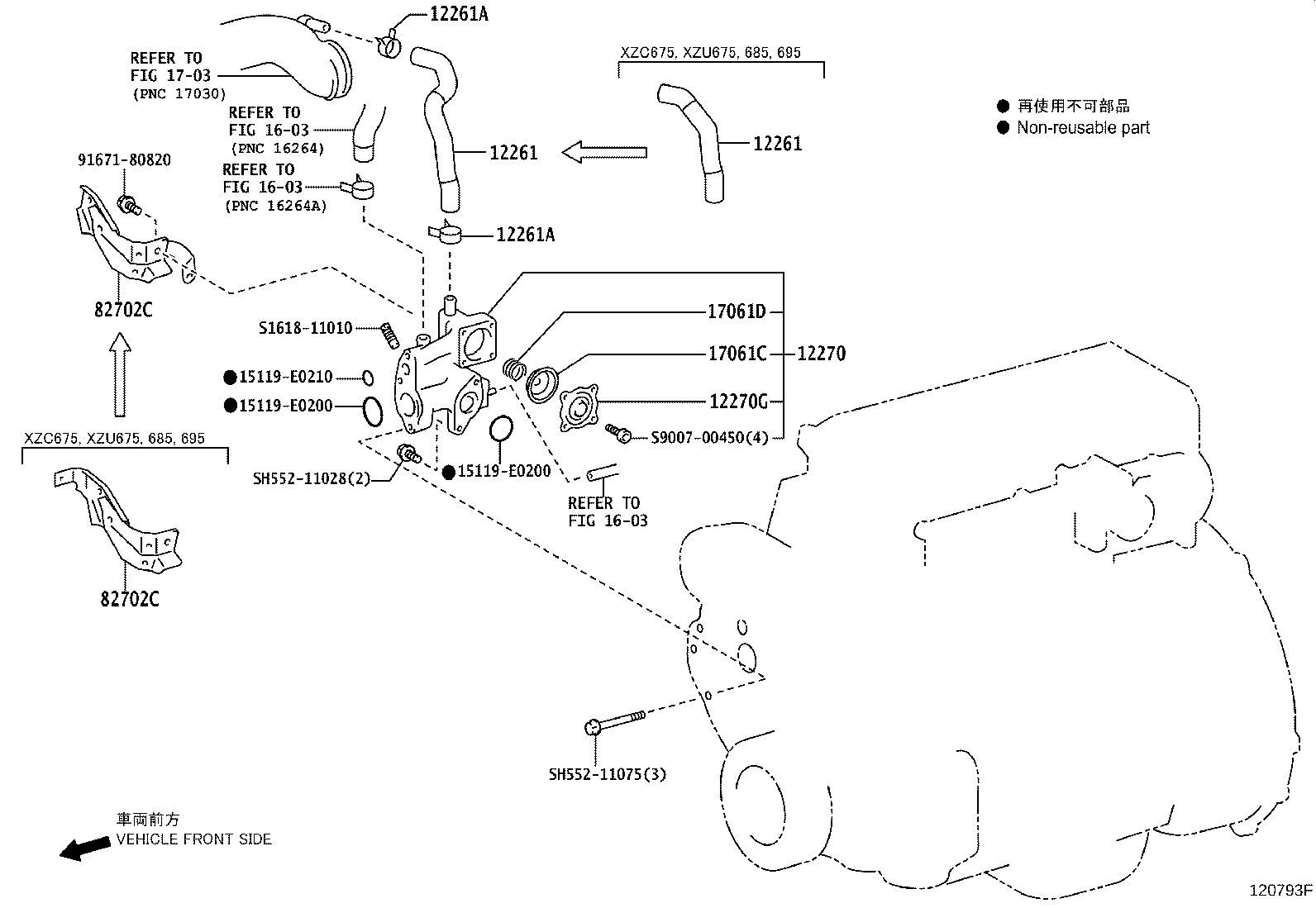

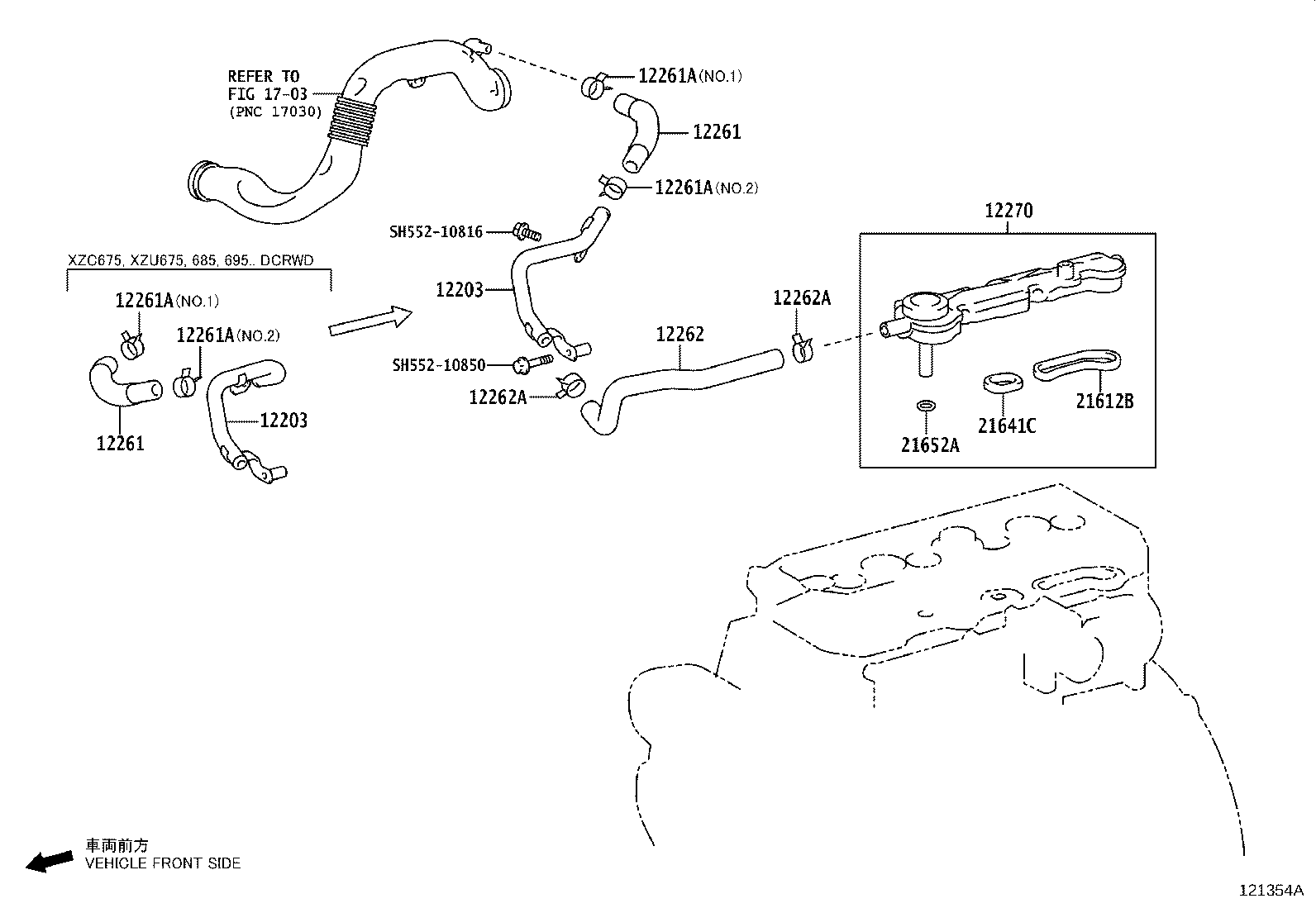

Figure 120787A 120787A 2011-07 → — Figure 121207A 121207A 2011-07 → — Figure 120793F 120793F 2011-07 → — Figure 121354A 121354A 2019-05 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
12270G Cover
17061C Diaphragm Sub-assy
17061D Spring L
21612B Gasket
21641C Gasket
21652A Ring, O
82702C Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
