Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

20 part groups · 6 illustrations

Illustrations

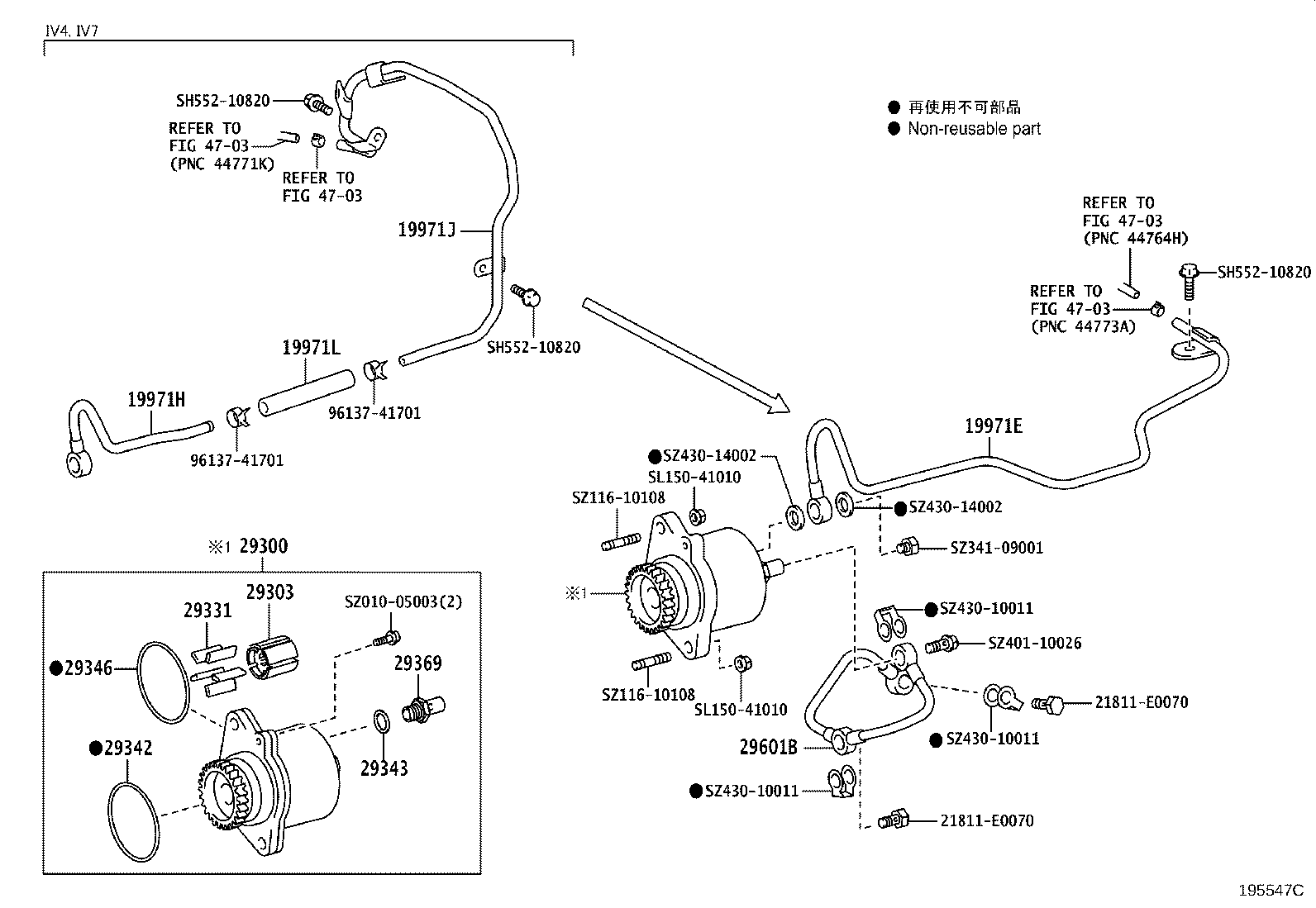

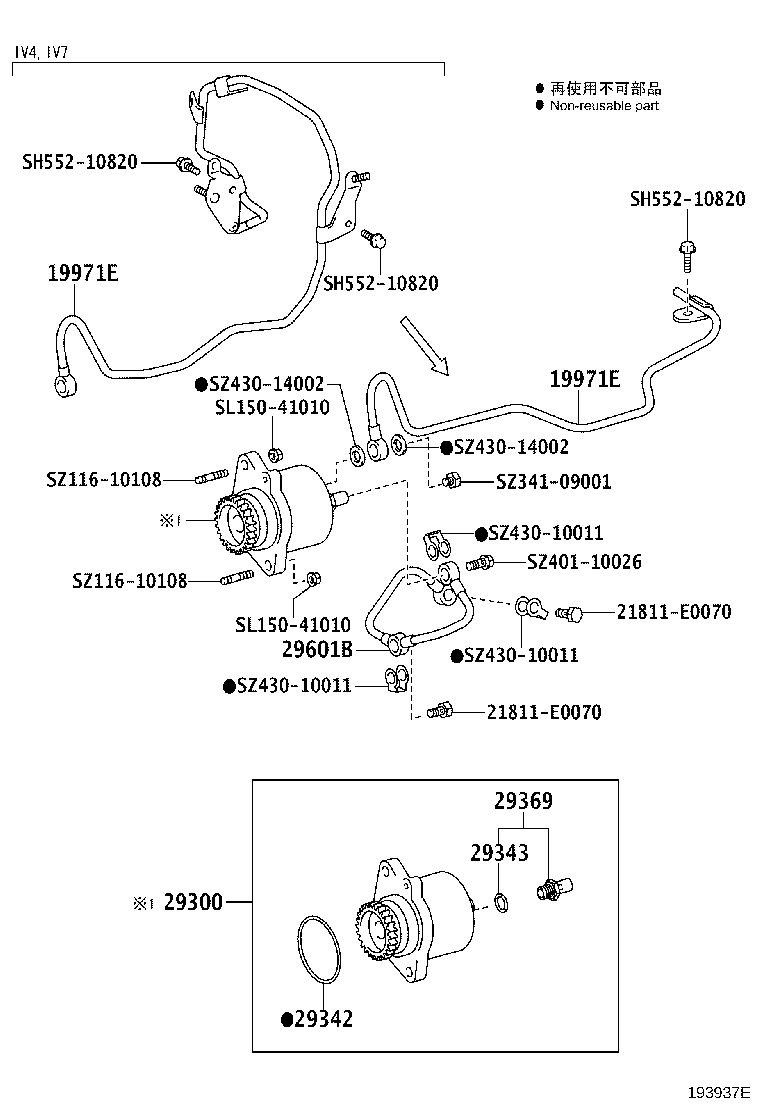

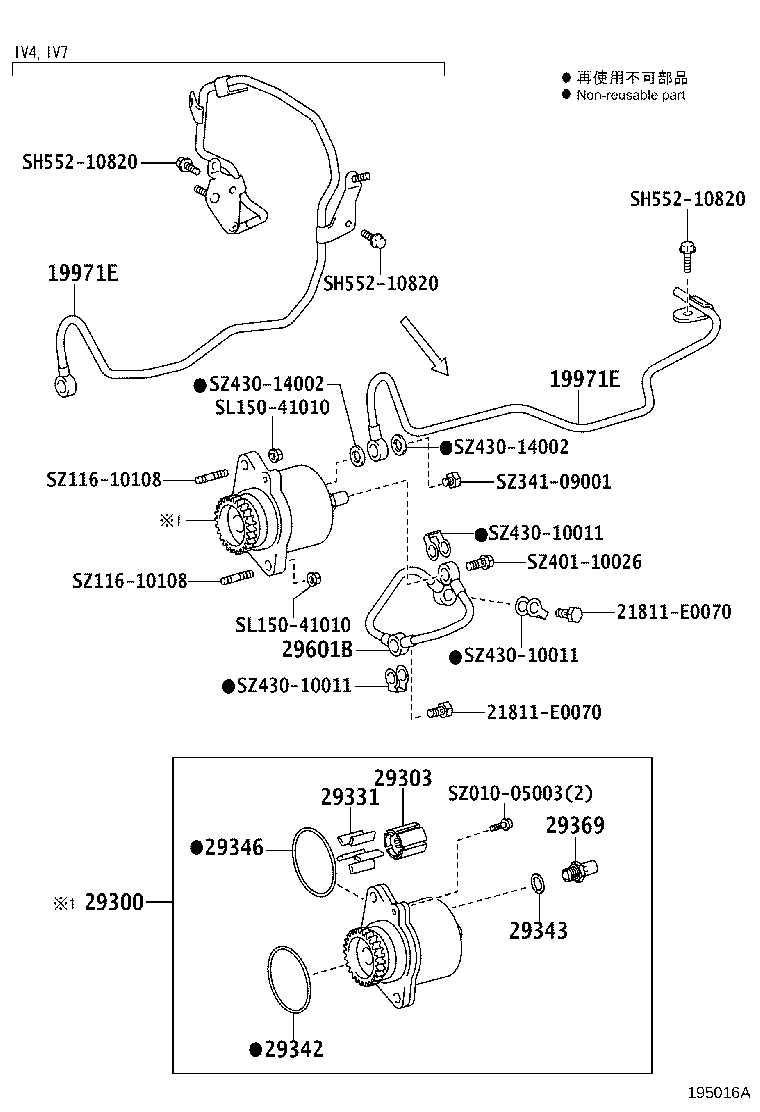

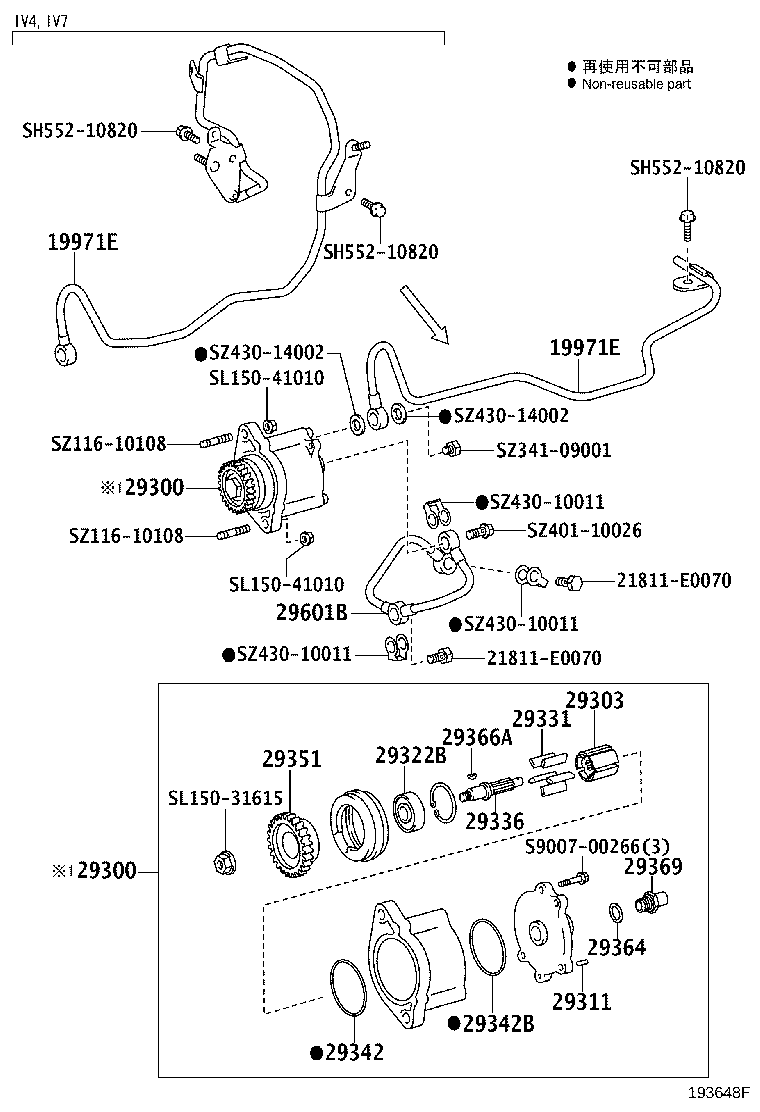

Figure 193650A 193650A 2011-07 → — Figure 193648F 193648F 2011-07 → 2012-02 Figure 193648F 193648F 2013-09 → 2015-06 Figure 193937E 193937E 2012-02 → 2013-09 Figure 195016A 195016A 2015-06 → — Figure 195547C 195547C 2019-05 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
19971H Pipe Sub-assy, Vacuum, NO.1
19971J Pipe Sub-assy, Vacuum, NO.2
19971L Hose, Vacuum Brake
29300 Pump Assy, Vacuum
29300G Bearing, Ball
29303 Rotor Sub-assy, Vacuum Pump
29311 Pin, Vacuum Pump Dowel, NO.1
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29343 Ring, O Vacuum Pump, NO.1
29346 Ring, O Vacuum Pump Cover
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366A Key, Vacuum Pump
29369 Valve Sub-assy, Check
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
