Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

19 part groups · 6 illustrations

Illustrations

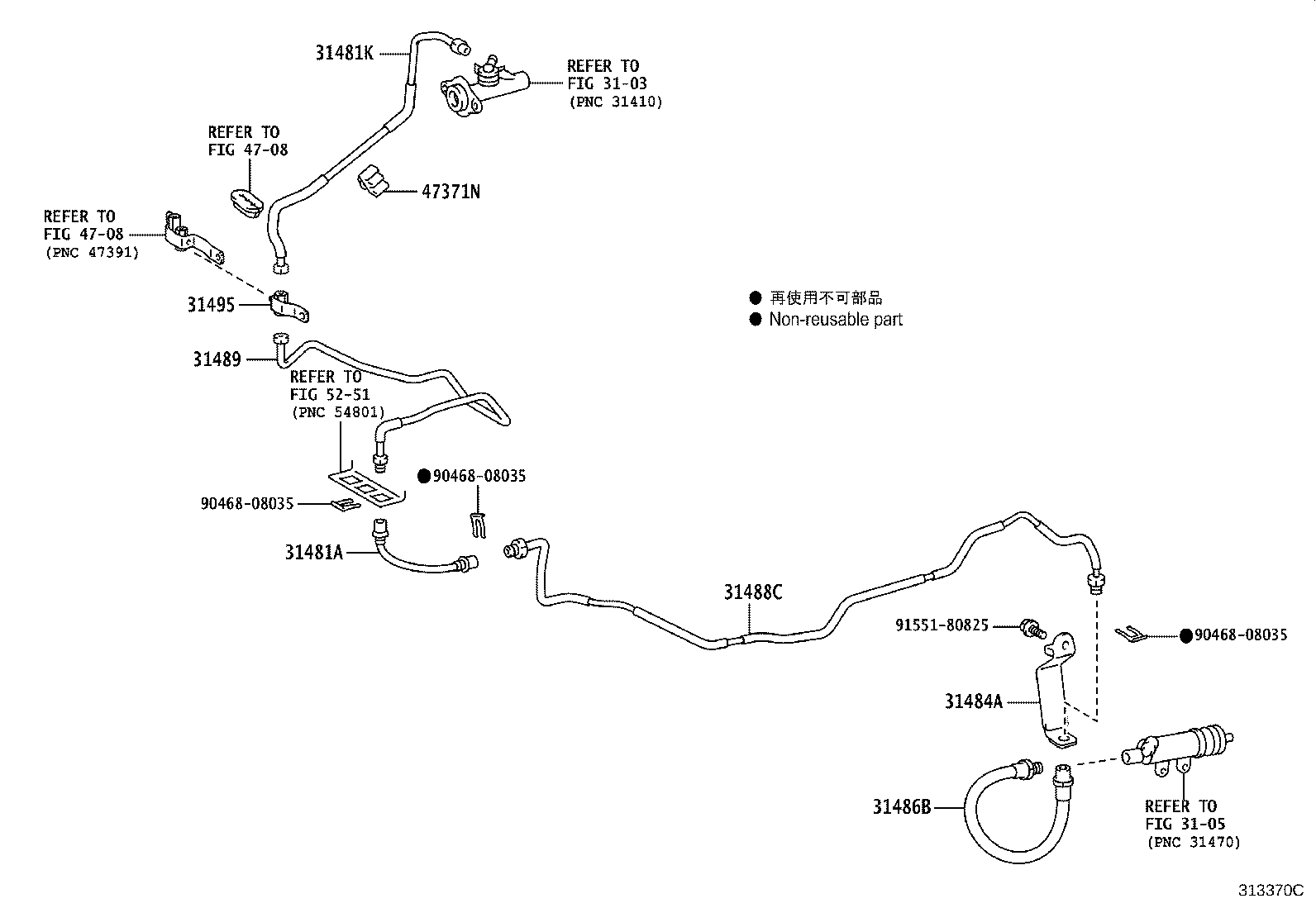

Figure 312423A 312423A 2011-07 → — Figure 312420G 312420G 2011-07 → — Figure 312420G 312420G 2019-05 → — Figure 312418G 312418G 2011-07 → — Figure 312419F 312419F 2011-07 → — Figure 313370C 313370C 2019-05 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301S Cushion, NO.2(FOR CLUTCH PEDAL)
31305 Bracket Sub-assy, Clutch Pedal
31321 Pad, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31406 Bracket Sub-assy, Flexible Hose
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481A Hose, Clutch, NO.1
31481K Tube, Master Cylinder TO Tube Connector
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31486B Hose, Master Cylinder TO Release Cylinder
31488C Tube, Flexible Hose TO Flexible Hose
31489 Tube, Tube Connector TO Flexible Hose
31495 Way, Clutch Tube
47371N Clamp, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
