Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 10 illustrations

Illustrations

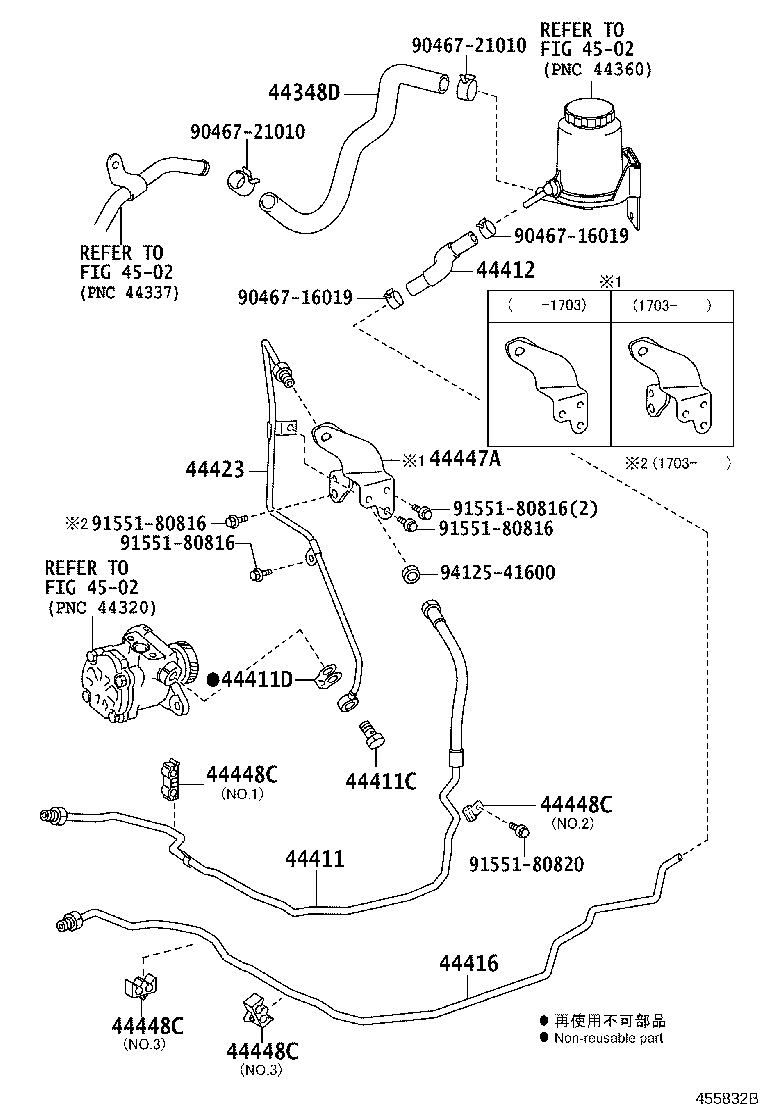

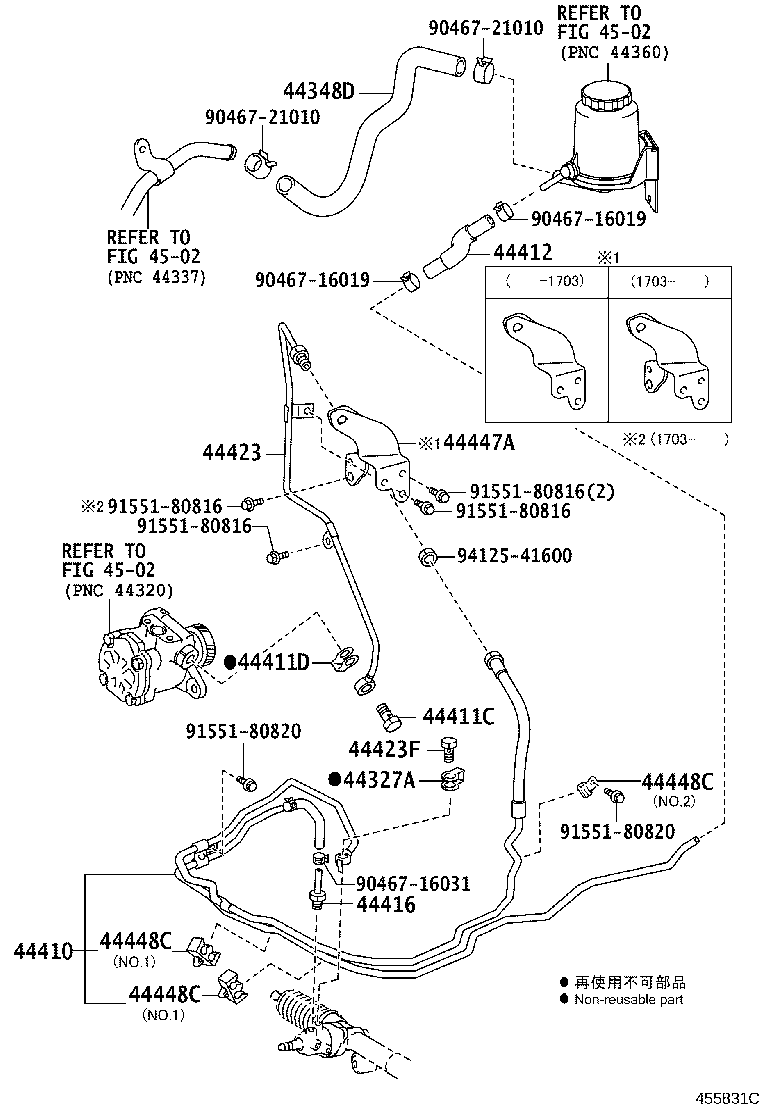

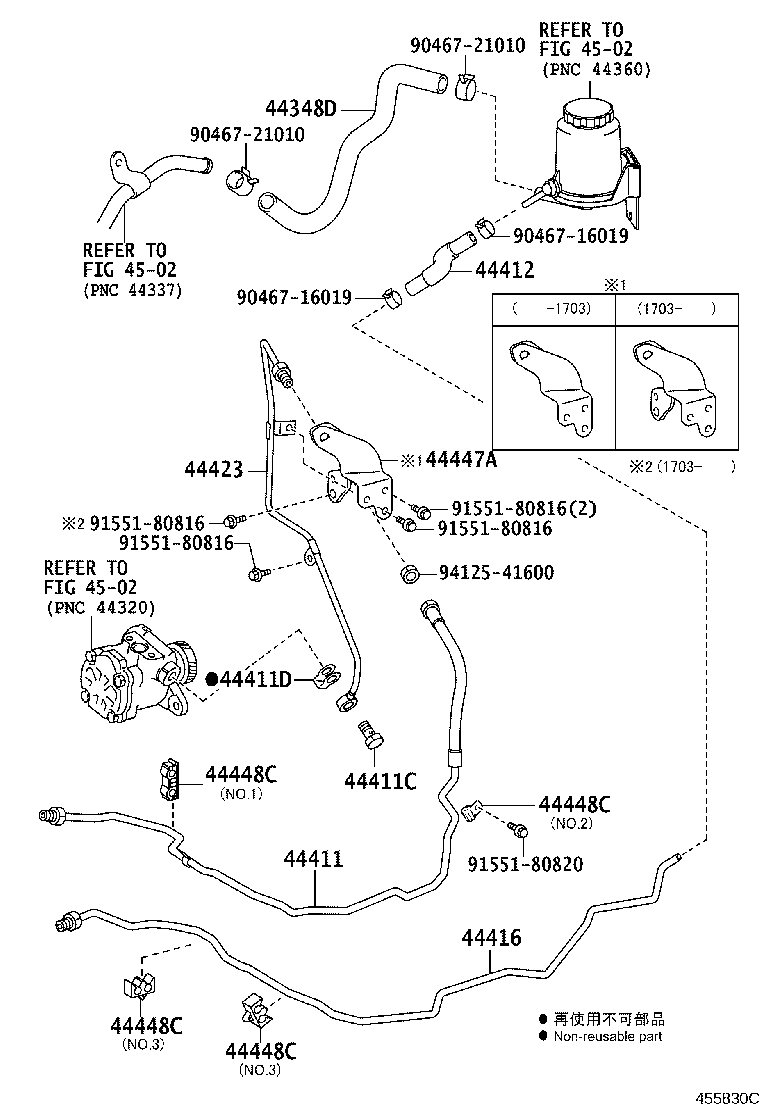

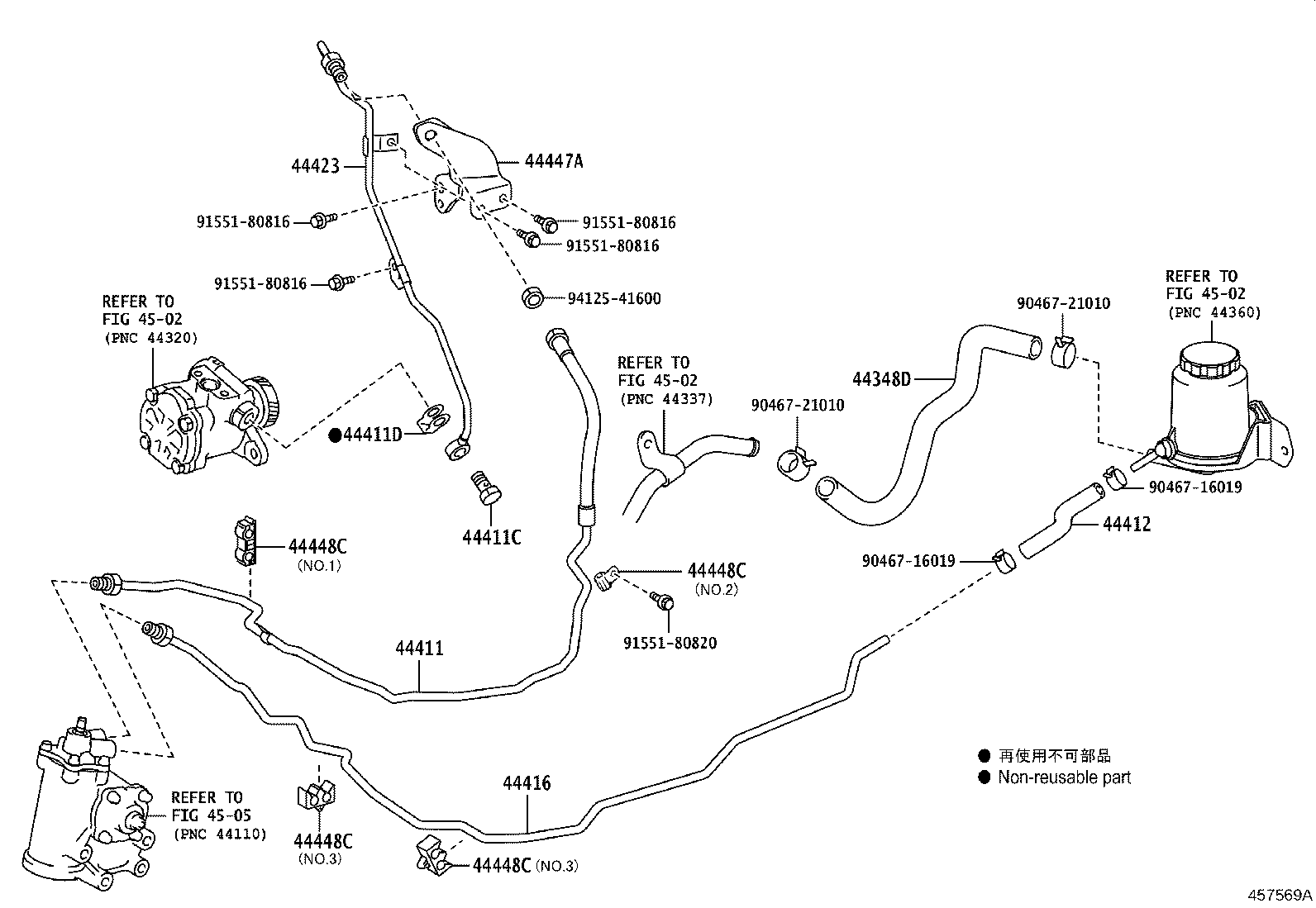

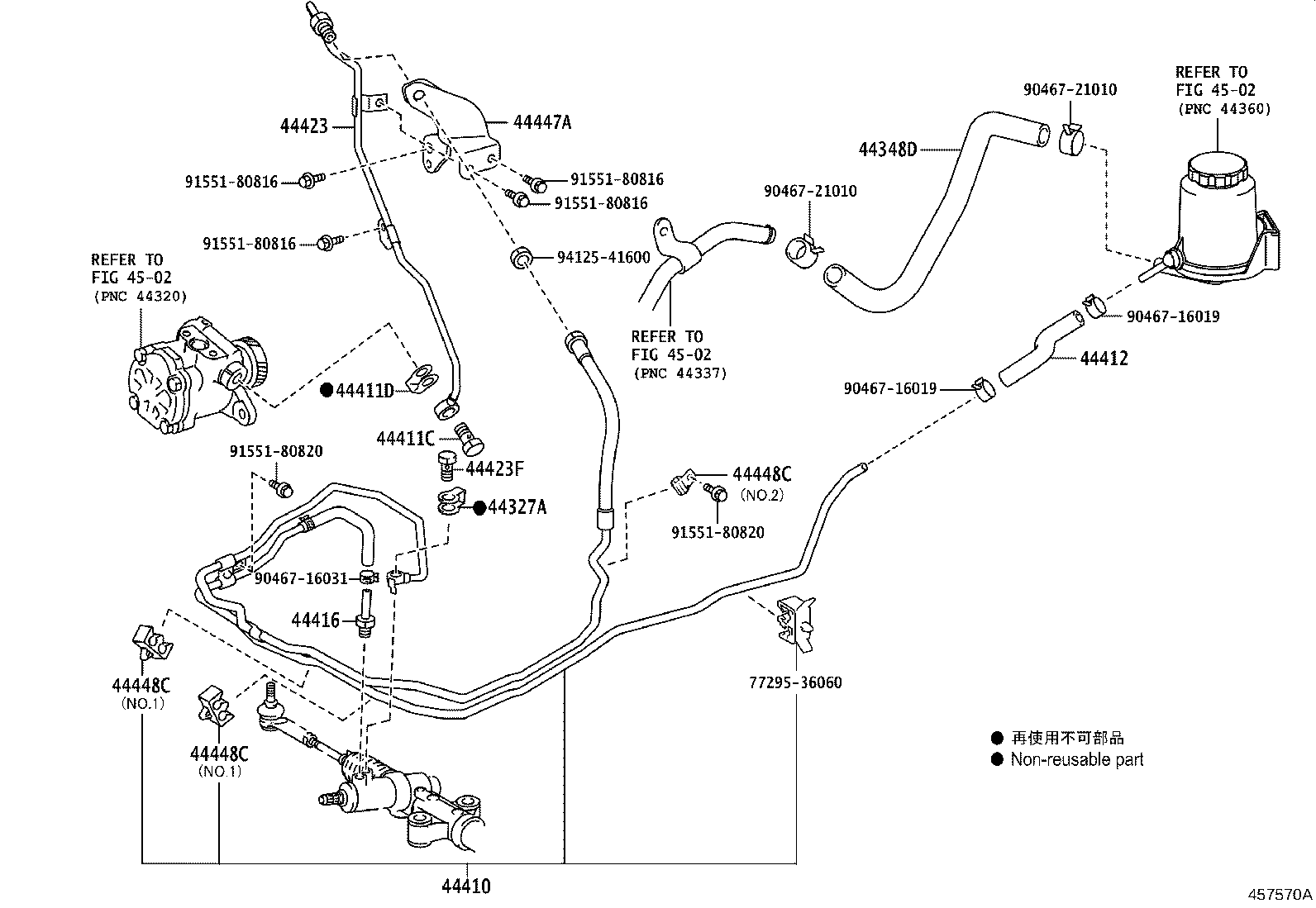

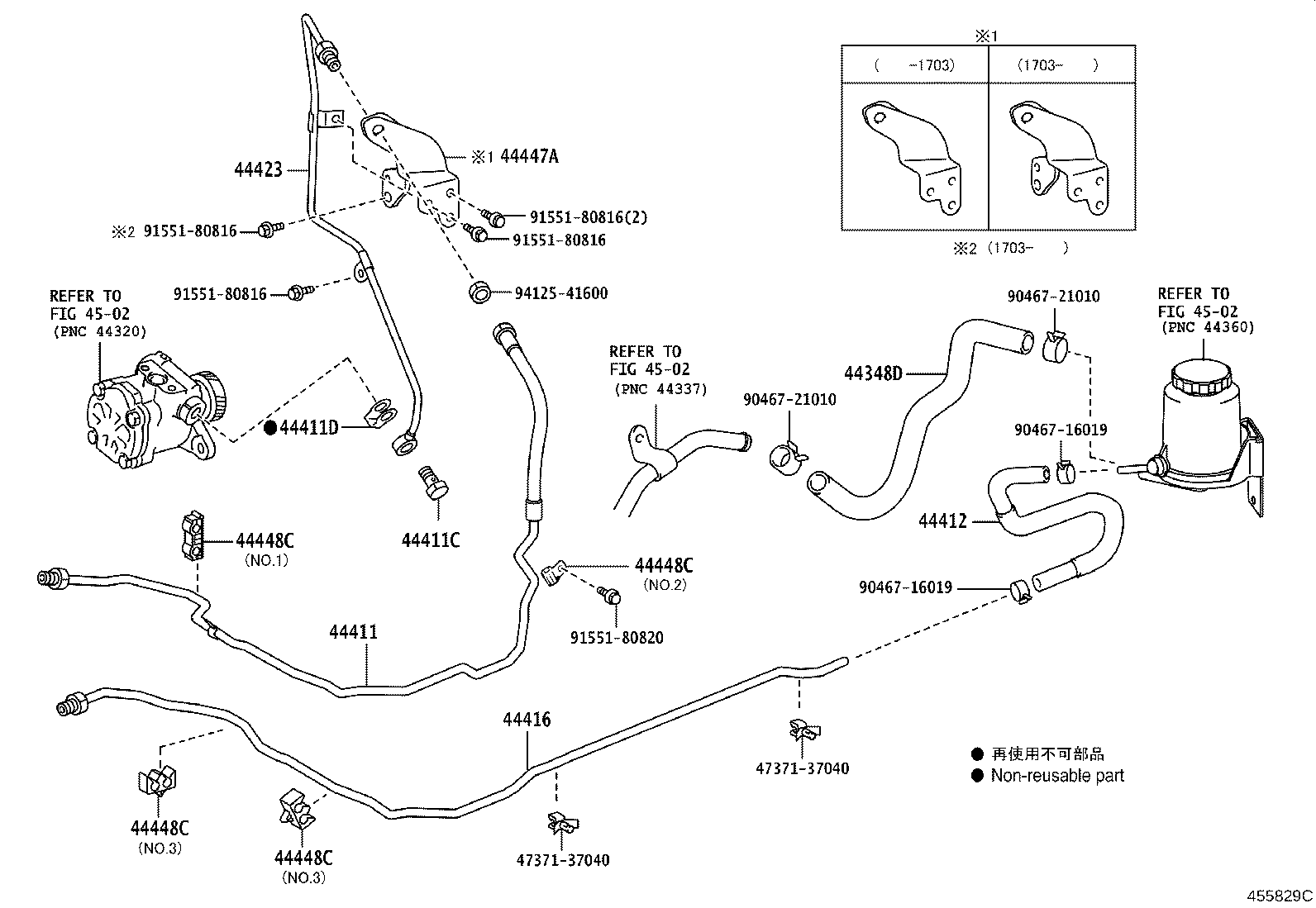

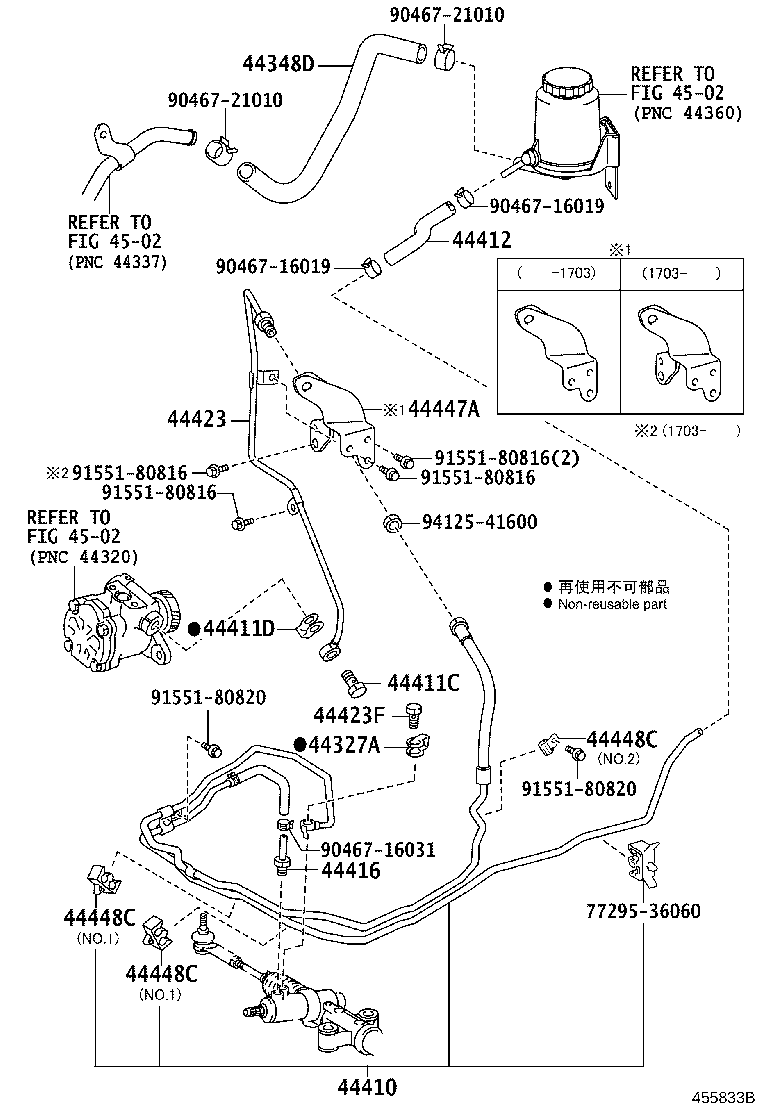

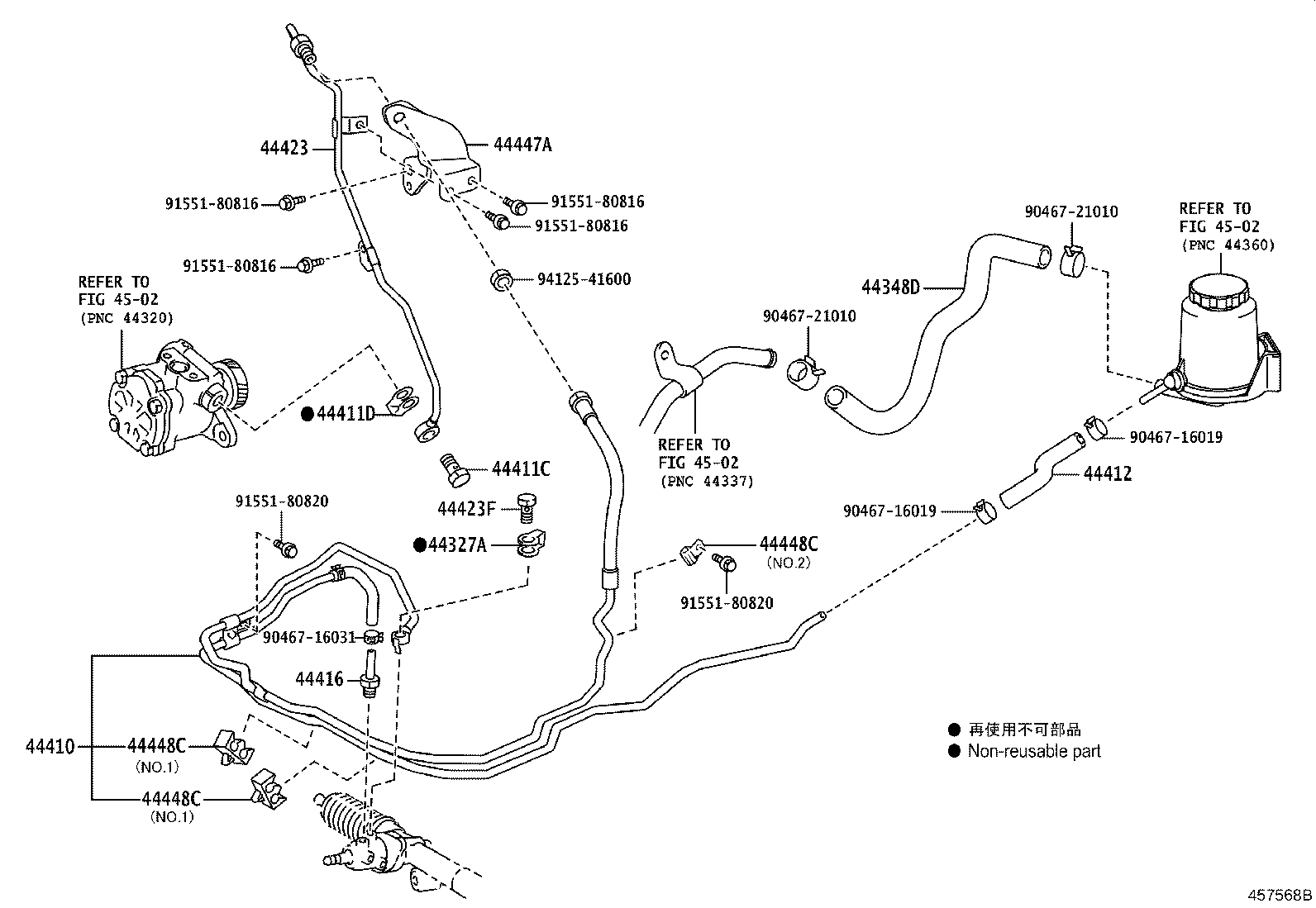

Figure 455827D 455827D 2011-07 → — Figure 455828A 455828A 2011-07 → — Figure 455829C 455829C 2011-07 → — Figure 455830C 455830C 2011-07 → — Figure 455831C 455831C 2011-07 → — Figure 455832B 455832B 2011-07 → — Figure 455833B 455833B 2011-07 → — Figure 457568B 457568B 2019-05 → — Figure 457569A 457569A 2019-05 → — Figure 457570A 457570A 2019-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448C Clamp, Pressure Feed, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
