Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

8 part groups · 7 illustrations

Illustrations

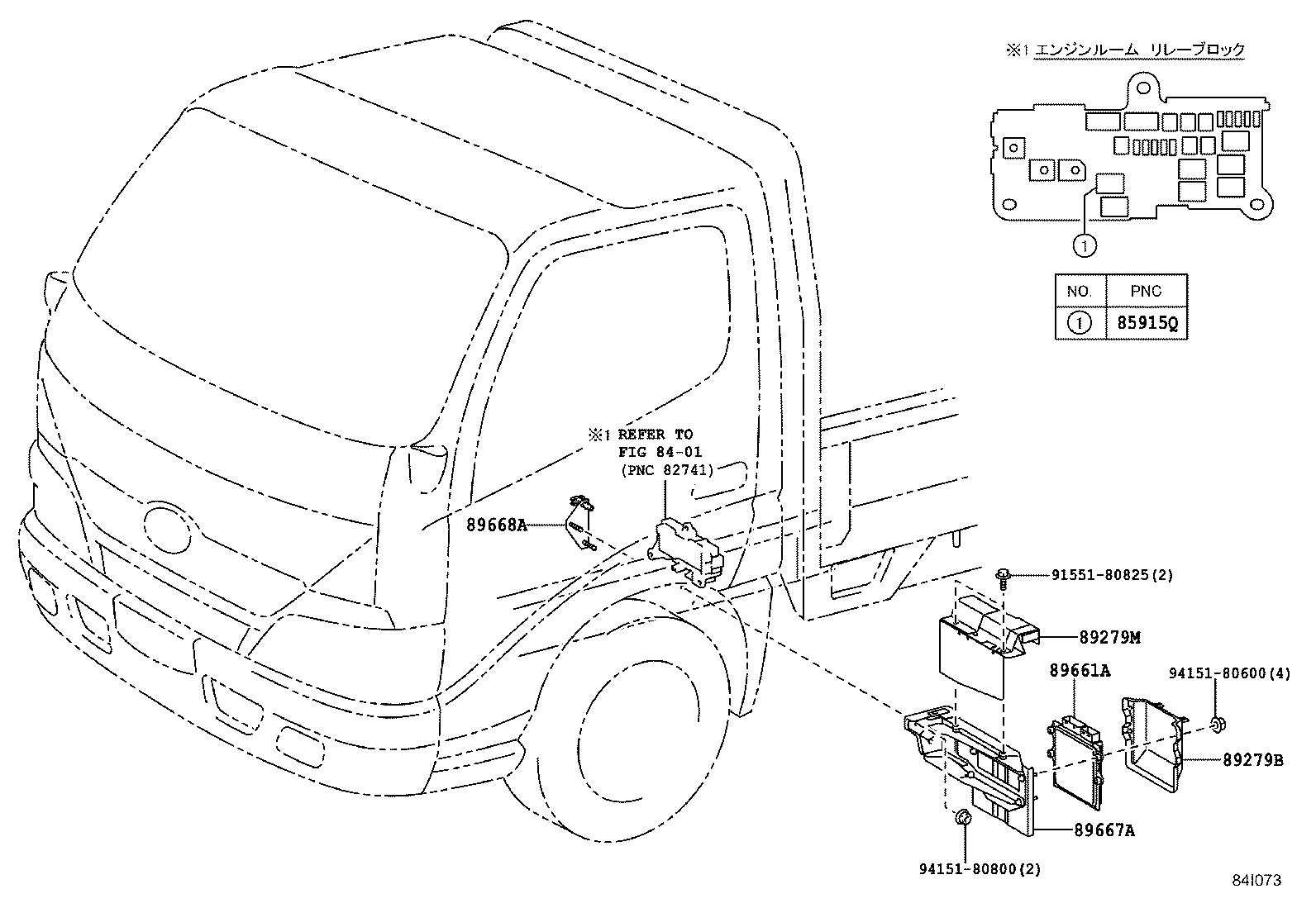

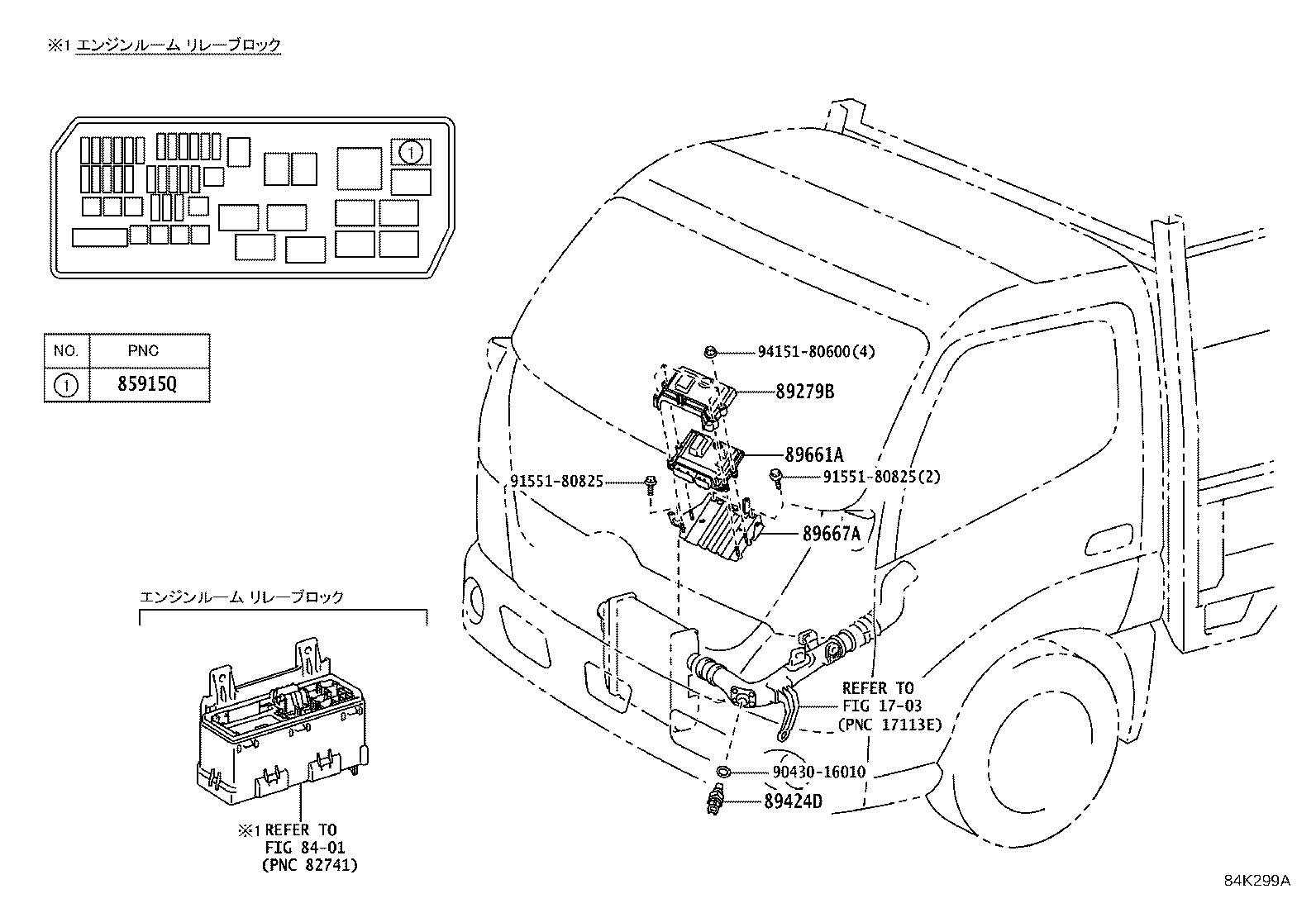

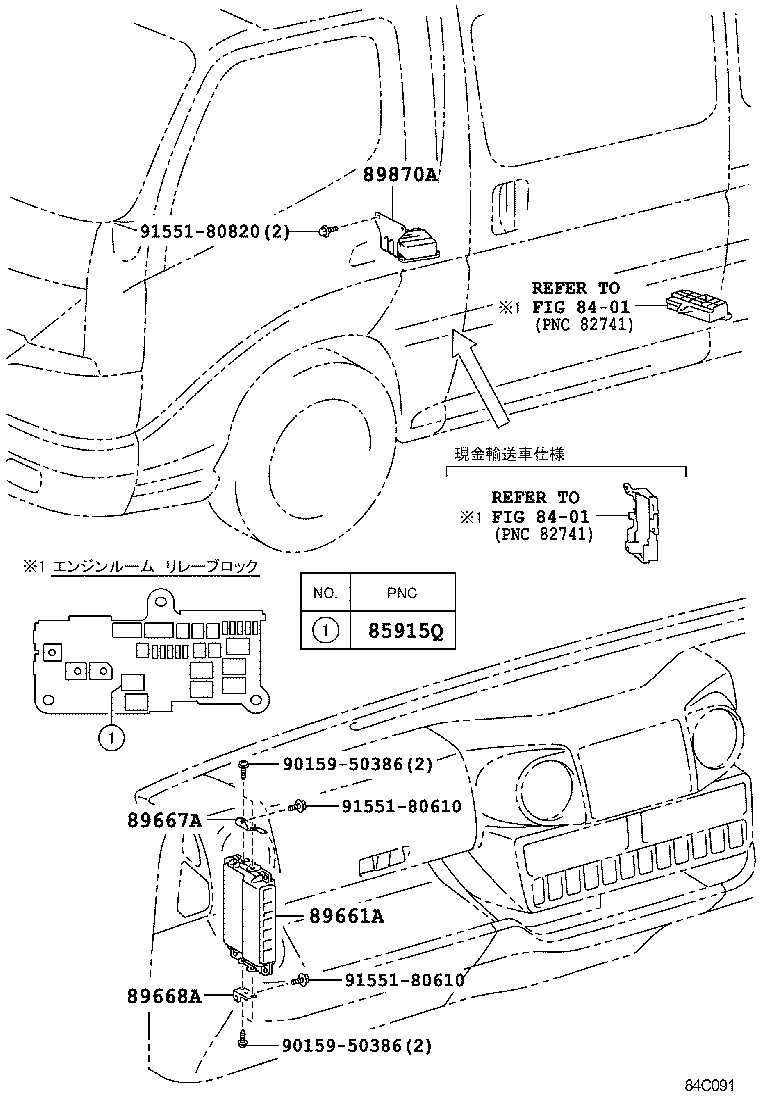

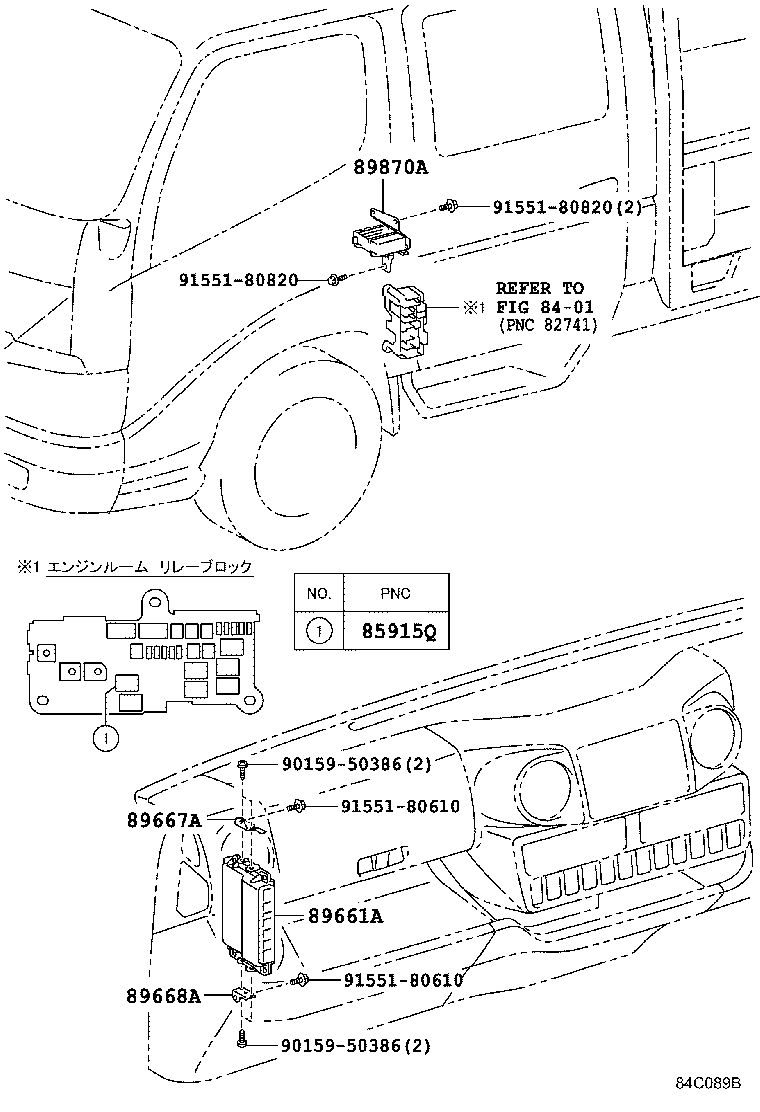

Figure 84C088 84C088 2011-07 → — Figure 84C089B 84C089B 2011-07 → — Figure 84C090A 84C090A 2011-07 → — Figure 84C090A 84C090A 2011-07 → — Figure 84C091 84C091 2011-07 → — Figure 84I073 84I073 2017-05 → — Figure 84K299A 84K299A 2019-05 → —

Part groups

PNCDescription
85915Q Relay, Computer (FOR DIESEL)
89279B Cover, Diesel Engine Control Computor
89279M Cover
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
