Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lane-keeping Assist

4 part groups · 2 illustrations

Illustrations

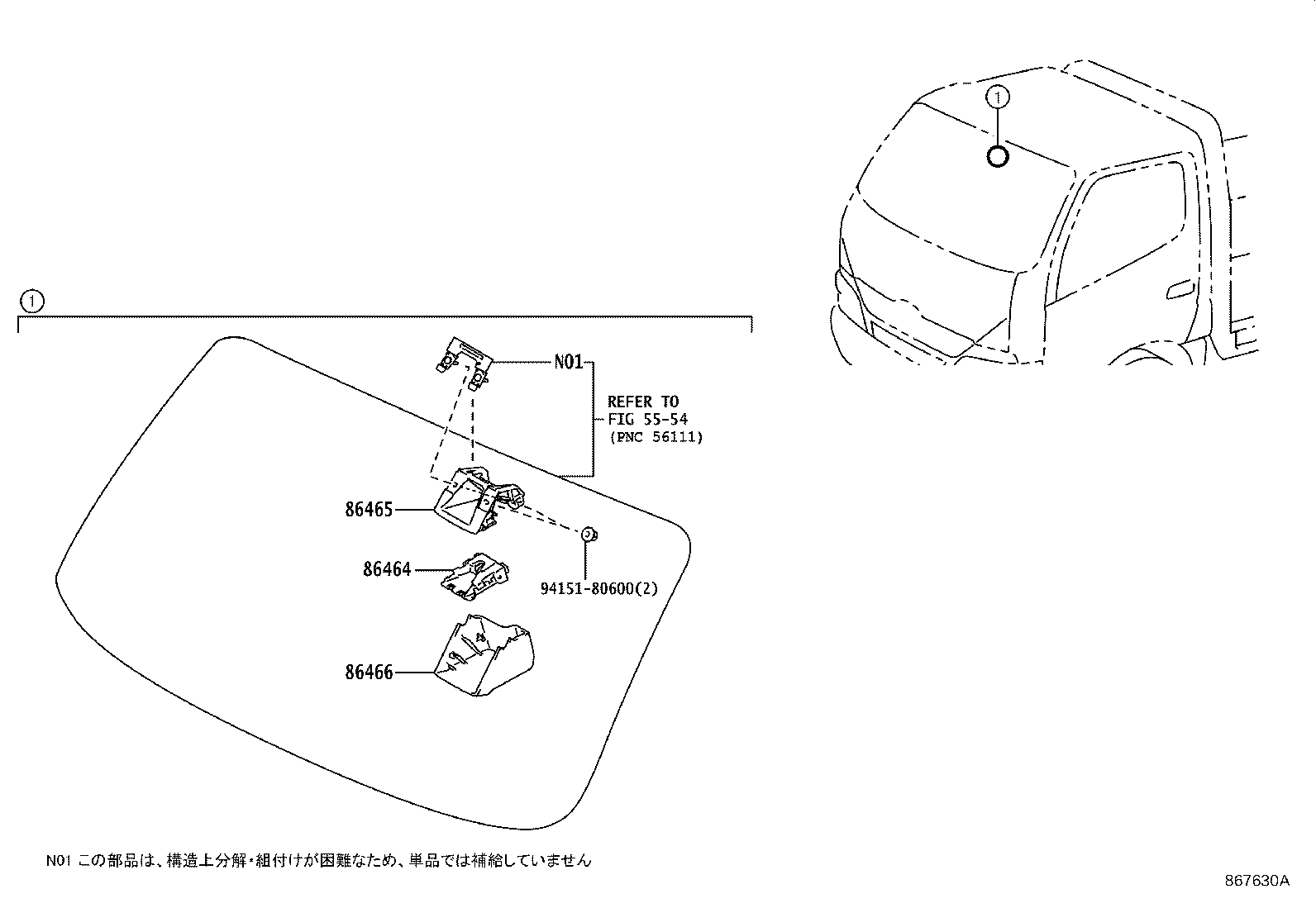

Figure 866552C 866552C 2016-05 → — Figure 867630A 867630A 2019-05 → —

Part groups

PNCDescription
84978 Switch, Lane-keeping Assist Main
86464 Sensor, Lane Recognition Camera
86465 Bracket, Lane Recognition
86466 Cover, Lane Departure Warning Camera, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
