Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

8 part groups · 2 illustrations

Illustrations

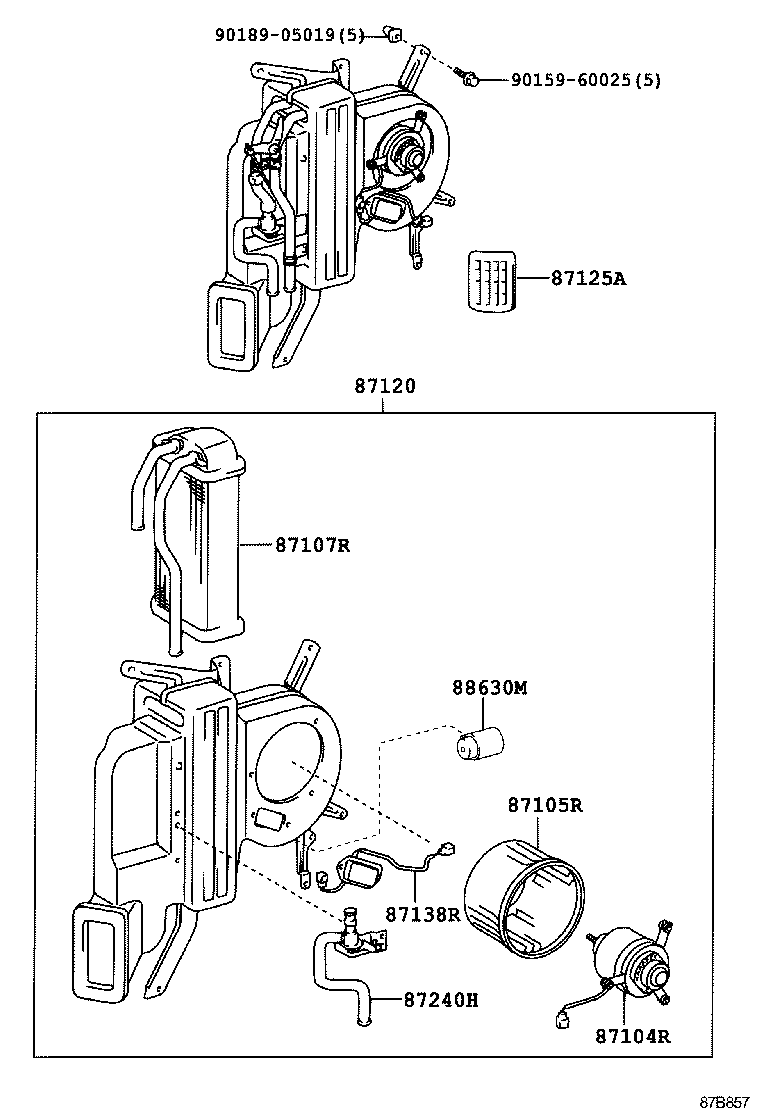

Figure 87B856 87B856 2011-07 → — Figure 87B857 87B857 2011-07 → 2016-05

Part groups

PNCDescription
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107R Unit Sub-assy, Rear Heater
87120 Heater Assy, Rear
87125A Grille, Air Outlet
87138R Resistor, Rear Heater Blower
87240H Valve Assy, Water Unit
88630M Relay Assy, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
