Toyota Dyna/Toyoace
2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan
Supported model
Data version 2019-05

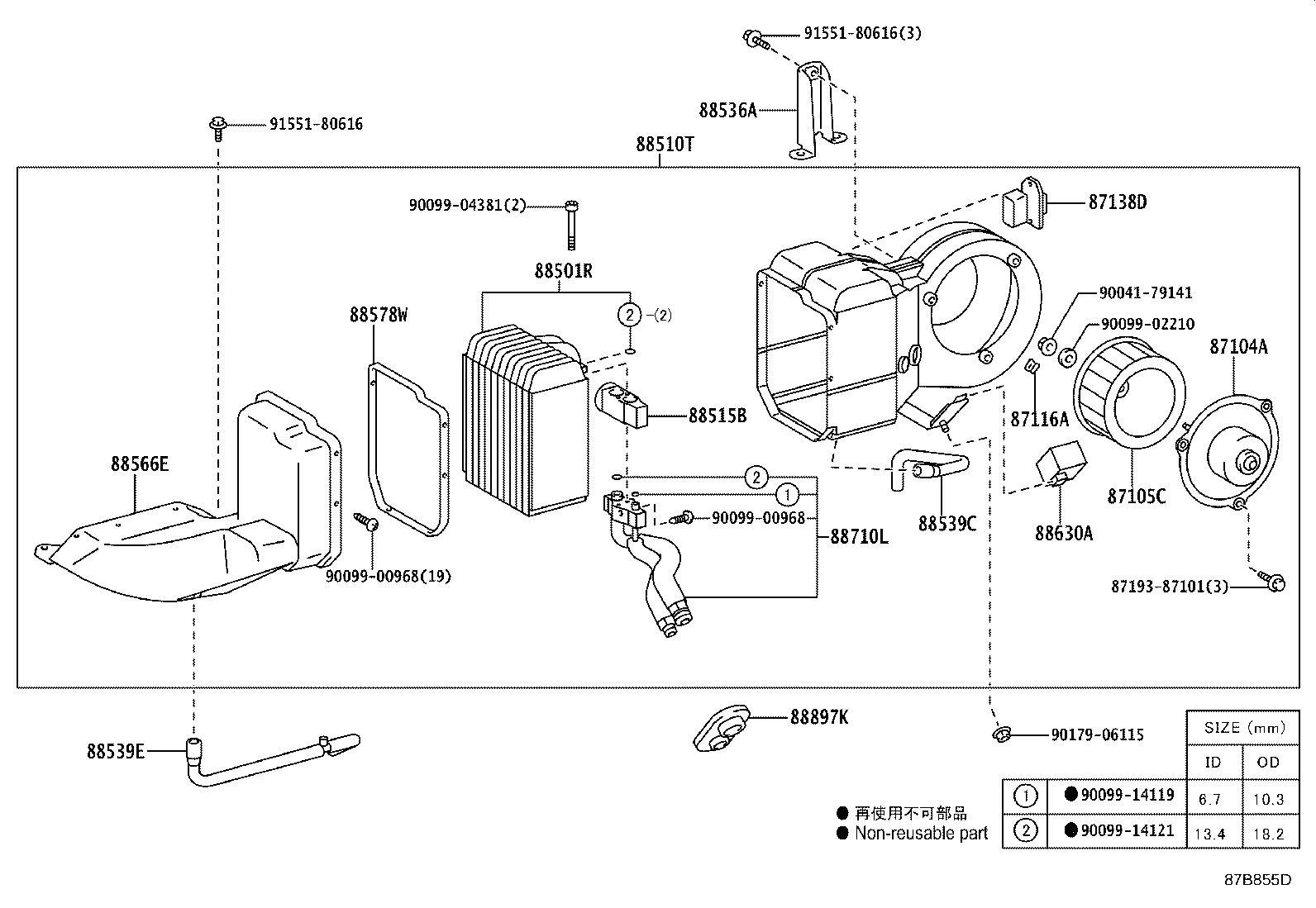

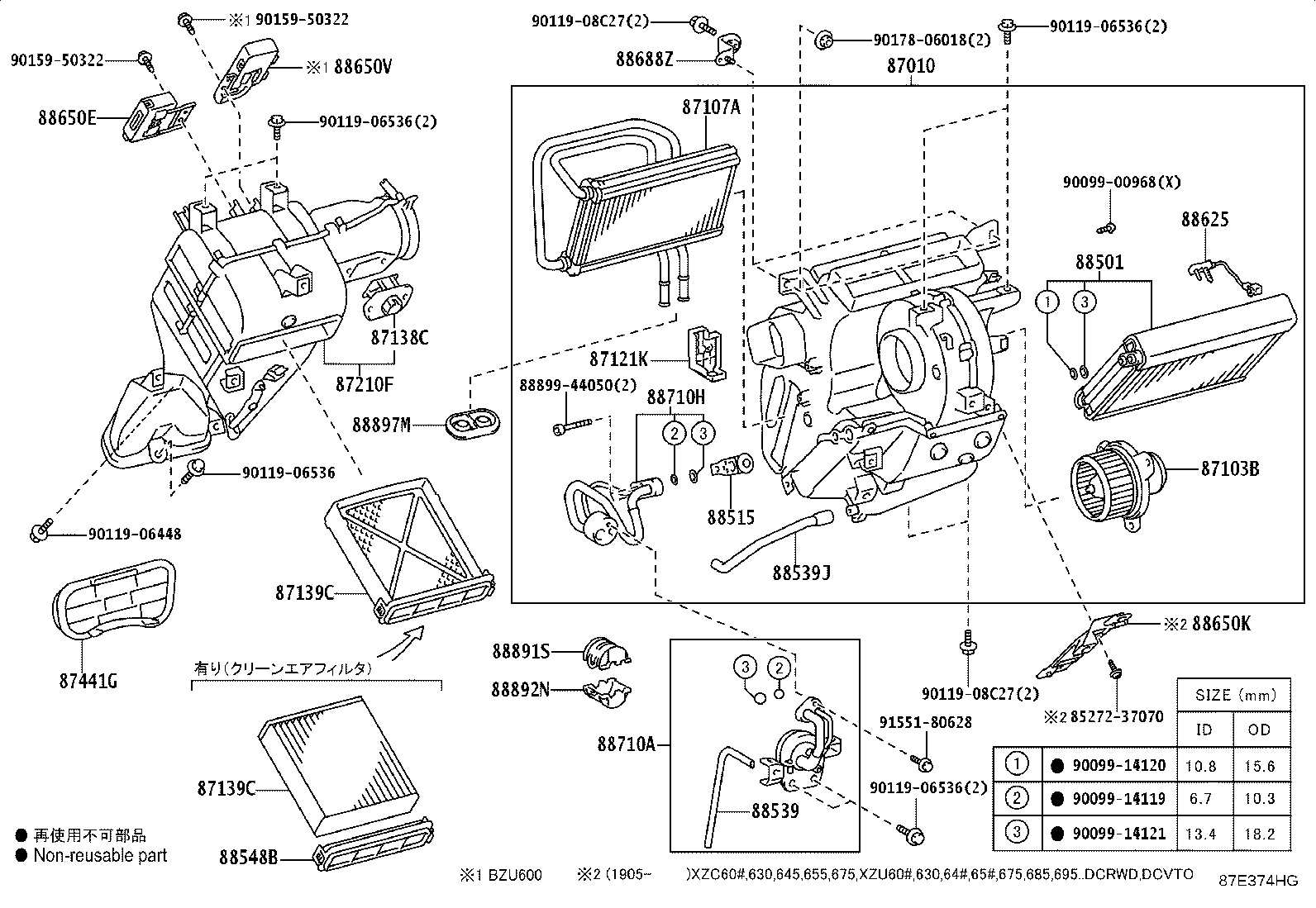

Heating & Air Conditioning - Cooler Unit
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87104A | Motor Sub-assy, Blower |
| 87105C | Fan Sub-assy, Blower, Rear |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 87121K | Bracket, Heater |
| 87138C | Resistor, Blower |
| 87138D | Resistor, Blower (REAR) |
| 87139C | Filter, Clean Air |
| 87210F | Case Assy, Air Damper |
| 87441G | Filter, Heater Air |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88510T | Unit Assy, Cooling (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539E | Hose, Cooler Unit Drain, NO.3 |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88566E | Duct, Cooler Air, NO.2 |
| 88578W | Packing, Cooling Unit, NO.4 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630A | Relay Assy, Cooler |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88650K | Bracket, Relay |
| 88650V | Amplifier Assy, Air Conditioner, NO.2 |
| 88688Z | Bracket |
| 88710A | Tube Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88710L | Tube & Accessory Assy, Air Conditioner, NO.2 |
| 88891S | Cover, Cooler, NO.1 |
| 88892N | Cover, Cooler, NO.2 |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897M | Grommet (FOR HEATER PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
