Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05

Heating & Air Conditioning - Control & Air Duct

40 part groups · 5 illustrations

PNC	Description
55519R	Plate, Heater Control Name

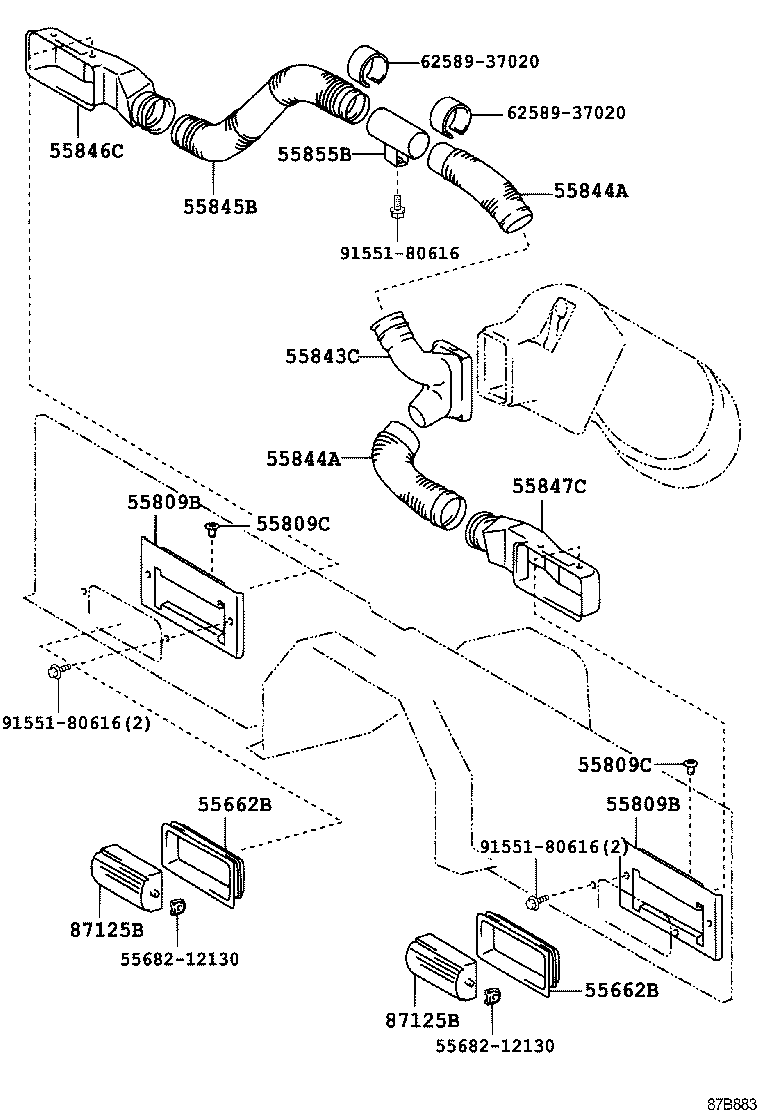

55662B	Bezel, Rear Heater
55809B	Bracket, Air Duct Retainer
55809C	Clip, Air Duct Retainer Bracket
55843A	Duct, Heater TO Register, NO.1
55843C	Duct, Rear Heater TO Register, NO.1
55844	Duct, Heater TO Register, NO.2
55844A	Duct, Rear Heater TO Register, NO.2
55845A	Duct, Heater TO Register, NO.3
55845B	Duct, Rear Heater TO Register, NO.3
55846C	Duct, Rear Heater TO Register, NO.4
55847C	Duct, Rear Heater TO Register, NO.5
55855B	Bracket, Air Duct Register Mounting
55870B	Duct Assy, Heater TO Register
55900A	Control & Accessory Assy, Heater
55905A	Knob, Heater Control
55905B	Knob, Heater Control, NO.2
55906D	Cable Sub-assy, Heater Control, NO.2
55908A	Cable Sub-assy, Air Inlet Damper Control
55909A	Cable Sub-assy, Airmix Damper Control
55937	Knob, Heater Control Lever
55937R	Knob, Heater Control Lever

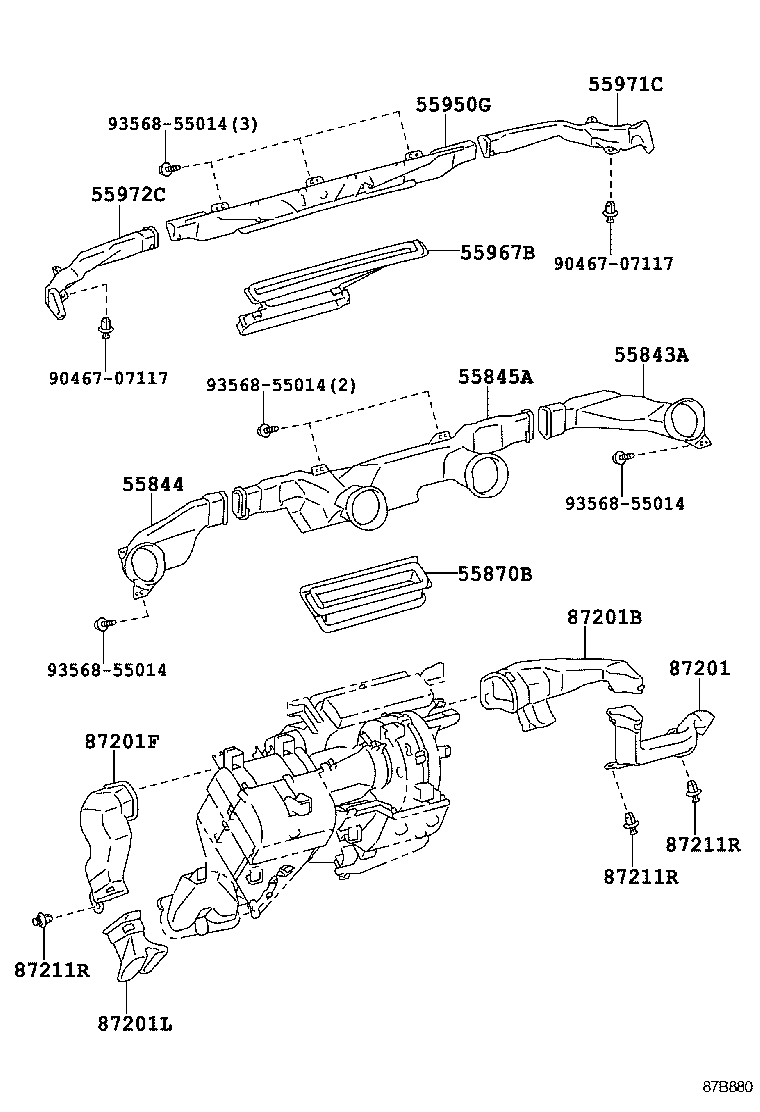

55950G	Nozzle Assy, Defroster
55967B	Nozzle, Defroster, Lower
55971C	Duct, Side Defroster Nozzle, NO.1
55972C	Duct, Side Defroster Nozzle, NO.2
84661A	Knob, Cooler Control Switch
84732H	Switch, Heater Blower
84732K	Bulb, Heater Blower Switch
87125B	Grille, Heater Air Outlet
87201	Duct Sub-assy, Air, NO.1
87201B	Duct Sub-assy, Air, NO.2
87201F	Duct Sub-assy, Air, NO.3
87201L	Duct Sub-assy, Air, NO.4
87211R	Clip, Air Duct
88566A	Duct, Cooler Air, NO.1
88566B	Duct, Cooler Air, NO.2
88566C	Duct, Cooler Air, NO.3
88611A	Knob, Cooler Control Switch
88619A	Panel, Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
