Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

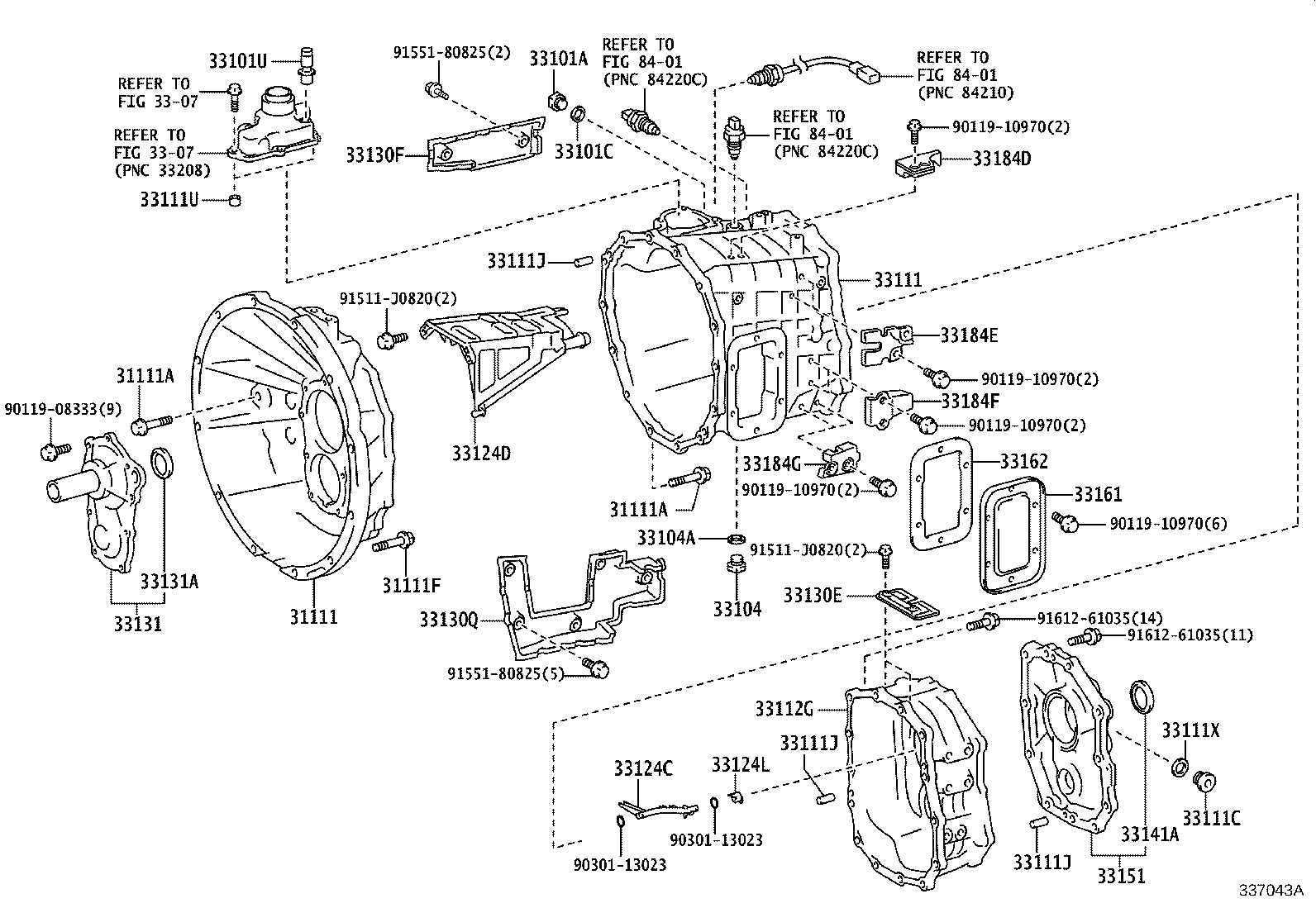

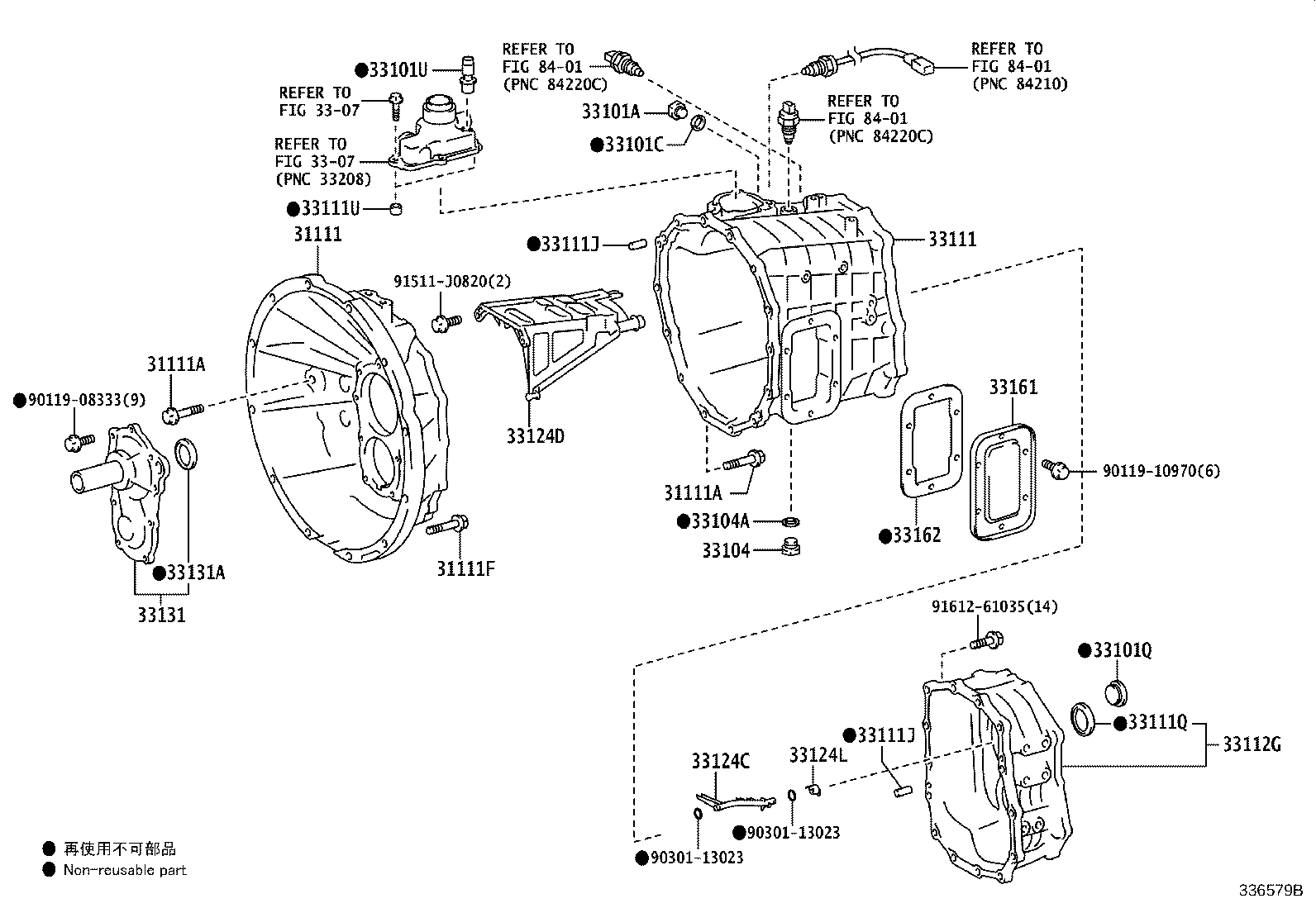

Clutch Housing & Transmission Case (MTM)
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31111A | Bolt(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) |
| 31111F | Bolt(FOR CLUTCH HOUSING & ENGINE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101Q | Plug, NO.1(FOR TRANSMISSION CASE) |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33112G | Case, Transmission, Rear |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124L | Pipe, Oil Receiver, N0.3(MTM) |
| 33130E | Cover Assy, Transmission Case |
| 33130F | Cover Assy, Transmission Case, NO.2 |
| 33130Q | Cover Assy, Transmission Case, NO.3 |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33141A | Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33161 | Cover, Manual Transmission Power Take-off |
| 33162 | Gasket, Manual Transmission Power Take-off Cover |
| 33184D | Weight, Dynamic Damper, NO.1 |
| 33184E | Weight, Dynamic Damper, NO.2 |
| 33184F | Weight, Dynamic Damper, NO.3 |
| 33184G | Weight, Dynamic Damper, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
