Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

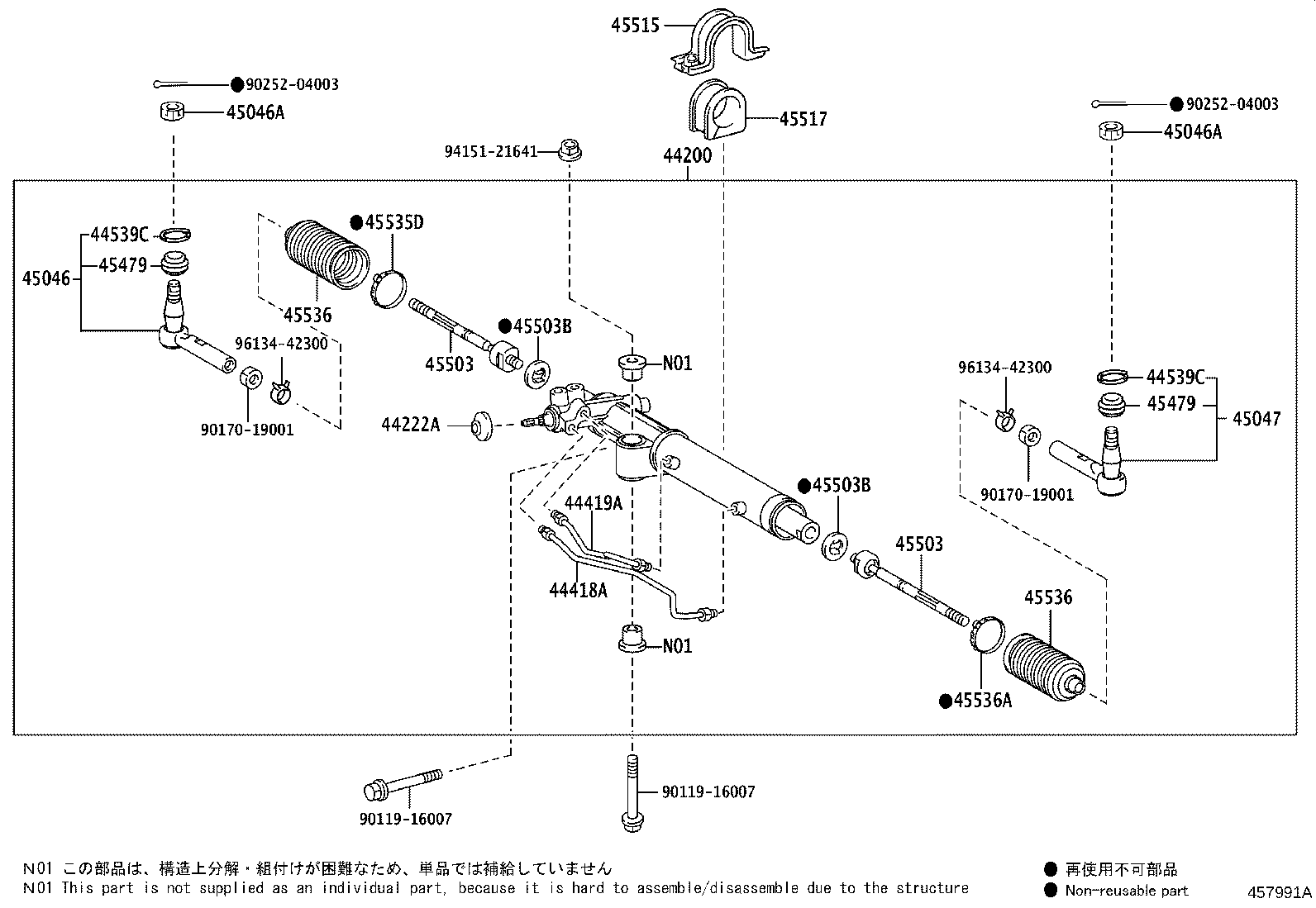

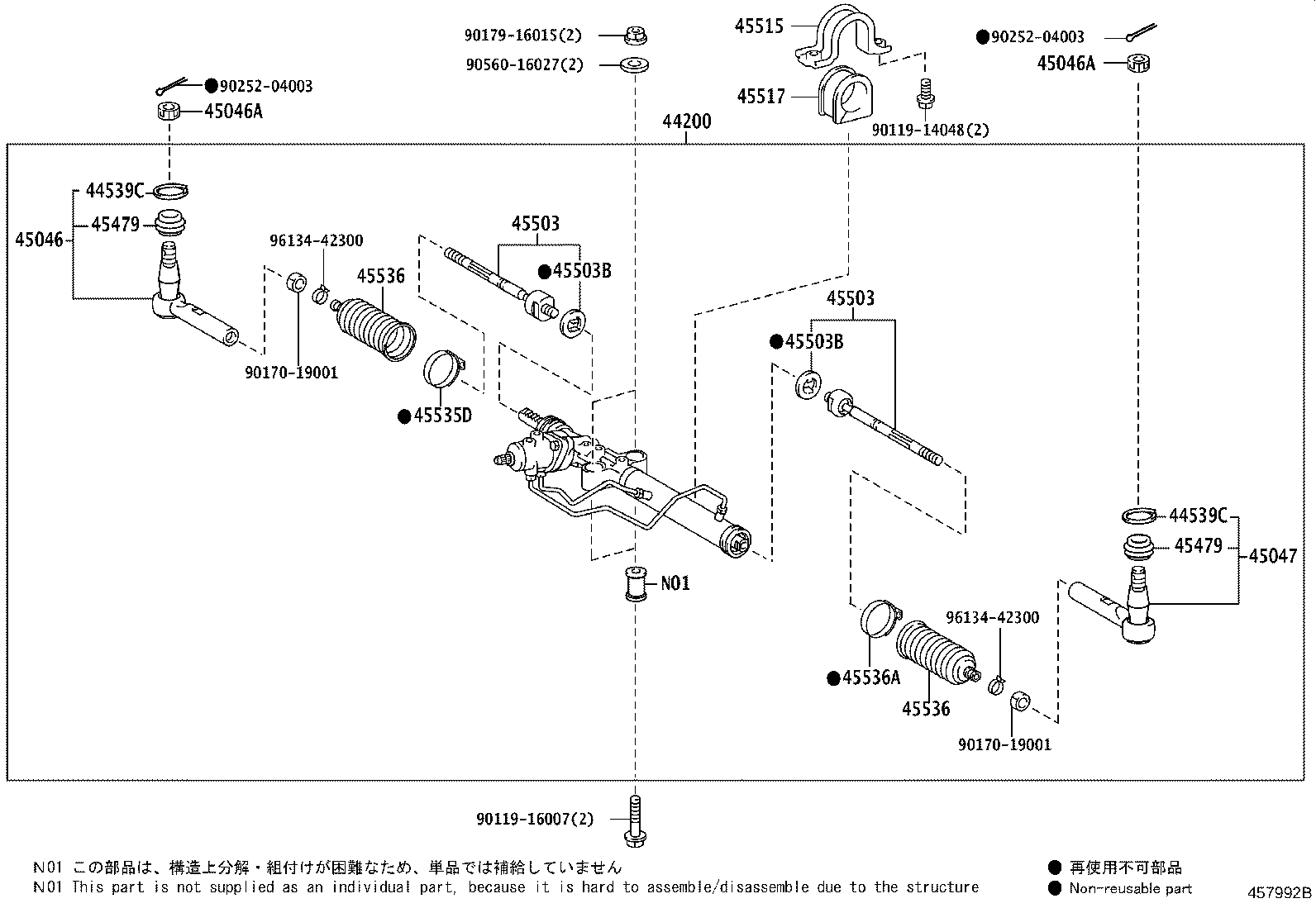

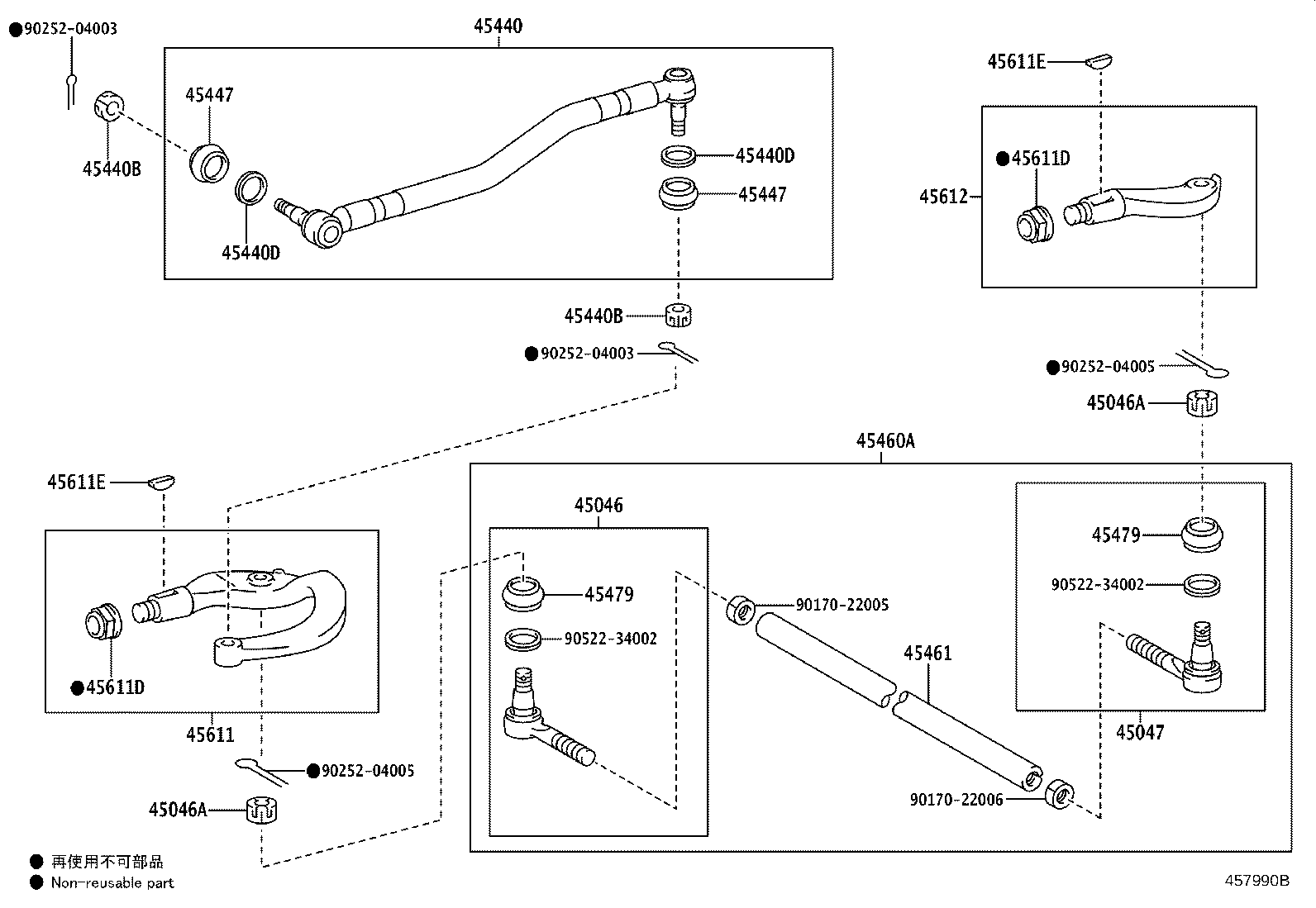

Front Steering Gear & Link
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44101 | Worm Sub-assy, Steering |
| 44101E | Ring, O(FOR STEERING WORM) |
| 44108D | Ring, O(FOR SECTOR COVER) |
| 44110 | Gear Assy, Power Steering |
| 44167 | Cover, Sector Shaft Dust |
| 44168 | Cover, Worm Shaft Dust |
| 44200 | Link Assy, Power Steering |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44418A | Tube, Steering Right Turn Pressure |
| 44419A | Tube, Steering Left Turn Pressure |
| 44539C | Ring, Set(FOR POWER STEERING RACK END DUST SEAL) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45411 | Arm, Pitman |
| 45440 | Link Assy, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45440D | Ring, Set(FOR STEERING DRAG LINK) |
| 45447 | Seal, Drag Link Dust |
| 45460A | Rod Assy, Tie |
| 45461 | Rod, Steering Tie |
| 45479 | Seal, Steering Link Joint Dust |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611D | Nut(FOR STEERING KNUCKLE ARM) |
| 45611E | Key, Woodruff(FOR STEERING IDLER ARM) |
| 45612 | Arm, Steering Knuckle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
