Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

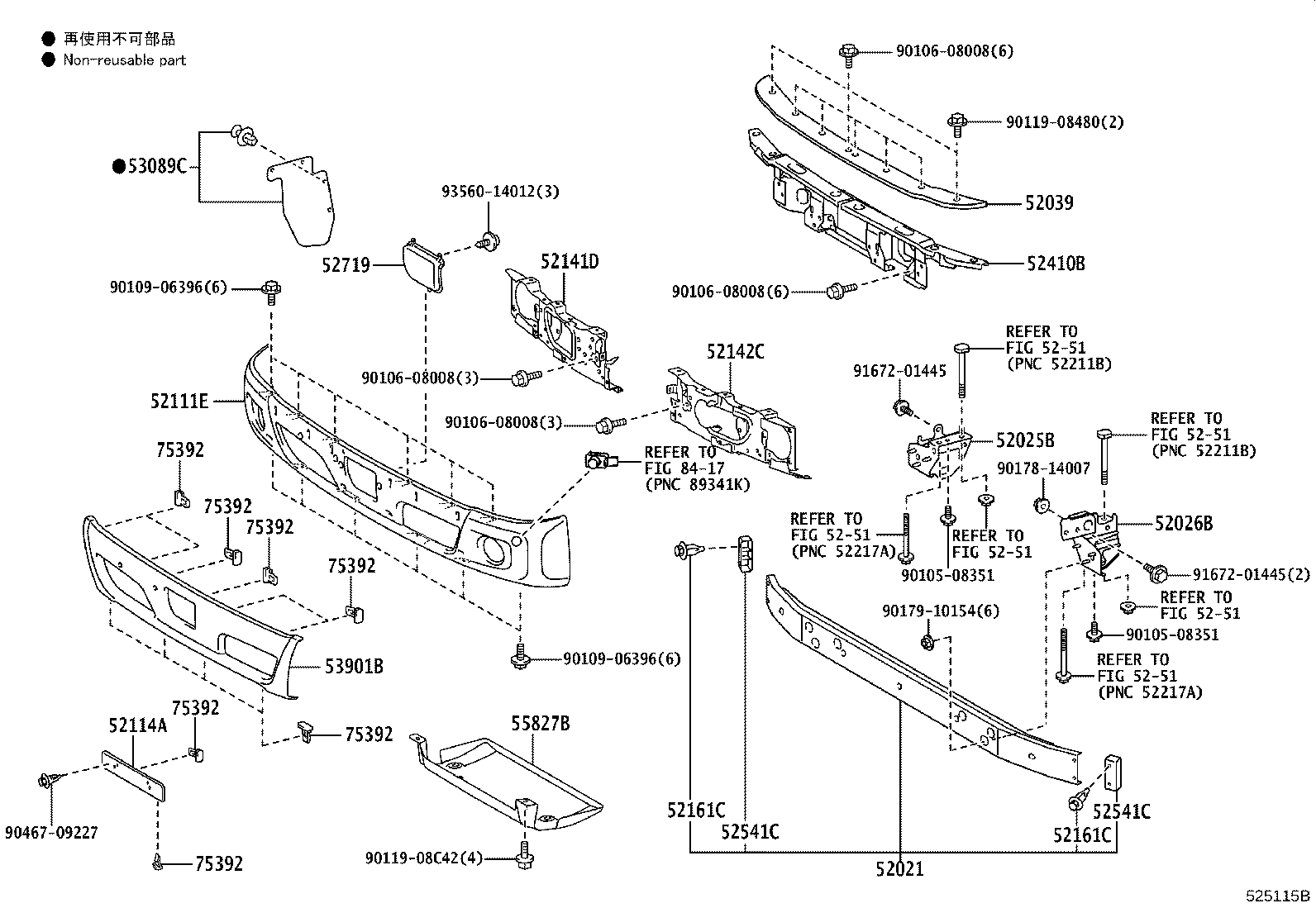

Front Bumper & Bumper Stay
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52001 | Front Bumper Set |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52025B | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026B | Extension Sub-assy, Front Bumper, NO.2 LH |
| 52039 | Step Sub-assy, Front Bumper |
| 52102C | Extension Sub-assy, Front Bumper |
| 52111E | Bar, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52130 | Bracket Assy, Front Bumper Side Mounting, RH |
| 52133B | Bracket, Front Bumper Extension Mounting, RH |
| 52134B | Bracket, Front Bumper Extension Mounting, LH |
| 52140 | Bracket Assy, Front Bumper Side Mounting, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52410B | Guard Assy, Front Bumper |
| 52431A | Bracket, Front Bumper Guard, RH |
| 52432A | Bracket, Front Bumper Guard, LH |
| 52502A | Bracket, Front Bumper Extension Mounting, RH |
| 52503A | Bracket, Front Bumper Extension Mounting, LH |
| 52541C | Protector, Front Bumper, NO.1 |
| 52671A | Extension, Front Bumper Arm, RH |
| 52672 | Extension, Front Bumper Arm, LH |
| 52719 | Cover, Front Bumper Moulding |
| 53089C | Mudguard Sub-assy, Front |
| 53901B | Panel Sub-assy, Front Valance |
| 55827B | Duct, Ventilator Air Guide |
| 57037B | Stay Sub-assy, Front Step, RH |
| 57038A | Stay Sub-assy, Front Step, LH |
| 61403D | Panel Sub-assy, Front Step |
| 61415D | Panel, Front Step Under, RH |
| 61416D | Panel, Front Step Under, LH |
| 75392 | Retainer, Outside Moulding |
| 76851C | Front Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
