Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

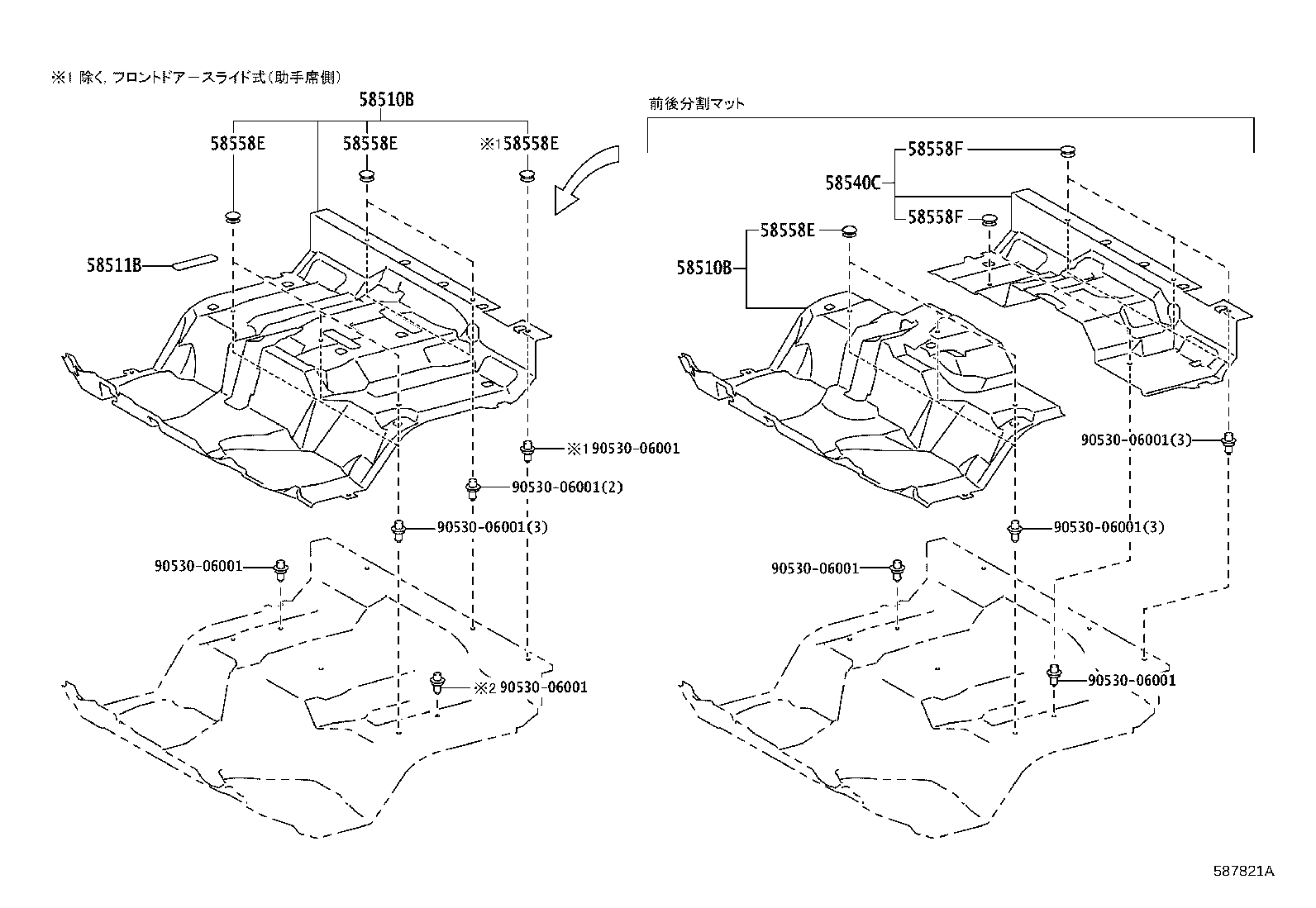

Floor Mat & Silencer Pad
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58359B | Protector, Floor Tapping |
| 58504C | Mat Sub-assy, Header |
| 58510B | Mat, Front Floor, Front |
| 58511B | Mat, Floor, Front Side |
| 58514B | Mat, Floor, Rear RH |
| 58515B | Mat, Floor, Rear LH |
| 58521D | Mat, Engine Service Hole Cover |
| 58540C | Mat Assy, Floor, Rear |
| 58558E | Fastener, Pile |
| 58558F | Fastener, Pile, Upr |
| 58581A | Mat, Rear Floor |
| 58614A | Plate, Mat Set, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
