Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

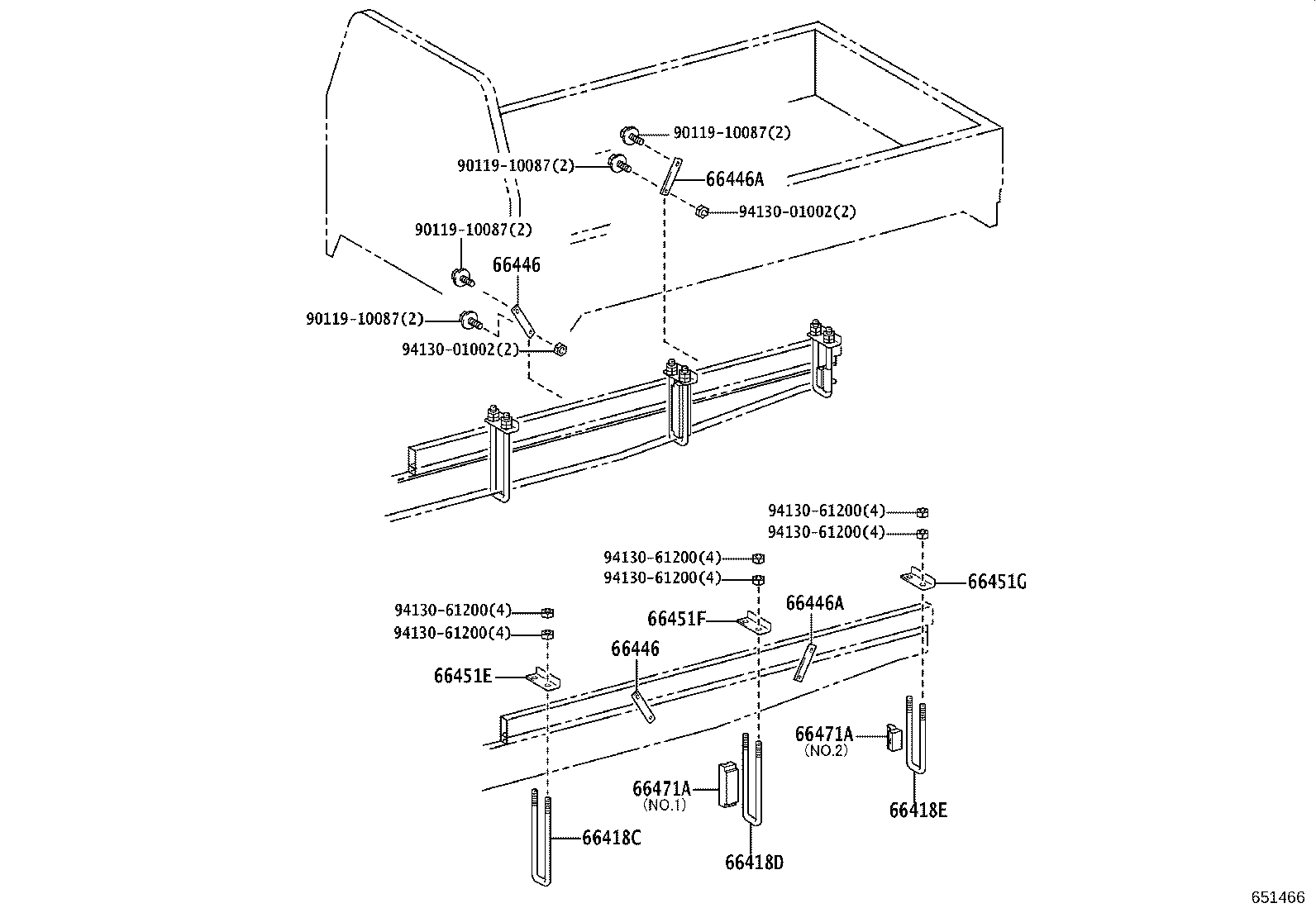

Rear Body Mounting
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 66418C | Bolt, U, Front |
| 66418D | Bolt, U, Center |
| 66418E | Bolt, U, Rear |
| 66441 | Shim, Mounting, NO.1 |
| 66446 | Brace, Frame Floor |
| 66446A | Brace, Frame TO Rear Body Floor |
| 66451E | Plate, U Bolt, Front |
| 66451F | Plate, U Bolt, Center |
| 66451G | Plate, U Bolt, Rear |
| 66471A | Reinforcement, Frame U Bolt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
