Toyota Dyna

2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 3 illustrations

Illustrations

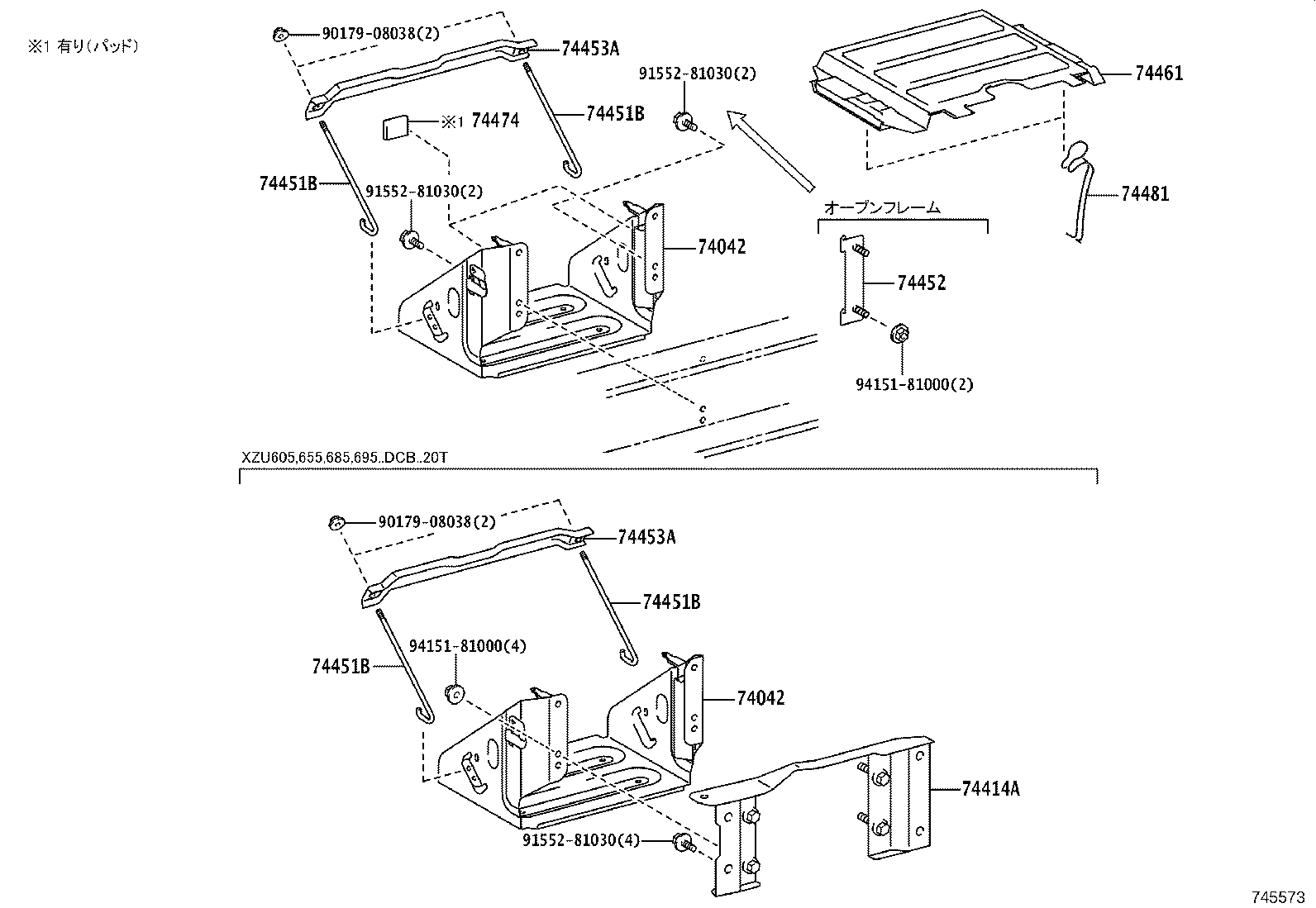

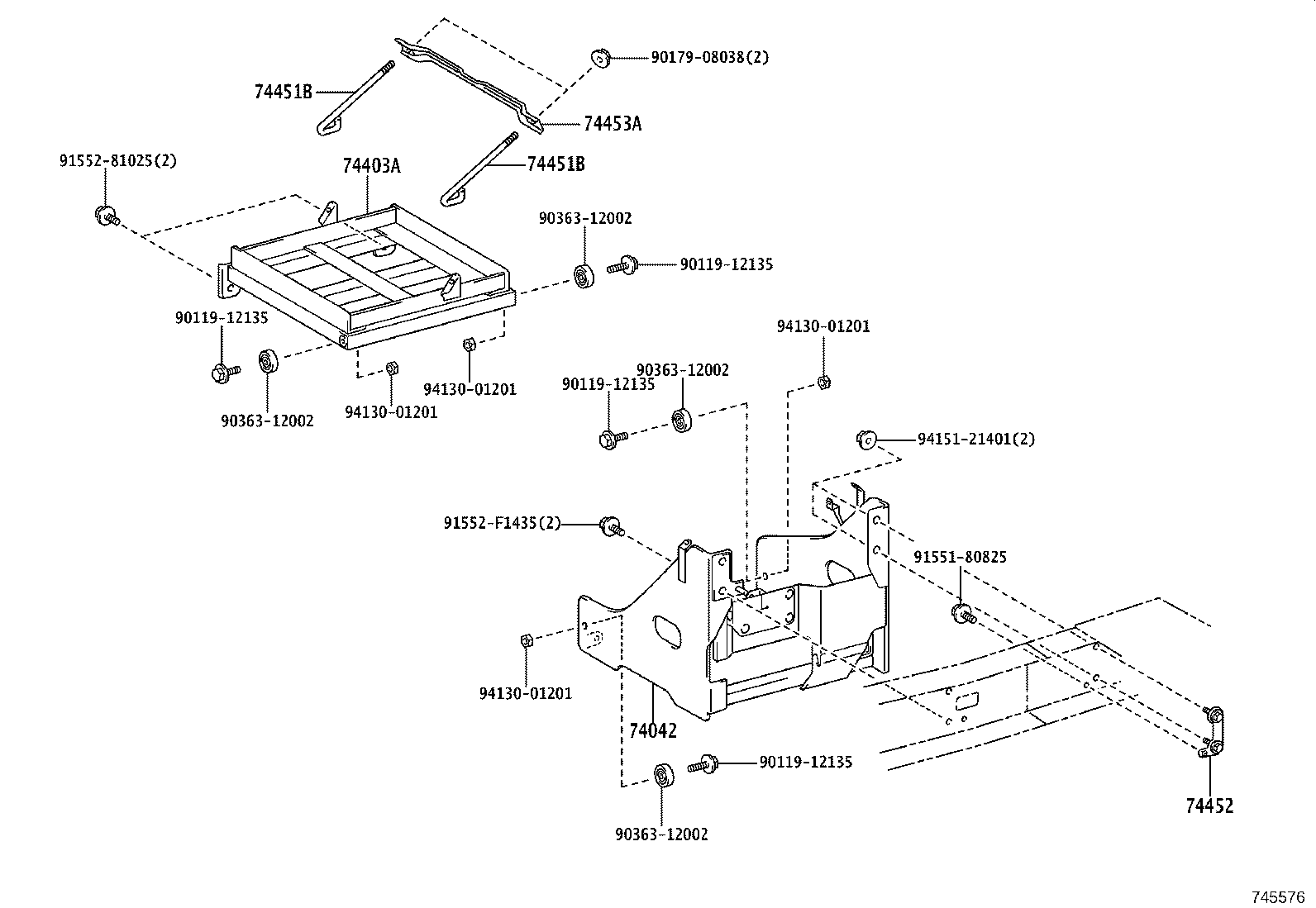

Figure 745575 745575 2021-03 → — Figure 745573 745573 2021-03 → — Figure 745576 745576 2021-03 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74403A Carrier Sub-assy, Battery
74414A Bracket, Battery, NO.1
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
