Toyota Dyna

2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 12 illustrations

Illustrations

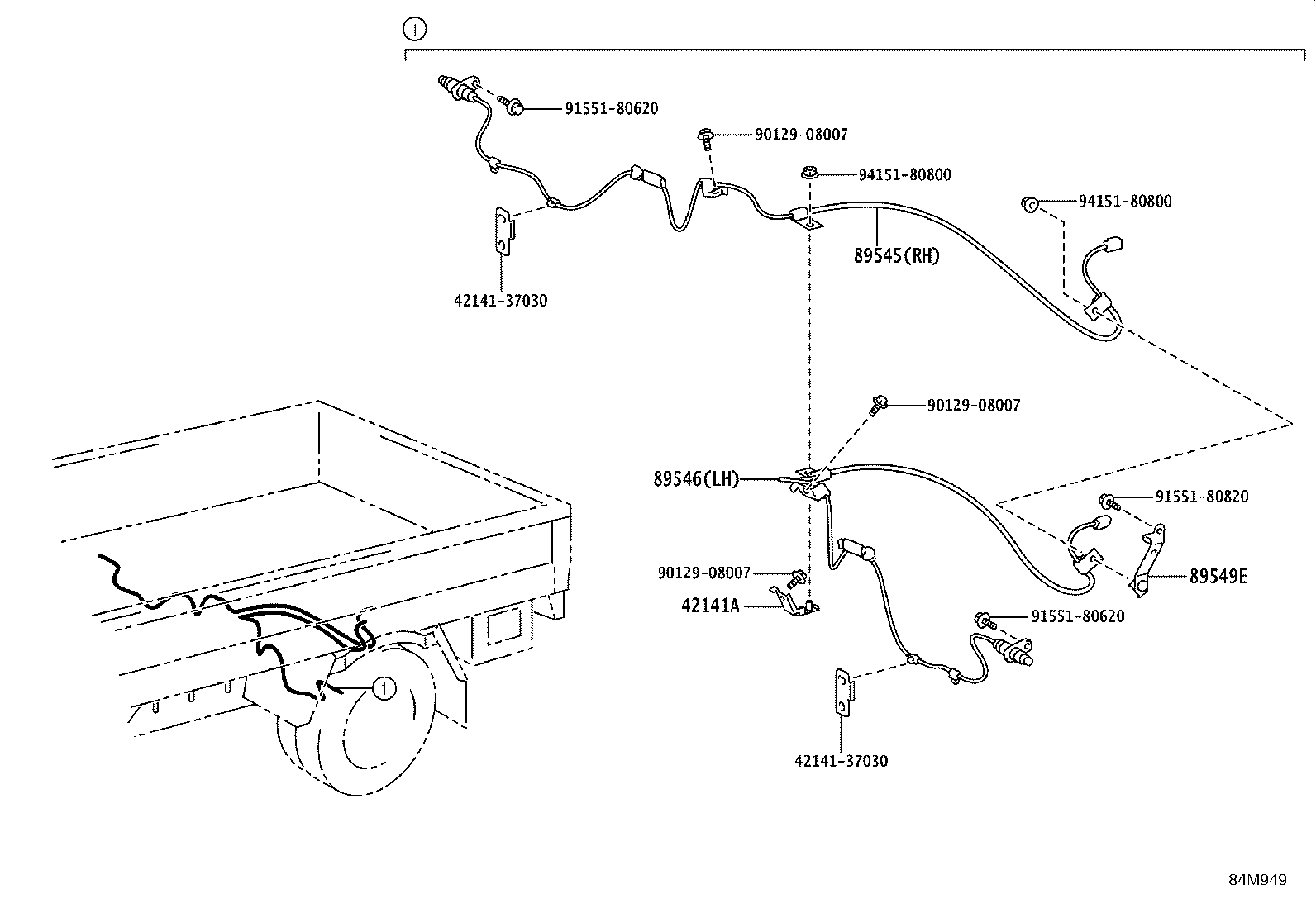

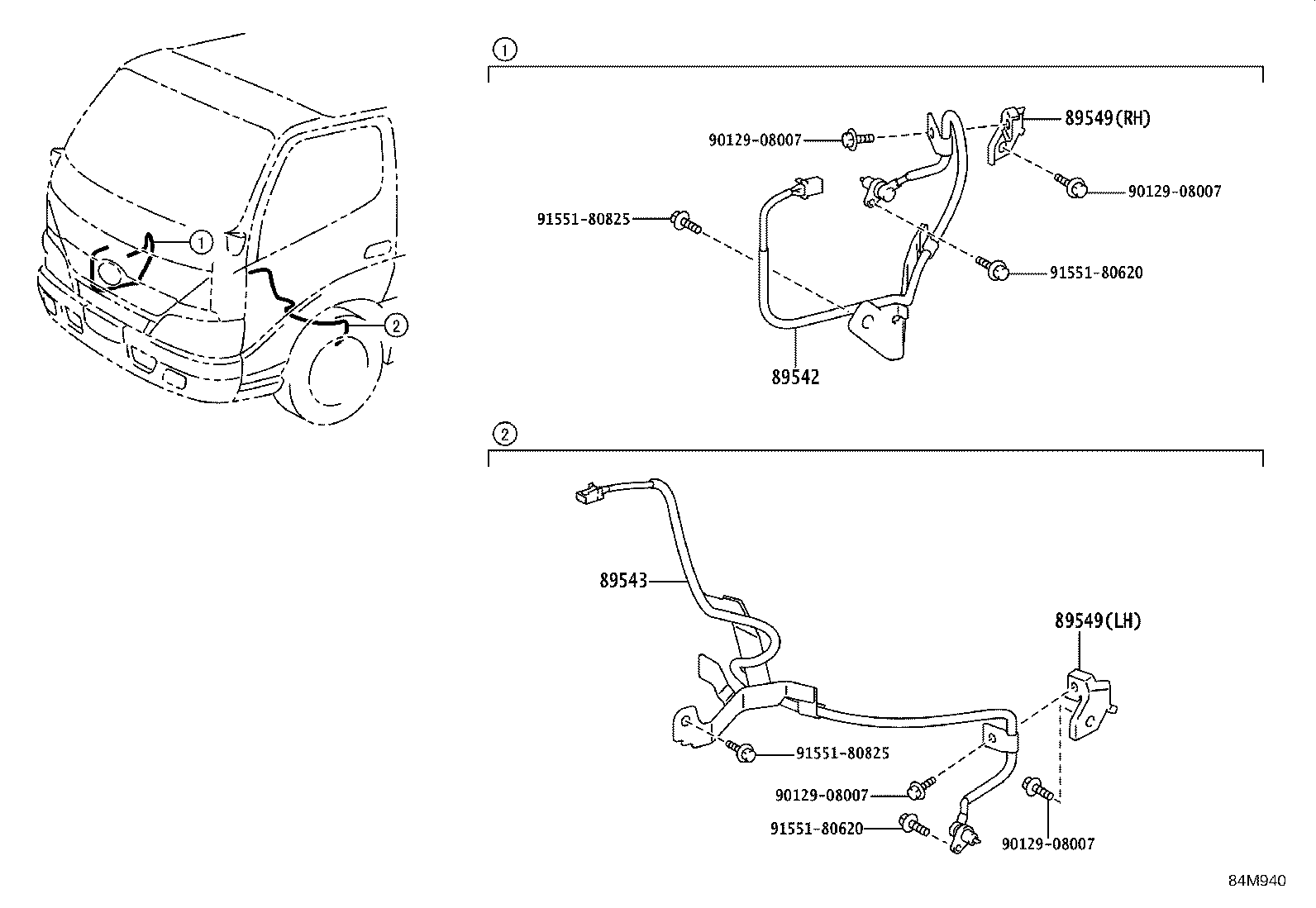

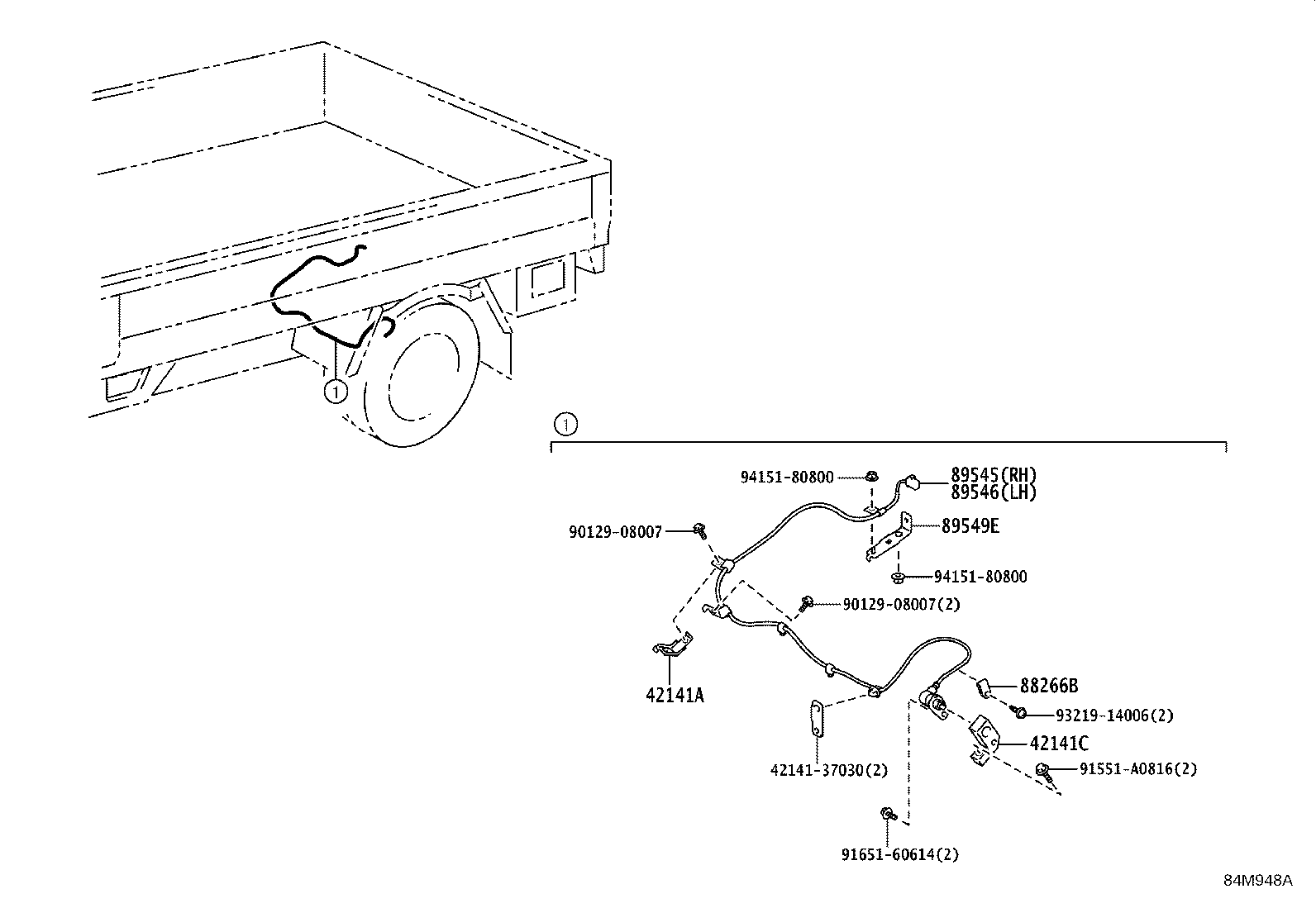

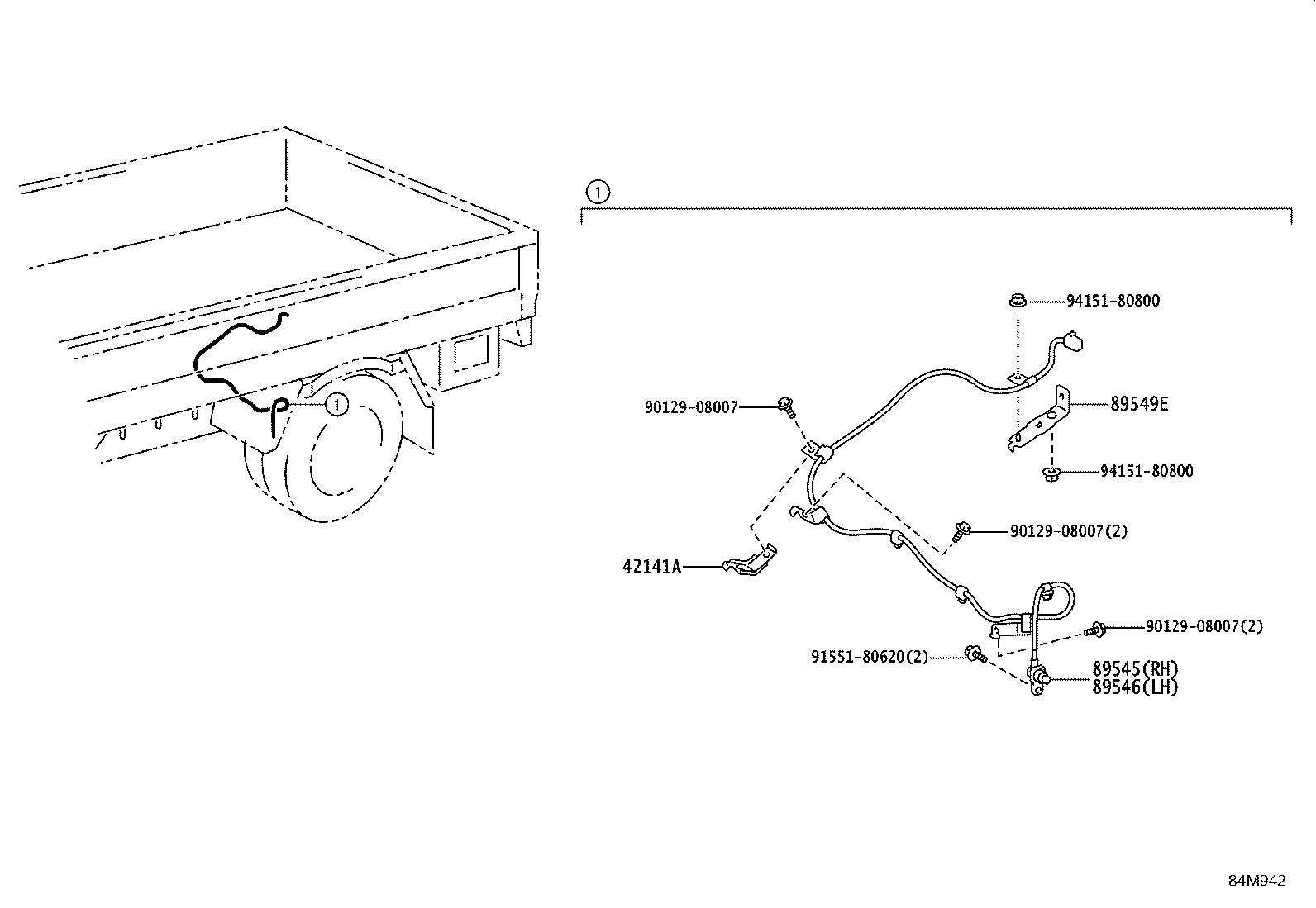

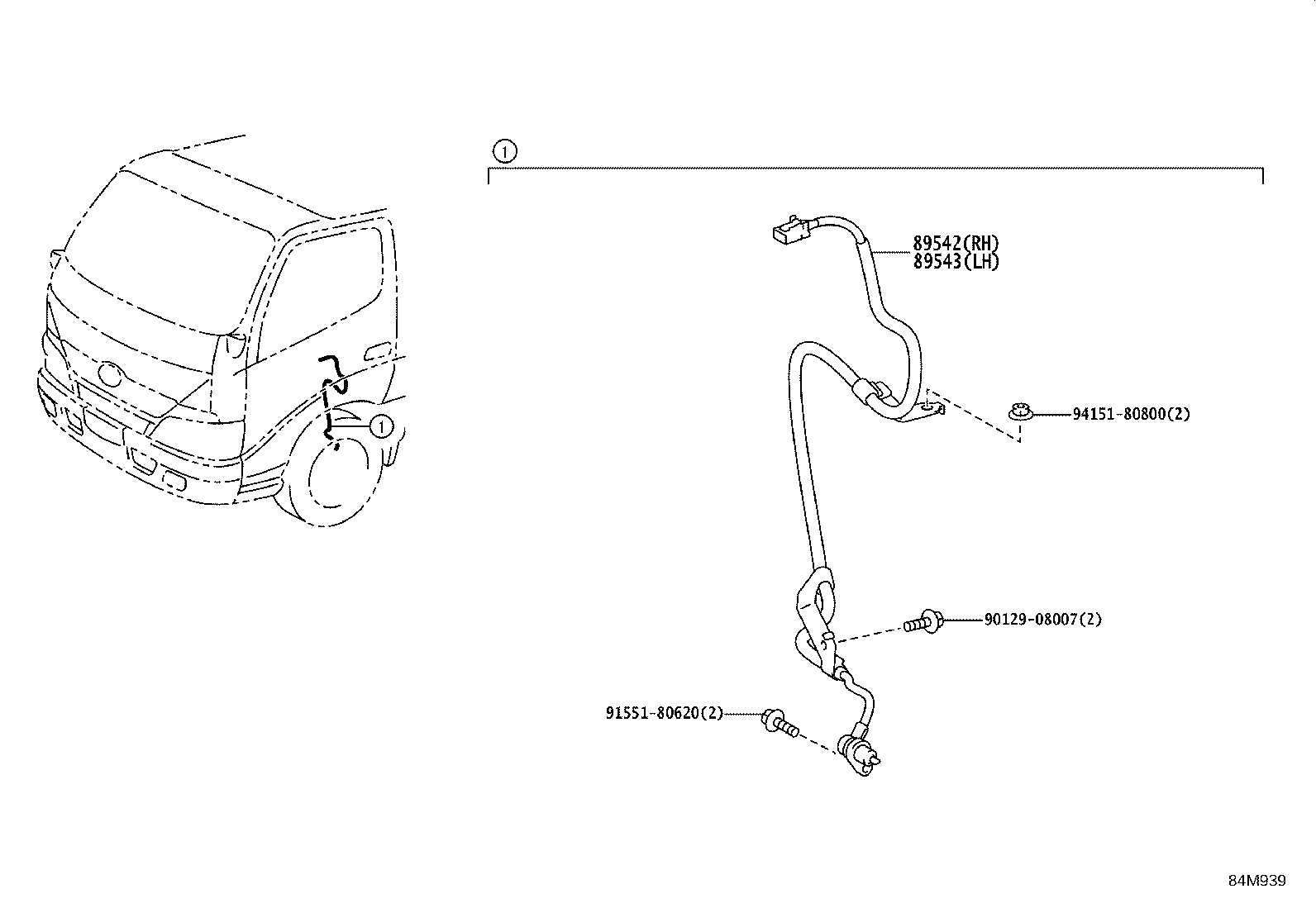

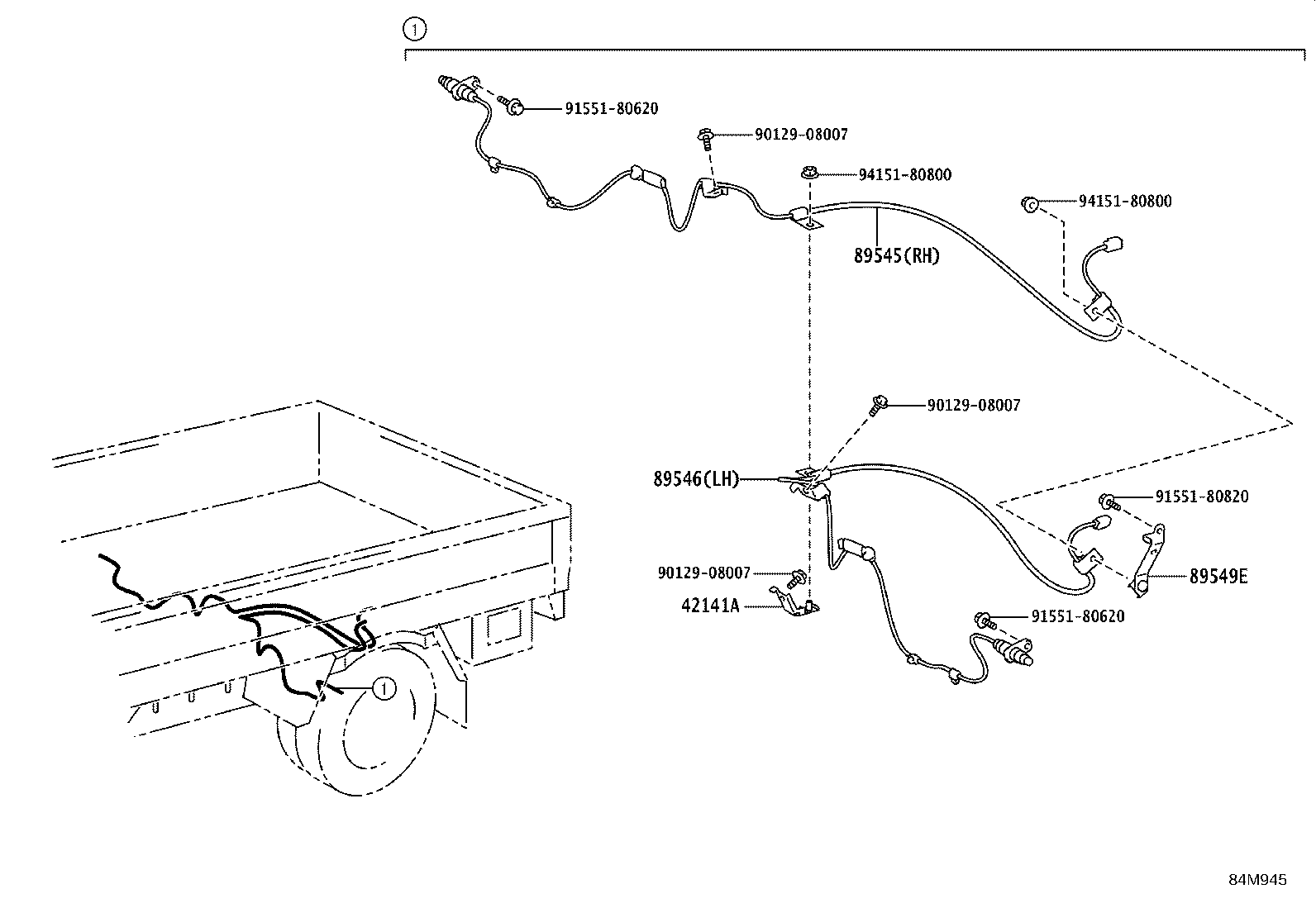

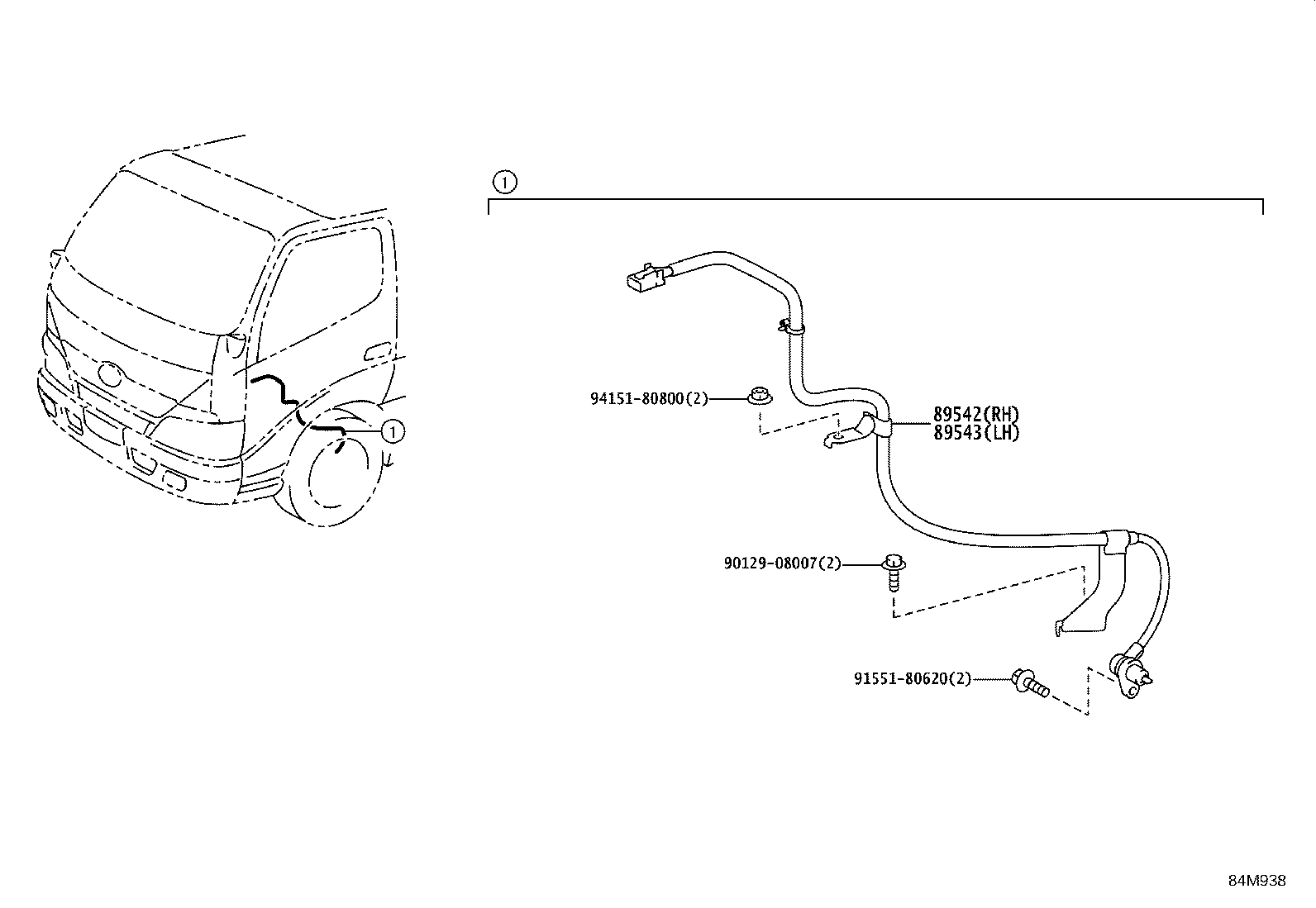

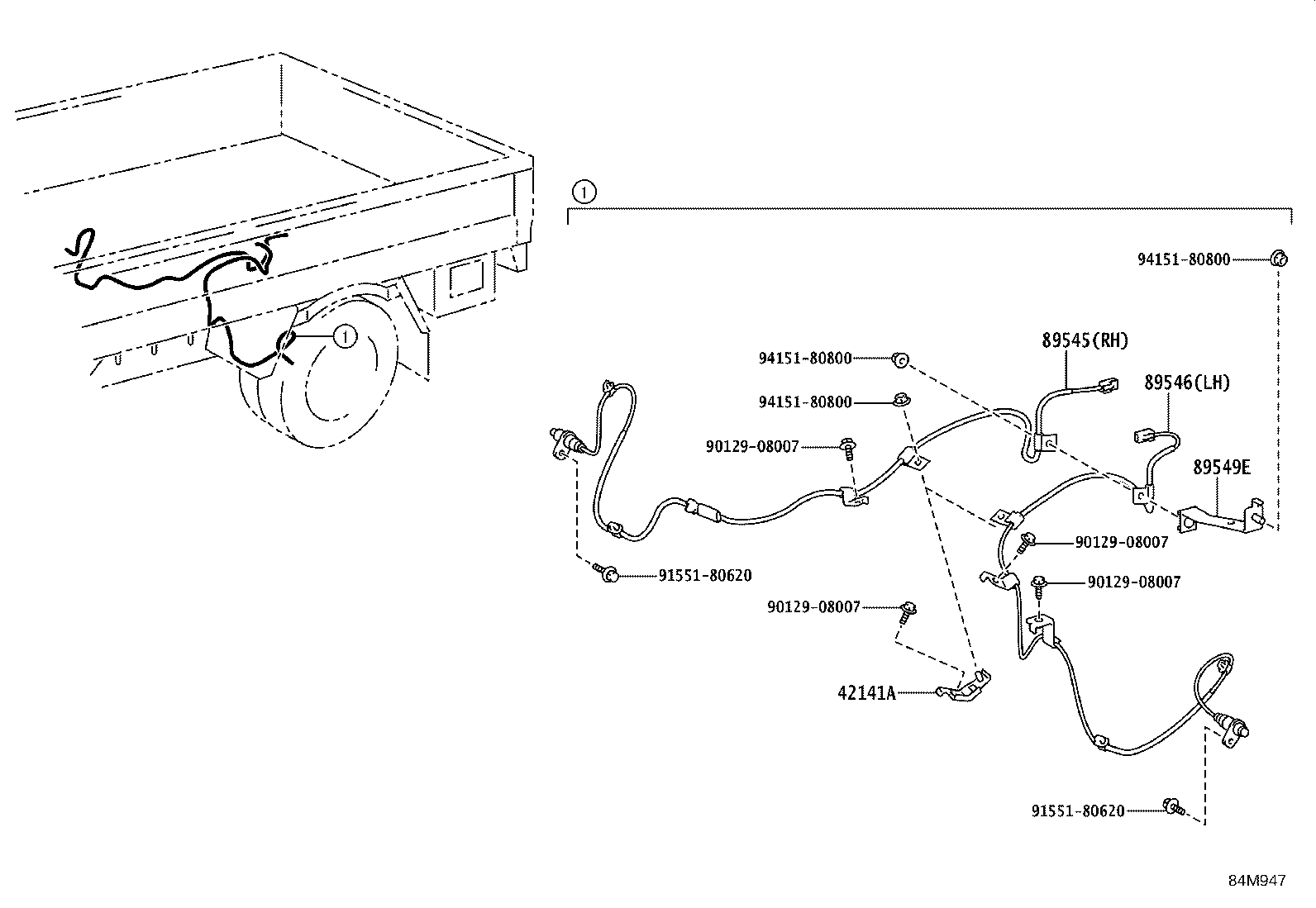

Figure 84M937A 84M937A 2021-03 → — Figure 84M938 84M938 2021-03 → — Figure 84M939 84M939 2021-03 → — Figure 84M940 84M940 2021-03 → — Figure 84M941 84M941 2021-03 → — Figure 84M942 84M942 2021-03 → — Figure 84M943 84M943 2021-03 → — Figure 84M945 84M945 2021-03 → — Figure 84M946 84M946 2021-03 → — Figure 84M947 84M947 2021-03 → — Figure 84M948A 84M948A 2021-03 → — Figure 84M949 84M949 2021-03 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
42141C Attachment, Skid Control Wire, NO.1
88266B Clamp, Skid Control Sensor, NO.1
89183A Sensor, Yawrate
89421F Sensor, Vacuum (FOR SKID CONTROL)
89437F Cover, Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89549E Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
