Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03

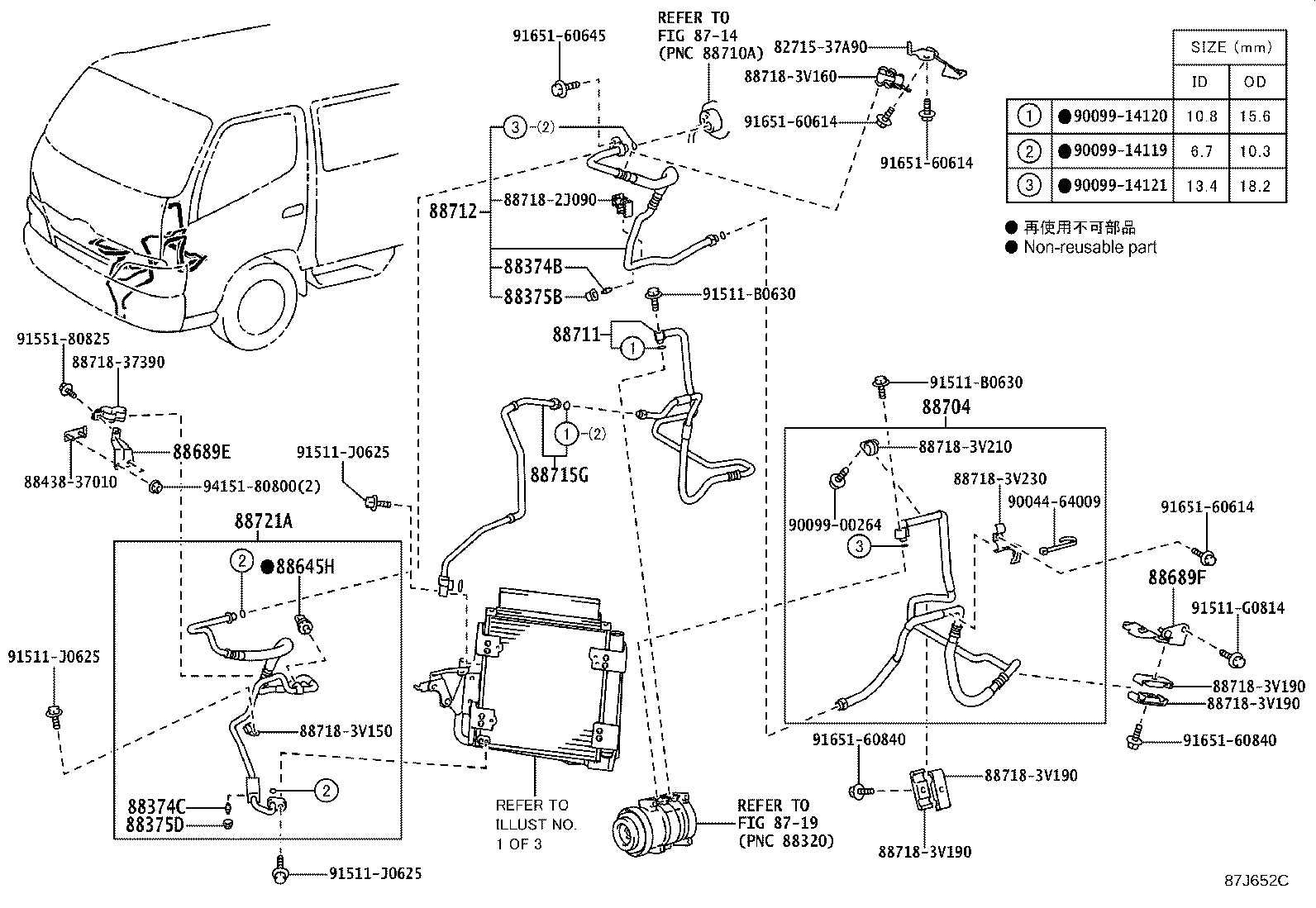

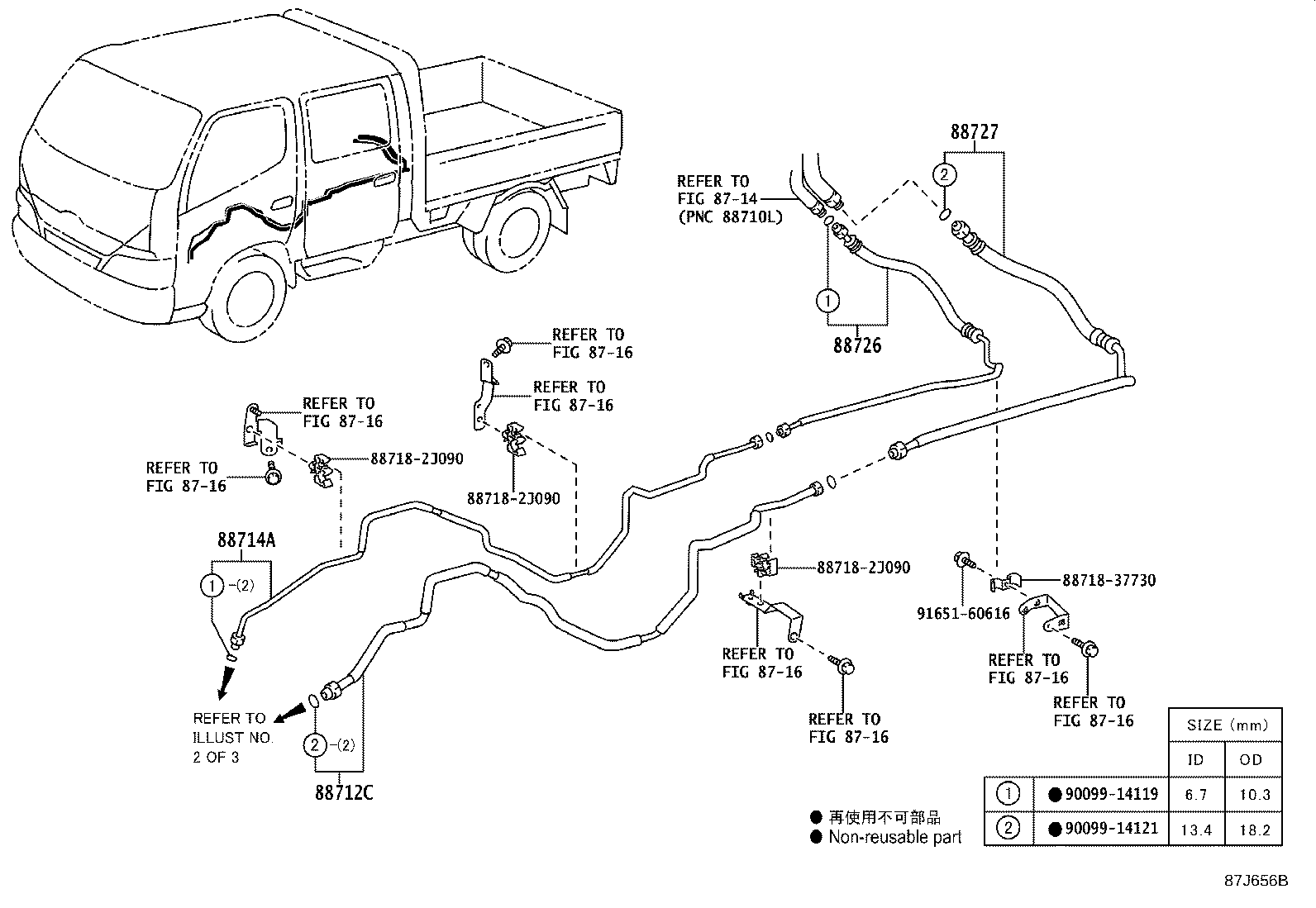

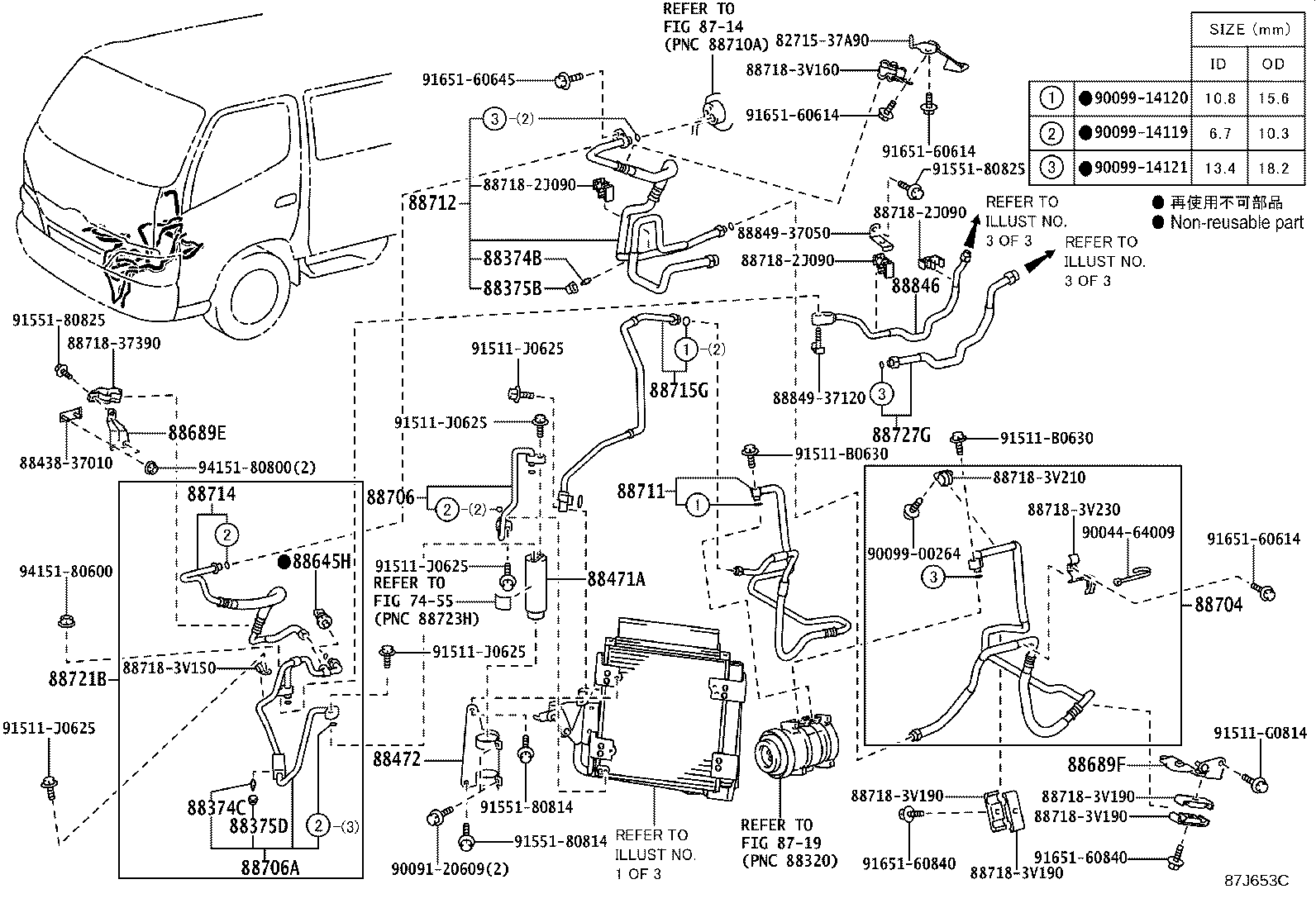

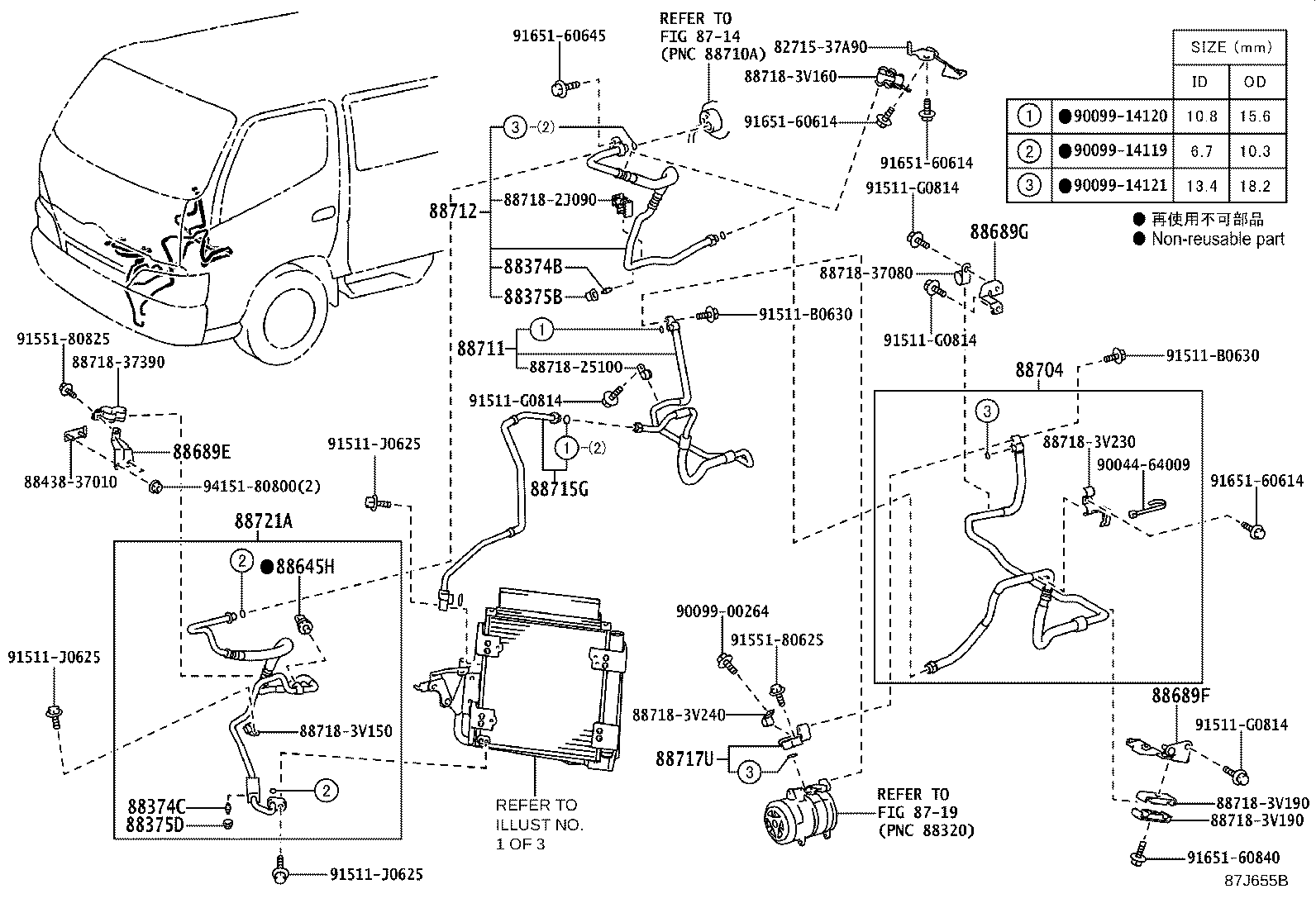

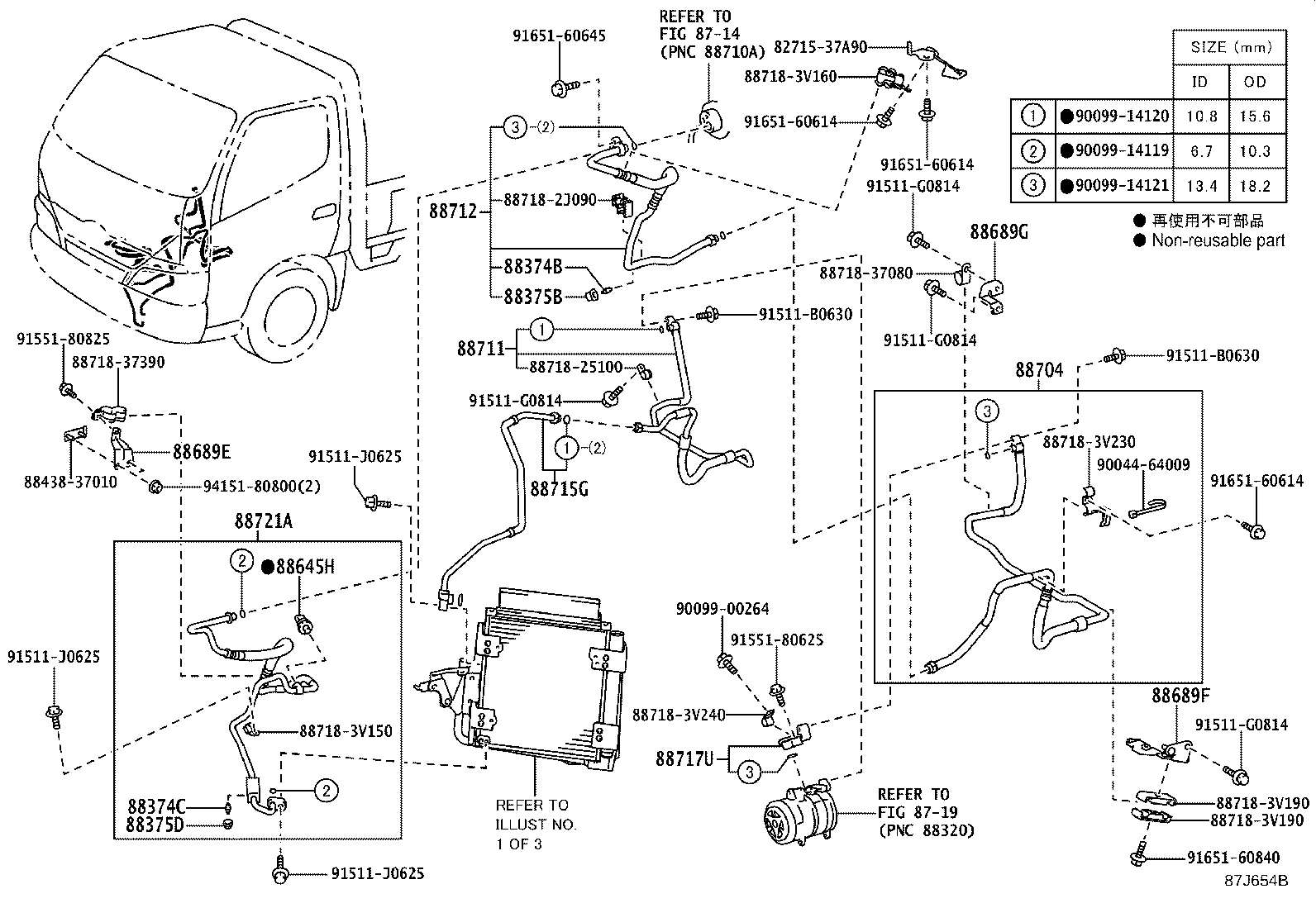

Heating & Air Conditioning - Cooler Piping
35 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453A | Fan, Cooling |
| 88454A | Shroud, Fan |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88461A | Core, Cooler Condenser |
| 88461B | Cover, Cooler Condenser |
| 88471A | Tank, Receiver |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88474 | Dryer, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88689E | Bracket, Cooler, NO.1 |
| 88689F | Bracket, Cooler, NO.2 |
| 88689G | Bracket, Cooler, NO.3 |
| 88704 | Hose Sub-assy, Suction |
| 88706 | Pipe Sub-assy, Liquid |
| 88706A | Tube Sub-assy, Liquid, A |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712C | Hose, Suction |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88714A | Hose, Cooler Refrigerant Liquid, NO.2 |
| 88715G | Tube, Discharge, G |
| 88717U | Tube, Suction, NO.1 |
| 88721A | Hose, Liquid, A |
| 88721B | Hose, Liquid, B |
| 88726 | Tube, Liquid, NO.2 |
| 88727 | Tube, Suction, NO.2 |
| 88727G | Tube, Suction |
| 88846 | Tube, Liquid |
| 88892C | Plate, Condenser, NO.1 |
