Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 5 illustrations

Illustrations

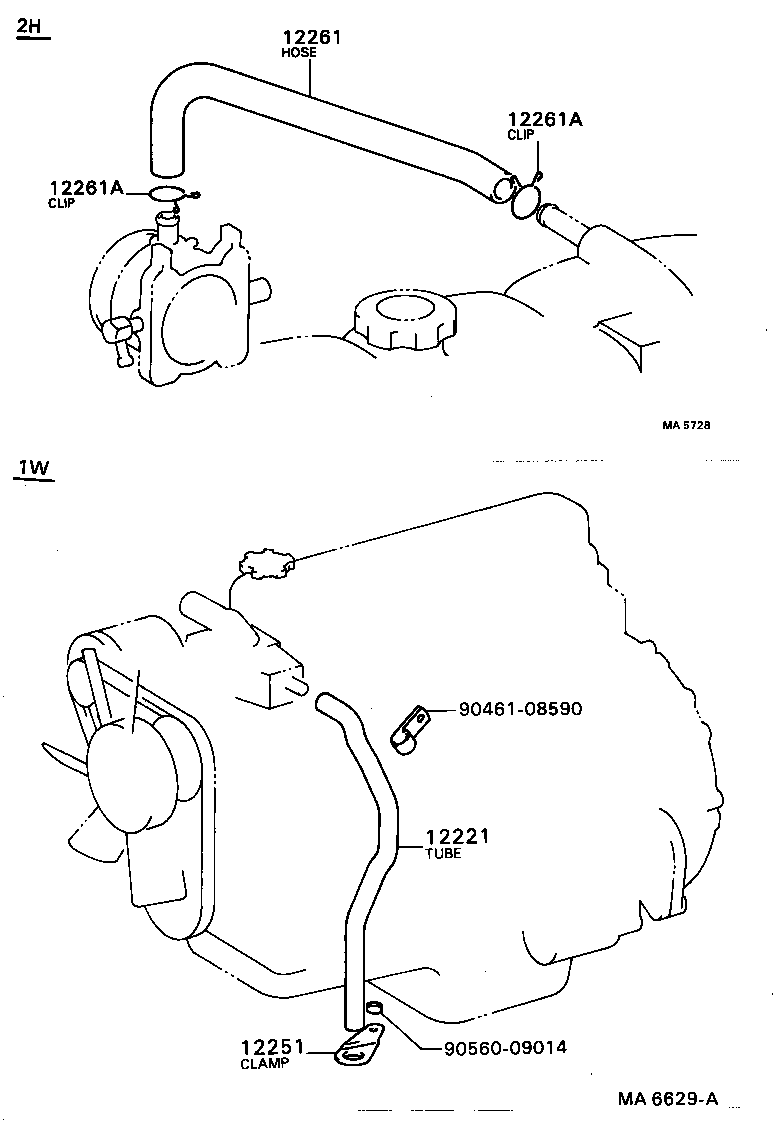

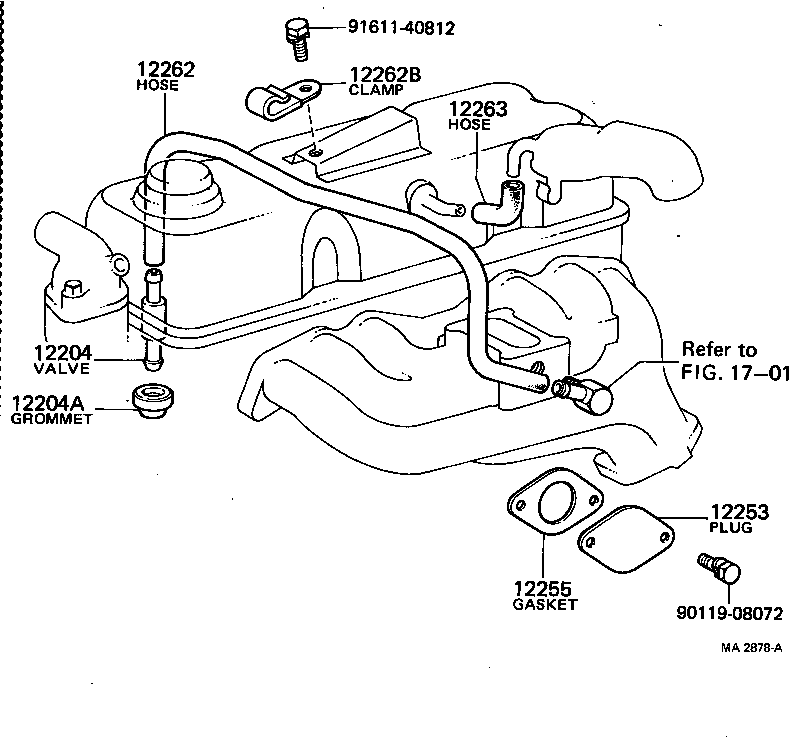

Figure MA4581C MA4581C 1977-08 → — Figure AS0373A AS0373A 1982-04 → — Figure MA4581C MA4581C 1977-08 → — Figure MA2878A MA2878A 1977-08 → — Figure AS0373A AS0373A 1982-04 → —

Part groups

PNCDescription
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12221 Tube, Ventilation NO.1
12251 Clamp, Ventilation Tube
12253 Plug, Ventilation Hole
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
