Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

33 part groups · 5 illustrations

Illustrations

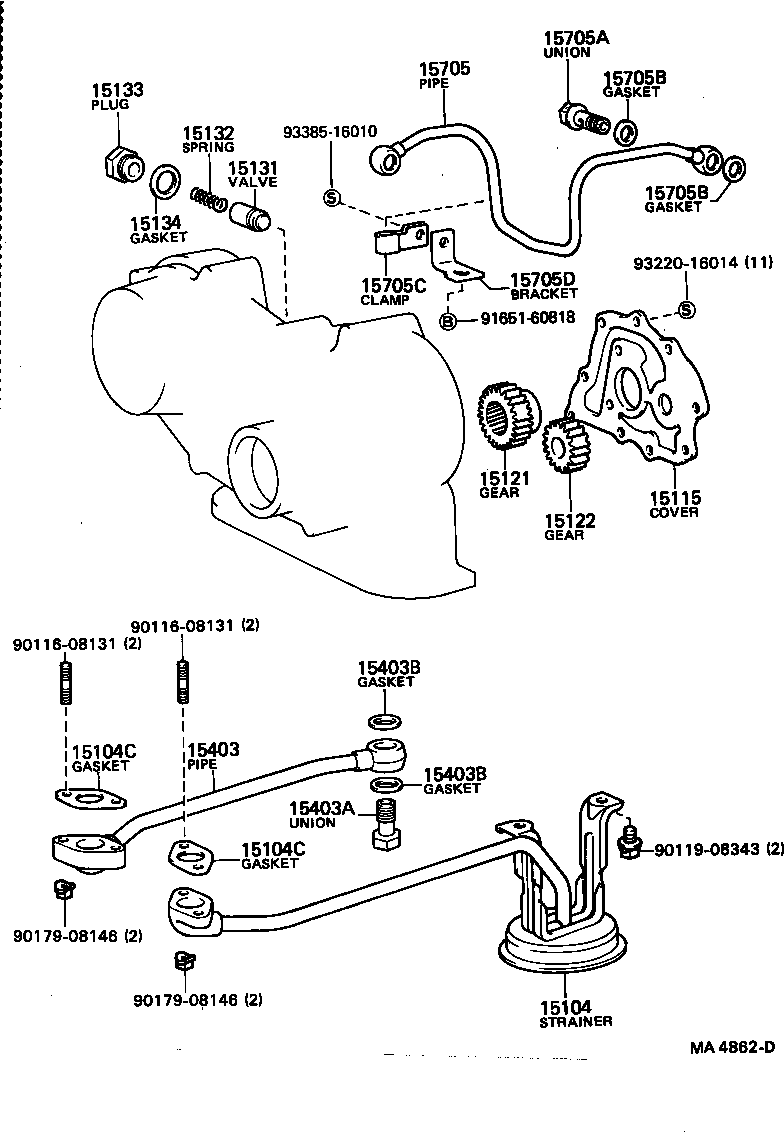

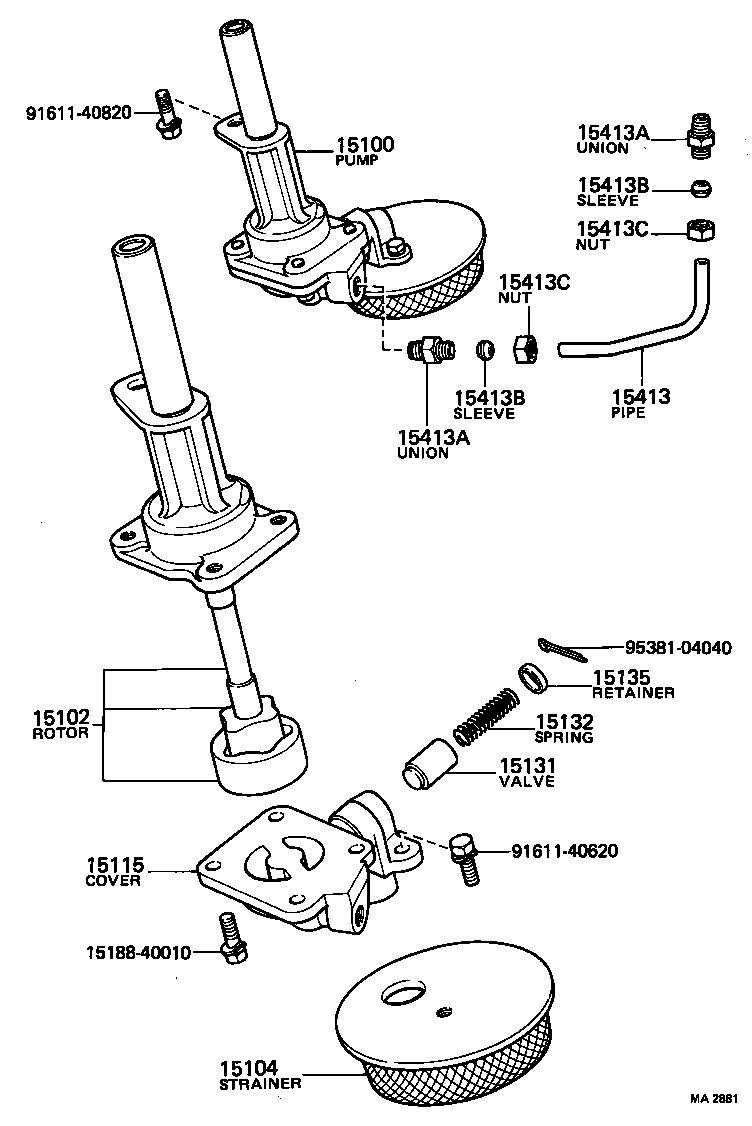

Figure MA0259J MA0259J 1977-08 → 1980-08 Figure MA4862D MA4862D 1982-04 → 1983-04 Figure MA0259J MA0259J 1977-08 → 1980-08 Figure MA2881 MA2881 1977-08 → — Figure MA6632 MA6632 1983-04 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15114 Ring, Shaft Snap
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
15163A Pin, Straight(FOR OIL PUMP DRIVE SHAFT GEAR)
15193 Gasket, Oil Pump
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
15705C Clamp(FOR INJECTION PUMP INLET PIPE)
15705D Bracket(FOR INJECTION PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
