Toyota Dyna/Toyoace
1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan
Discontinued model
Data version 1985-03

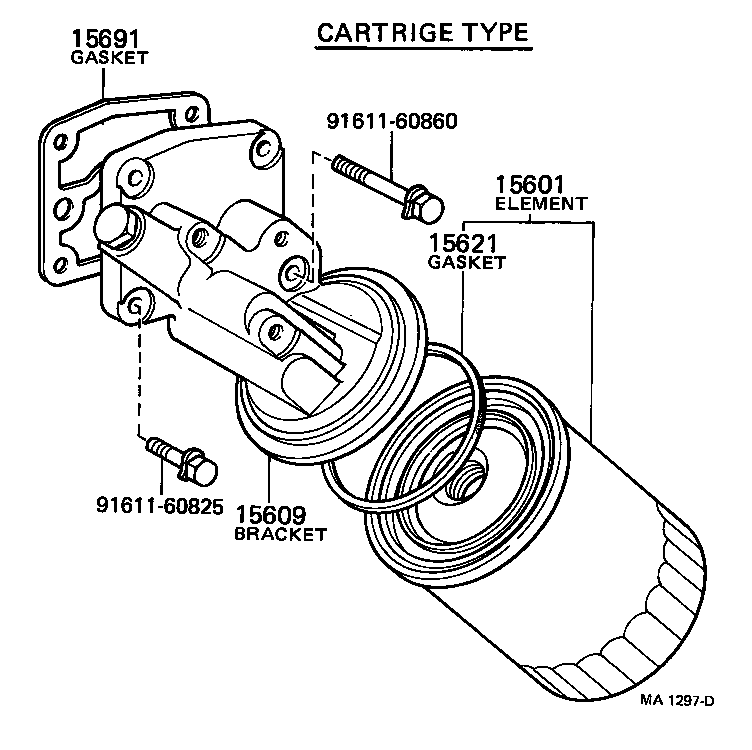

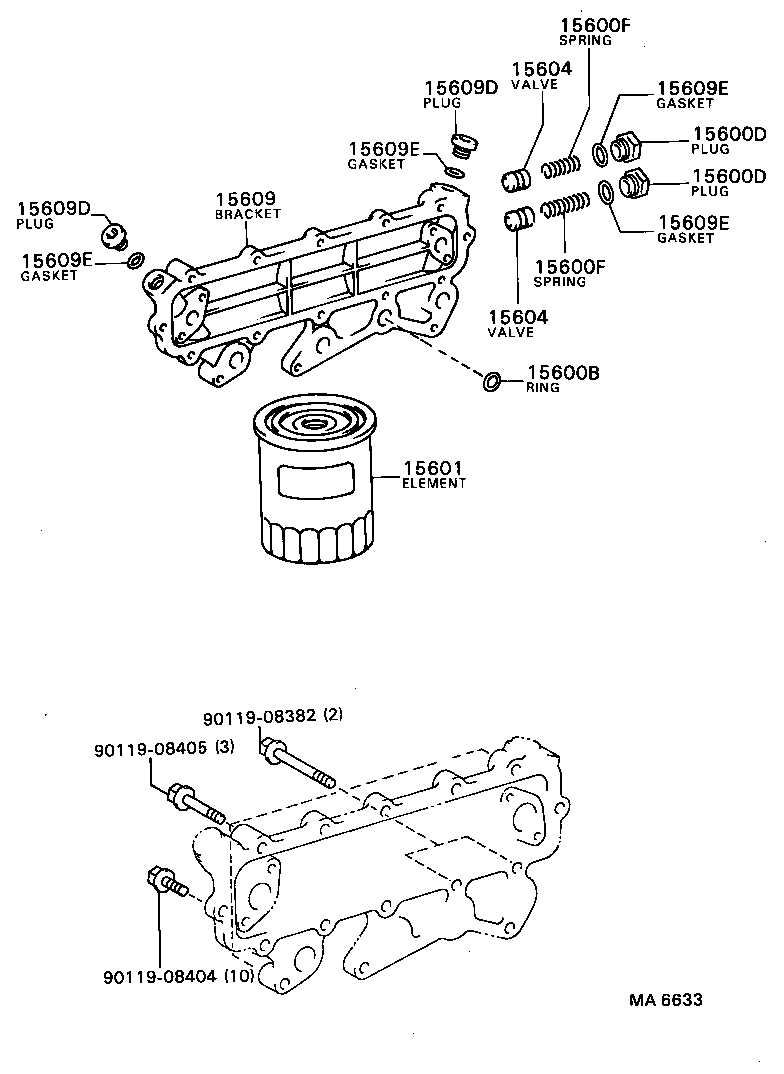

Oil Filter
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600 | Filter Assy, Oil |
| 15600B | Ring, O, NO.1(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15602 | Valve Sub-assy, Oil Pressure |
| 15602A | Gasket, Oil Pressure Valve |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15620 | Cap Assy, Oil Filter |
| 15621 | Gasket, Oil Filter Body |
| 15631 | Spring, Oil Filter Element Support |
| 15632 | Gasket, Oil Filter Element |
| 15633 | Guide, Oil Filter Cartridge |
| 15641 | Case, Oil Filter |
| 15644 | Gasket, Oil Filter Cartridge Guide |
| 15645 | Washer, Oil Filter Cartridge Guide |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
