Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

19 part groups · 5 illustrations

Illustrations

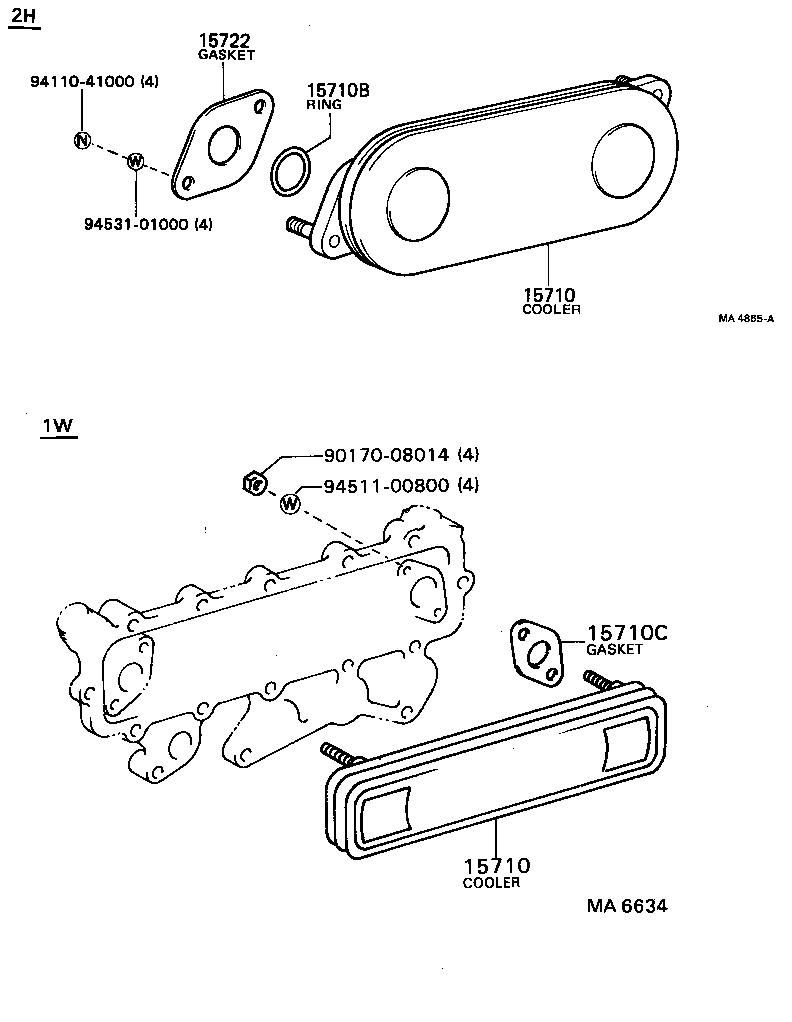

Figure MA1203D MA1203D 1977-08 → 1980-08 Figure AS0382 AS0382 1982-04 → — Figure MA0949D MA0949D 1977-08 → 1980-08 Figure MA2883C MA2883C 1977-08 → — Figure AS0382 AS0382 1982-04 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710A Bolt, Union(FOR OIL COOLER)
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15722 Gasket, Oil Cooler
15771A Union(FOR OIL PIPE)
15771B Hose, Oil, NO.1(FOR OIL PIPE)
15771C Clamp(FOR OIL PIPE)
15771E Bolt, Union(FOR OIL PIPE)
15771F Ring, O
15771G Gasket
15772A Union(FOR OIL PIPE)
15772B Hose, Oil, NO.1(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777E Union
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
