Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03

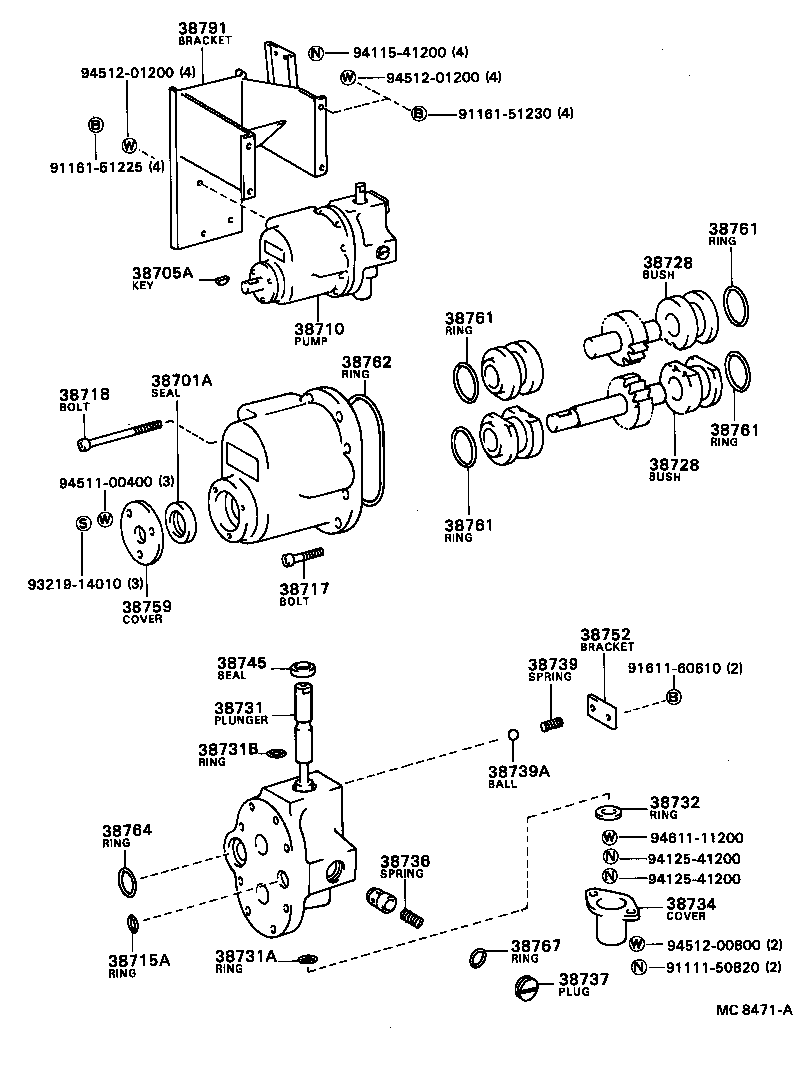

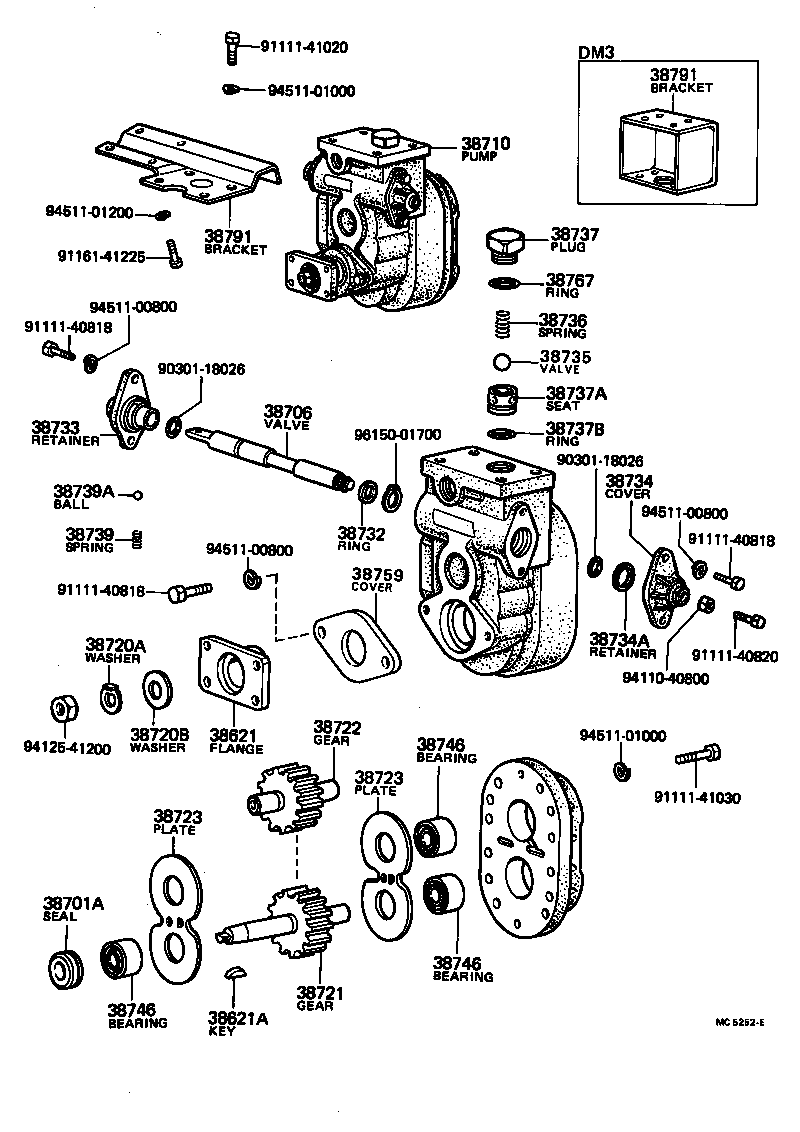

Power Take-off Oil Pump

45 part groups · 3 illustrations

PNC	Description
38621	Flange, Oil Pump Drive Shaft
38621A	Key, Oil Pump Drive Shaft Flange
38701	Body Sub-assy, Oil Pump
38701A	Seal, Oil (FOR OIL PUMP BODY)
38705	Gear Sub-assy, Oil Pump
38705A	Key, Pump Shaft
38706	Valve Set, Oil Pump
38710	Pump Assy, Oil
38715A	Ring, O (FOR BALVE BODY SIDE)
38717	Bolt, Cover, Short
38718	Bolt, Cover, Long
38720A	Washer, Lock (FOR OIL PUMP DRIVE SHAFT)
38720B	Washer, Oil Pump Drive Shaft
38721	Gear, Oil Pump Drive
38722	Gear, Oil Pump Counter
38723	Plate, Oil Pump Gear Side
38727	Bush, Inner (FOR OIL PUMP)
38728	Bush, Outer (FOR OIL PUMP)
38731	Plunger (FOR OIL PUMP)
38731A	Ring, O (FOR PLUNGER NO.1)
38731B	Ring, O (FOR PLUNGER NO.2)
38732	Ring, Back UP
38733	Retainer, Plunger
38734	Cover, Plunger
38734A	Retainer, O Ring (FOR PLUNGER COVER)
38735	Valve, Check (FOR OIL PUMP)
38736	Spring, Check Valve
38737	Plug, Check Valve
38737A	Seat, Check Valve
38737B	Ring, O (FOR CHECK VALVE SEAT)
38739	Spring, Plunger Neutral Indicating Ball
38739A	Ball, Plunger Neutral Indicating
38745	Seal, Oil (FOR PUMP CONTROL VALVE PLUNGER)
38746	Bearing, Oil Pump Shaft
38751	Arm, Control
38752	Bracket, Control Arm
38753	Pin, Control Arm
38754	Pin, Control Arm Bracket
38759	Cover, Seal (FOR OIL PUMP BODY)
38761	Ring, O (FOR OIL PUMP INNER BUSH)
38762	Ring, O (FOR OIL PUMP INNER BUSH)
38764	Ring, O (FOR OIL PUMP VALVE SET)
38767	Ring, O (FOR CHECK VALVE SPRING)
38791	Bracket, Oil Pump
38791A	Bracket, Oil Pump, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
