Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

54 part groups · 9 illustrations

Illustrations

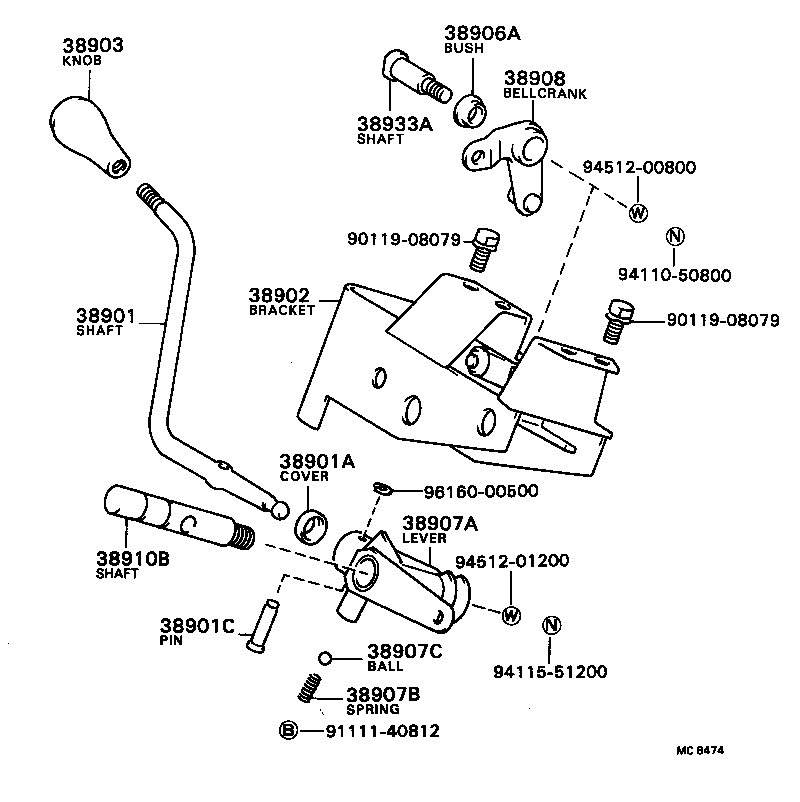

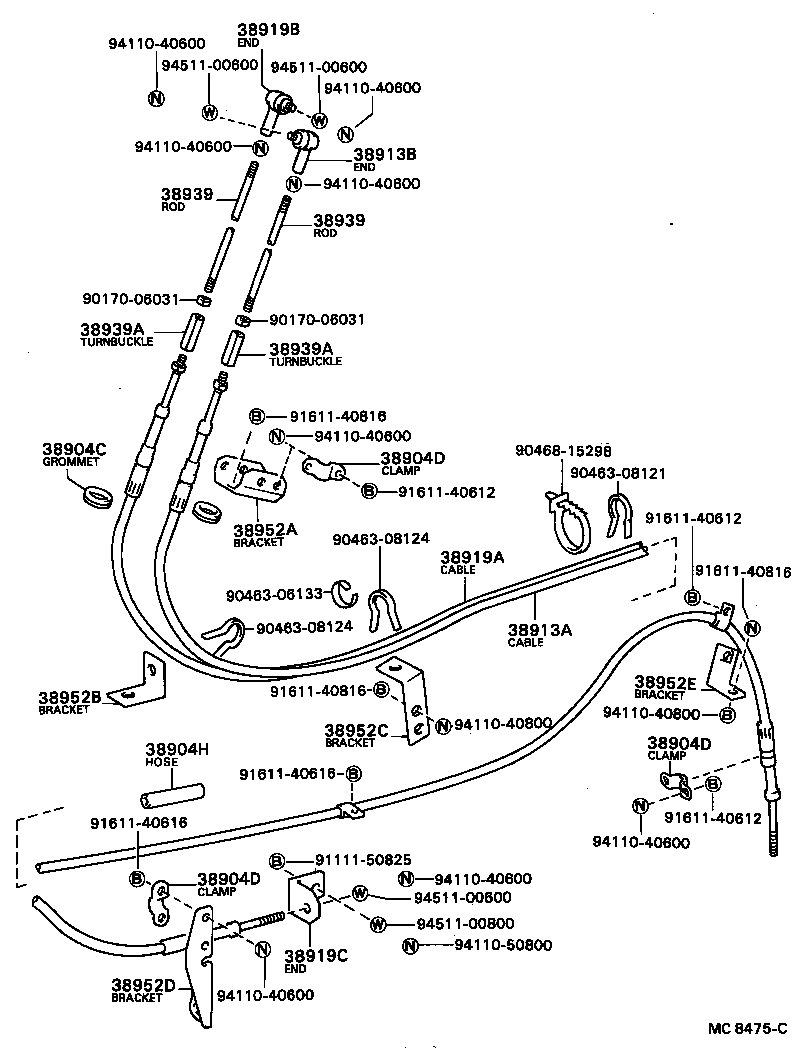

Figure MC5253C MC5253C 1977-08 → — Figure MC5253C MC5253C 1982-04 → — Figure MC5254D MC5254D 1977-08 → 1982-04 Figure MC8573C MC8573C 1982-04 → — Figure MC9923 MC9923 1982-04 → — Figure MC5255C MC5255C 1977-08 → 1980-08 Figure MC5256A MC5256A 1977-08 → 1979-04 Figure MC8474 MC8474 1982-04 → — Figure MC8475C MC8475C 1982-04 → —

Part groups

PNCDescription
38037 Rod Sub-assy, Valve Control, Rear
38037B Pin, Valve Control Rear Rod
38046 Lever Sub-assy, Power Take-off Control
38058 Lever Sub-assy, Valve Control Center
38740 End Assy, Connecting Rod
38750 End Assy, Connecting Rod
38901 Shaft Sub-assy, Control
38901A Cover, Control Shaft
38901C Pin, Control Shaft
38902 Bracket Sub-assy, Control Shaft, Upper
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904C Grommet, Push Pull Cable
38904D Clamp, Cable Push Pull
38904E Holder, Cable Push Pull Clamp
38904H Hose, Push Pull Cable Protector
38906 Bracket Sub-assy, Control Shaft, Lower
38906A Bush, Control Link
38907A Lever Sub-assy, Power Take-off Control
38907B Spring (FOR CONTROL LEVER)
38907C Ball (FOR CONTROL LEVER)
38908 Bellcrank Sub-assy, Rear Shift Rod
38910 Lever Assy, Dump
38910A Plate, Dump Lever Lock Caution
38910B Shaft, Control Lever
38910D Stopper, Control Lever
38910E Seat, Dump Lever Caution Plate
38913 Lever, Pump Control
38913A Cable Sub-assy, Push Pull (FOR PUMP CONTROL)
38913B End Assy, Control Cable, NO.1 (FOR PUMP CONTROL)
38913C End Assy, Control Cable, NO.2 (FOR PUMP CONTROL)
38919 Lever, Power Take-off Control
38919A Cable Sub-assy, Push Pull (FOR POWER TAKE-OFF CONTROL)
38919B End Assy, Control Cable, NO.1(FOR POWER TAKE-OFF CONTROL)
38919C End Assy, Control Cable, NO.2(FOR POWER TAKE-OFF CONTROL)
38925 Spring, Control Link Set
38931 Lever, Valve Link
38931B Pin, Valve Link Lever
38931D Rod (FOR VALVE LINK LEVER)
38933A Shaft, Power Take-off Link
38939 Rod, Cable Connecting
38939A Turnbuckle(FOR CABLE CONNECTING ROD)
38952 Bracket, Control Link
38952A Bracket, Control Cable Clamp, NO.1
38952B Bracket, Control Cable Clamp, NO.2
38952C Bracket, Control Cable Clamp, NO.3
38952D Bracket, Control Cable Clamp, NO.4
38952E Bracket, Control Cable Clamp, NO.5
38952F Bracket, Control Cable Clamp, NO.6
38957 Pin, Control Lever
38964 Collar, Control Lever
38989 Protector, Control Cable
38993 Washer, Control Shaft, NO.2
38995 Cover, Lock Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
