Toyota Dyna/Toyoace
1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan
Discontinued model
Data version 1985-03

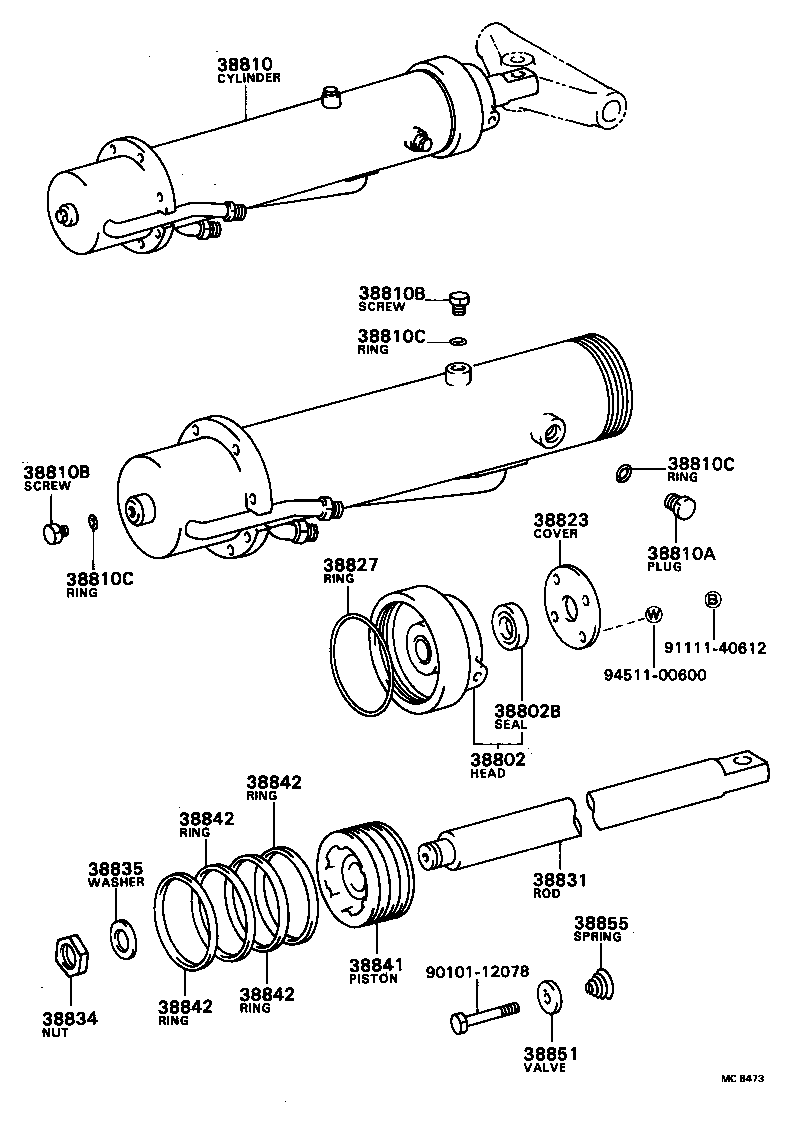

Hoist Cylinder
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 38802 | Head Sub-assy, Cylinder |
| 38802B | Seal, Oil (FOR CYLINDER HEAD) |
| 38810 | Cylinder Assy, Hoist |
| 38810A | Plug, NO.1 (FOR HOIST CYLINDER) |
| 38810B | Screw (FOR HOIST CYLINDER) |
| 38810C | Ring, O (FOR HOIST CYLINDER) |
| 38810D | Plug, NO.2 (FOR HOIST CYLINDER) |
| 38823 | Cover, Cylinder Head |
| 38825A | Pin, Crosshead |
| 38827 | Ring, O (FOR HOIST CYLINDER) |
| 38830 | Valve Assy, Check |
| 38830A | Ring, O (FOR CHECK VALVE) |
| 38831 | Rod, Hoist Cylinder Piston |
| 38832 | Spindle, Flow Control Valve |
| 38834 | Nut, Dismounting |
| 38835 | Washer, Lock (FOR HOIST PISTON SET NUT) |
| 38836 | Seal, Hoist Cylinder Dust |
| 38839 | Packing, U, Hoist Cylinder |
| 38841 | Piston, Hoist Cylinder |
| 38842 | Ring, Hoist Cylinder Piston |
| 38844 | Spring, Hoist Cylinder, Outer |
| 38851 | Valve, Hoist Cylinder Check |
| 38852 | Seat, Buffer Valve |
| 38853 | Valve, Buffer |
| 38854 | Spring, Buffer Valve |
| 38855 | Spring, Check Valve |
| 38870 | Valve Assy, Flow Control |
| 38872 | Spool, Flow Control Valve |
| 38873 | Popet, Flow Control Valve |
| 38874 | Spring (FOR FLOW CONTROL VALVE) |
| 38875 | Ring, Hole Snap (FOR FLOW CONTROL VALVE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
