Toyota Dyna/Toyoace
1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan
Discontinued model
Data version 1985-03

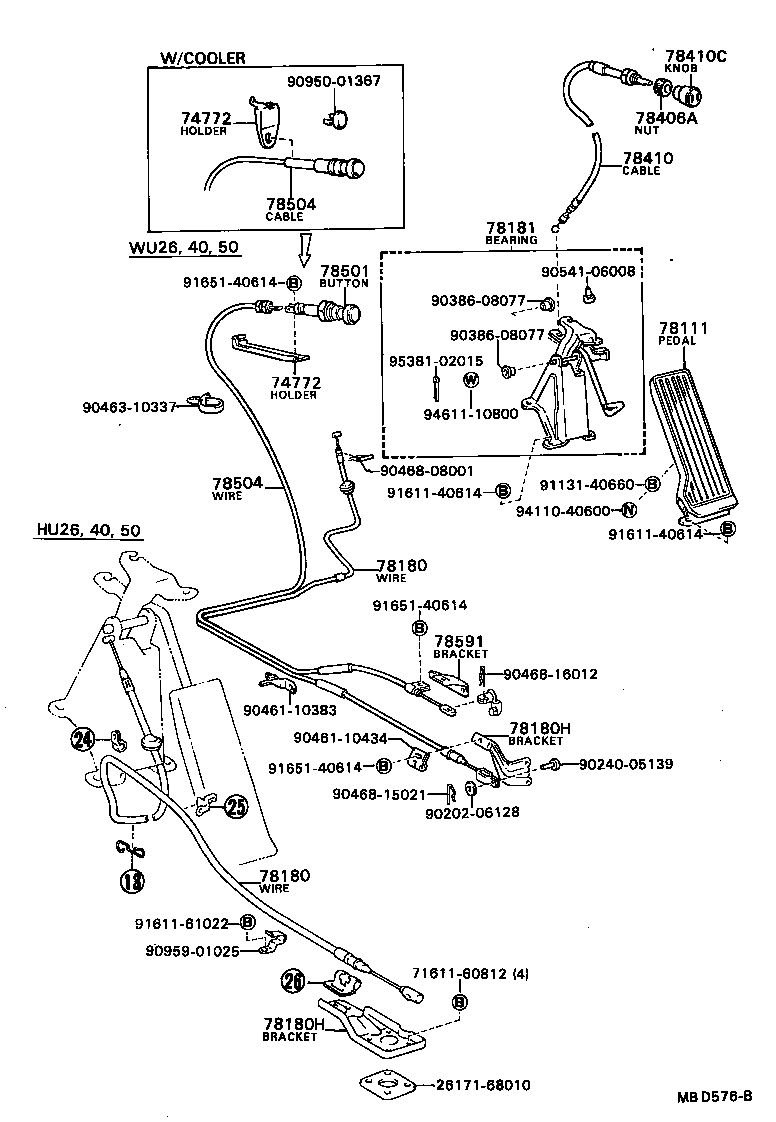

Accelerator Link
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 74772 | Holder, Stop And Throttle Wire |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78111 | Pedal, Accelerator |
| 78130 | Bellcrank Assy, Accelerator |
| 78130A | Spring (FOR ACCELERATOR ROD RETURN) |
| 78166A | Spring, Clamp, NO.1 |
| 78180 | Wire Assy, Accelerator |
| 78180H | Bracket, Accelerator Control Cable |
| 78181 | Bearing, Accelerator Pedal Rod Support |
| 78184B | Bracket, Accelerator Control Cable |
| 78310 | Cable Assy, Choke |
| 78406A | Nut, Holder (FOR THROTTLE BUTTON) |
| 78410 | Cable Assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
| 78501 | Button Sub-assy, Stop |
| 78504 | Wire Sub-assy, Stop Flexible |
| 78591 | Bracket, Stop Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
