Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 2 illustrations

Illustrations

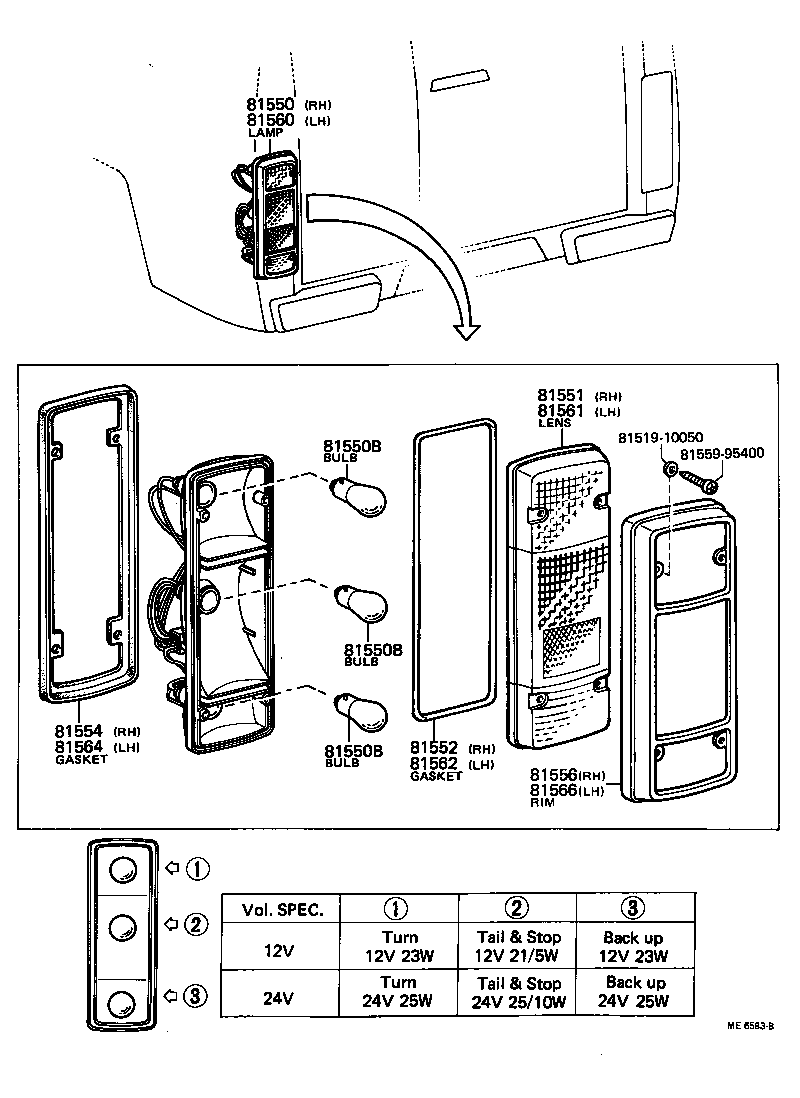

Figure ME6582D ME6582D 1977-08 → — Figure ME6583B ME6583B 1977-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81556 Rim, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81566 Rim, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
