Toyota Dyna/Toyoace

1977-08 → 1984-08 · chassis HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 · catalogue 752120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

15 part groups · 5 illustrations

Illustrations

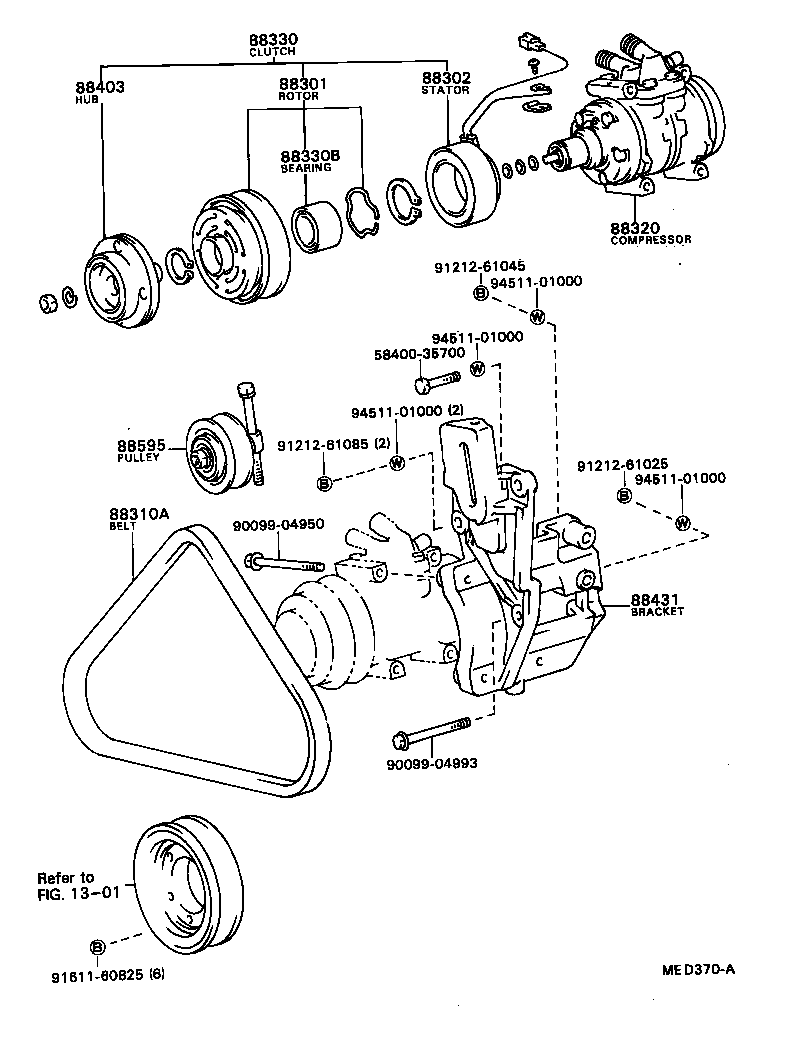

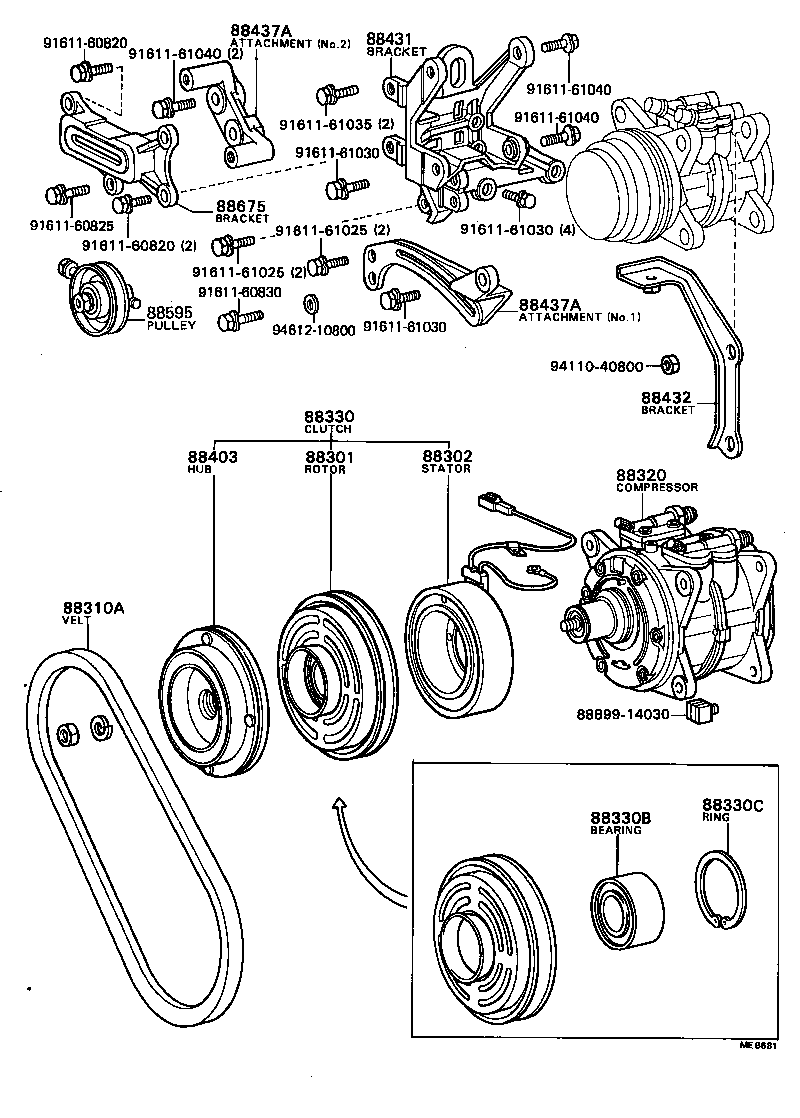

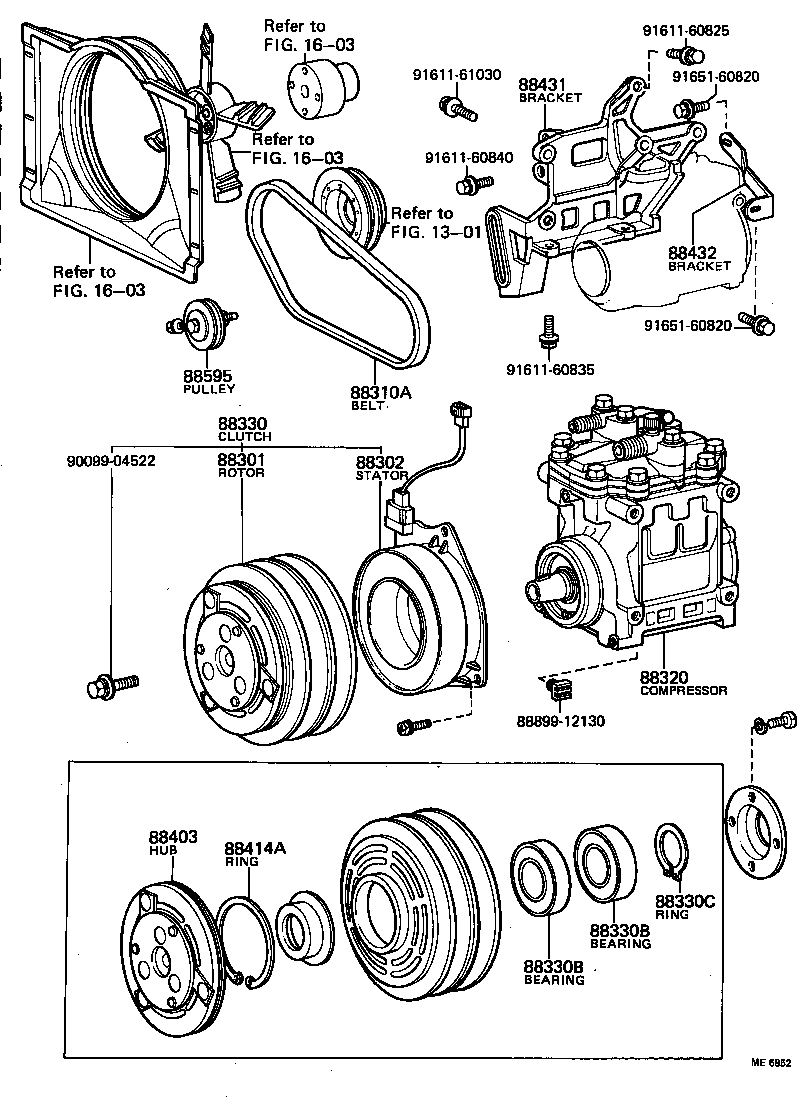

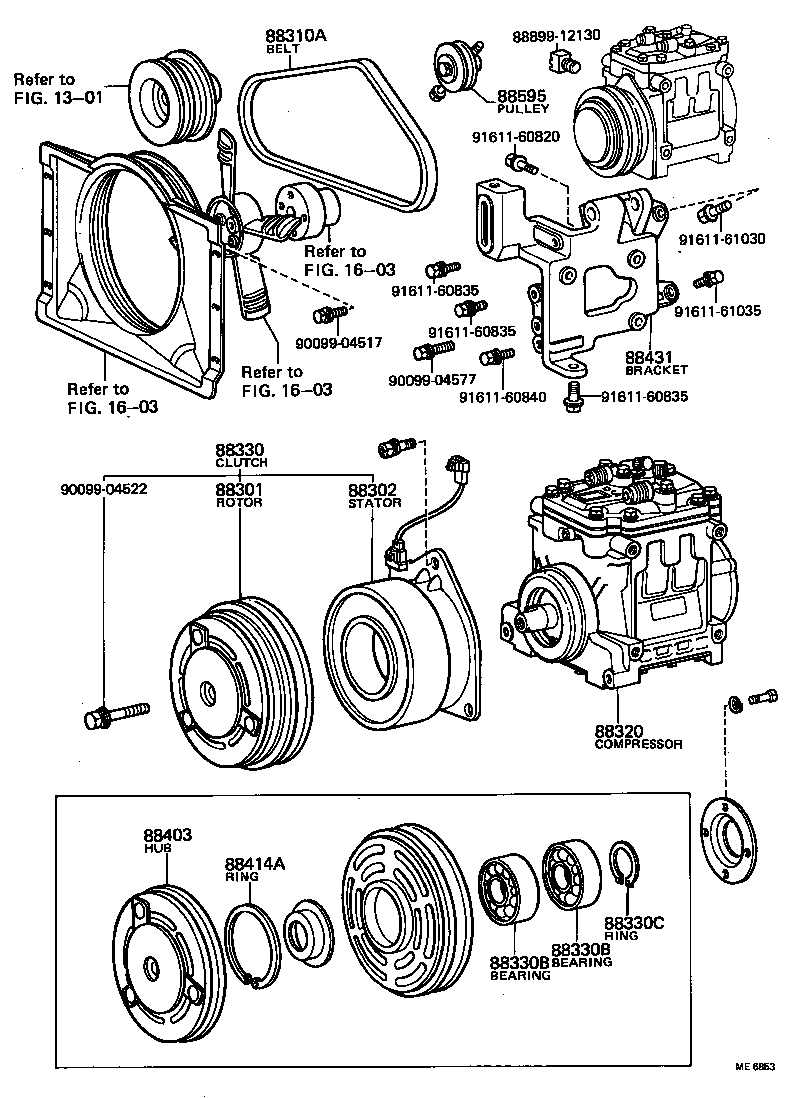

Figure ME6850B ME6850B 1977-08 → — Figure ME6852 ME6852 1977-08 → 1980-08 Figure ME6853 ME6853 1977-08 → 1980-08 Figure MEB681 MEB681 1982-04 → 1983-04 Figure MED370A MED370A 1983-04 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88414A Ring, Shield Snap
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88437A Attachment, Compressor
88595 Pulley, Cooler Compressor Idle
88675 Bracket, Idler Pulley (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
