Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis YU6#,70,80,WU75,9# · catalogue 752130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hoist Cylinder Trunnion & Lift Arm

24 part groups · 2 illustrations

Illustrations

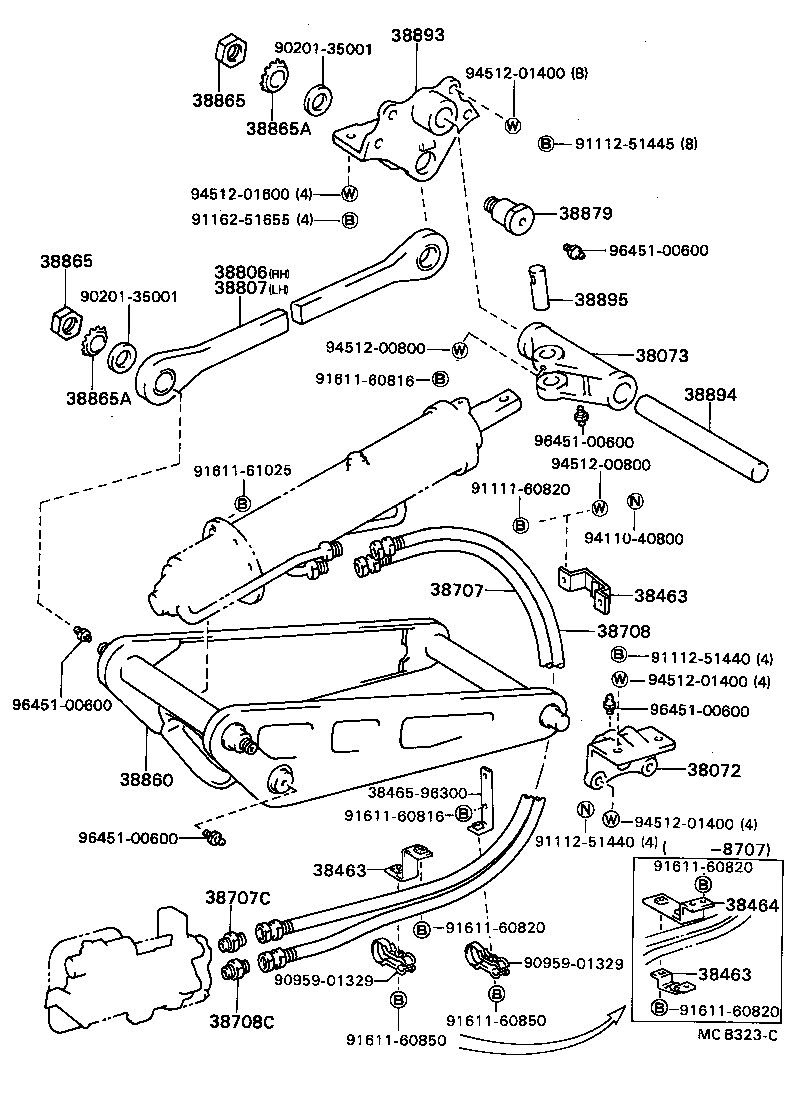

Figure MCB321F MCB321F 1984-09 → — Figure MCB323C MCB323C 1984-09 → —

Part groups

PNCDescription
38072 Bracket Sub-assy, Trunnion
38073 Crosshead Sub-assy
38463 Bracket, Power Oil Pump Hose Clamp
38464 Stay, Power Oil Pump Hose Clamp
38467 Insulator, Power Oil Hose
38707 Hose Sub-assy, Suction
38707C Union (FOR SUCTION HOSE)
38707D Bracket Sub-assy, Tension Arm Shaft
38708 Hose Sub-assy, Delivery
38708C Union (FOR DELIVERY HOSE)
38806 Arm Sub-assy, Tension, RH
38806A Bush, Tension Arm Head
38807 Arm Sub-assy, Tension, LH
38808 Trunnion Sub-assy
38860 Arm Assy, Lift
38865 Nut, Tension Arm Shaft
38865A Washer, Tension Arm Shaft
38879 Pin, Tension Arm
38882 Bush, Trunnion
38892 Bracket, Link Arm Body
38892A Bush (FOR LINK ARM BODY BRACKET)
38893 Bracket, Crosshead
38894 Shaft, Crosshead
38895 Pin, Crosshead
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
