Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis YU6#,70,80,WU75,9# · catalogue 752130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

9 part groups · 3 illustrations

Illustrations

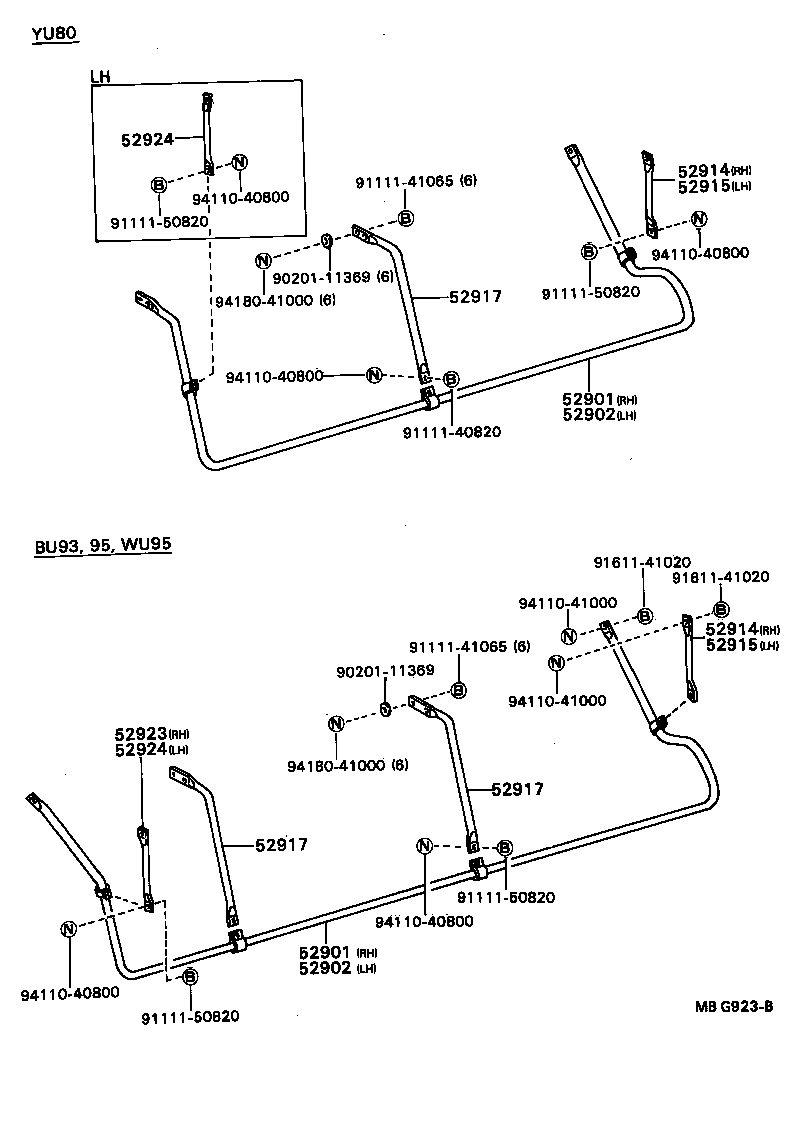

Figure MBG922B MBG922B 1984-09 → — Figure MBG923B MBG923B 1984-09 → — Figure MBG925 MBG925 1984-09 → —

Part groups

PNCDescription
52901 Bumper Sub-assy, Side, RH NO.1
52902 Bumper Sub-assy, Side, LH NO.1
52903 Bumper Sub-assy, Side, RH NO.2
52904 Bumper Sub-assy, Side, LH NO.2
52914 Stay, Side Bumper Rear, RH NO.1
52915 Stay, Side Bumper Rear, LH NO.1
52917 Stay, Side Bumper Center, NO.1
52923 Stay, Side Bumper, Front RH
52924 Stay, Side Bumper, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
