Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis YU6#,70,80,WU75,9# · catalogue 752130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 2 illustrations

Illustrations

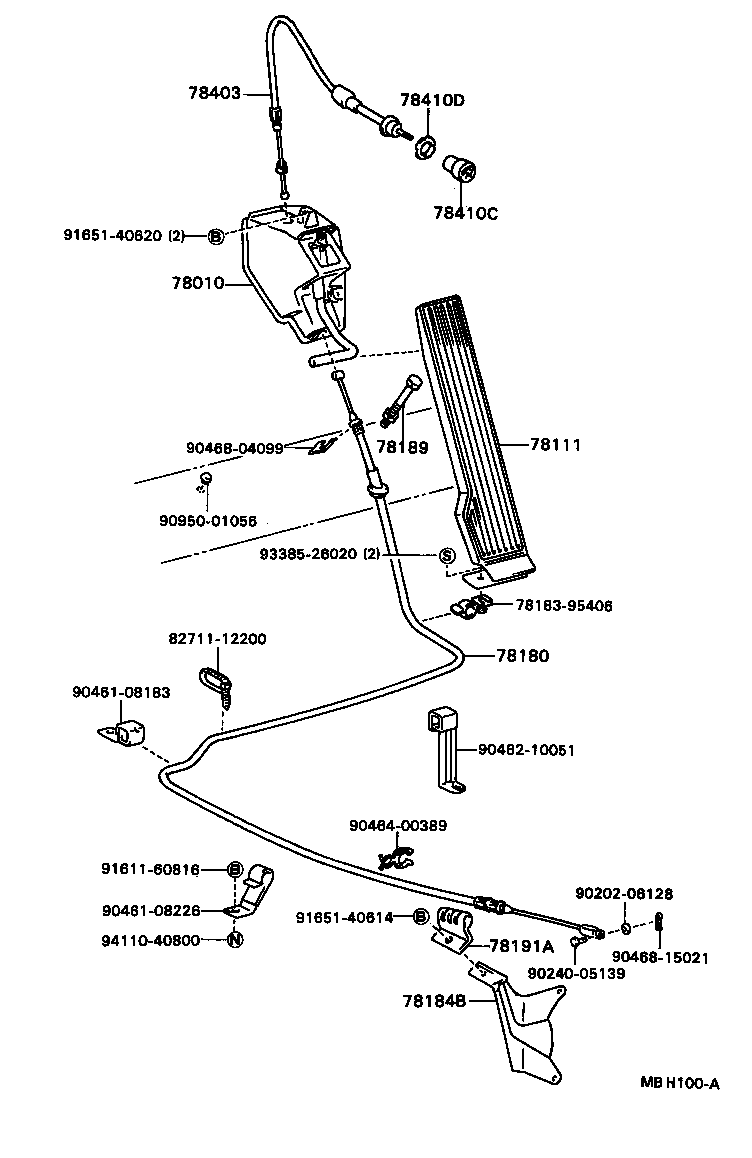

Figure MBH095B MBH095B 1984-09 → — Figure MBH100A MBH100A 1984-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78111 Pedal, Accelerator
78180 Wire Assy, Accelerator
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78302 Knob Sub-assy, Choke Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310B Clamp, Choke Cable
78310F Nut, Choke
78403 Cable Sub-assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
