Toyota Dyna/Toyoace

1984-09 → 1987-08 · chassis YU6#,70,80,WU75,9# · catalogue 752130 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

13 part groups · 7 illustrations

Illustrations

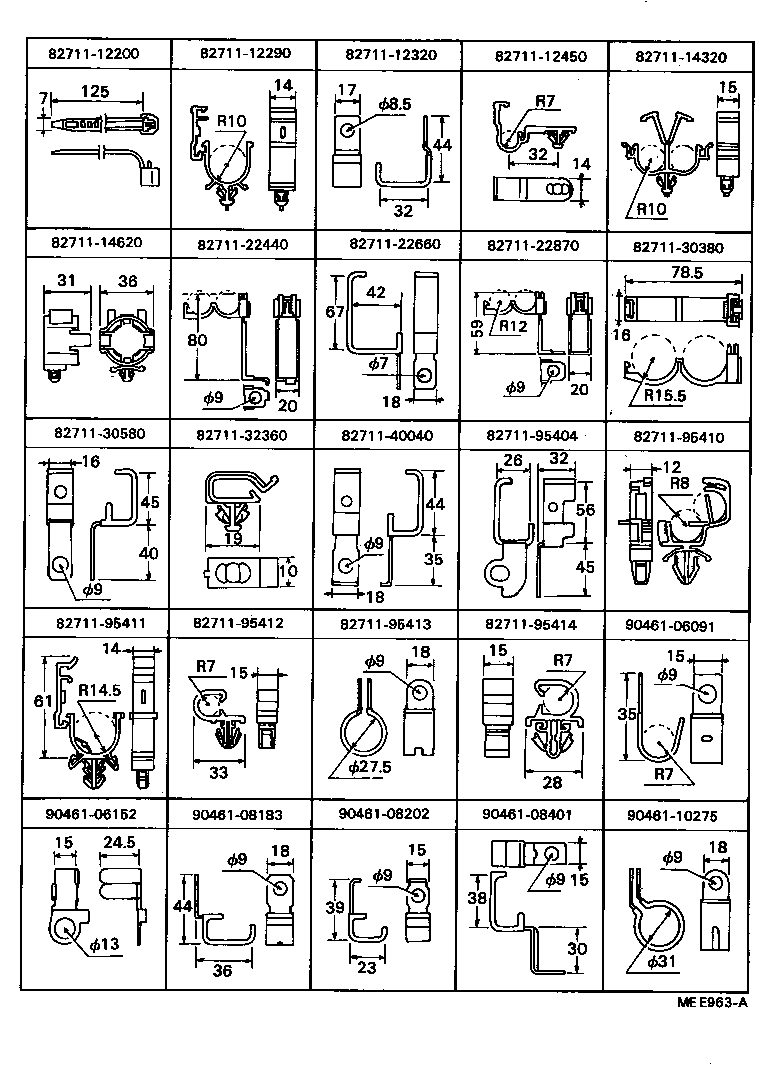

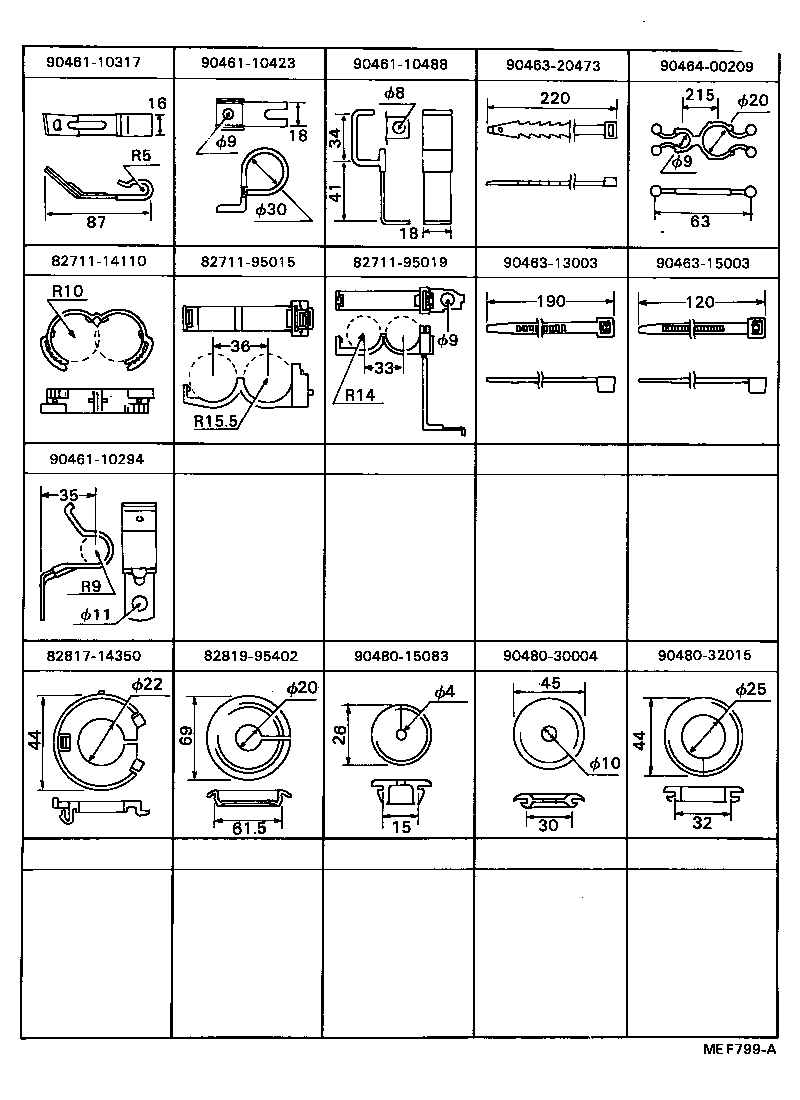

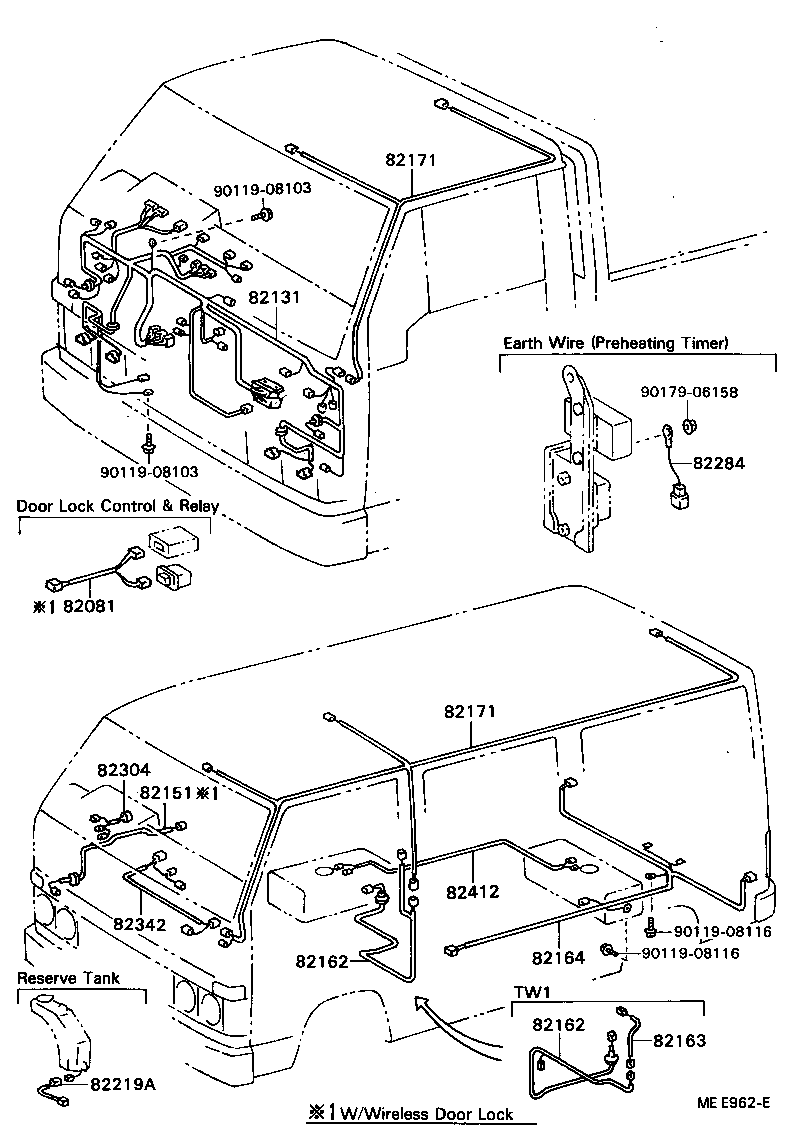

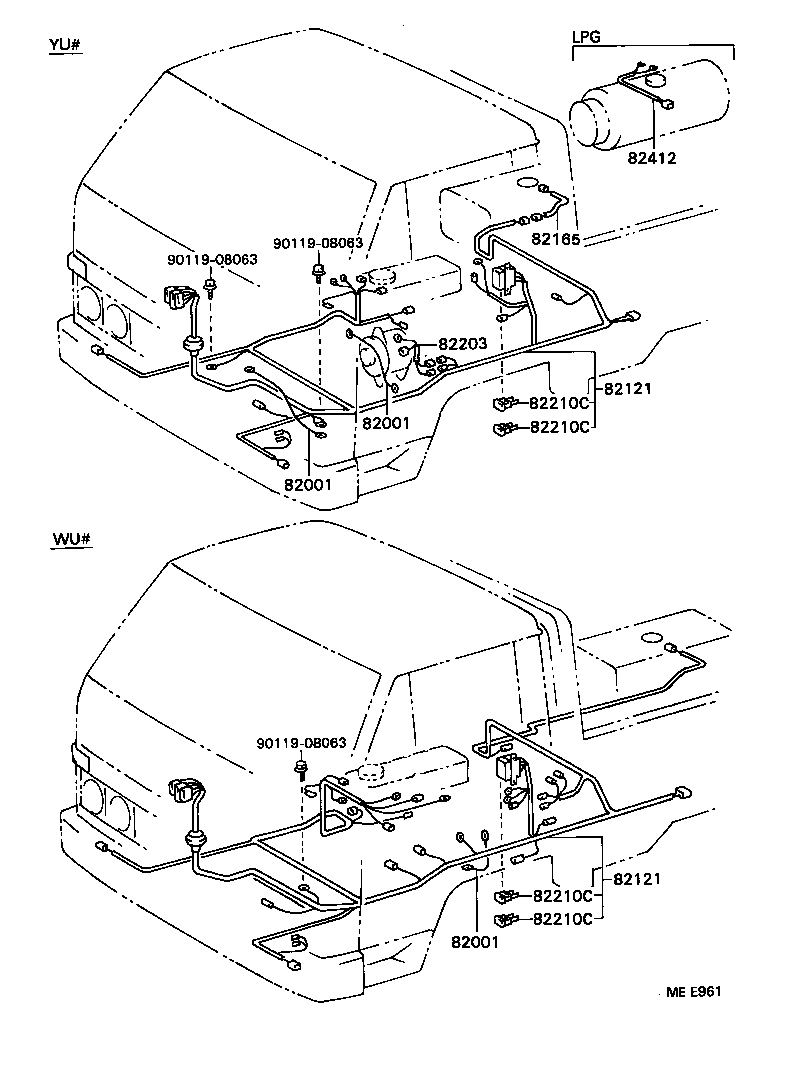

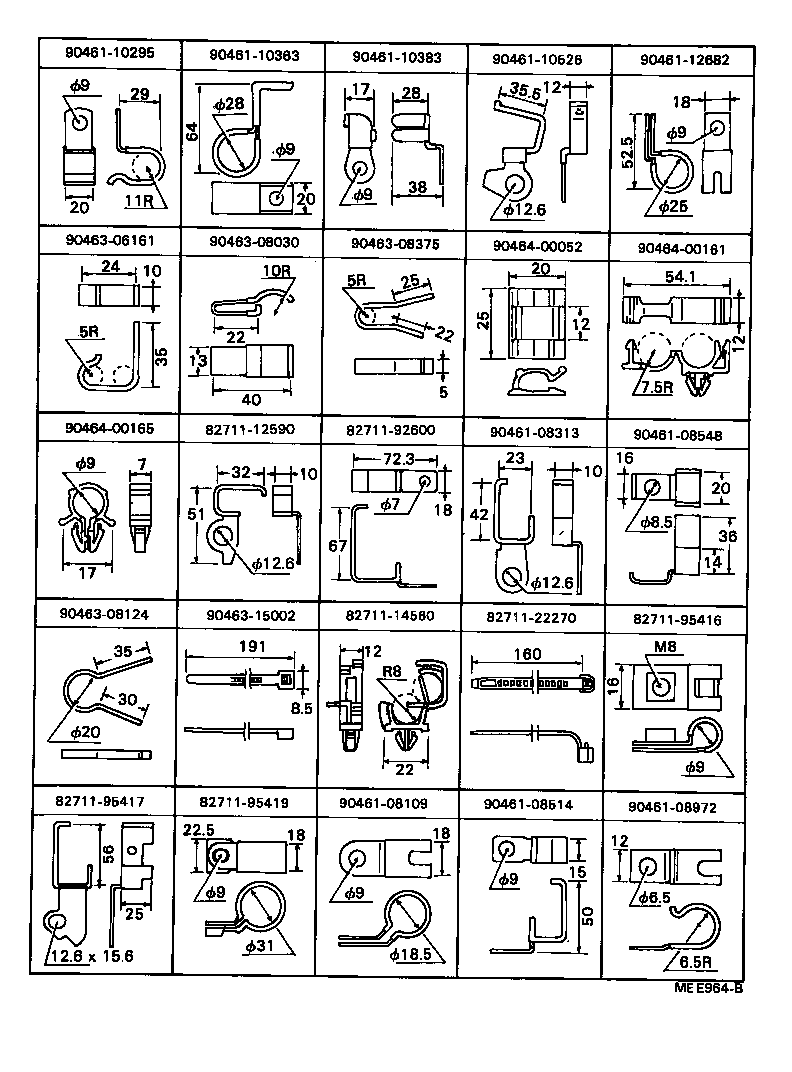

Figure MEE960A MEE960A 1984-09 → — Figure MEE961 MEE961 1984-09 → — Figure MEE962E MEE962E 1984-09 → — Figure MEH716 MEH716 1984-09 → — Figure MEE963A MEE963A 1984-09 → — Figure MEE964B MEE964B 1984-09 → — Figure MEF799A MEF799A 1984-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82121 Wire, Engine
82131 Wire, Cowl
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82304 Wire Sub-assy, TO Tachograph
82342 Wire, Clock
82412 Wire, Fuel Gage
82431 Wire, Work Lamp Feed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
