Toyota Dyna/Toyoace
1984-09 → 1987-08 · chassis YU6#,70,80,WU75,9# · catalogue 752130 · Japan
Discontinued model
Data version 1988-01

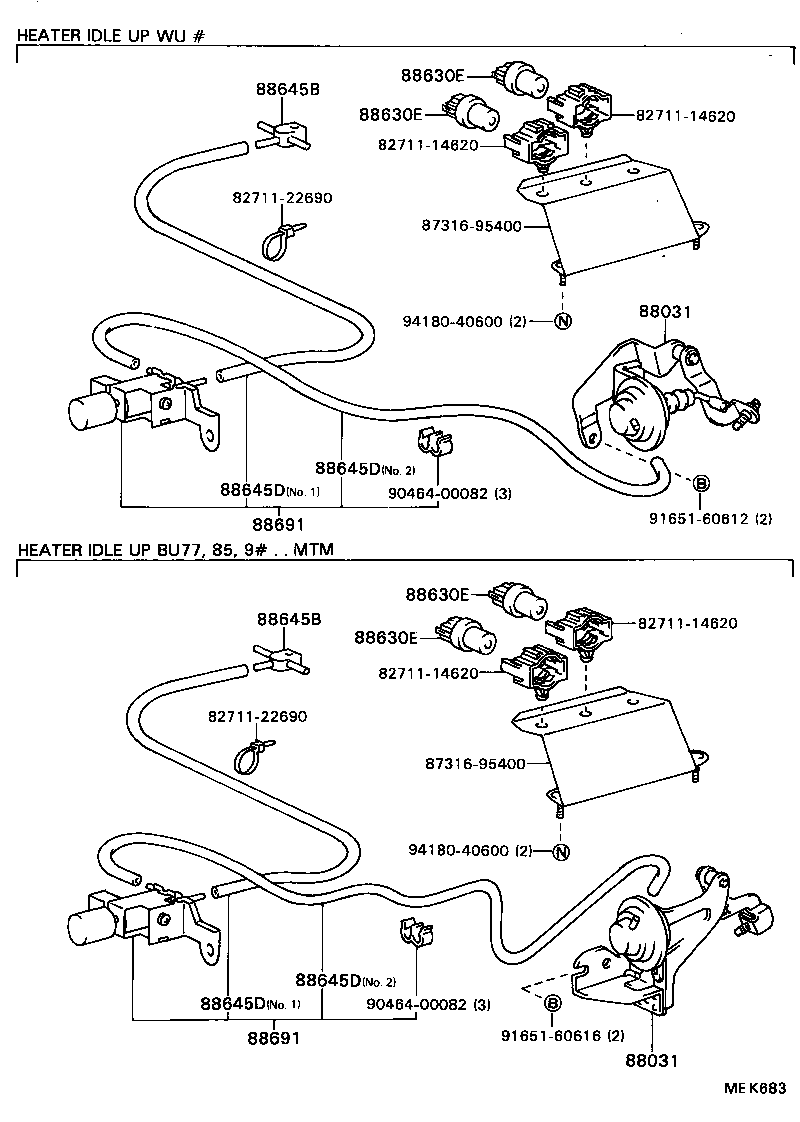

Heating & Air Conditioning - Vacuum Piping
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88630E | Relay Assy, Cooler |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
