Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

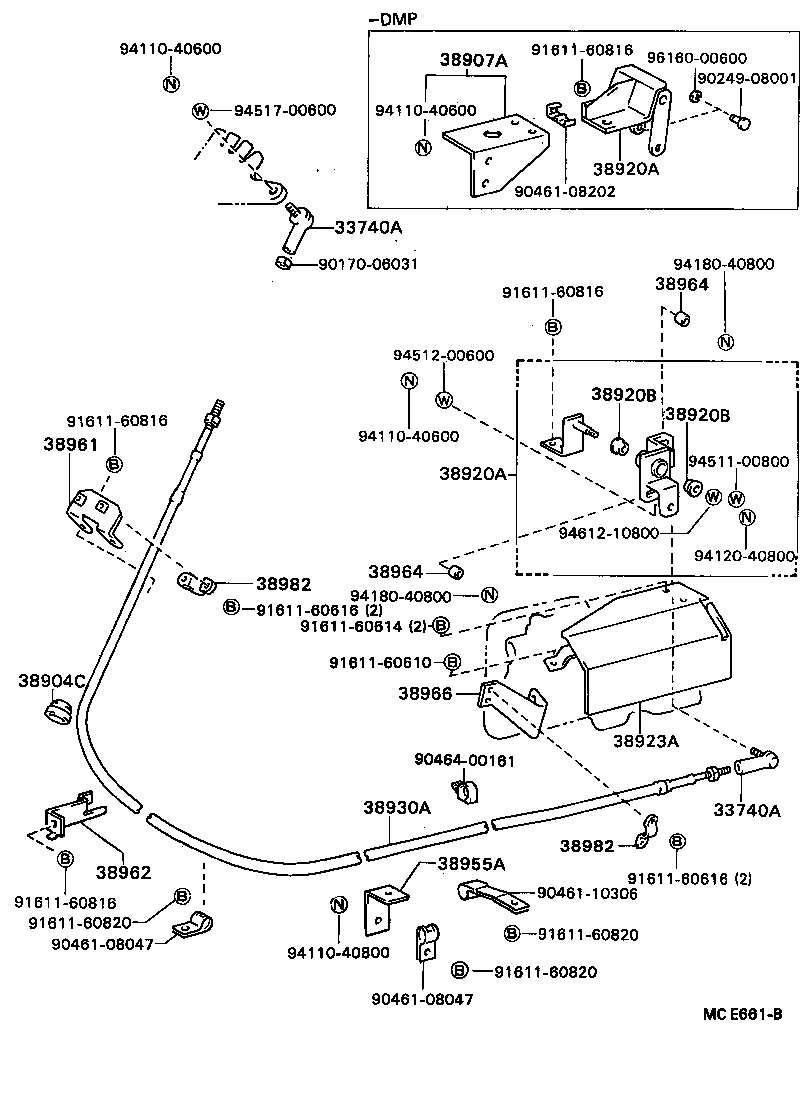

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33740A — End Assy, Push-pull Control Cable | ||||
| 33740-96301 |
End Assy, Push-pull Control Cable
1987-08 → 1988-08
ended
|
WU75 IV3;WU9#,YU60 | ¥1,240 | |
| 33740-96301 |
End Assy, Push-pull Control Cable
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥1,240 | |
| 38904C — Grommet, Push Pull Cable | ||||
| 90480-22013 |
Grommet, Push Pull Cable
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥200 | |
| 90480-22013 |
Grommet, Push Pull Cable
1987-08 → 1988-08
ended
|
WU75 IV3;WU9#,YU60 | ¥200 | |
| 38920A — Lever Assy, Power Take-off Control, NO.1 | ||||
| 38920-93108 |
Lever Assy, Power Take-off Control, NO.1
1987-08 → 1988-08
ended
|
WU75 IV3;WU9#,YU60 | ¥9,300 | |
| 38920-96302 |
Lever Assy, Power Take-off Control, NO.1
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | — | |
| 38920B — Bush (FOR POWER TAKE-OFF CONTROL LEVER) | ||||
| 90386-13007 |
Bush (FOR POWER TAKE-OFF CONTROL LEVER)
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥160 | |
| 38923A — Protector, Power Take-off Control | ||||
| 38923-96305 |
Protector, Power Take-off Control
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥3,170 | |
| 38930A — Cable Assy, Push Pull | ||||
| 38930-93116 |
Cable Assy, Push Pull
1987-08 → 1988-08
ended
|
YU60 | ¥12,400 | |
| 38930-93119 |
Cable Assy, Push Pull
1987-08 → 1988-08
ended
|
WU9#;WU75 IV3 | ¥12,400 | |
| 38930-96316 |
Cable Assy, Push Pull
1987-08 → 1988-08
ended
|
YU61 | ¥10,900 | |
| 38930-96320 |
Cable Assy, Push Pull
1987-08 → 1988-08
ended
|
WU75 CBU | ¥12,700 | |
| 38955A — Bracket, Control Cable, NO.5 | ||||
| 38955-93101 |
Bracket, Control Cable, NO.5
1987-08 → 1988-08
ended
|
WU9#;WU75 IV3 | ¥740 | |
| 38962 — Bracket, Cable Clamp, NO.2 | ||||
| 38962-96304 |
Bracket, Cable Clamp, NO.2
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥860 | |
| 38962-96304 |
Bracket, Cable Clamp, NO.2
1987-08 → 1988-08
ended
|
WU75 IV3;WU9#,YU60 | ¥860 | |
| 38964 — Collar, Control Lever | ||||
| 90560-08045 |
Collar, Control Lever
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥310 | |
| 38966 — Bracket, Cable Clamp, NO.6 | ||||
| 38966-96301 |
Bracket, Cable Clamp, NO.6
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥1,240 | |
| 38982 — Clamp, Push Pull Cable, NO.1 | ||||
| 38982-96302 |
Clamp, Push Pull Cable, NO.1
1987-08 → 1988-08
ended
|
YU61;WU75 CBU | ¥370 | |
| 38982-96302 |
Clamp, Push Pull Cable, NO.1
1987-08 → 1988-08
ended
|
WU75 IV3;WU9#,YU60 | ¥370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
