Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

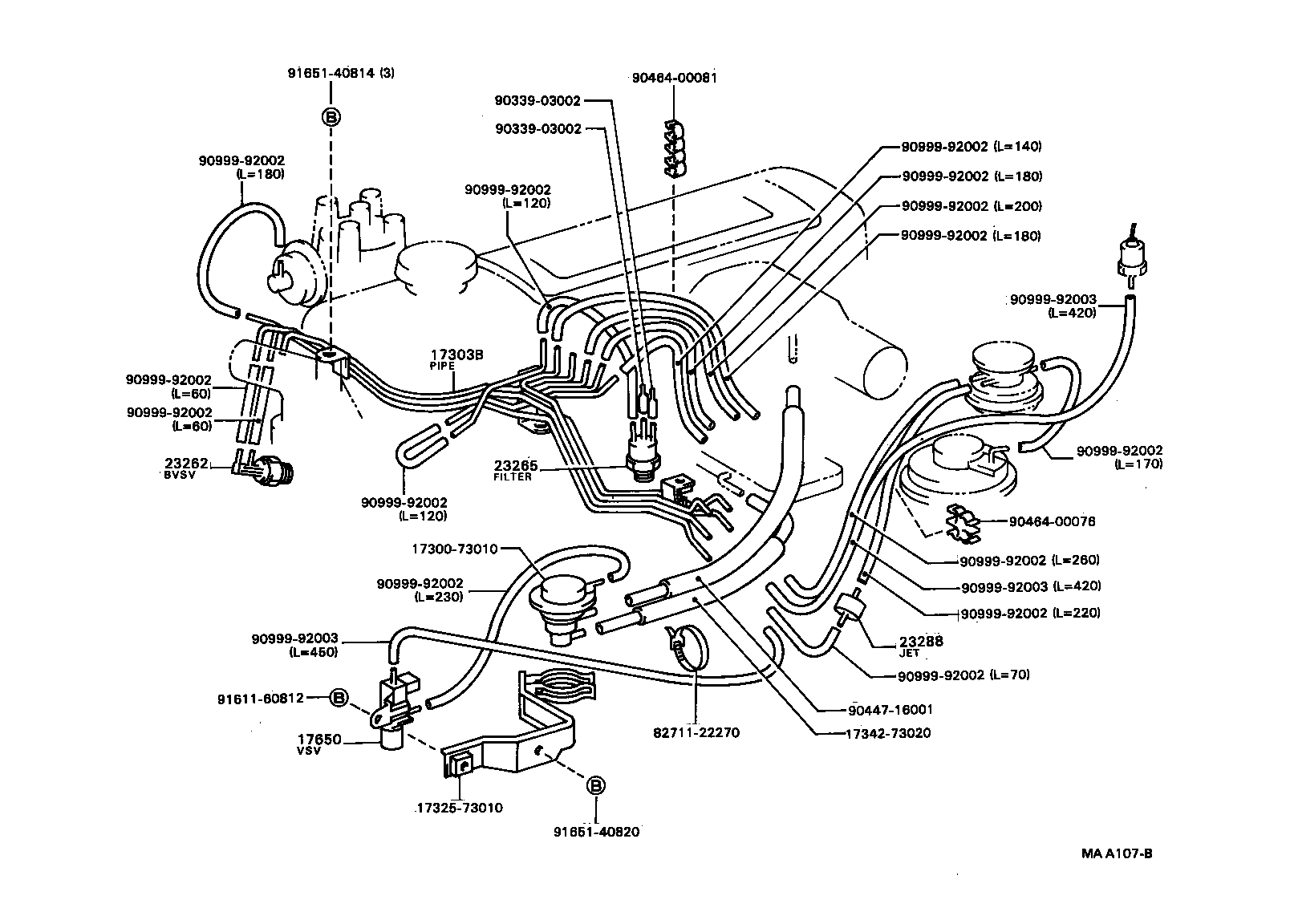

Vacuum Piping
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17650 | Valve Assy, Vacuum Switching |
| 17650D | Bracket, Vacuum Switching Valve |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23265 | Filter, Gas, NO.1 |
| 23288 | Jet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
