Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

12 part groups · 2 illustrations

Illustrations

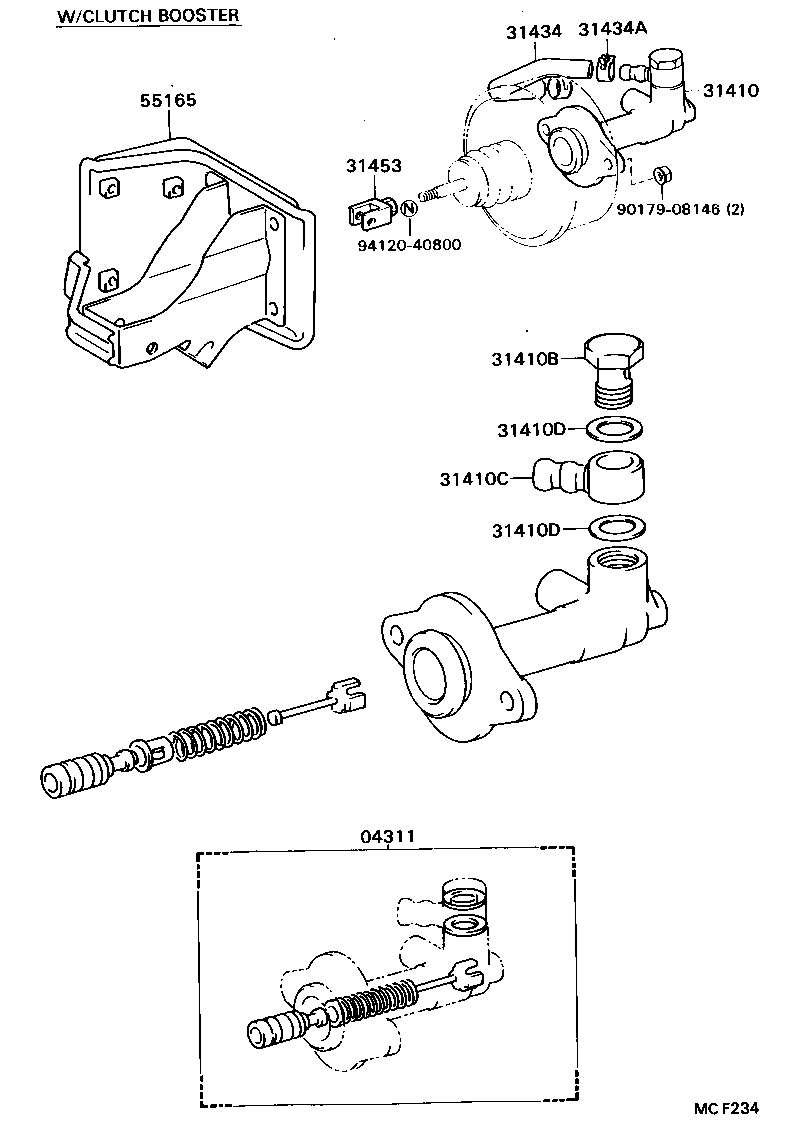

Figure MCE632A MCE632A 1987-08 → — Figure MCF234 MCF234 1987-08 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31410B Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)
31410C Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31410D Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
55165 Support, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
