Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

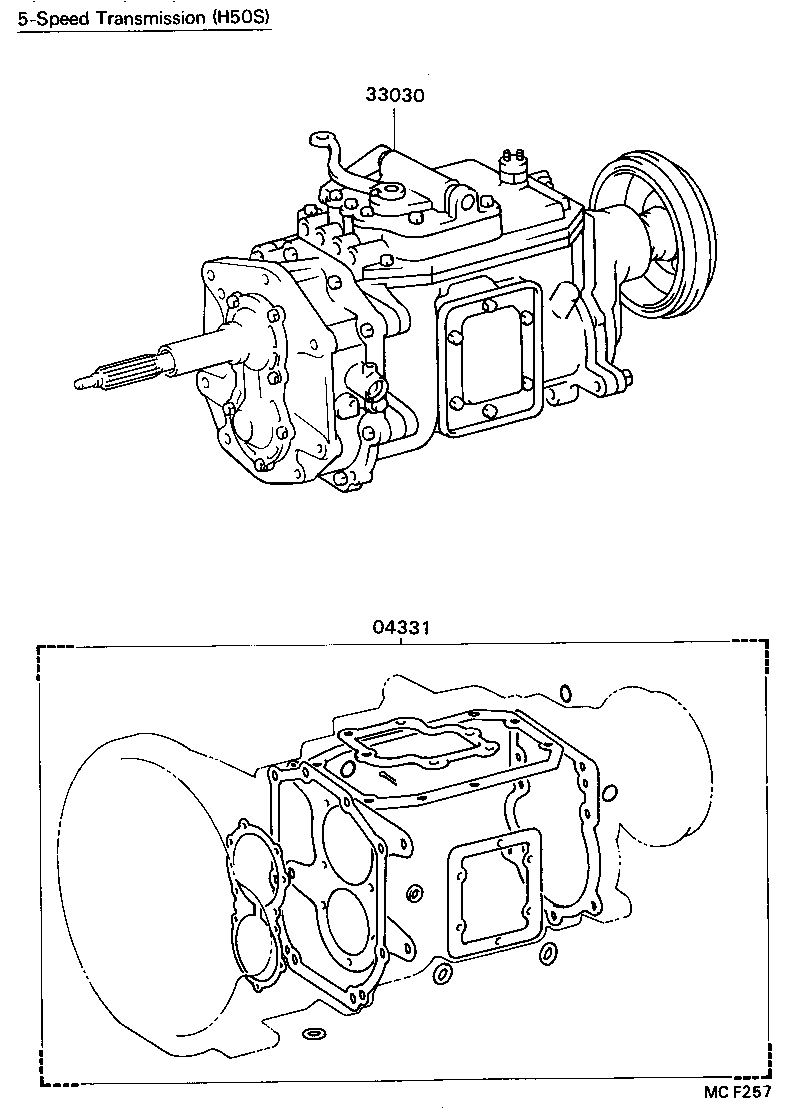

Figure MCF231 MCF231 1987-08 → — Figure MCF257 MCF257 1987-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
