Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hoist Cylinder Trunnion & Lift Arm

26 part groups · 2 illustrations

Illustrations

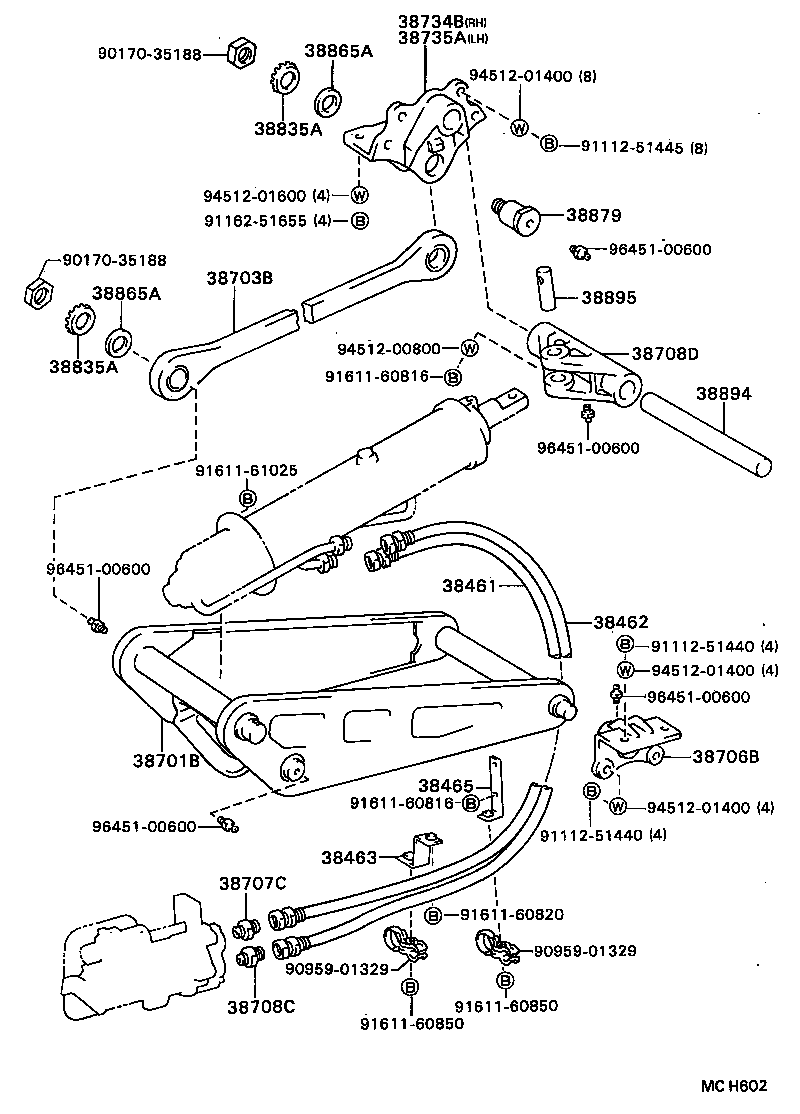

Figure MCE667C MCE667C 1987-08 → — Figure MCH602 MCH602 1987-08 → —

Part groups

PNCDescription
38461 Hose, Power Oil Pump Suction
38462 Hose, Power Oil Pump Delivery
38463 Bracket, Power Oil Pump Hose Clamp
38465 Bracket, Power Oil Pump Hose Clump
38467 Insulator, Power Oil Hose
38701B Arm Sub-assy, Lift
38702 Shaft Sub-assy, Tension Arm
38703B Arm Sub-assy, Tension
38706B Bracket Sub-assy, Trunnion
38707C Union (FOR SUCTION HOSE)
38707D Bracket Sub-assy, Tension Arm Shaft
38708C Union (FOR DELIVERY HOSE)
38708D Crosshead Sub-assy, Hoist Cylinder
38709D Bracket Sub-assy, Lift Arm
38734B Bracket, Tension Arm, RH
38735A Bracket, Tension Arm, LH
38741A Trunnion, Hoist Cylinder
38753A Pin, Crosshead
38806A Bush, Tension Arm Head
38835A Washer, Tension Arm
38865A Washer, Tension Arm Shaft
38879 Pin, Tension Arm
38882 Bush, Trunnion
38892A Bush (FOR LINK ARM BODY BRACKET)
38894 Shaft, Crosshead
38895 Pin, Crosshead
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
