Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

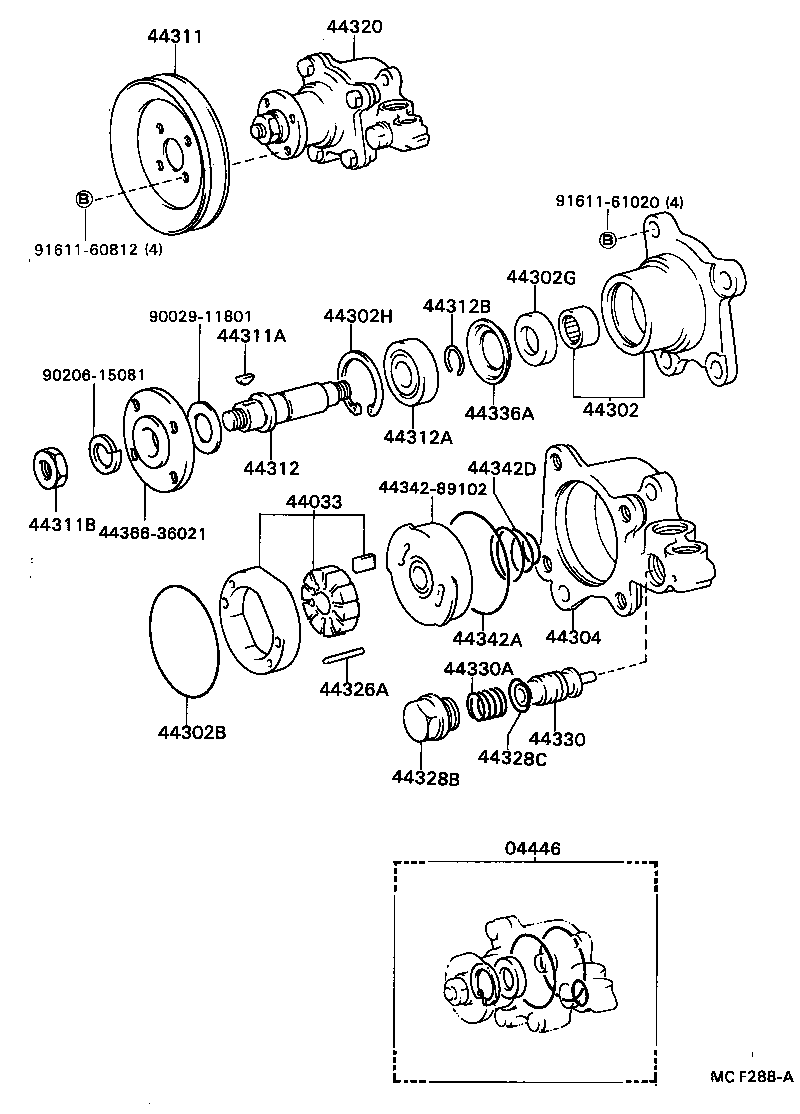

Vane Pump & Reservoir (POWER STEERING)
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44033 | Rotor Sub-assy, W/Cam & Vane |
| 44037 | Cover Sub-assy, Oil Reservoir |
| 44302 | Housing Sub-assy, Vane Pump, Front |
| 44302B | Ring, O, NO.1(FOR VANE PUMP HOUSING) |
| 44302G | Seal, Oil, NO.2(FOR VANE PUMP HOUSING) |
| 44302H | Ring, Snap, NO.1(FOR VANE PUMP HOUSING) |
| 44304 | Housing Sub-assy, Vane Pump, Rear |
| 44311 | Pulley, Vane Pump |
| 44311A | Key, Vane Pump Pulley |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44312 | Shaft, Vane Pump |
| 44312A | Bearing(FOR VANE PUMP SHAFT) |
| 44312B | Ring, Snap, NO.1(FOR VANE PUMP SHAFT) |
| 44316 | Gear, Vane Pump |
| 44320 | Pump Assy, Vane |
| 44326A | Pin, Straight(FOR VANE PUMP CAM RING) |
| 44328B | End, Vane Pump Housing |
| 44328C | Ring, O(FOR PUMP HOUSING END) |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44336A | Retainer, Vane Pump Oil Seal |
| 44337 | Union, Power Steering Suction Port |
| 44342 | Plate, Vane Pump Side, Rear |
| 44342A | Ring, O(FOR VANE PUMP SIDE PLATE REAR) |
| 44342D | Spring, Compression(FOR PRESSURE PLATE) |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44363 | Strainer, Oil(FOR VANE PUMP) |
| 44366A | Seat, Pump Pulley |
| 44391 | Plate, Power Steering Oil Reservoir Caution |
| 44429B | Bolt, Union(FOR RESERVOIR TO OIL PUMP UNION) |
| 44429C | Gasket(FOR RESERVOIR TO OIL PUMP UNION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
