Toyota Dyna/Toyoace
1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan
Discontinued model
Data version 1989-04

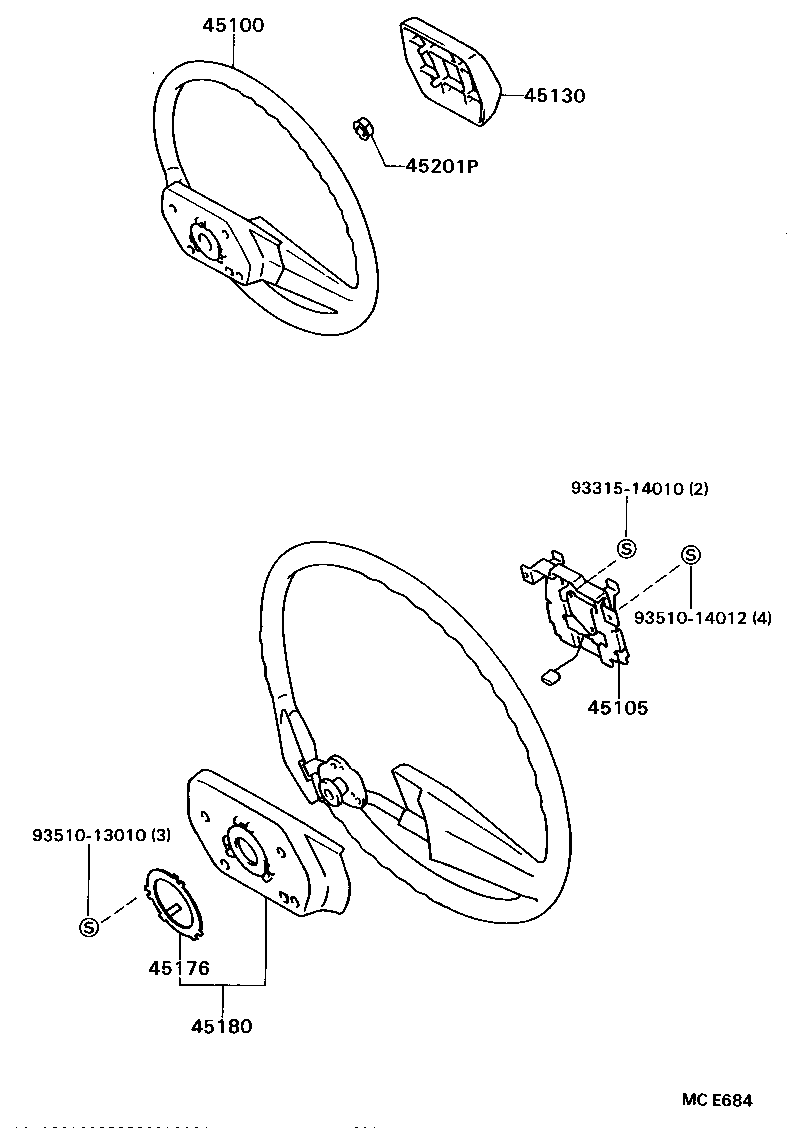

Steering Wheel
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45105 | Plate Sub-assy, Horn Button Contact, NO.1 |
| 45130 | Button Assy, Horn |
| 45176 | Ring, Horn Contact |
| 45180 | Cover Sub-assy, Steering Wheel |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
