Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

52 part groups · 12 illustrations

Illustrations

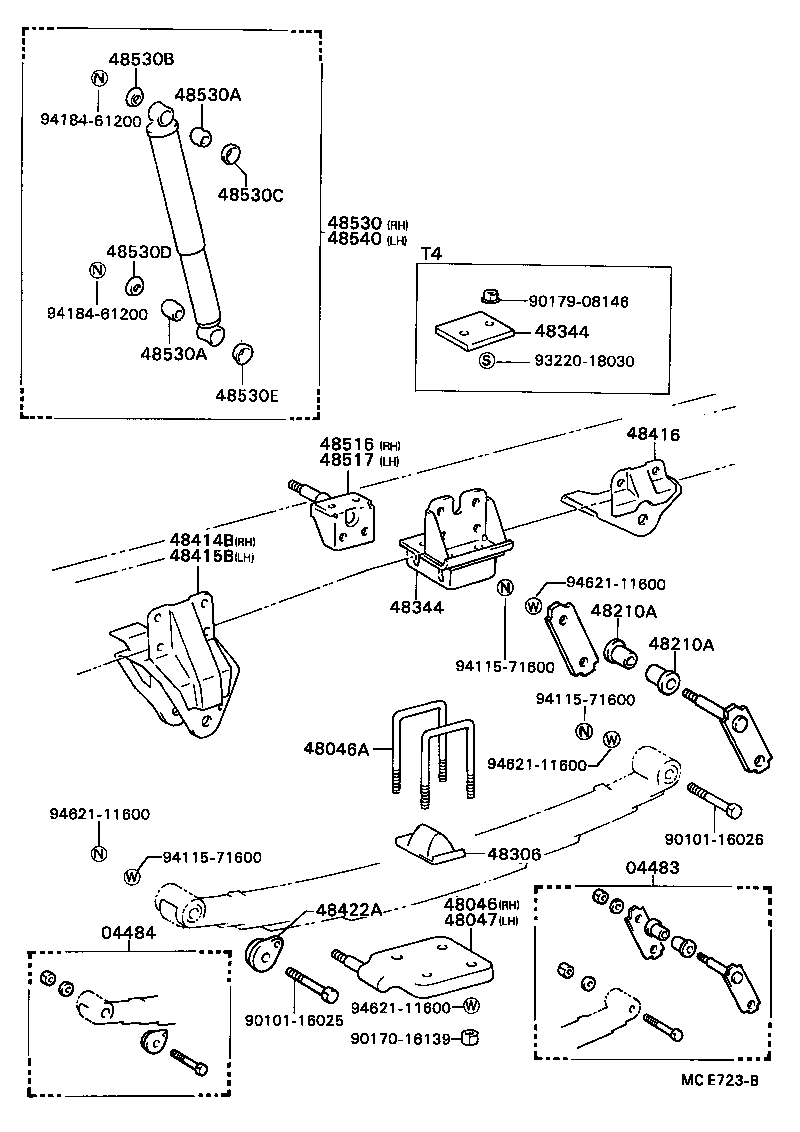

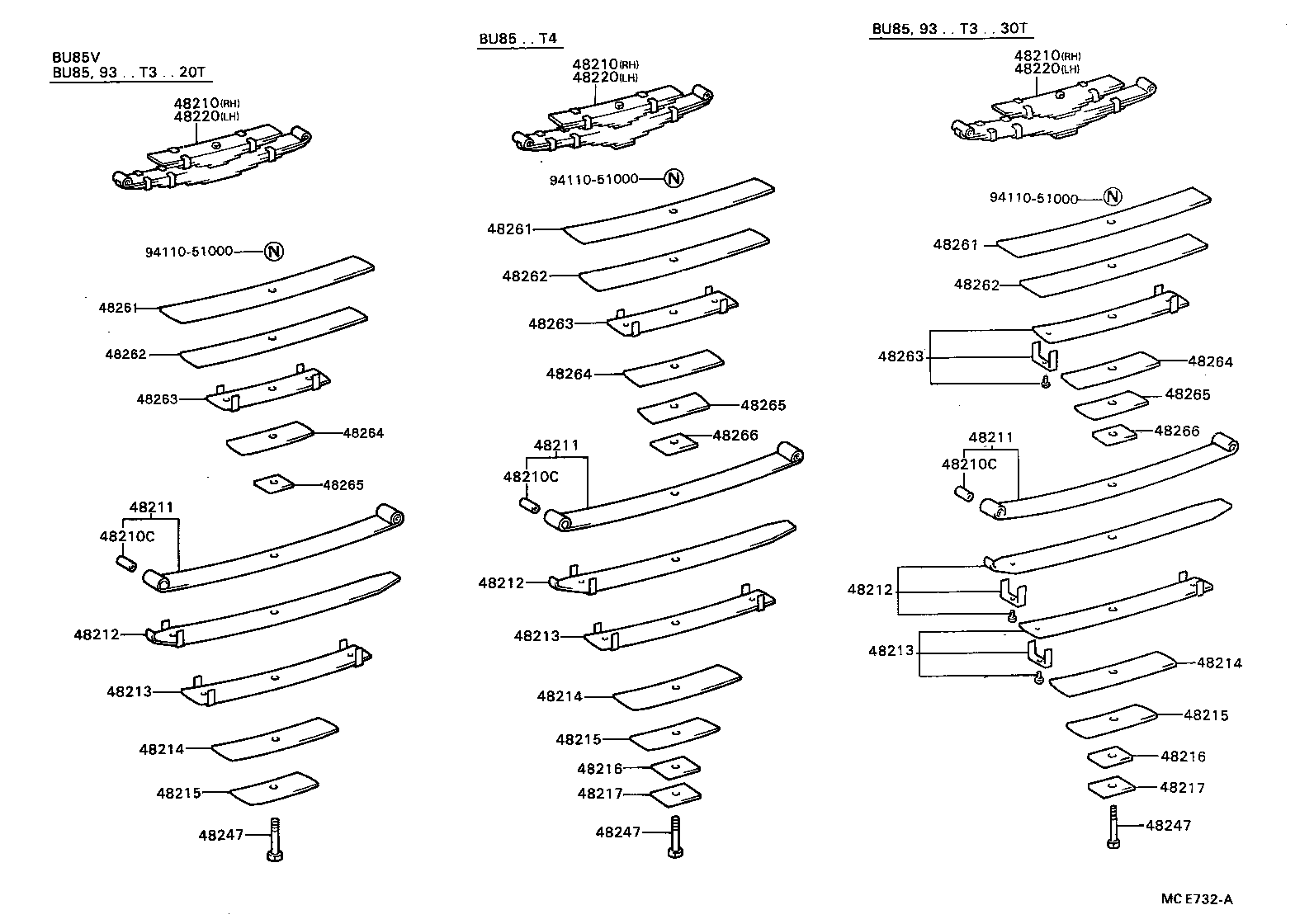

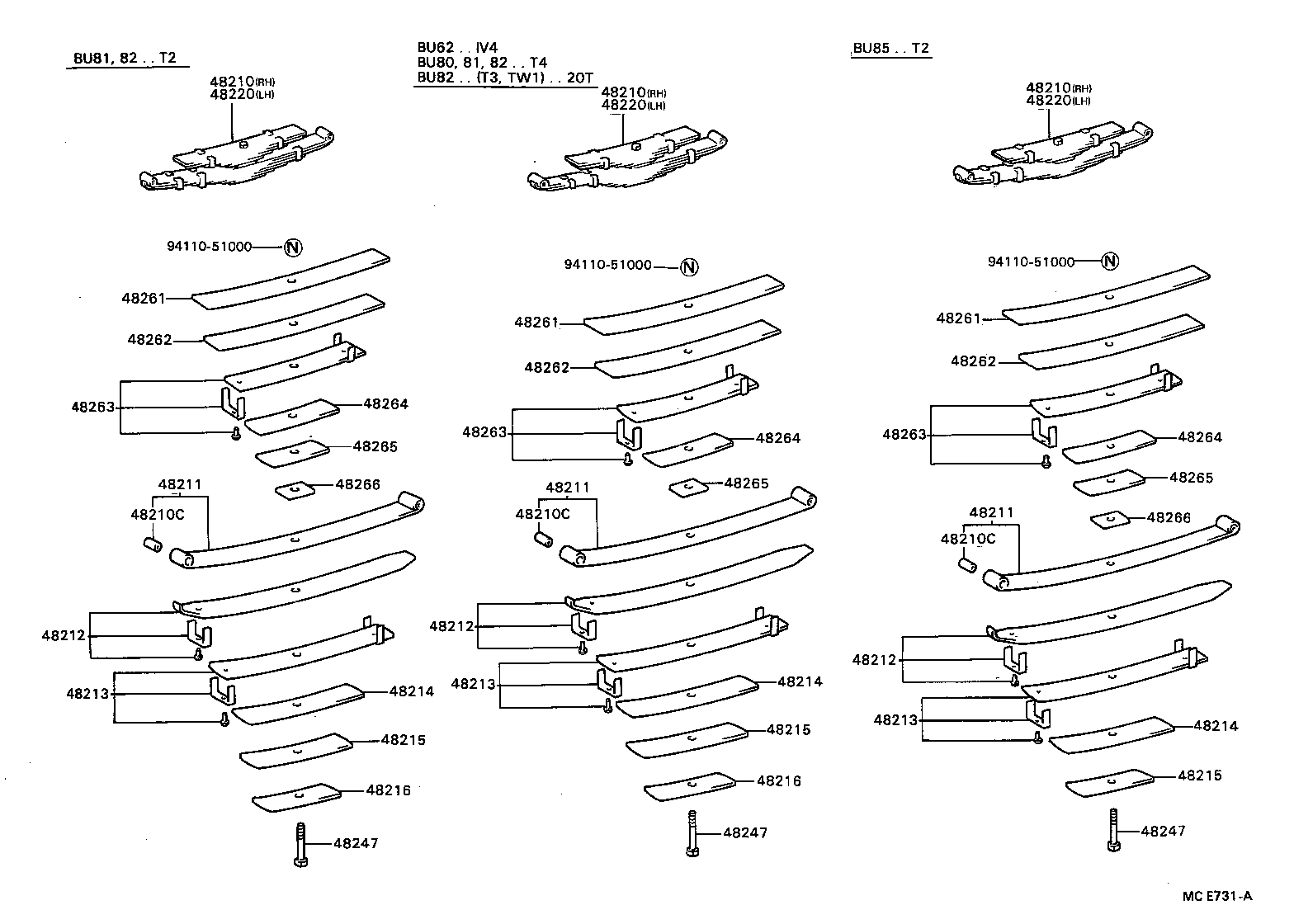

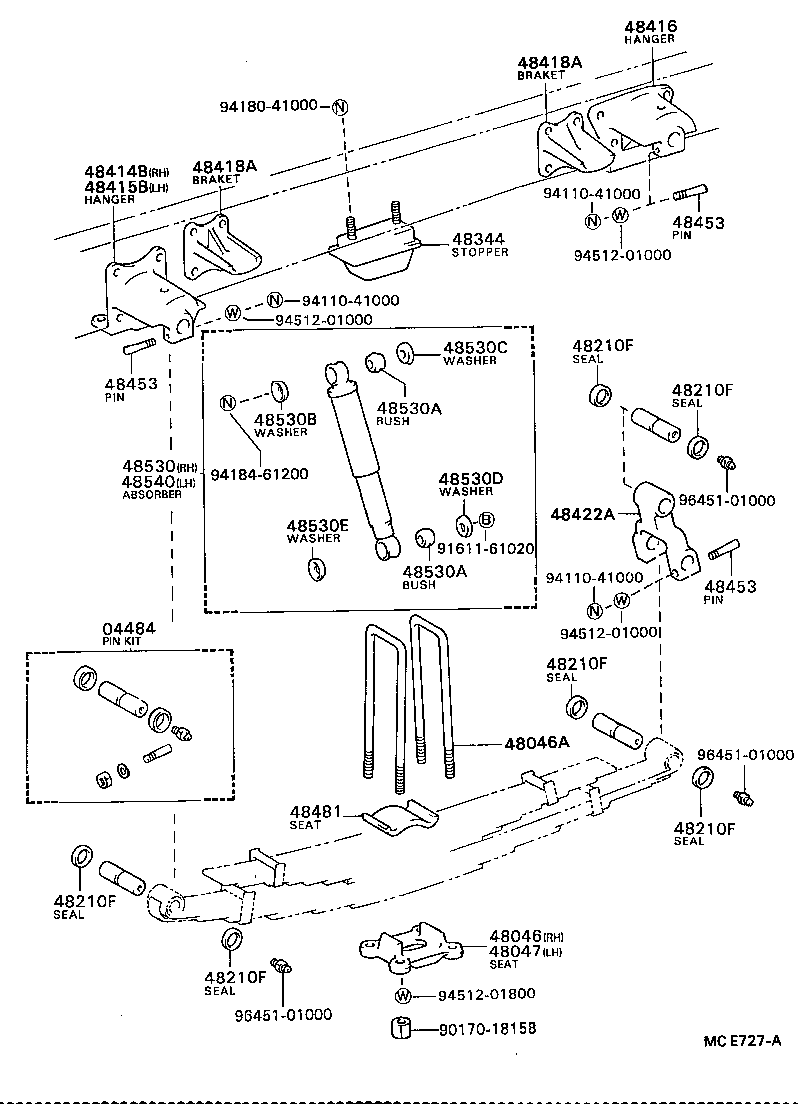

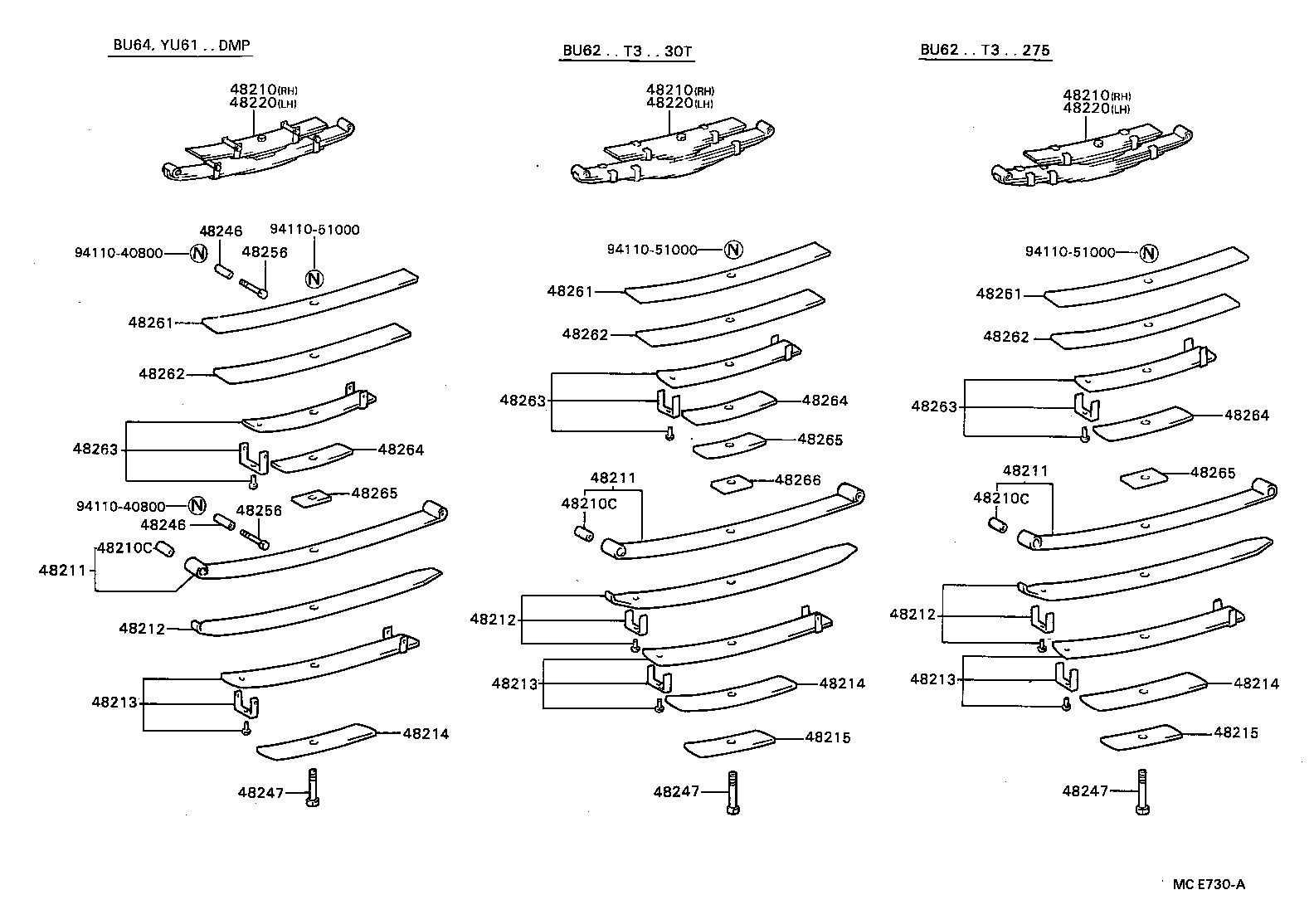

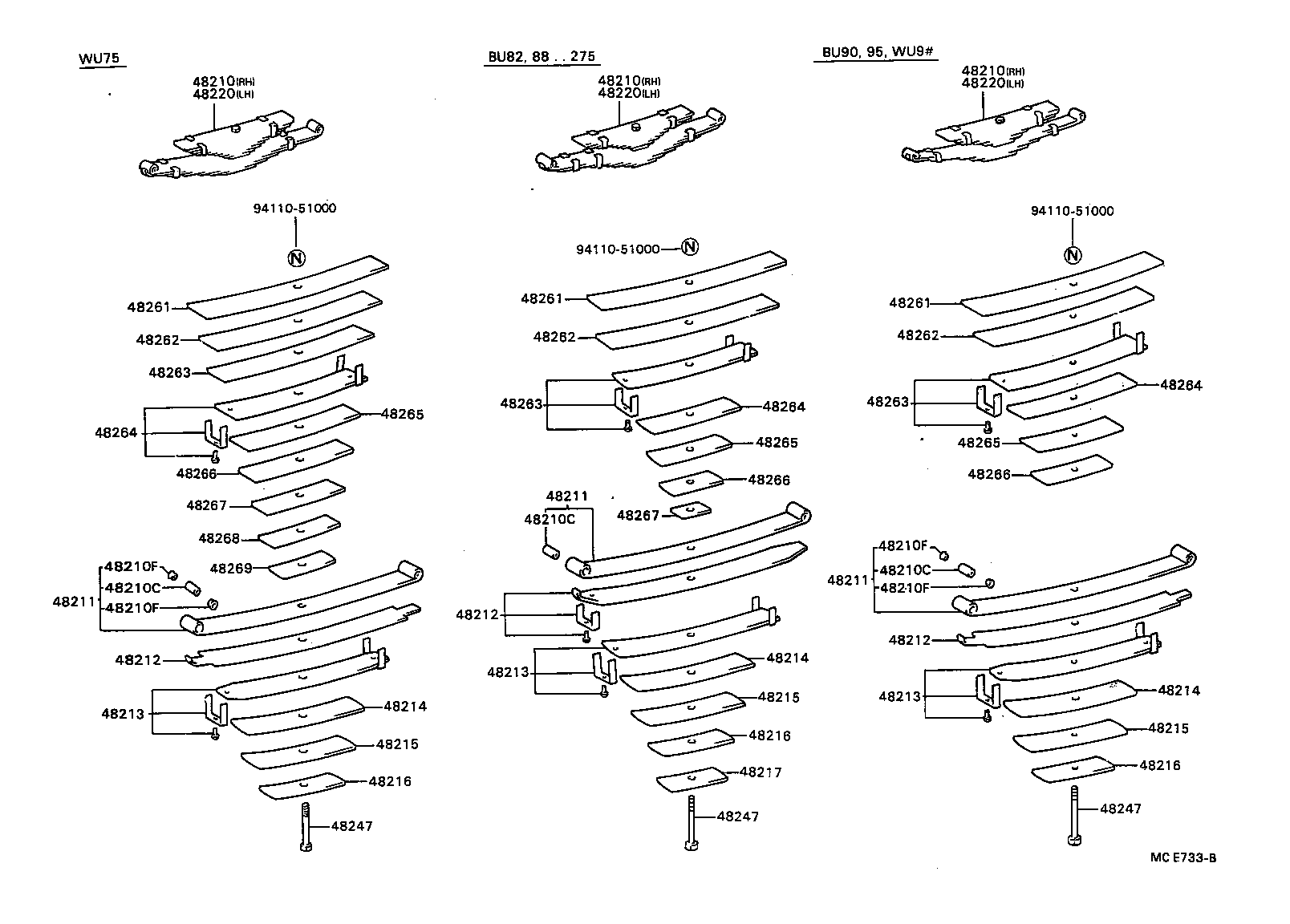

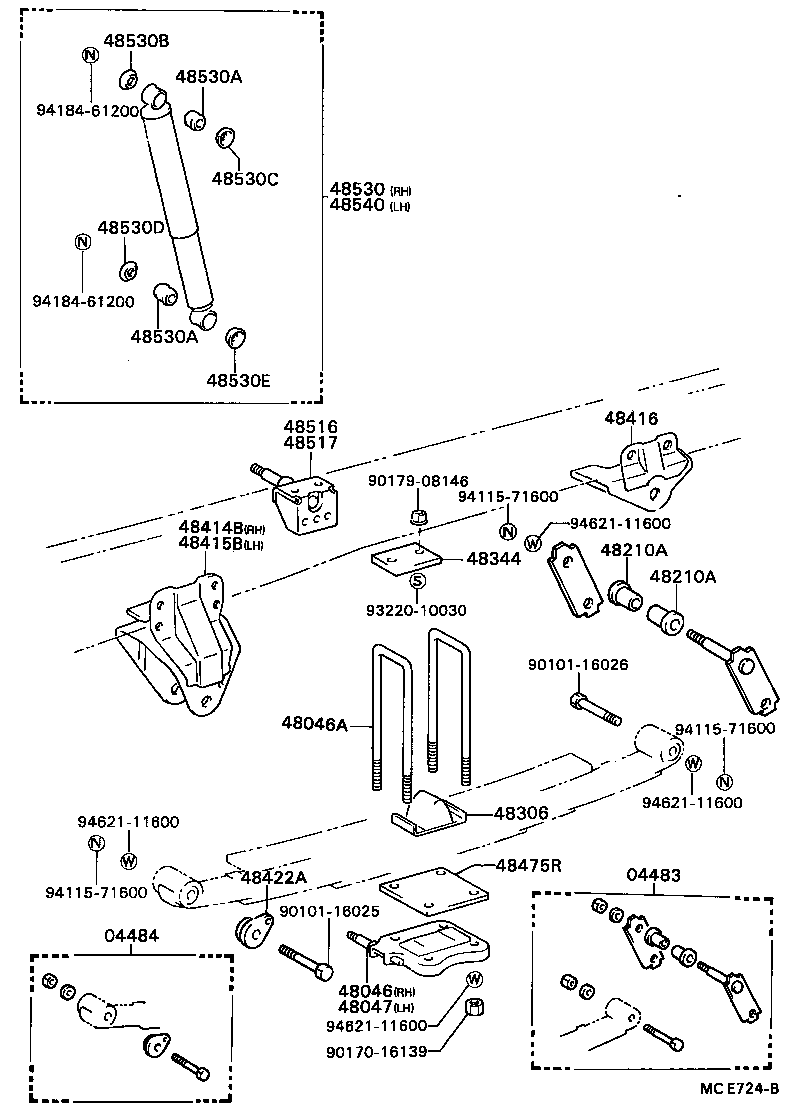

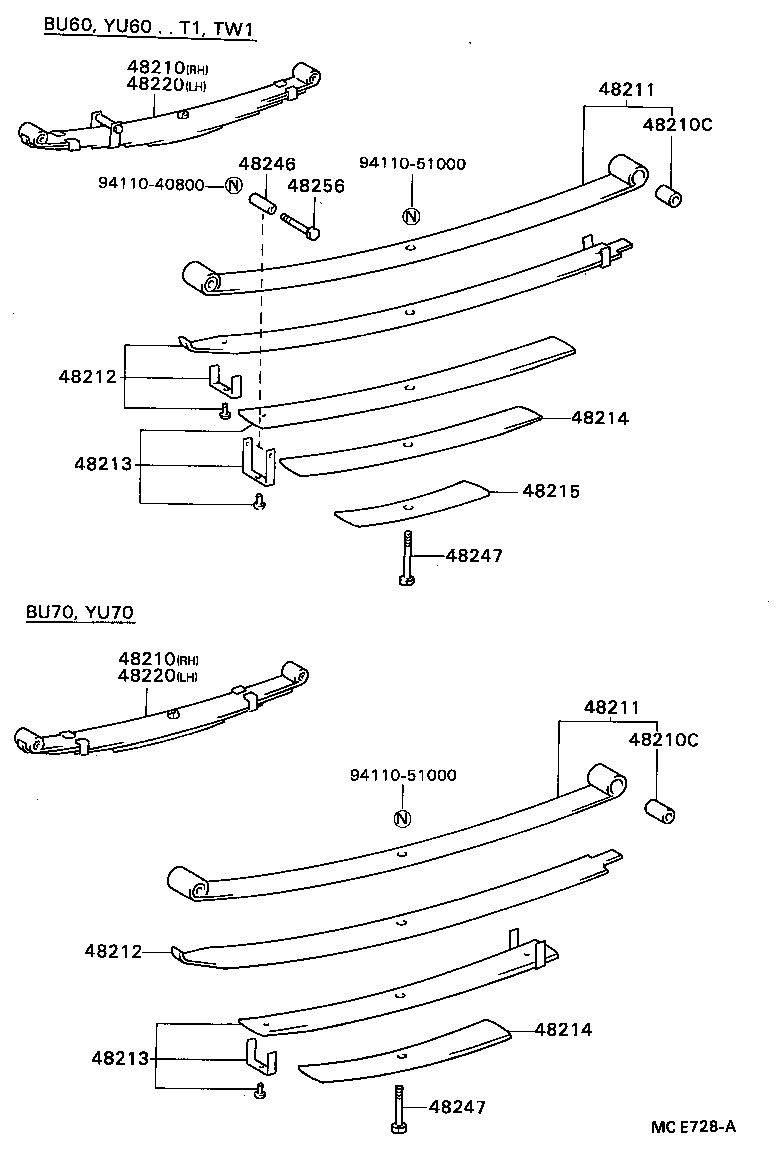

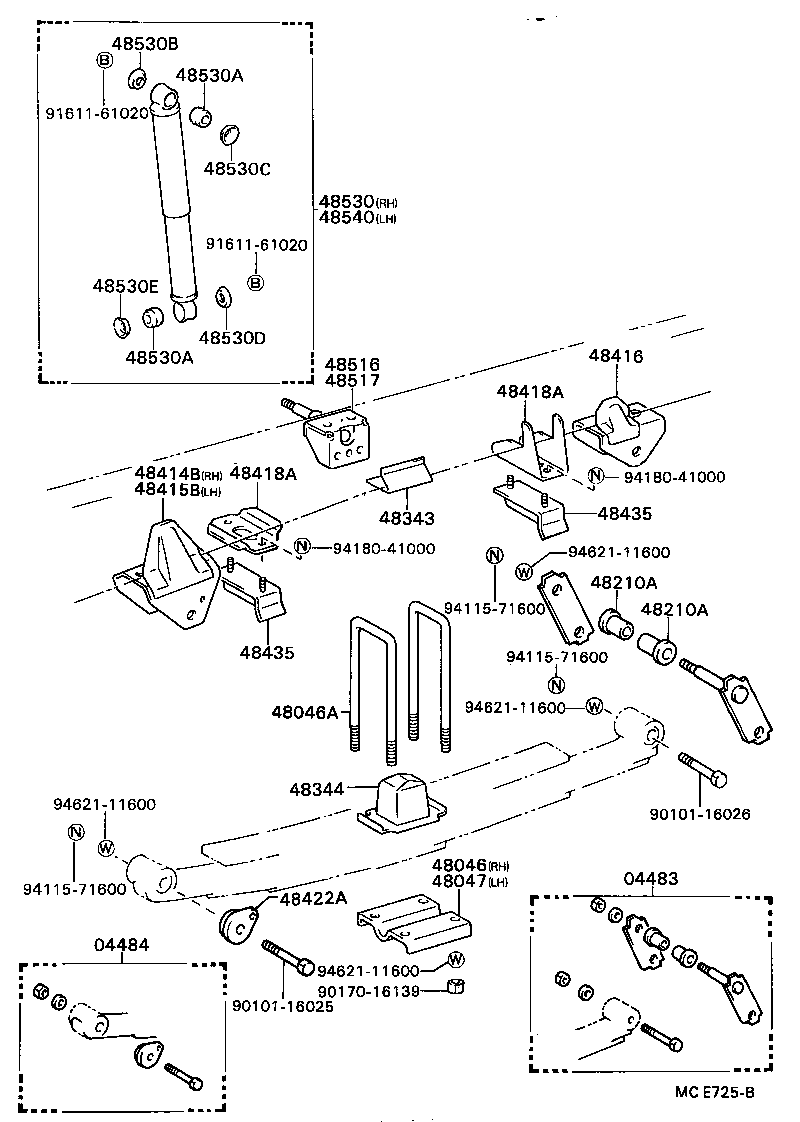

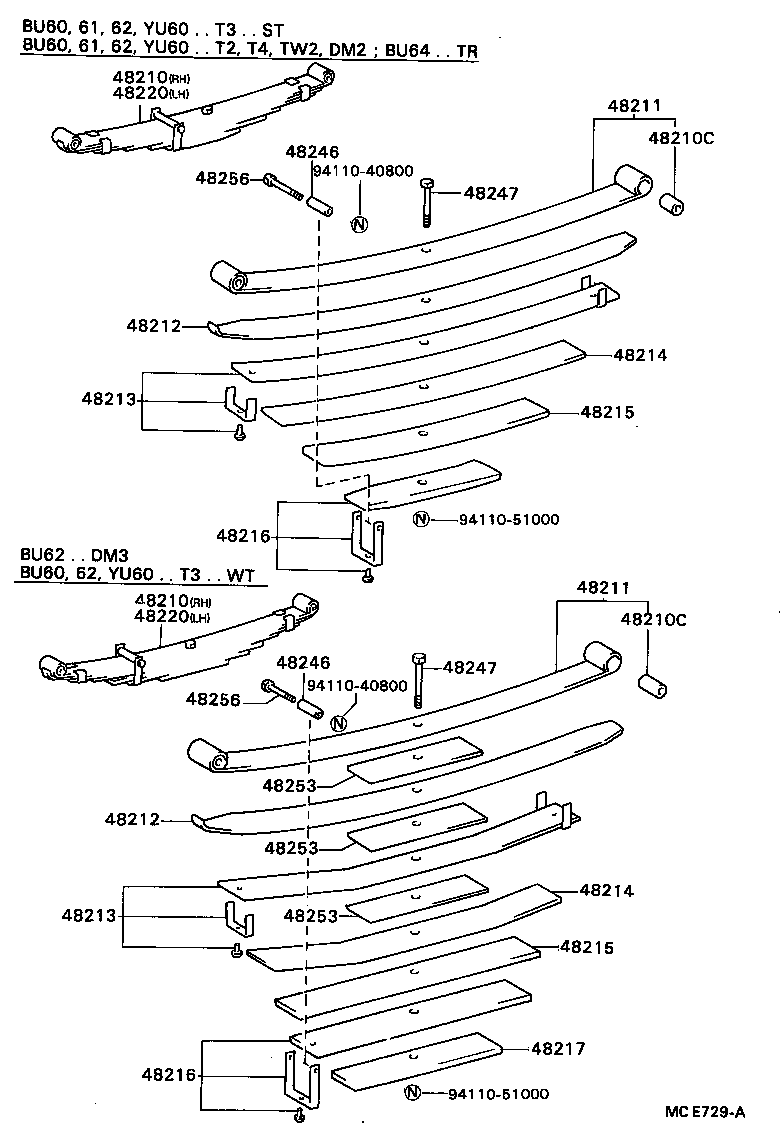

Figure MCE722B MCE722B 1987-08 → — Figure MCE723B MCE723B 1987-08 → — Figure MCE724B MCE724B 1987-08 → — Figure MCE725B MCE725B 1987-08 → — Figure MCE727A MCE727A 1987-08 → — Figure MCE728A MCE728A 1987-08 → — Figure MCE729A MCE729A 1987-08 → — Figure MCE730A MCE730A 1987-08 → — Figure MCE731A MCE731A 1987-08 → — Figure MCE732A MCE732A 1987-08 → — Figure MCE733B MCE733B 1987-08 → — Figure 482218 482218 1987-08 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48269 Leaf, Rear Helper Spring, NO.9
48306 Bumper Sub-assy, Rear Spring
48343 Bracket, Rear Axle Cushion
48344 Stopper, Bumper, Rear
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416 Bracket, Spring, NO.4
48418A Bracket, Helper Spring, Front
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48453 Pin, Rear Spring Pin Lock
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
