Toyota Dyna/Toyoace

1987-08 → 1988-07 · chassis YU6#,70,WU75,9# · catalogue 752140 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

27 part groups · 3 illustrations

Illustrations

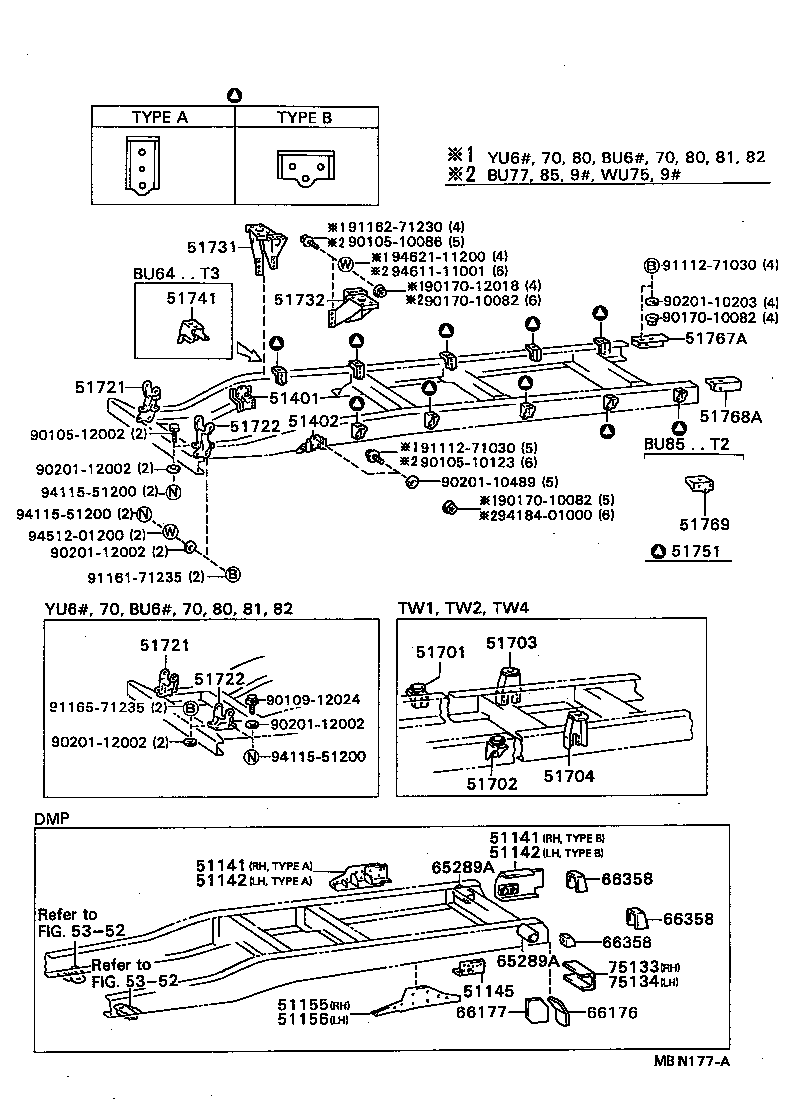

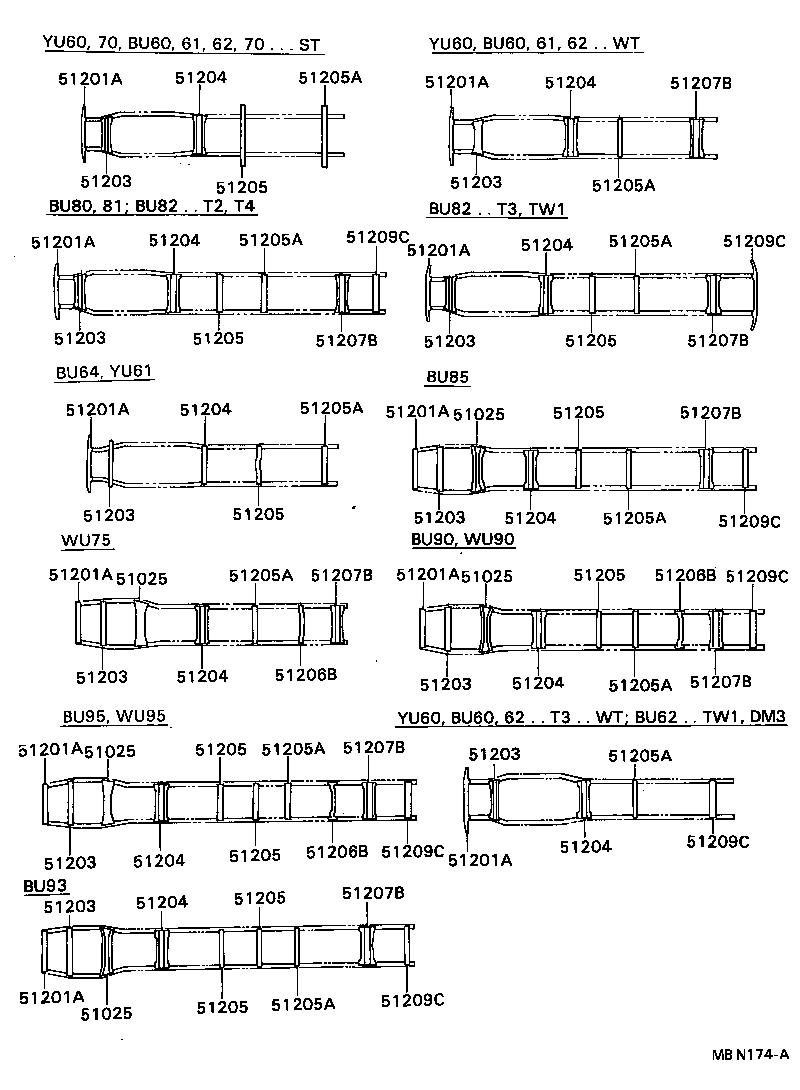

Figure MBN172A MBN172A 1987-08 → — Figure MBN174A MBN174A 1987-08 → — Figure MBN177A MBN177A 1987-08 → —

Part groups

PNCDescription
51025 Member Sub-assy, Engine Front Mounting
51100F Frame Sub-assy
51201A Crossmember Sub-assy, Frame, Front
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51205A Bracket Sub-assy, Differential Support
51206B Crossmember Sub-assy, Frame, NO.6
51207B Crossmember Sub-assy, Frame, NO.7
51209C Crossmember Sub-assy, Frame, Rear
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51721 Bracket, Cab Front Mounting, RH
51722 Bracket, Cab Front Mounting, LH
51731 Bracket, Cab Rear Mounting, RH
51732 Bracket, Cab Rear Mounting, LH
51751 Bracket, Body Support, NO.1
51767A Bracket, Frame Body Mounting, NO.8 RH
51768A Bracket, Frame Body Mounting, NO.8 LH
65289A Support, Vessel Hinge
66176 Patch, Chassis Rail
66177 Gusset, Chassis Rail
66358 Plate, Frame End
75133 Base, Combination Rear Lamp Bracket, RH
75134 Base, Combination Rear Lamp Bracket, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
